Fuel Lid Opener Does Not Operate

Fuel Lid Opener does not Operate

DESCRIPTION
When the fuel lid opener switch is pushed, a fuel lid opener switch signal is sent to the main body ECU to the rear junction block ECU via the CAN line. If the main body ECU is not sounding the alarm or is not in the warning state, the main body ECU sends a fuel lid open output request signal to the rear junction block ECU via the CAN line, and operates the fuel lid with motor lock (fuel lid opener motor).

WIRING DIAGRAM

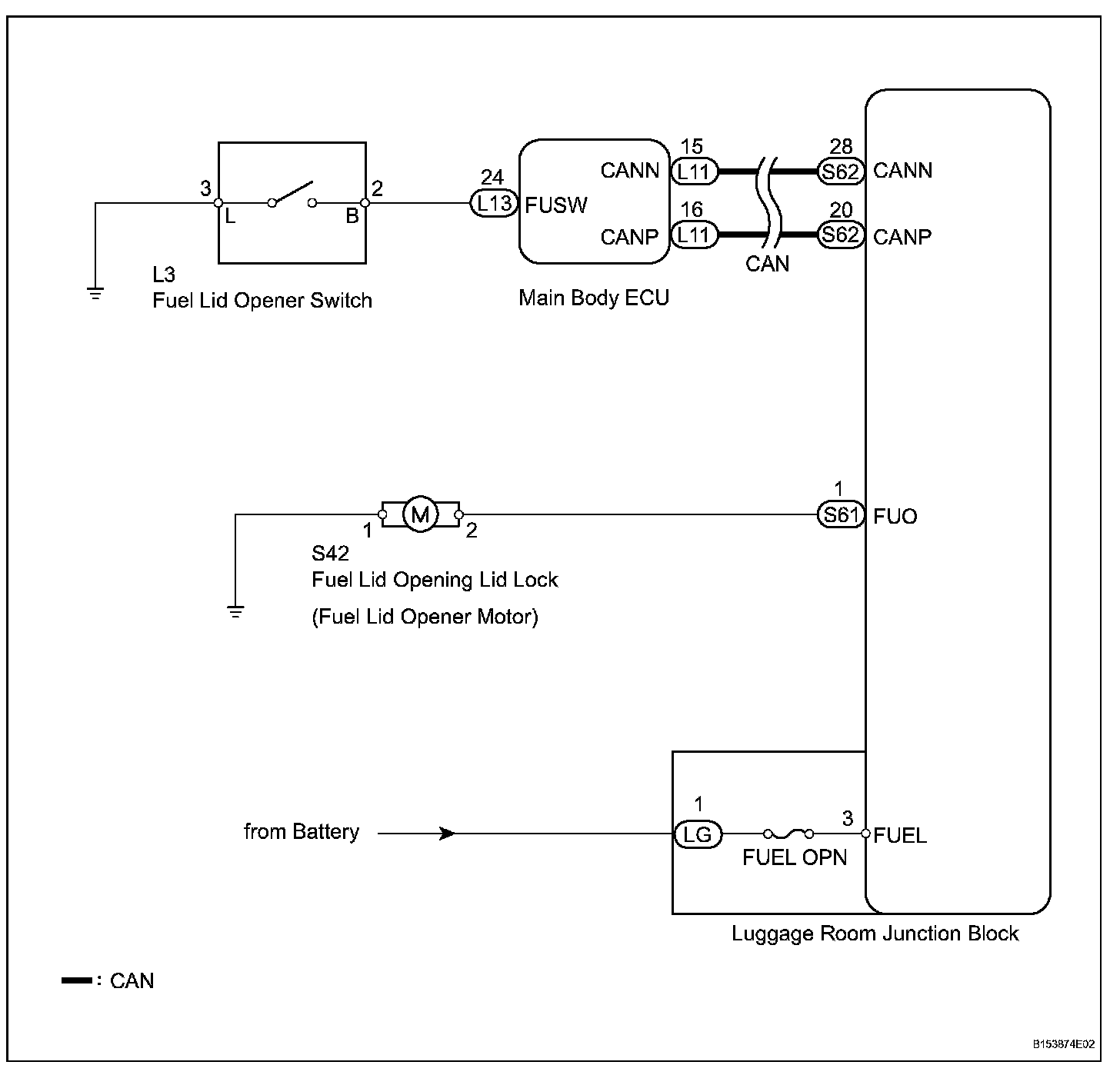

Wiring Diagram:

INSPECTION PROCEDURE

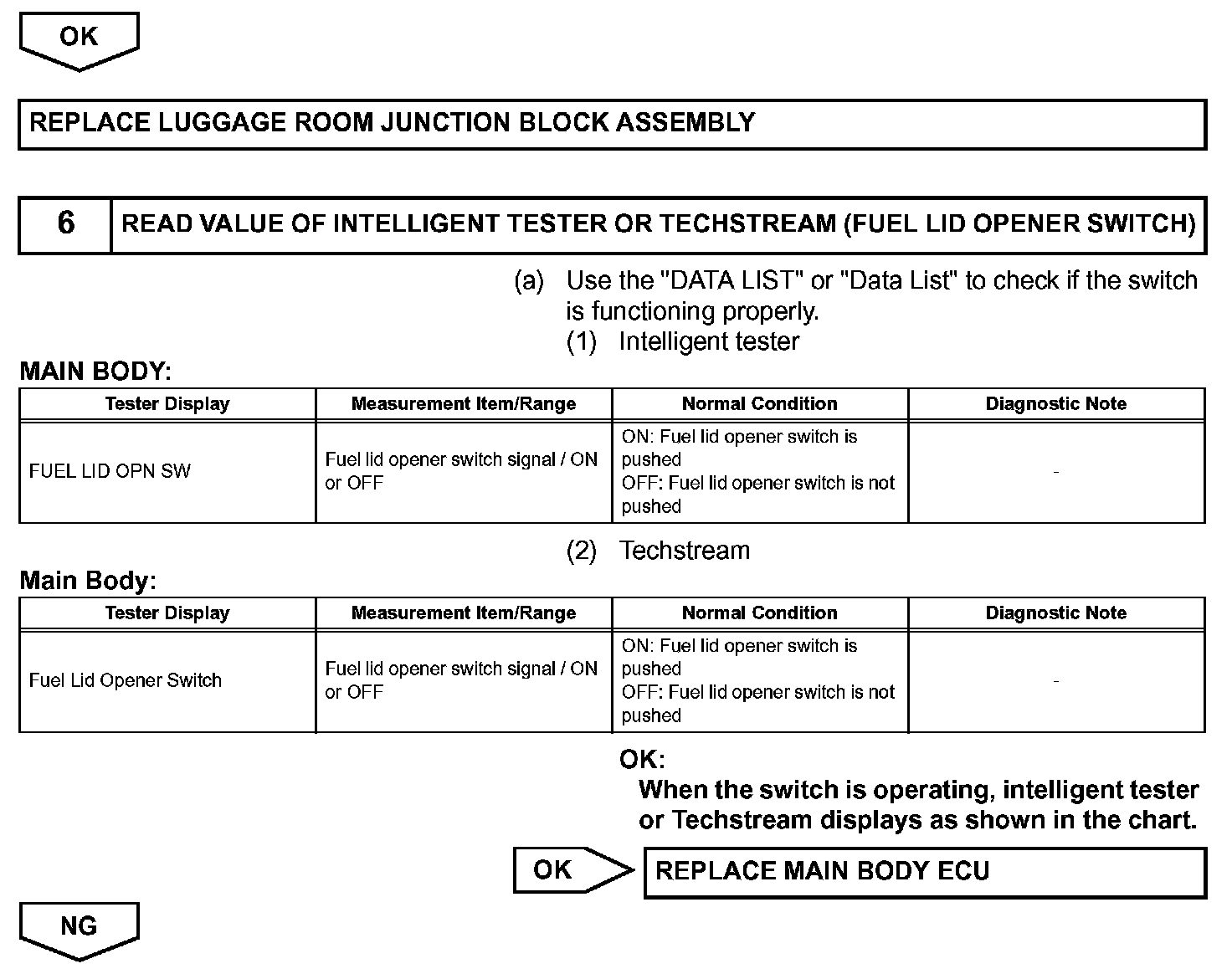

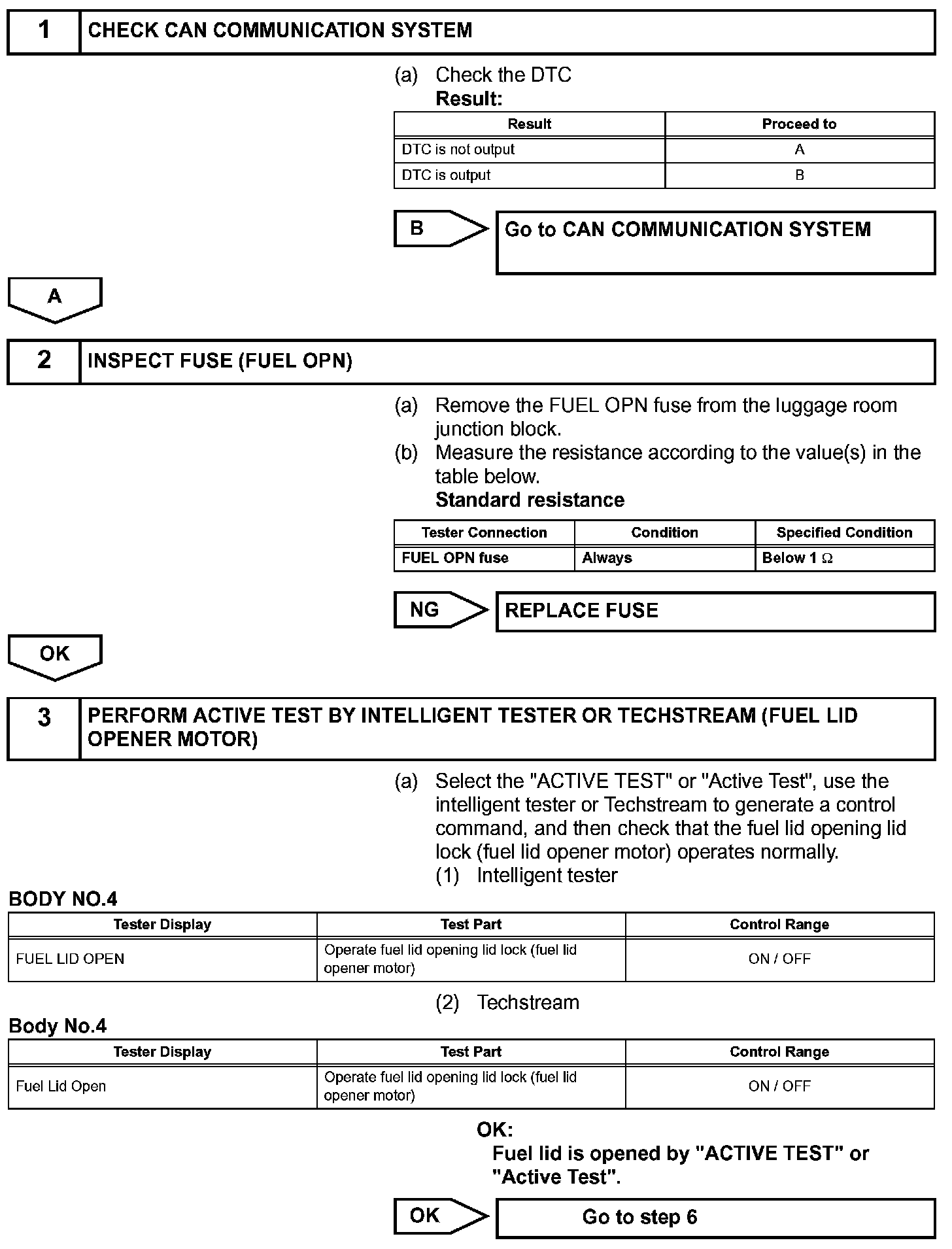

Step 1 - 3:

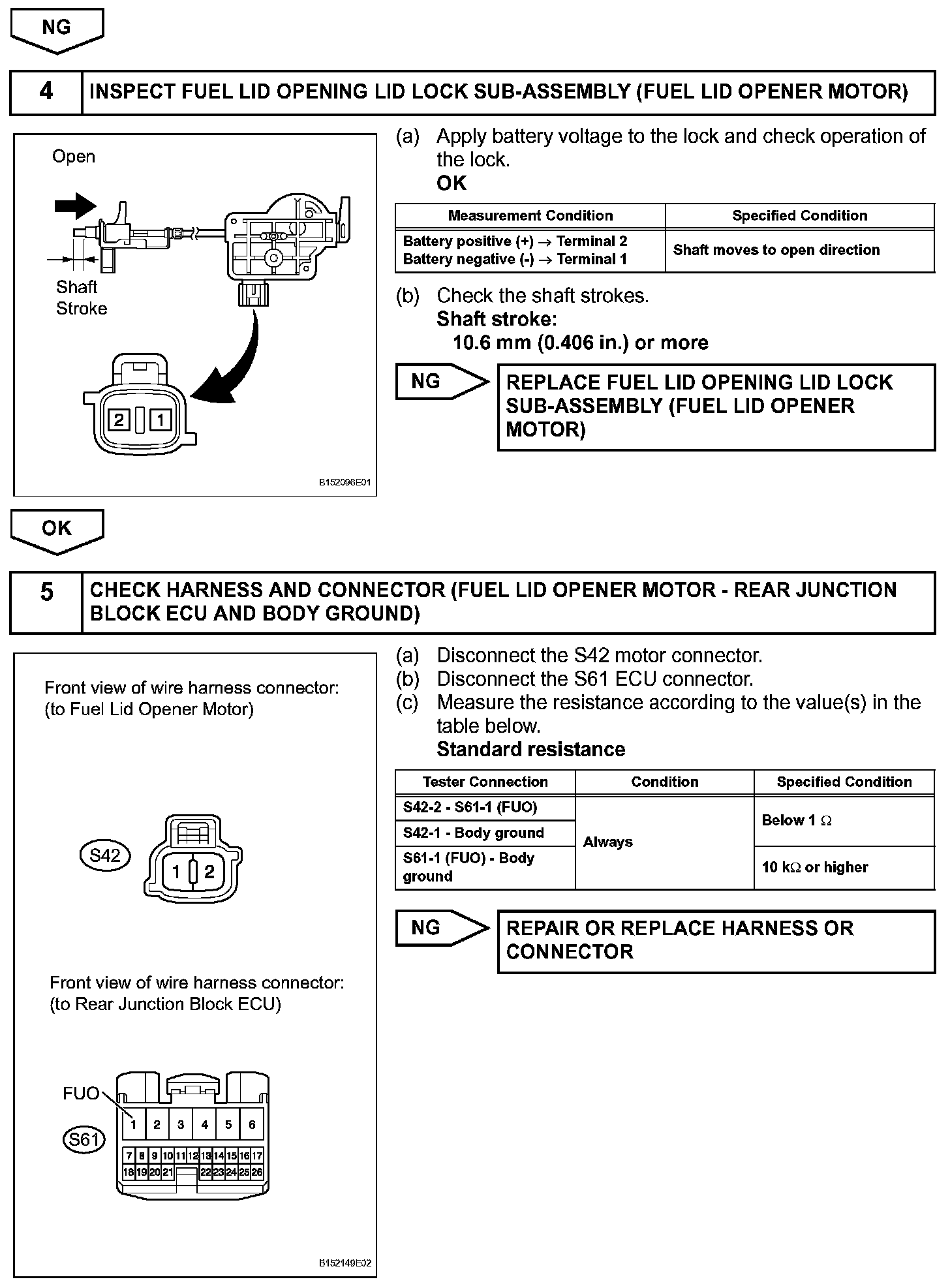

Step 3(Continued) - 5:

Step 5(Continued) - 6:

Step 7:
