Driver Side Door Closer Does Not Operate

Driver Side Door Closer does not Operate

DESCRIPTION
The front door ECU LH receives front door closer LH signals, and activates the front door closer motor.

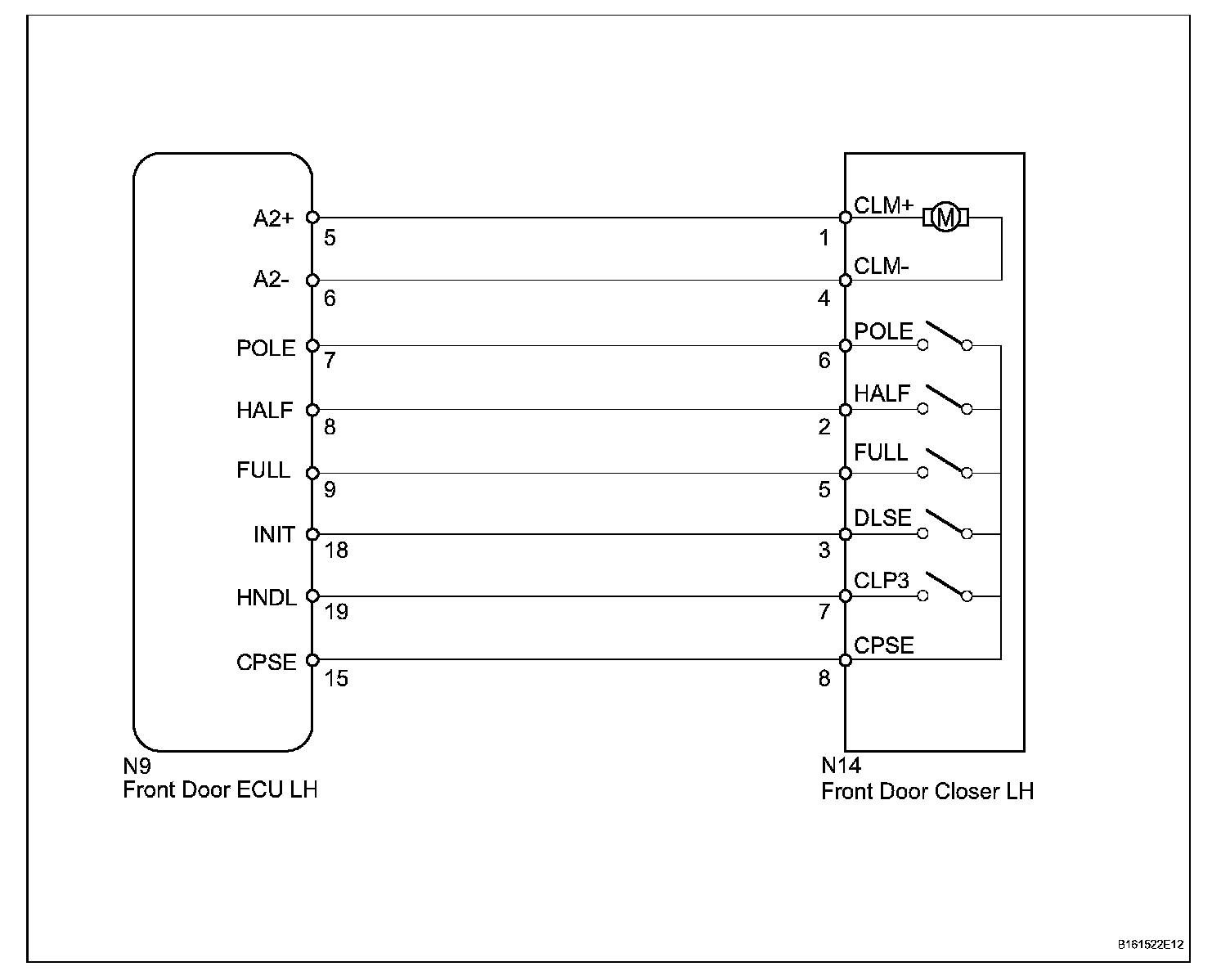

WIRING DIAGRAM

Wiring Diagram:

INSPECTION PROCEDURE

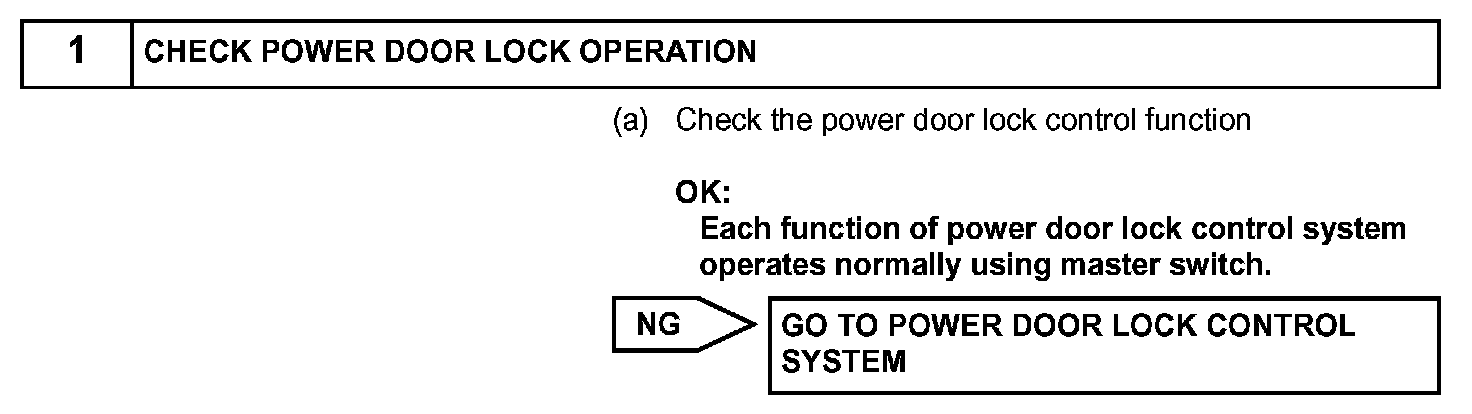

Step 1:

Step 1(Continued) - 3:

Step 3(Continued) - 4:
