Overhaul
FRONT BUMPERFront Bumper:
Front Bumper:
Front Bumper:
Front Bumper:
DISASSEMBLY
1. REMOVE FRONT BUMPER COVER LOWER
a. Using a screwdriver, detach the 2 claws and remove the bumper cover lower.
HINT:
- Tape the screwdriver tip before use.
- Detach the claw on the inner side first.
2. REMOVE RADIATOR GRILLE LOWER LH
a. Detach the 16 claws and remove the radiator grille lower.
3. REMOVE RADIATOR GRILLE LOWER RH
HINT: Use the same procedures described for the LH side.

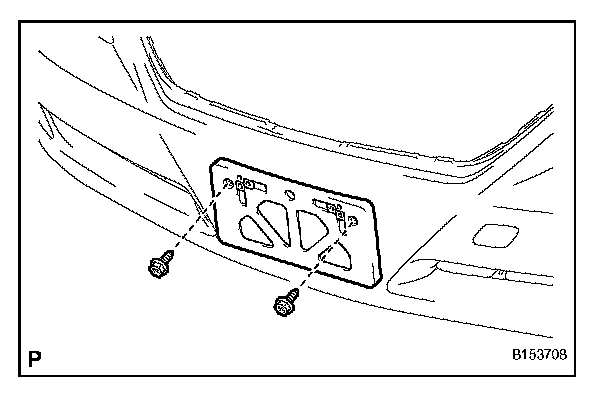

4. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET
a. Remove the 2 screws and mounting bracket.
5. REMOVE FOG LIGHT ASSEMBLY LH
6. REMOVE FOG LIGHT ASSEMBLY RH
HINT: Use the same procedures described for the LH side.
7. REMOVE NO. 4 ENGINE ROOM WIRE (w/ Intuitive Parking Assist System)
8. REMOVE NO. 1 ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)
9. REMOVE NO. 2 ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)
10. REMOVE NO. 1 ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)
11. REMOVE NO. 2 ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)
REASSEMBLY
1. INSTALL NO. 1 ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)
a. Install the No. 1 ultrasonic sensor.
2. INSTALL NO. 1 ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)
a. Install the No. 1 ultrasonic sensor retainer.
3. INSTALL NO. 2 ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)
a. Install the No. 2 ultrasonic sensor.
4. INSTALL NO. 2 ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)
a. Install the No. 2 ultrasonic sensor retainer.
5. REMOVE NO. 4 ENGINE ROOM WIRE (w/ Intuitive Parking Assist System)
6. INSTALL FOG LIGHT ASSEMBLY LH
7. INSTALL FOG LIGHT ASSEMBLY RH
HINT: Use the same procedures described for the LH side.

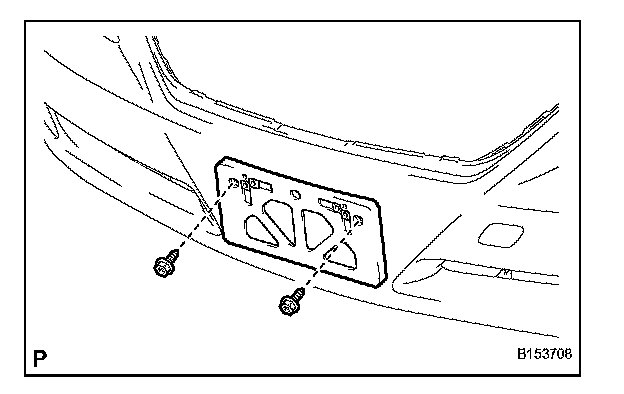

8. INSTALL FRONT BUMPER EXTENSION MOUNTING BRACKET
a. Install the mounting bracket with the 2 screws.
9. INSTALL RADIATOR GRILLE LOWER LH
a. Attach the 16 claws to install the radiator grille lower.
10. INSTALL RADIATOR GRILLE LOWER RH
HINT: Use the same procedures described for the LH side.
11. INSTALL FRONT BUMPER COVER LOWER
a. Attach the 2 claws to install the bumper hole cover.
HINT: Attach the claw on the outer side first.
