Home >> Lexus >> 2007 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Audio and Visual System (W/ Multi-Display) >> Disc Cannot Be Inserted or Is Ejected Right After Insertion

Disc Cannot Be Inserted or Is Ejected Right After Insertion

Disc cannot be Inserted or is Ejected Right After Insertion

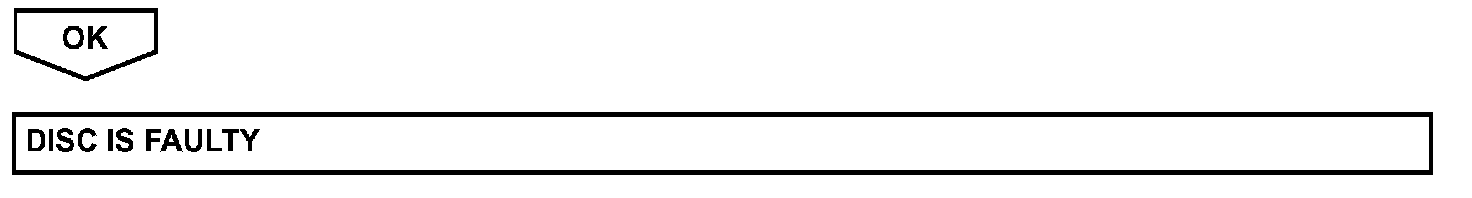

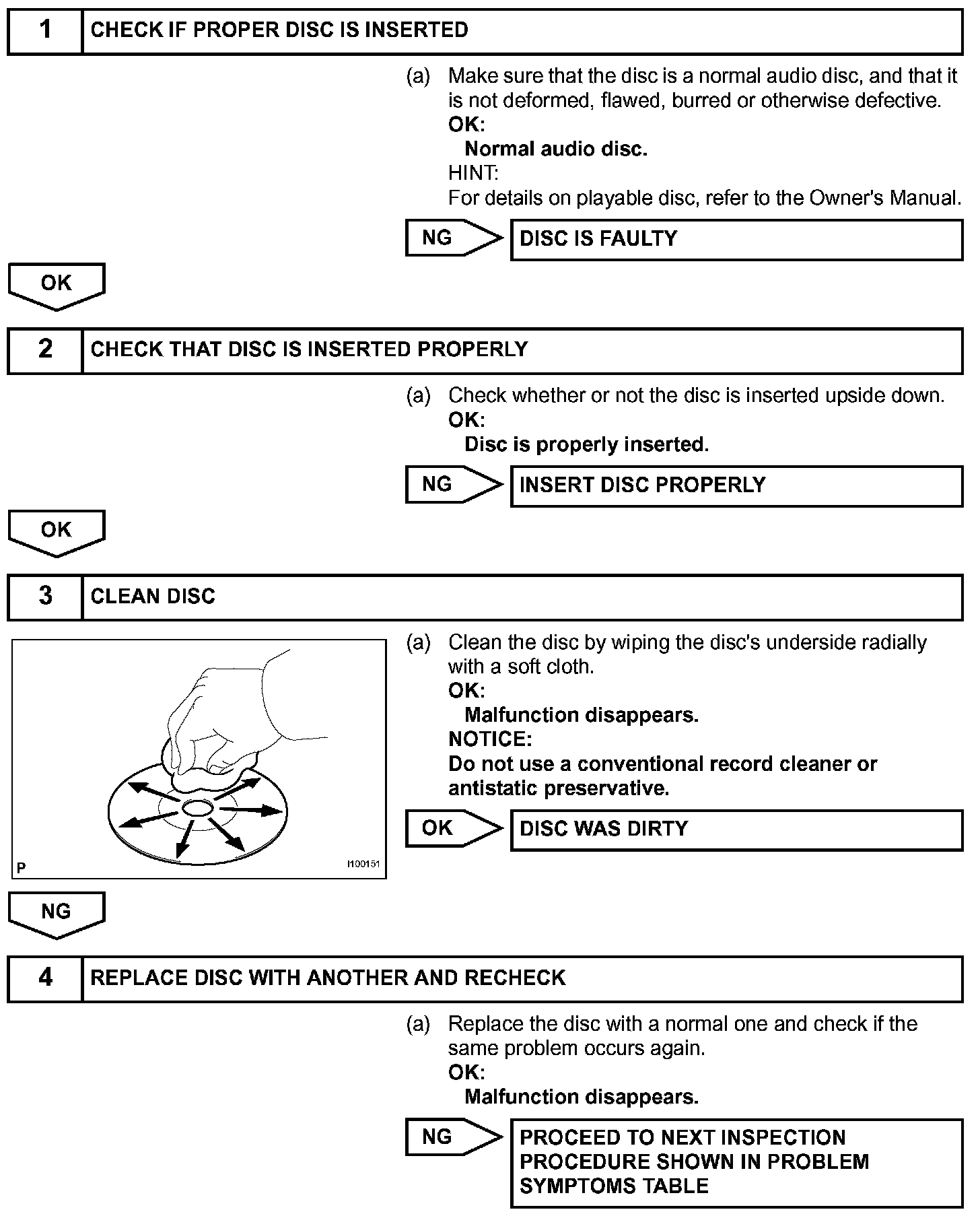

Step 1-4:

Step 4 (Continued):

INSPECTION PROCEDURE
