Audio and Visual System (W/O Multi-Display)

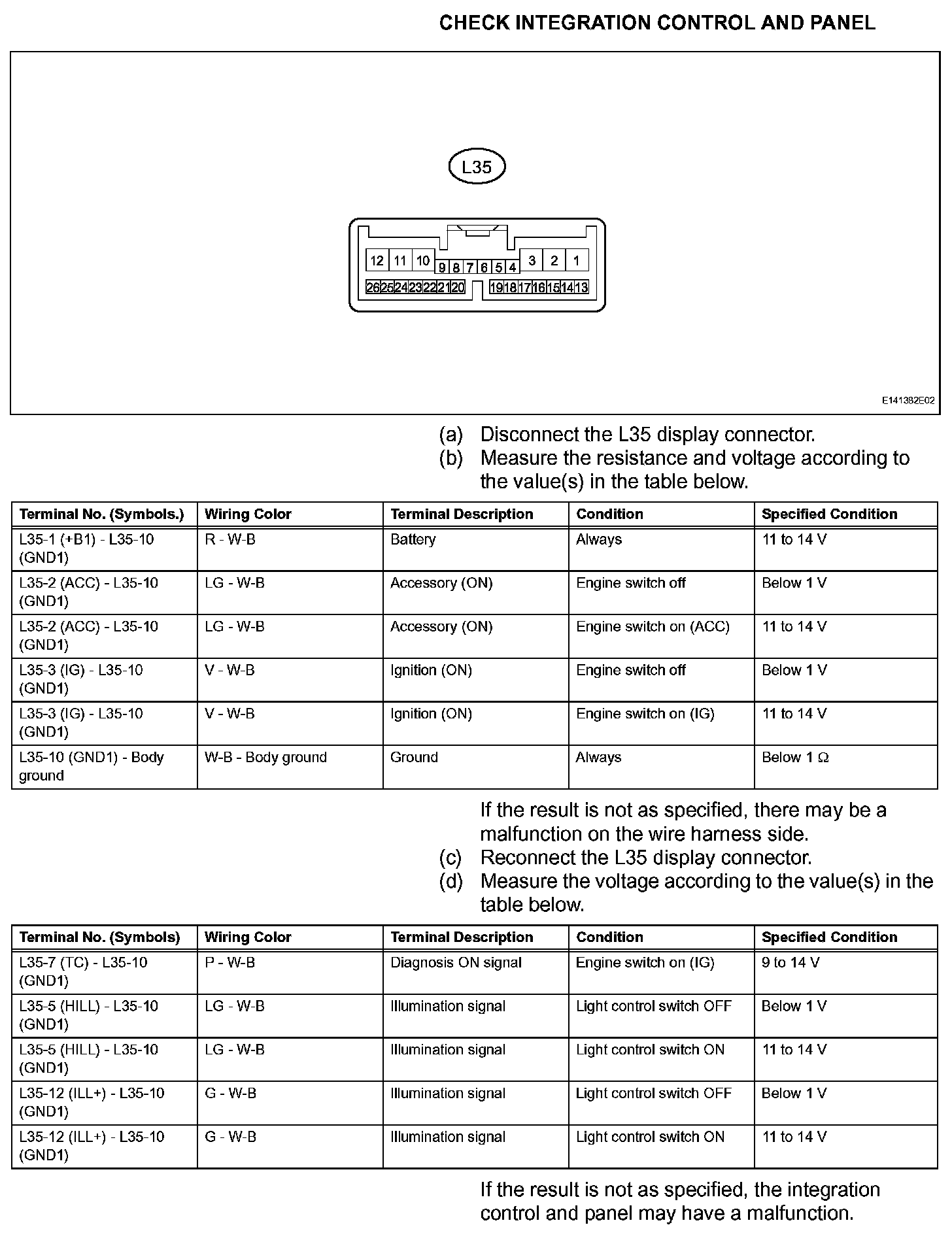

Terminals Of Control Module/Pinouts-Check Integration Control And Panel:

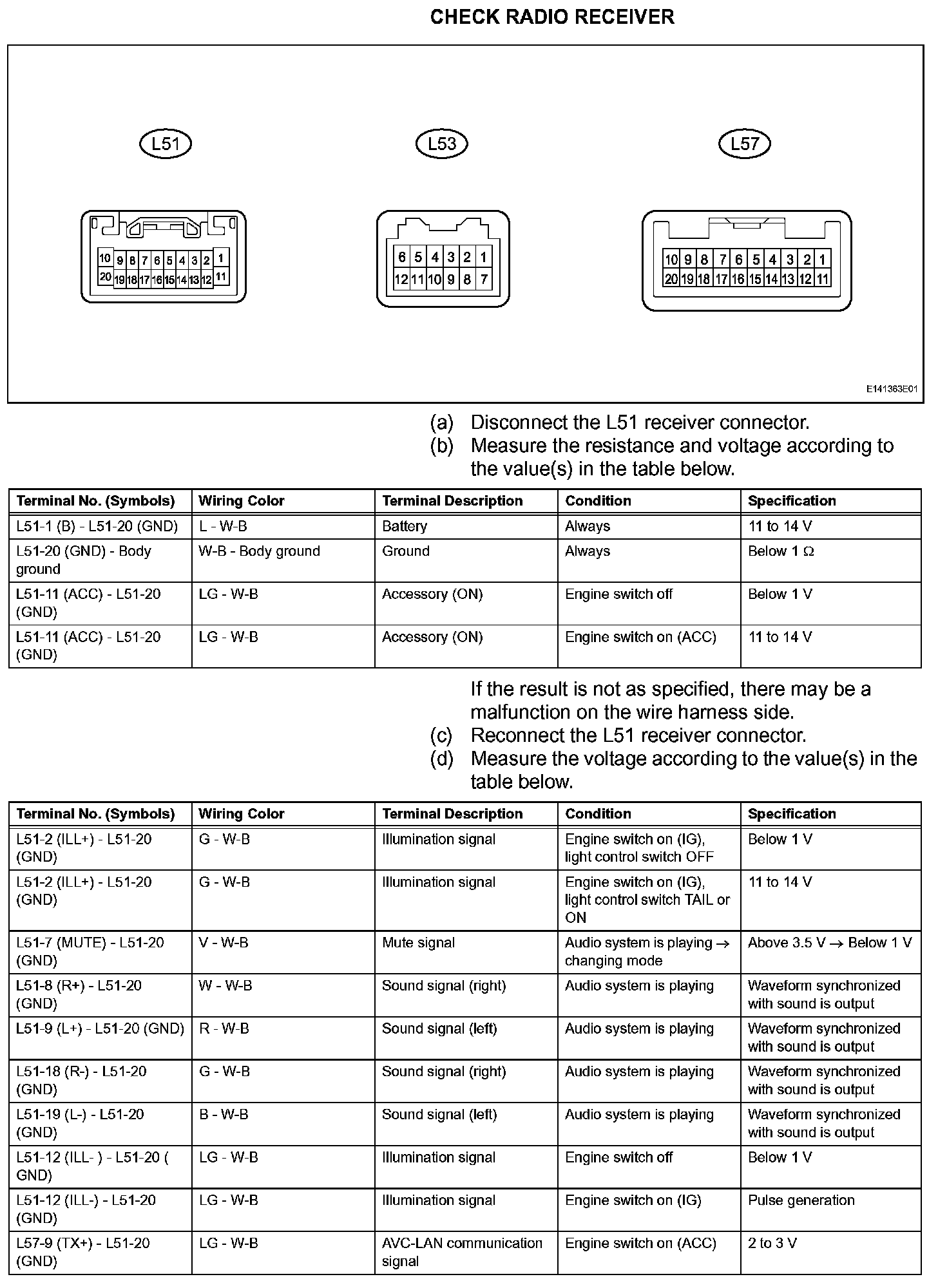

Terminals Of Control Module/Pinouts-Check Radio Receiver (Part 1):

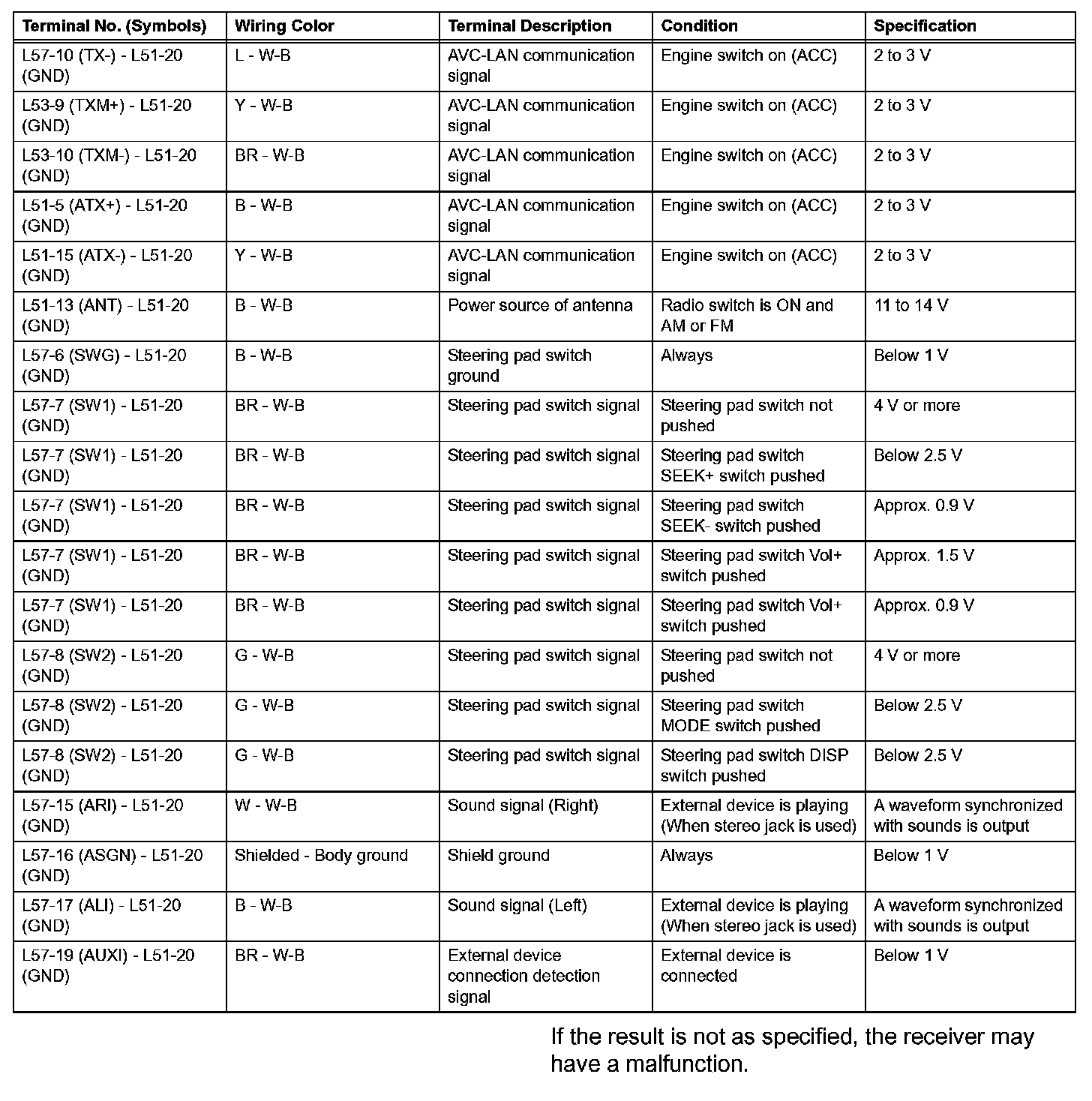

Terminals Of Control Module/Pinouts-Check Radio Receiver (Part 2):

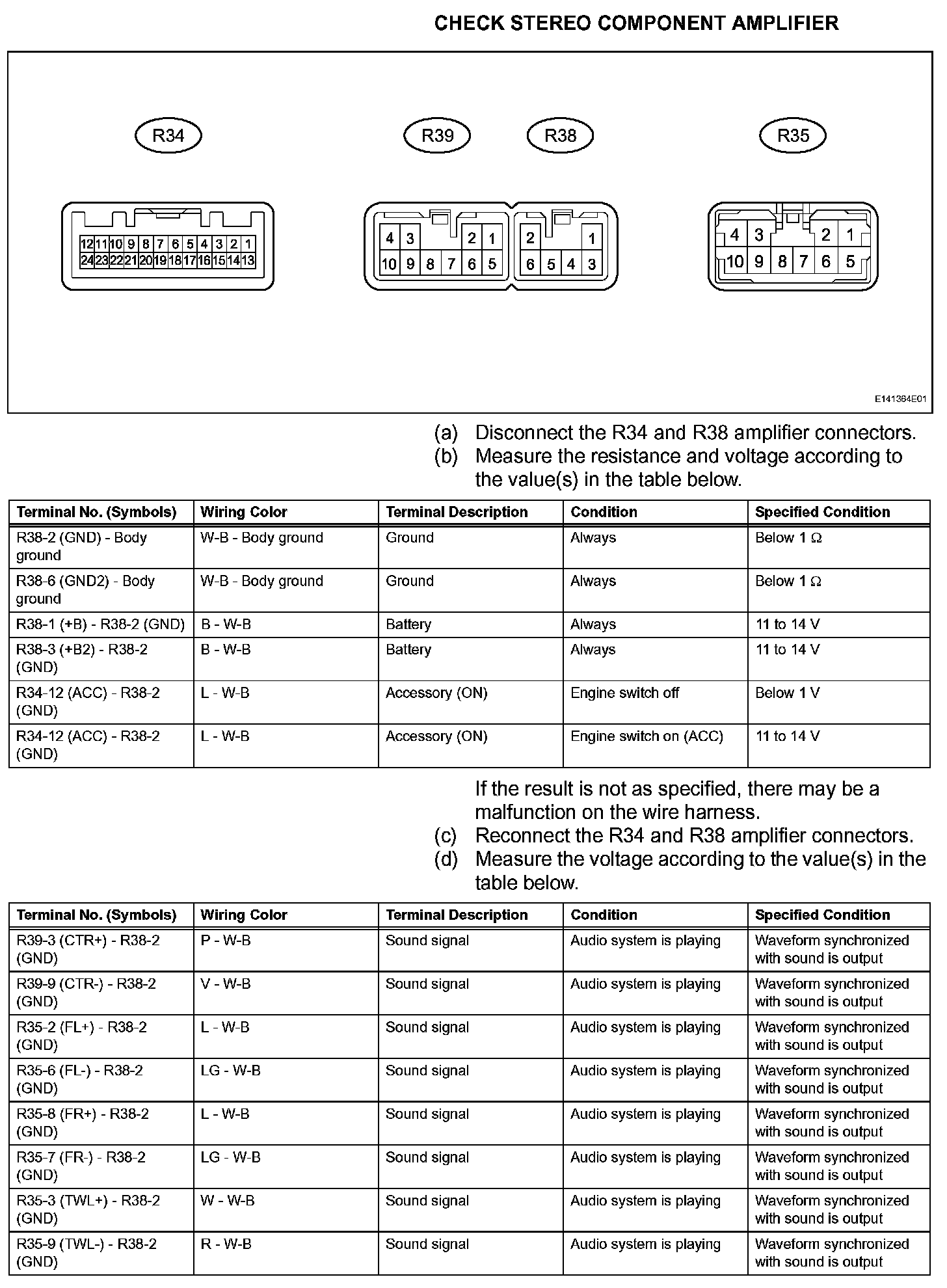

Terminals Of Control Module/Pinouts-Check Stereo Component Amplifier (Part 1):

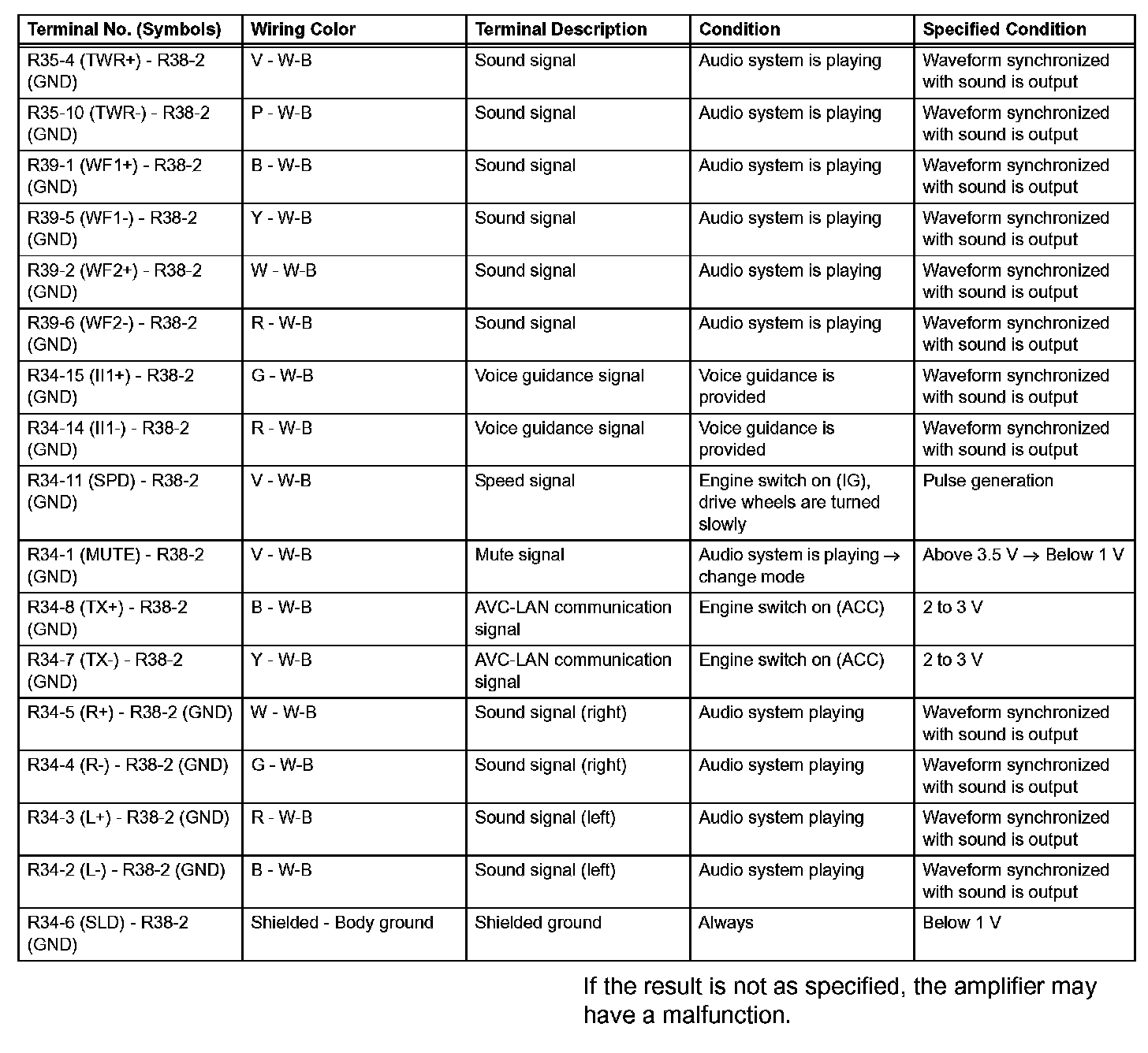

Terminals Of Control Module/Pinouts-Check Stereo Component Amplifier (Part 2):
