Audio and Visual System (W/ Multi-Display)

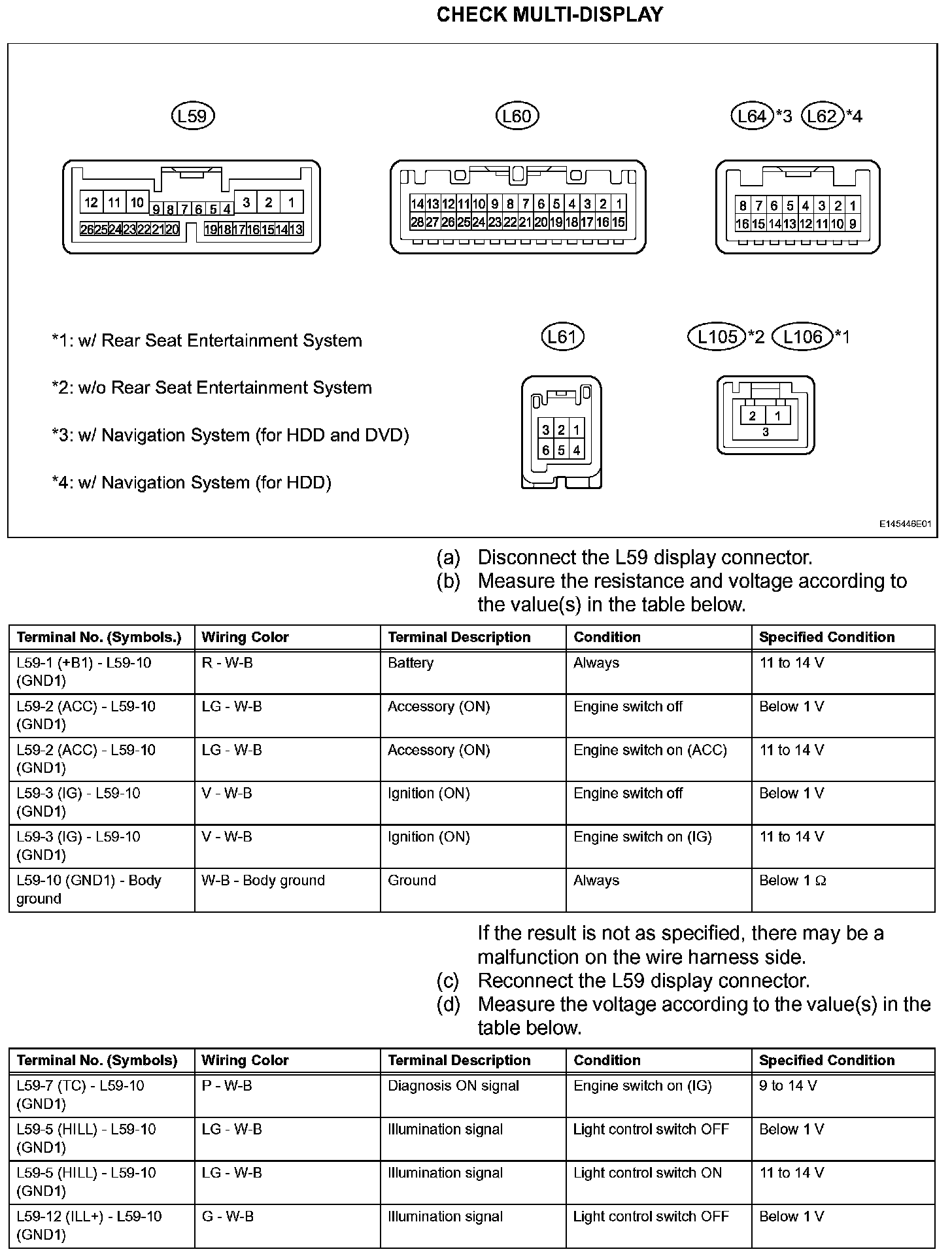

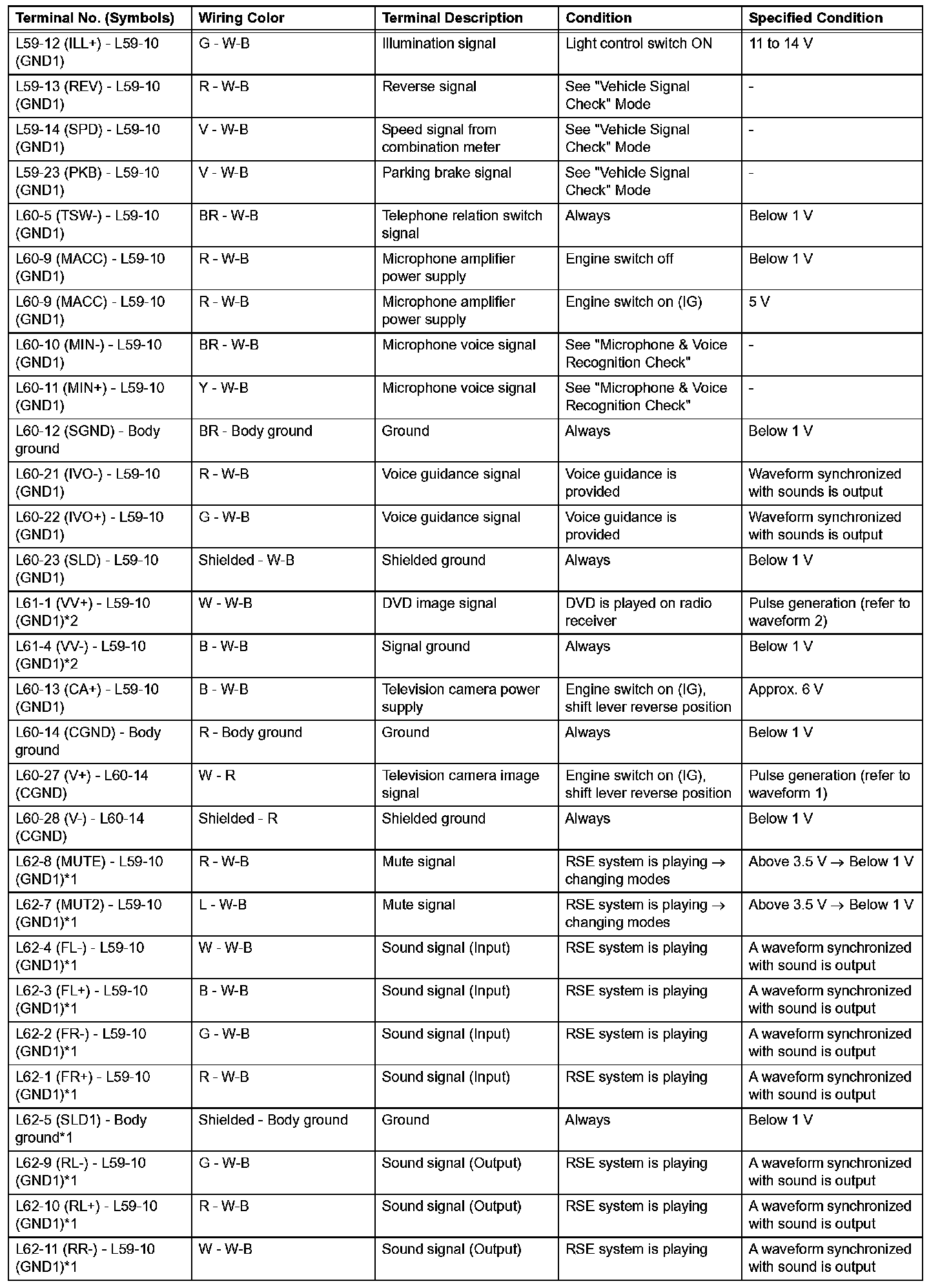

Terminals Of Control Module/Pinouts-Check Multi-Display (Part 1):

Terminals Of Control Module/Pinouts-Check Multi-Display (Part 2):

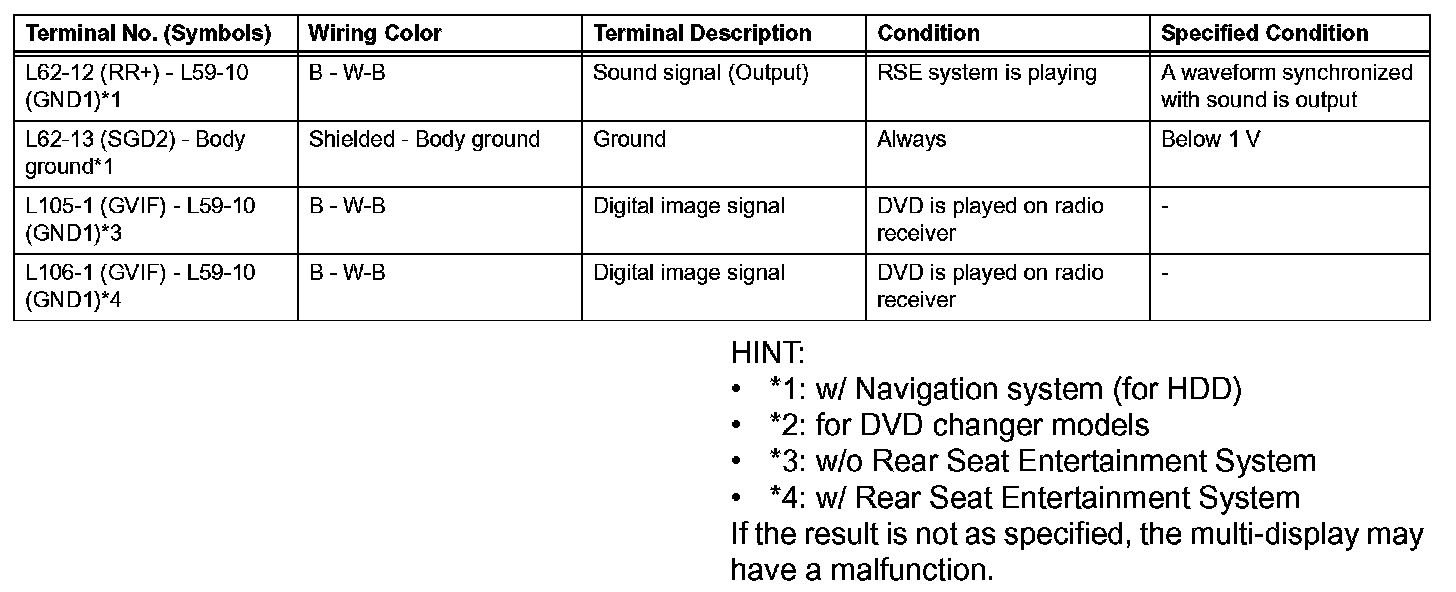

Terminals Of Control Module/Pinouts-Check Multi-Display (Part 3):

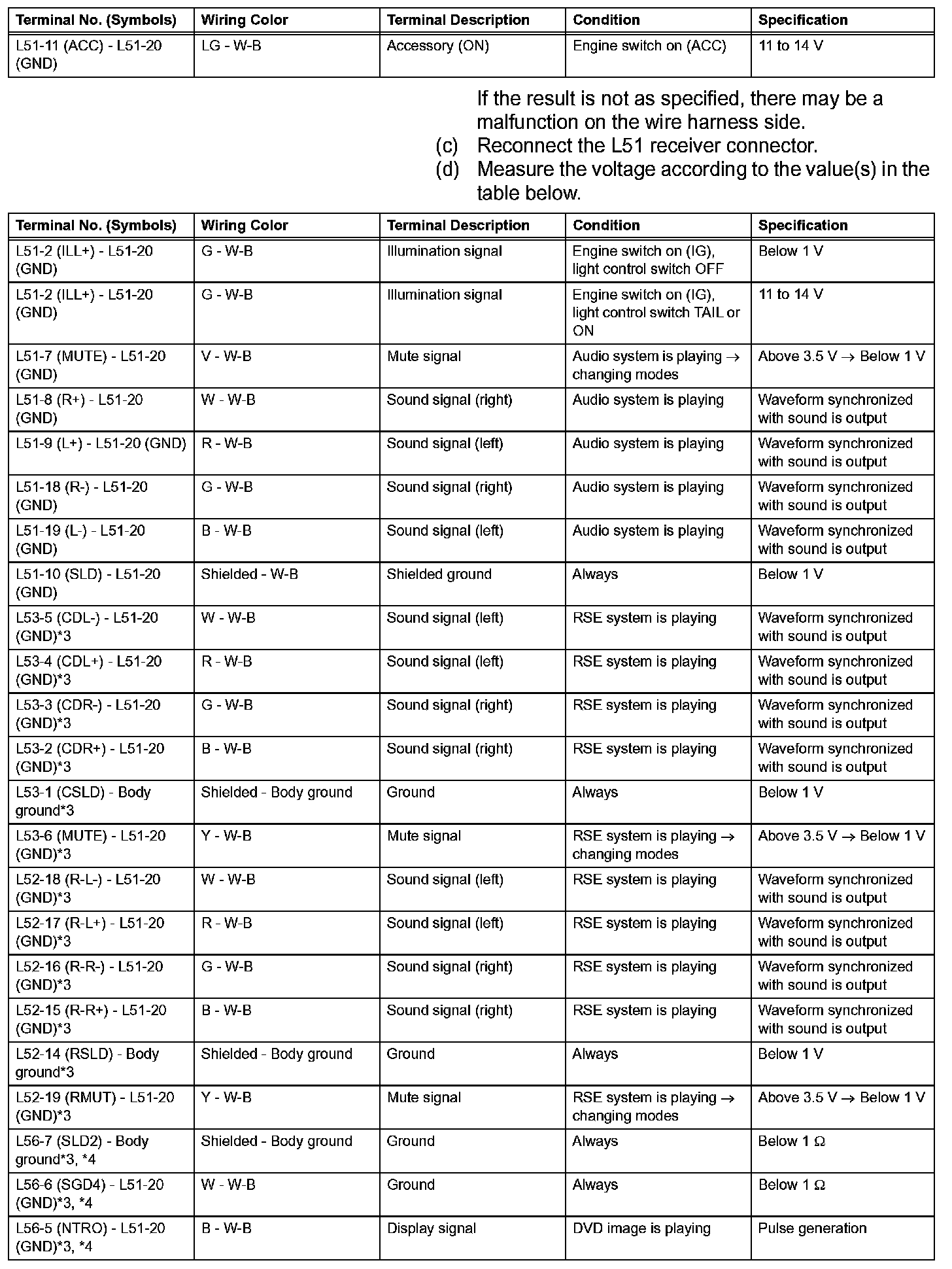

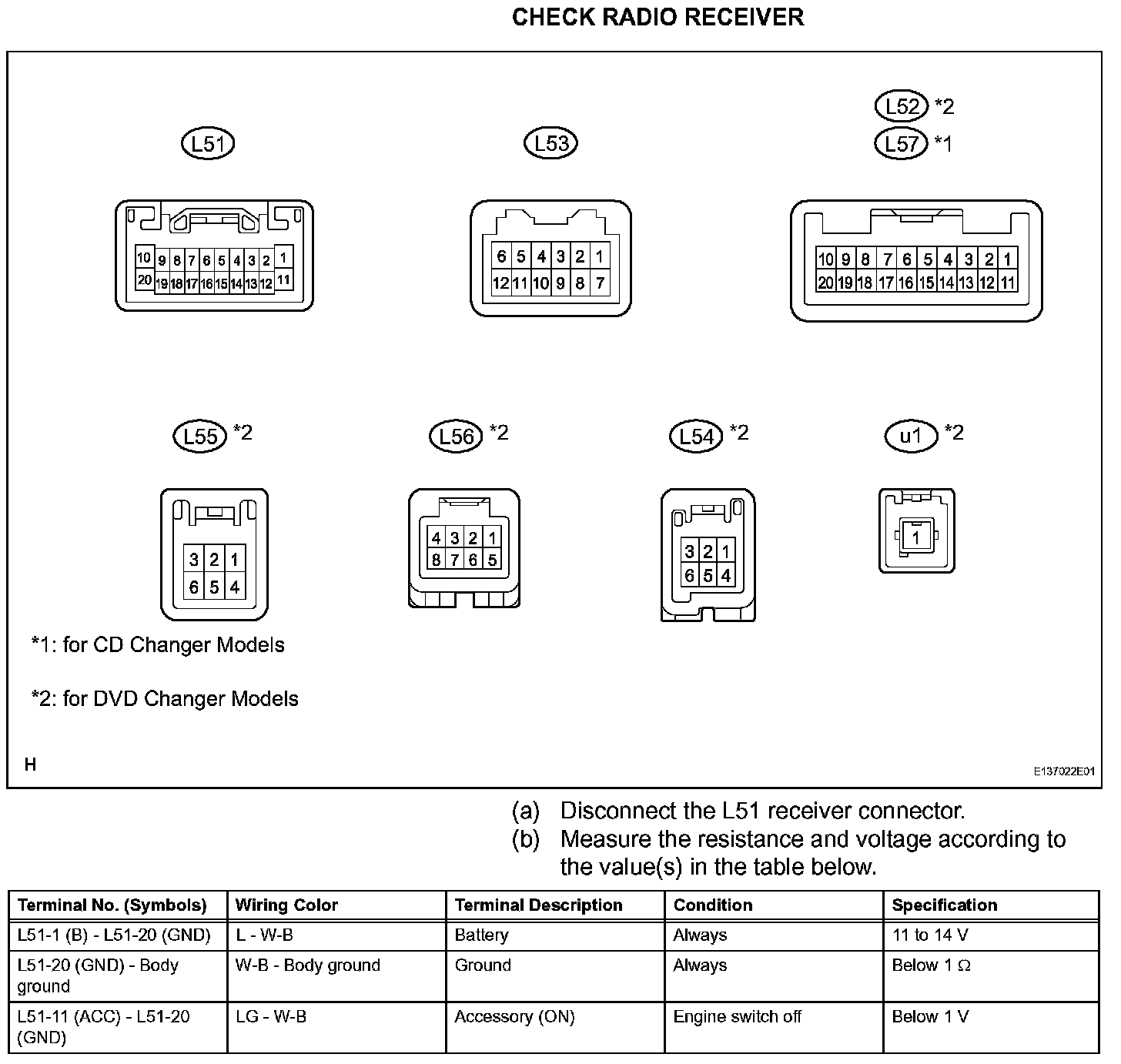

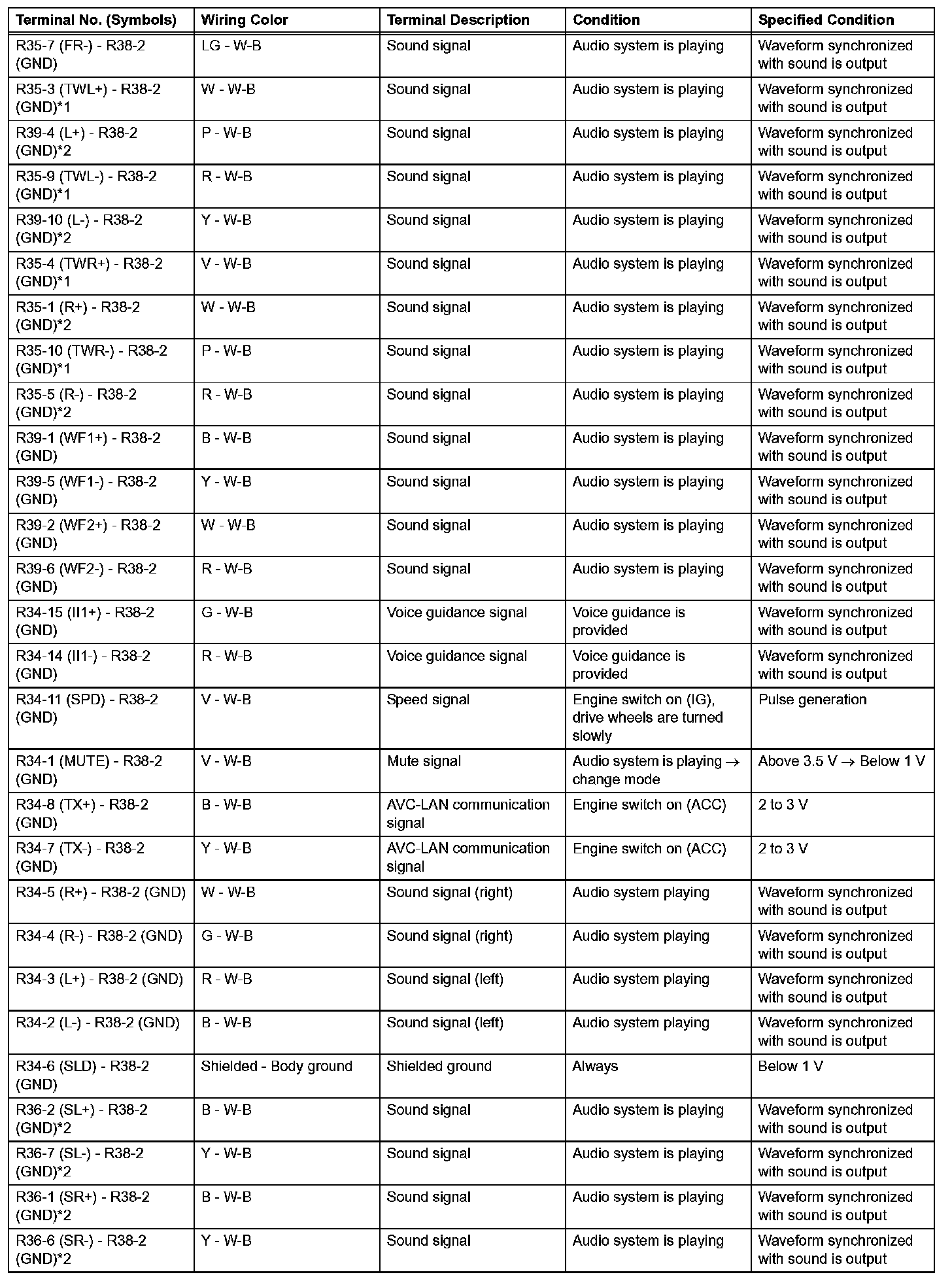

Terminals Of Control Module/Pinouts-Check Radio Receiver (Part 1):

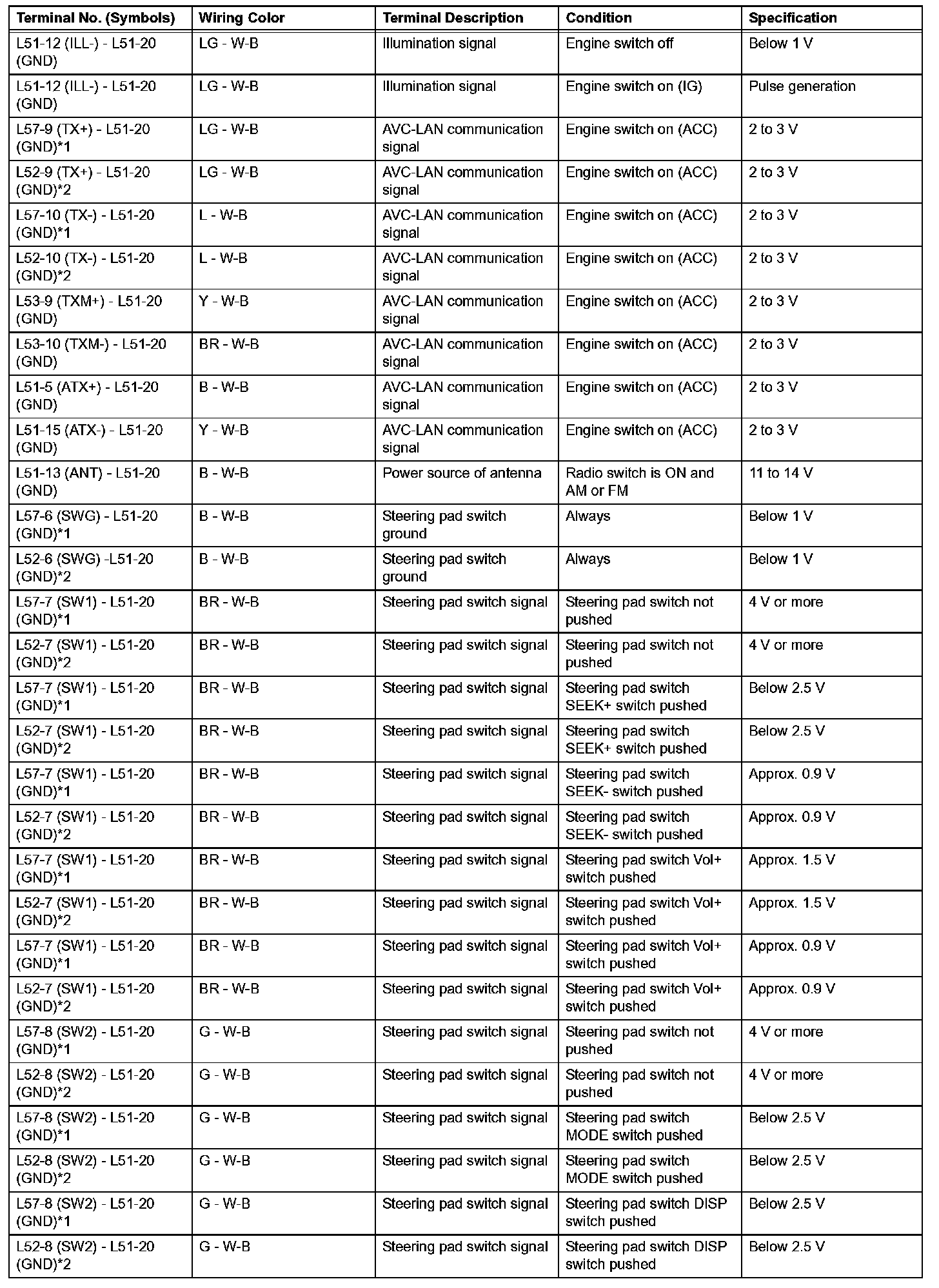

Terminals Of Control Module/Pinouts-Check Radio Receiver (Part 2):

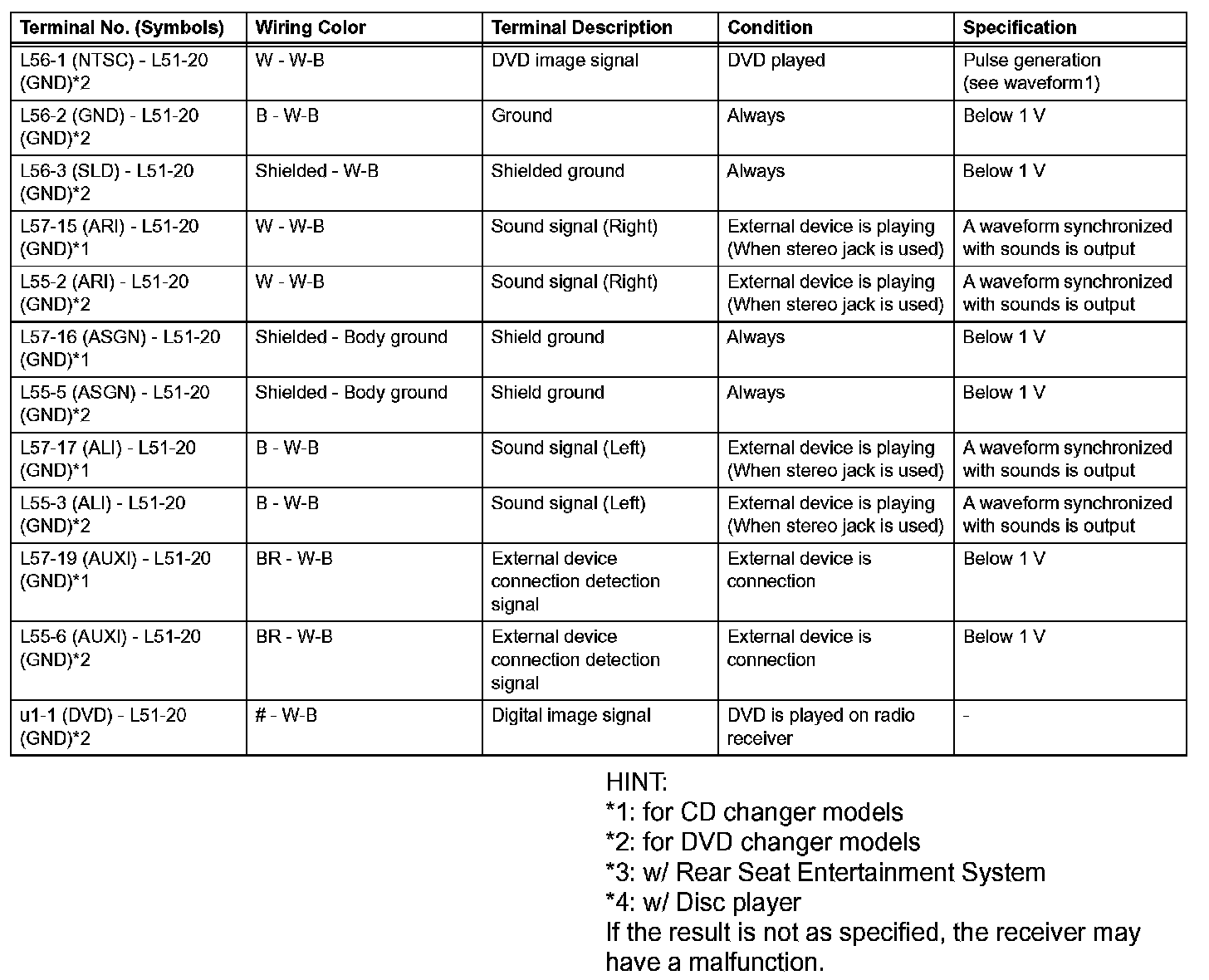

Terminals Of Control Module/Pinouts-Check Radio Receiver (Part 3):

Terminals Of Control Module/Pinouts-Check Radio Receiver (Part 4):

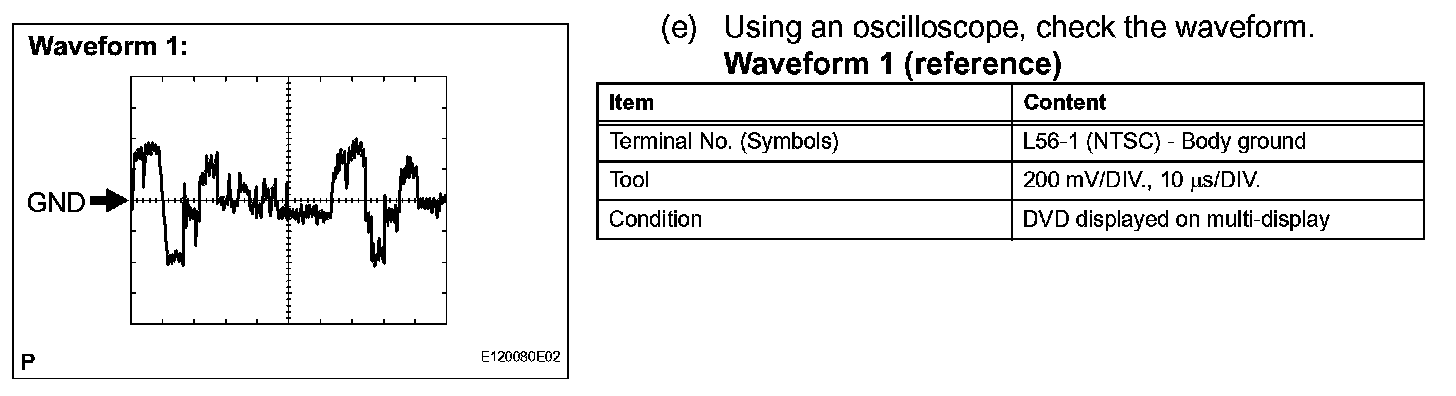

Oscilloscope Waveform:

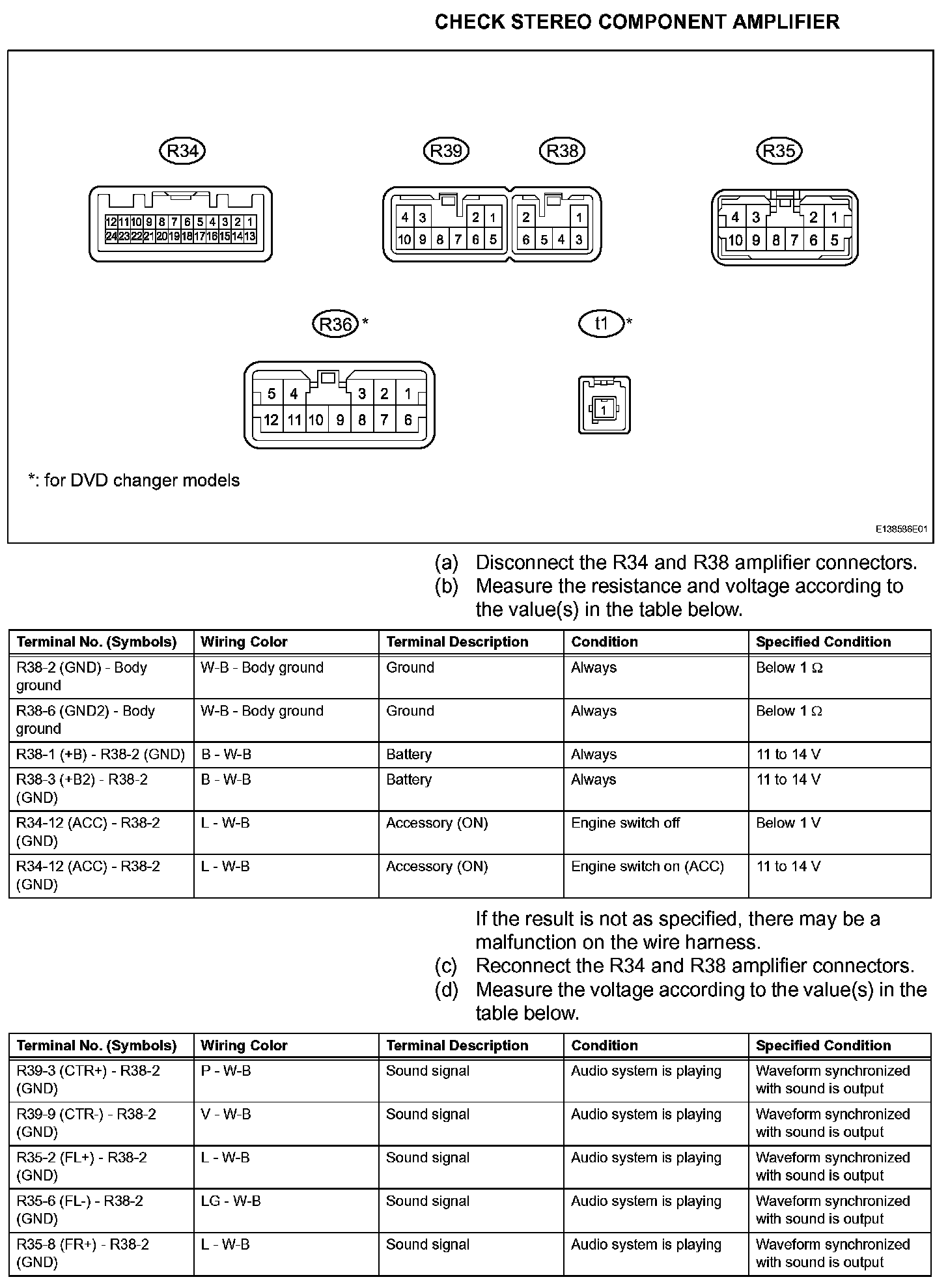

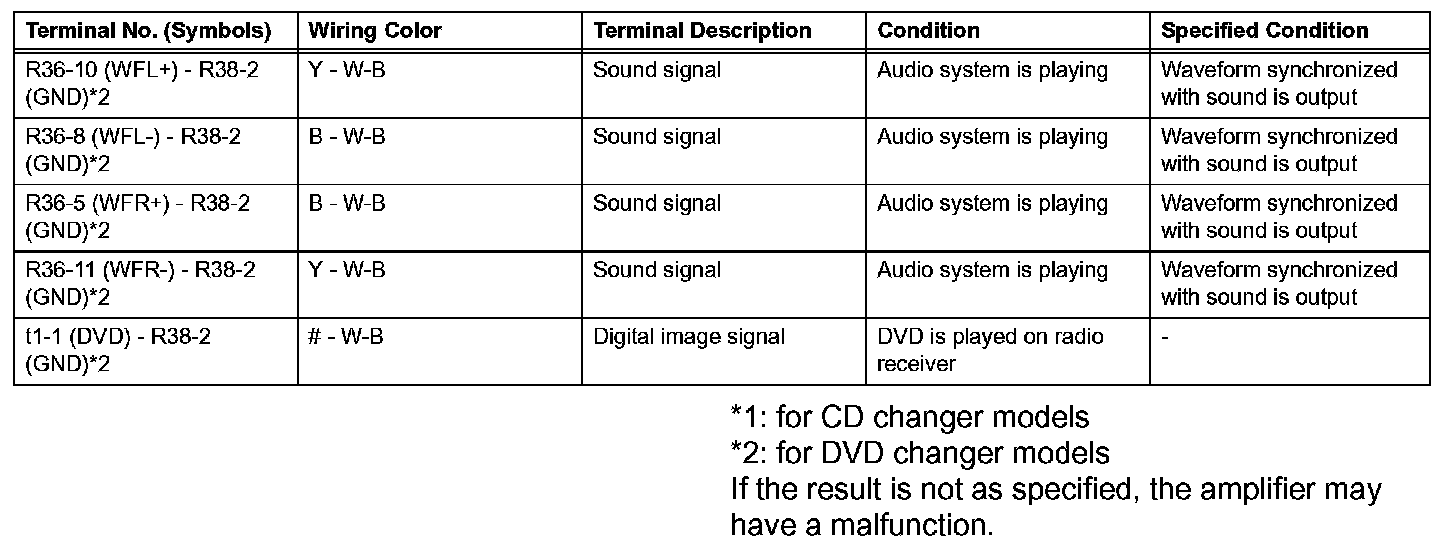

Terminals Of Control Module/Pinouts-Check Stereo Component Amplifier (Part 1):

Terminals Of Control Module/Pinouts-Check Stereo Component Amplifier (Part 2):

Terminals Of Control Module/Pinouts-Check Stereo Component Amplifier (Part 3):

Terminals Of Control Module/Pinouts-Check Rear Power Seat Module Switch (W/O Ottoman):

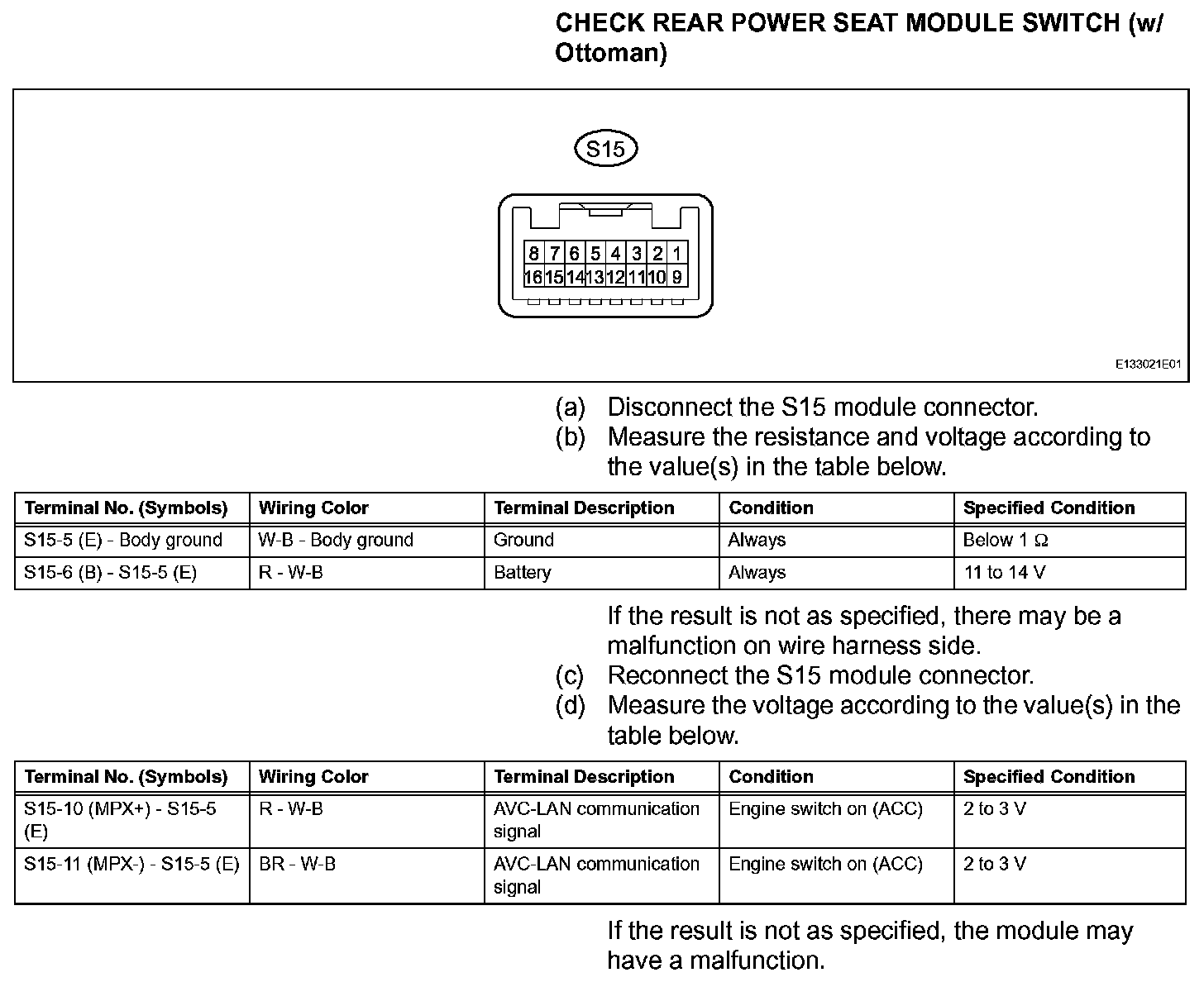

Terminals Of Control Module/Pinouts-Check Rear Power Seat Module Switch (W/ Ottoman):
