Speaker Circuit

Speaker Circuit

DESCRIPTION
The stereo component amplifier sends sound signals to the speaker.

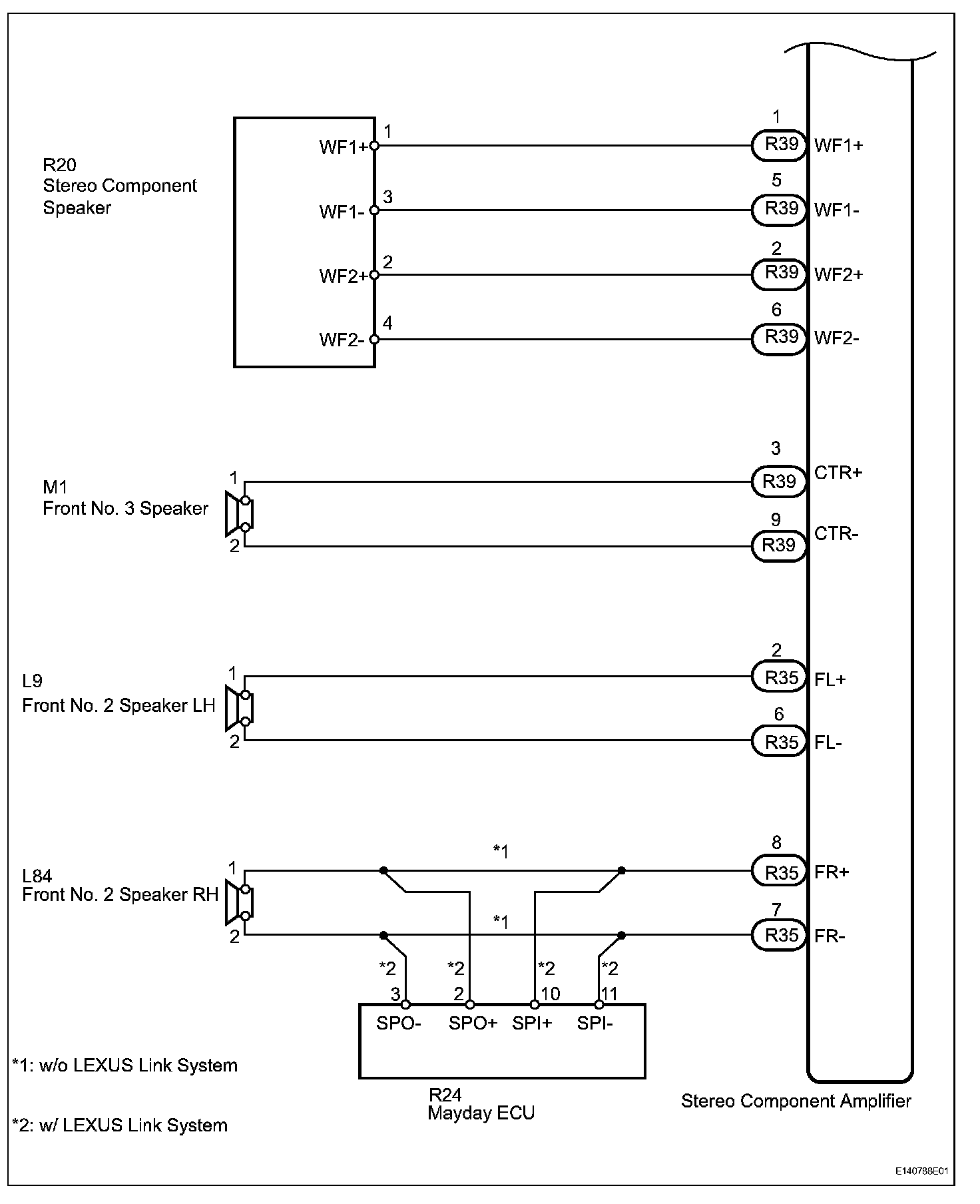

Wiring Diagram (Part 1):

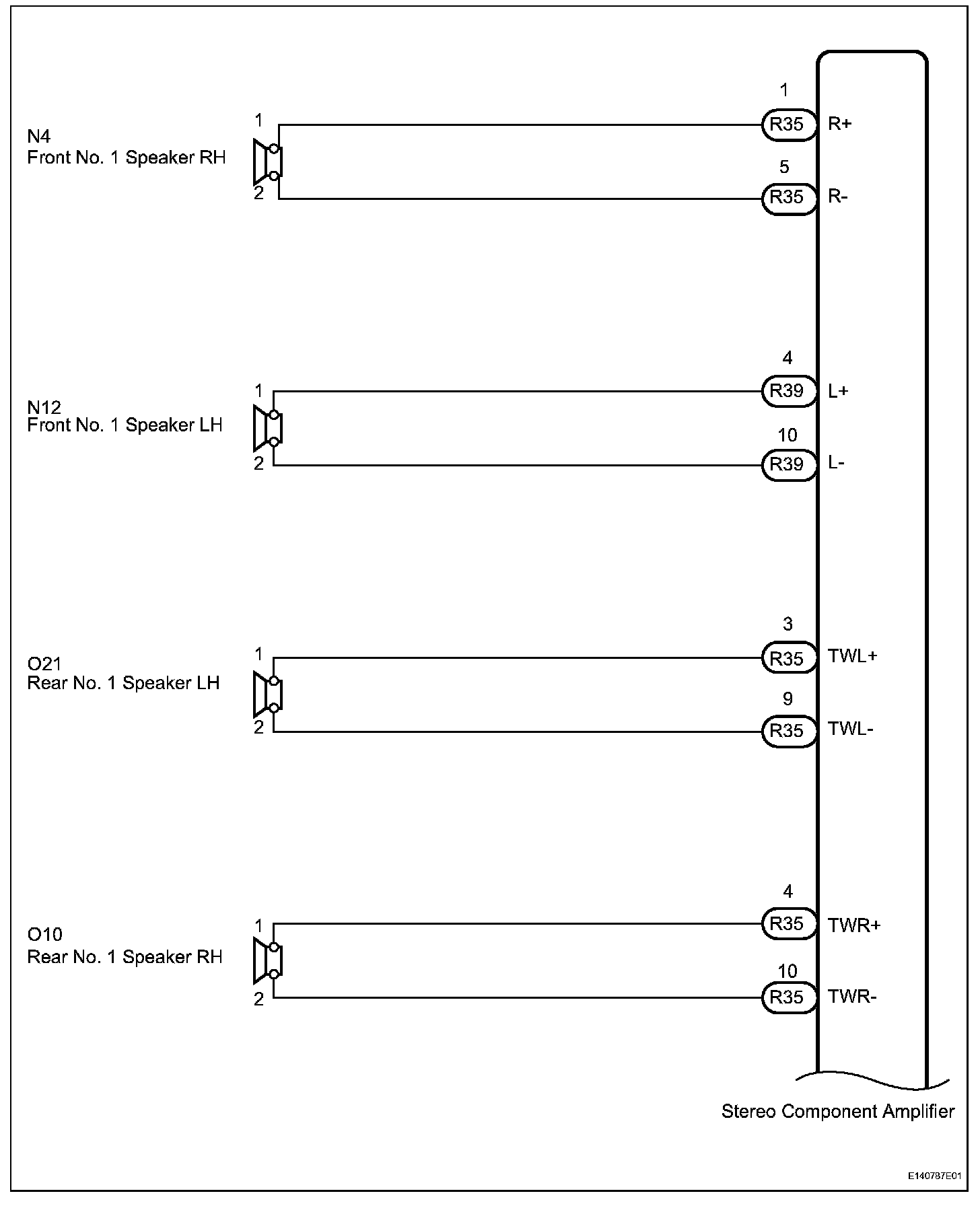

Wiring Diagram (Part 2):

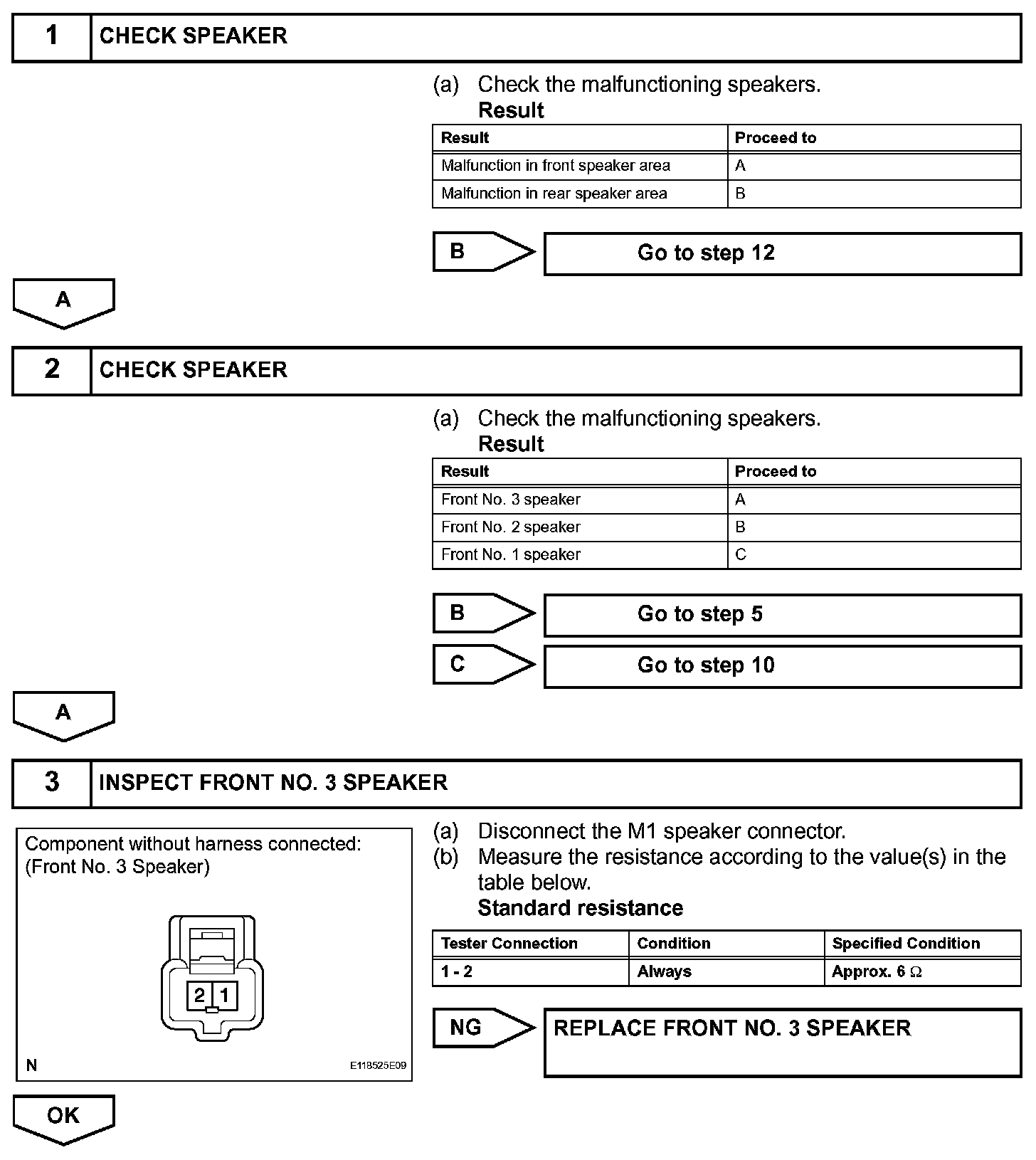

Step 1-3:

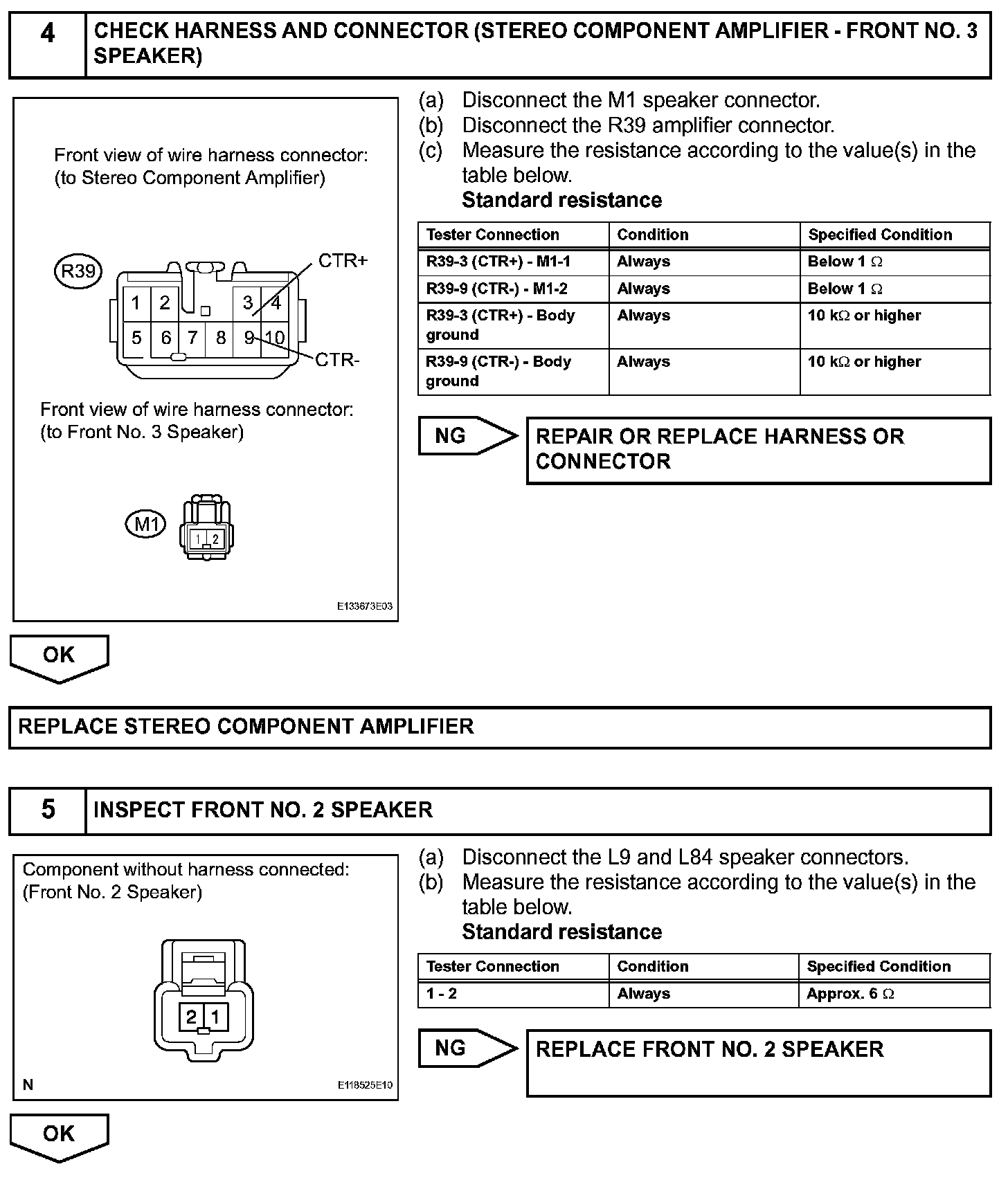

Step 4-5:

Step 6:

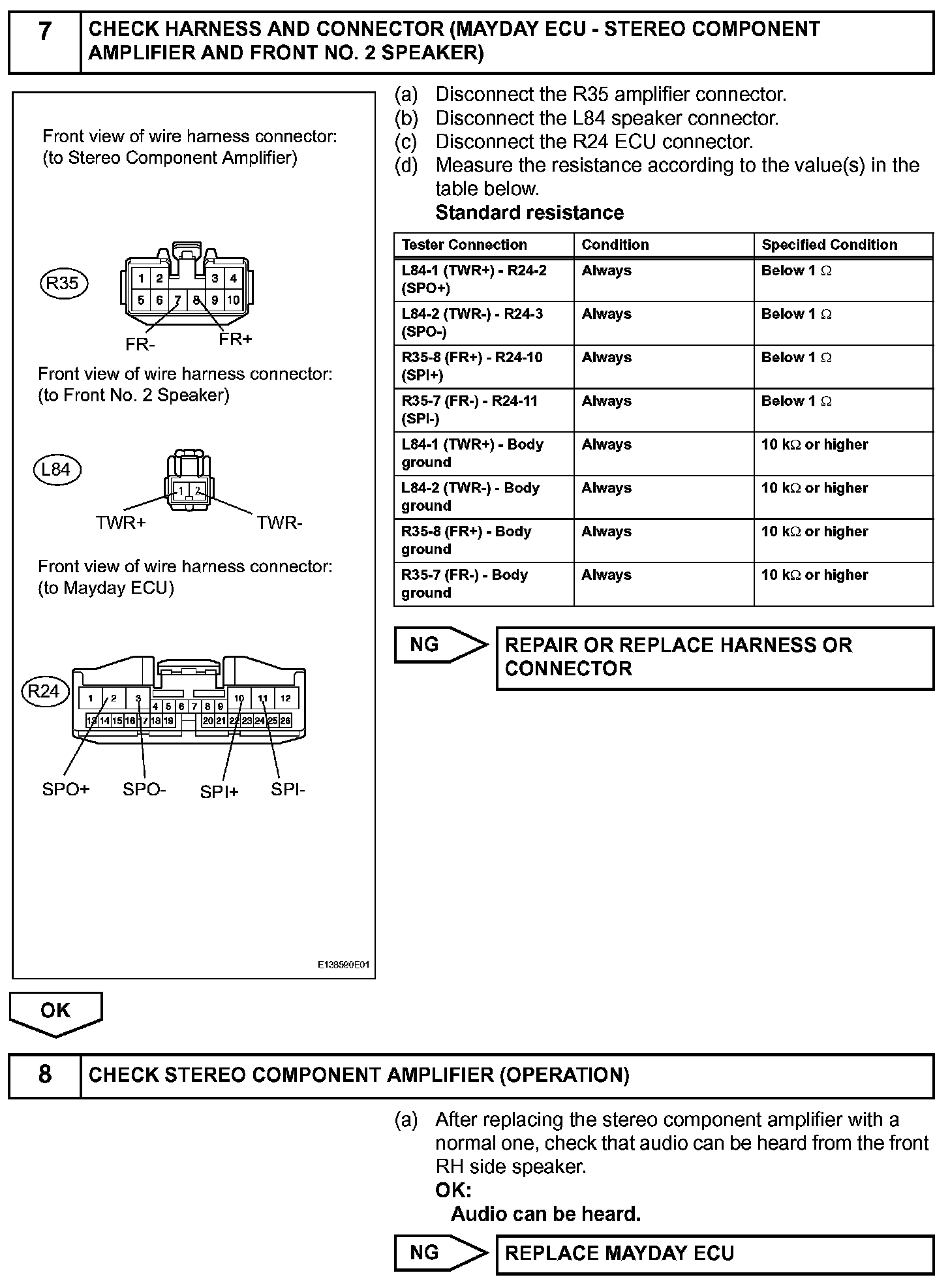

Step 7-8:

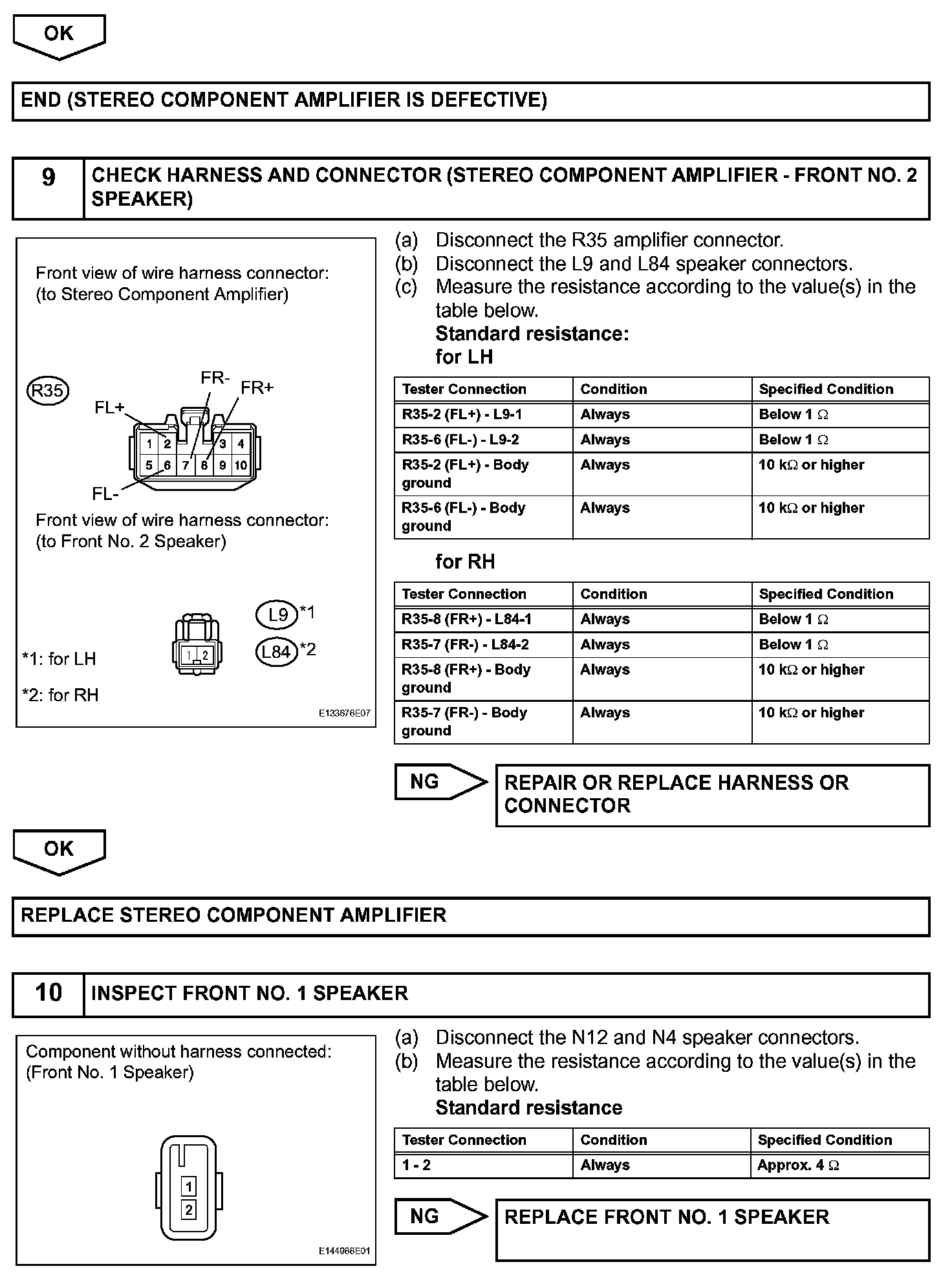

Step 8 (Continued)-10:

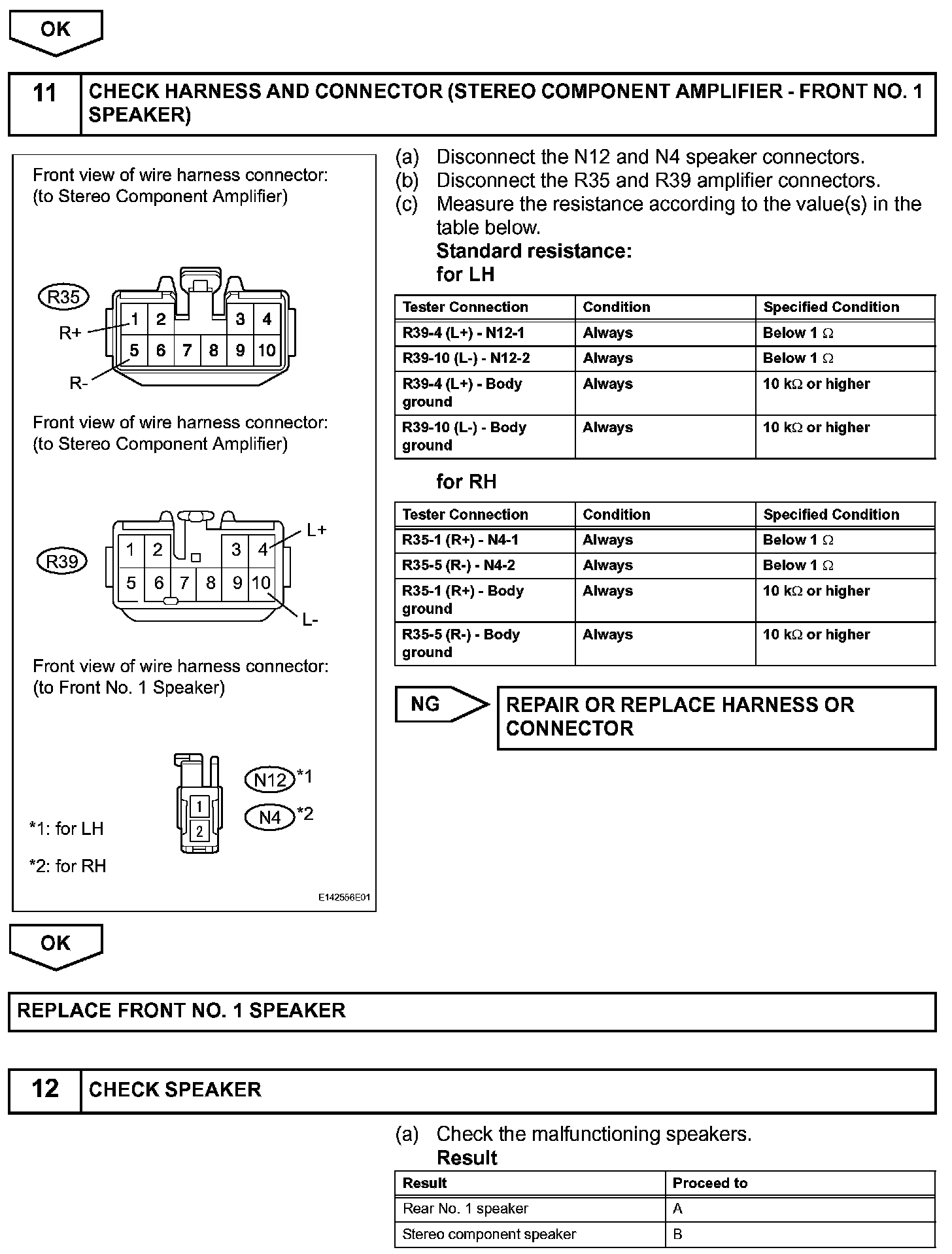

Step 10 (Continued)-12:

Step 12 (Continued)-14:

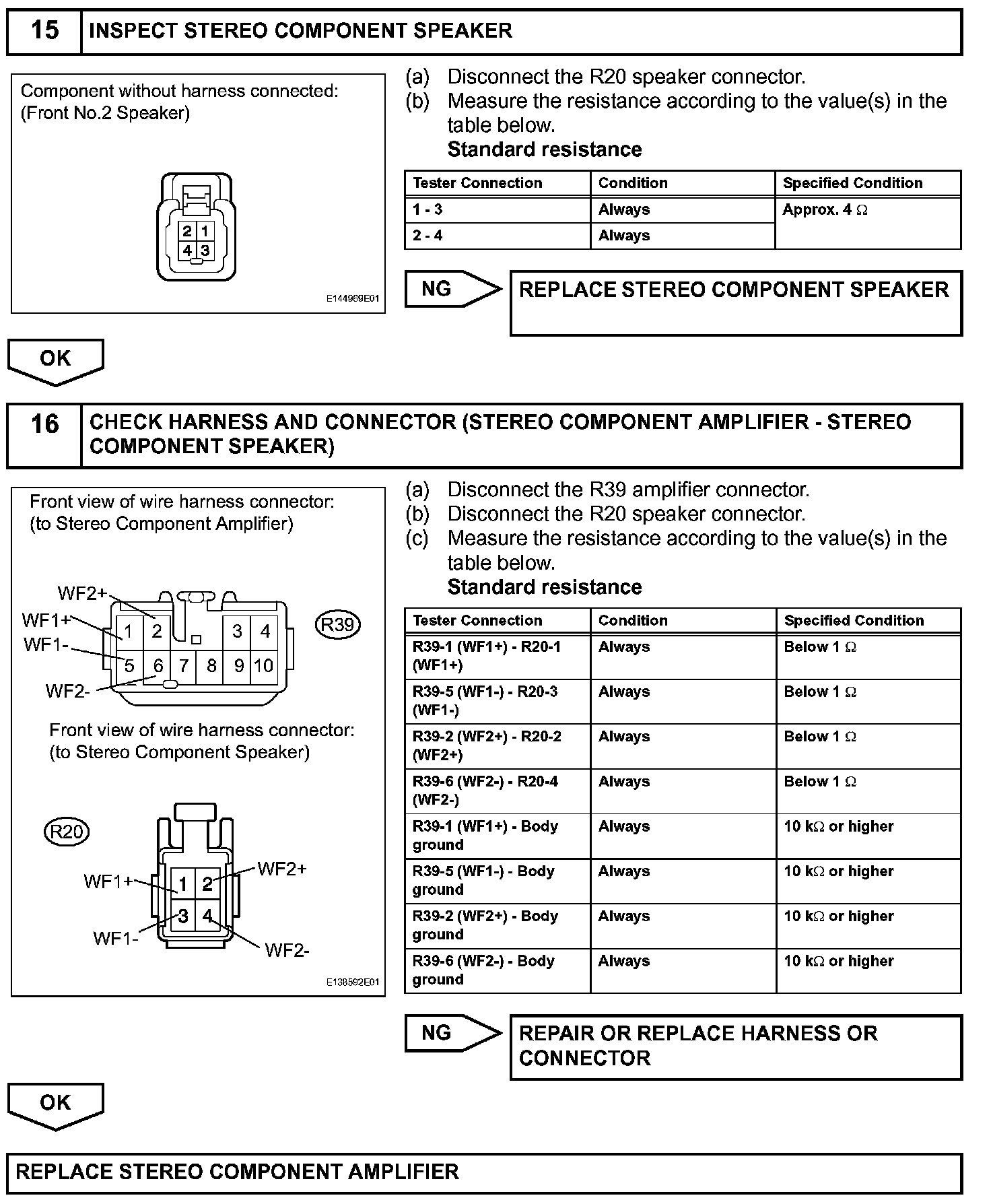

Step 15-16:

INSPECTION PROCEDURE
