Sound Signal Circuit Between Radio Receiver and Stereo Jack Adapter

Sound Signal Circuit between Radio Receiver and Stereo Jack Adapter

DESCRIPTION
This circuit sends an external device sound signal from the stereo jack adapter to the radio receiver.

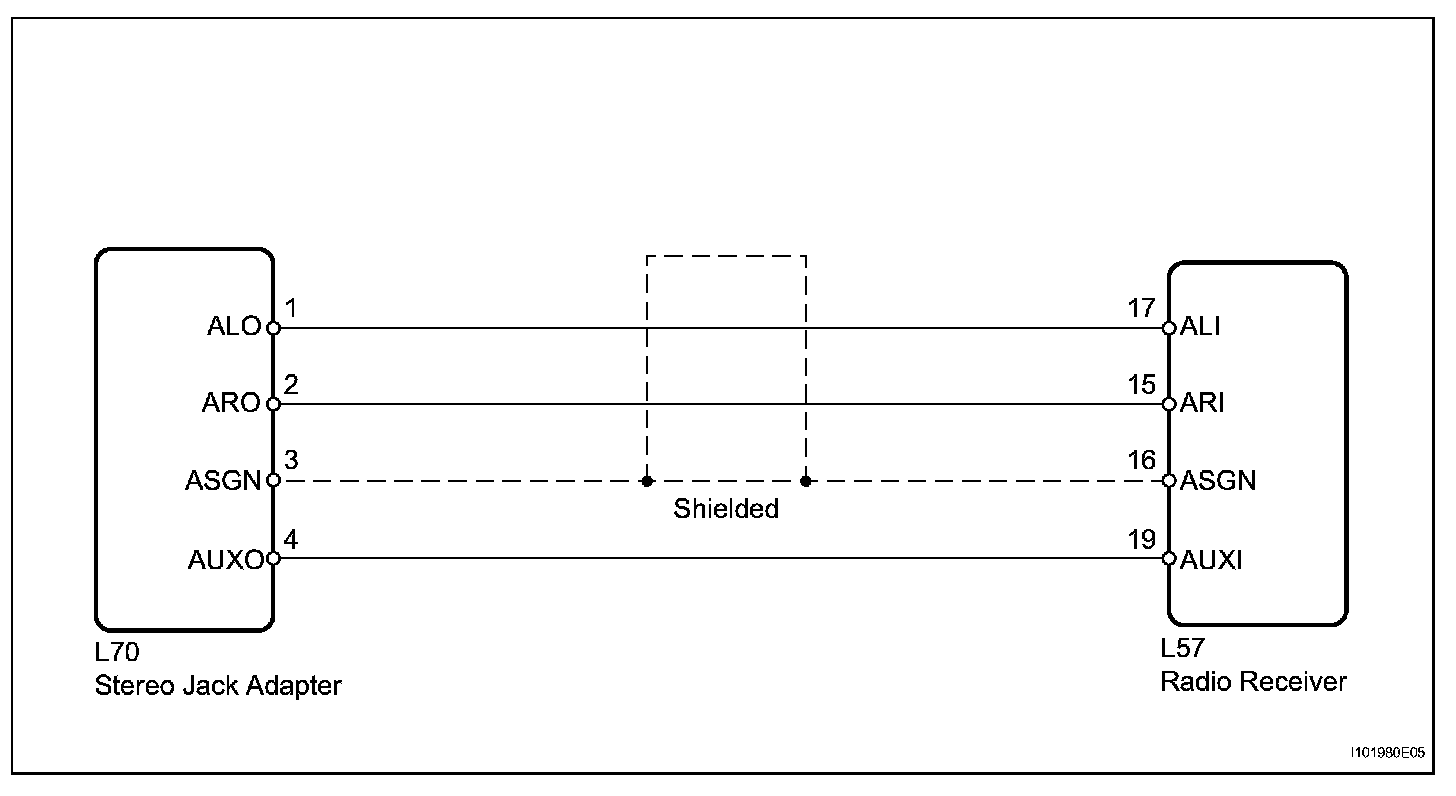

Wiring Diagram:

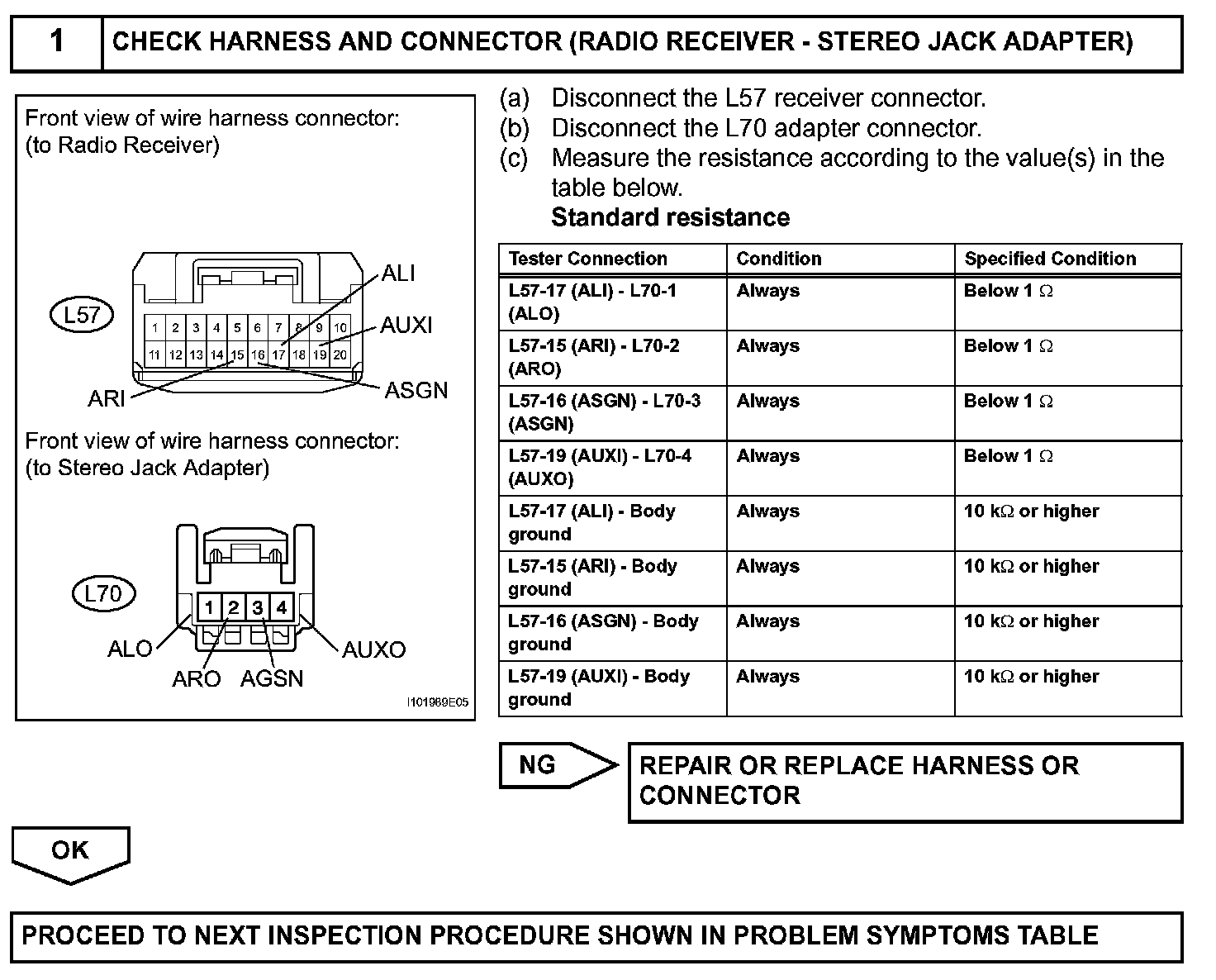

Step 1:




INSPECTION PROCEDURE
