Illumination Circuit

Illumination Circuit

DESCRIPTION
Power is supplied to the integration control and panel assembly, radio receiver and steering pad switch illumination when the light control switch is in the TAIL or HEAD position.

Wiring Diagram:

Step 1-2:

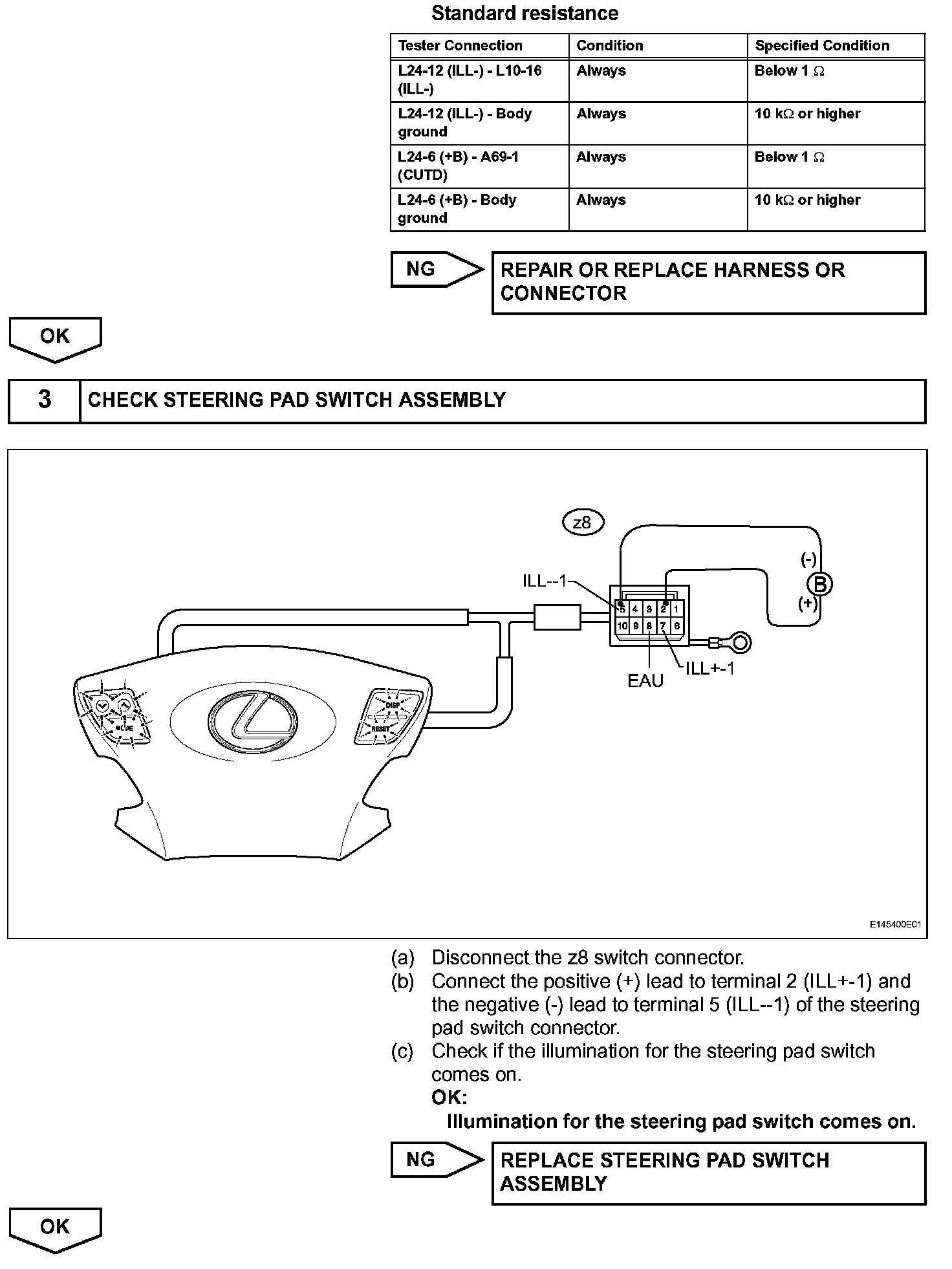

Step 2 (Continued)-3:

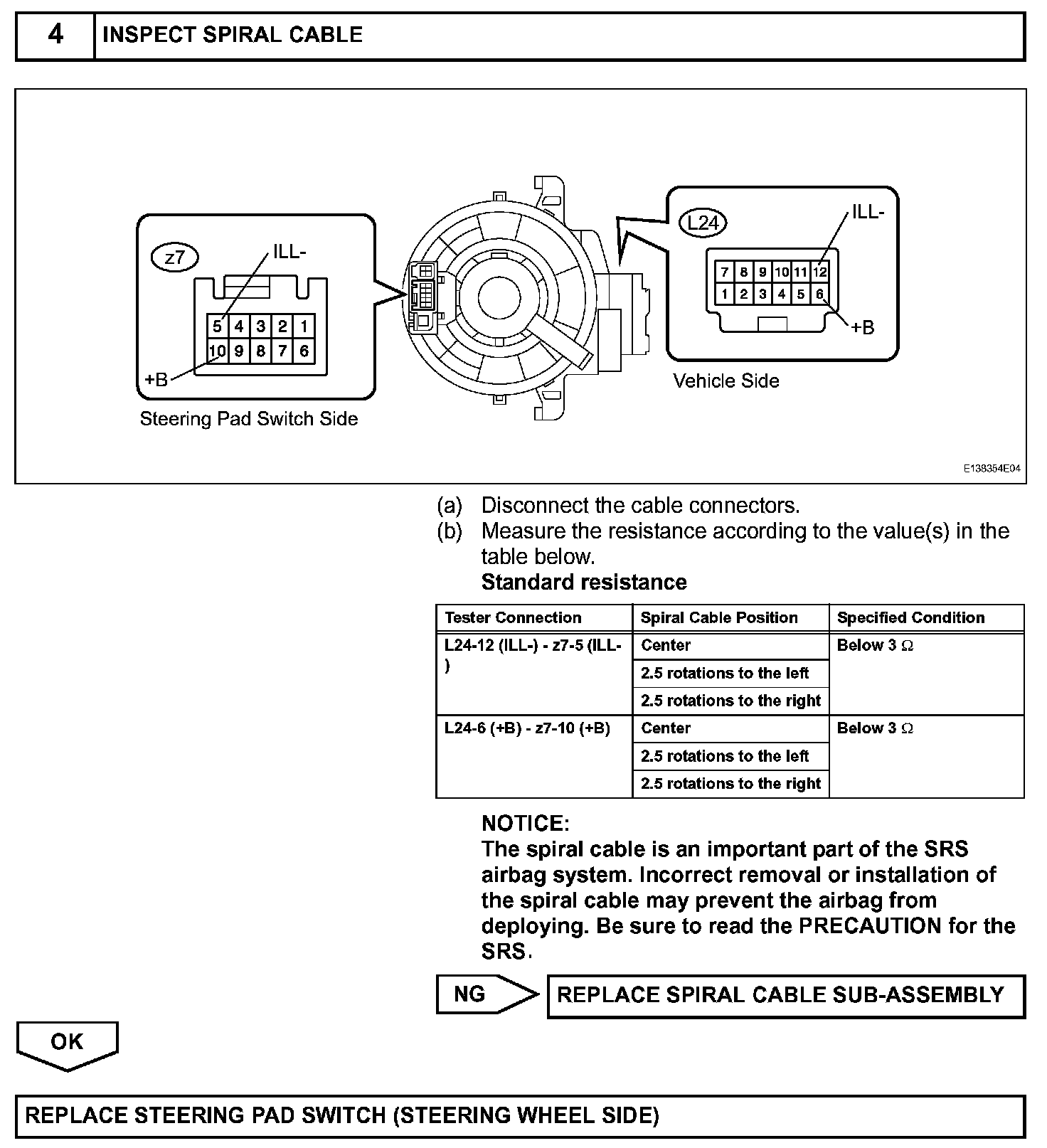

Step 4:

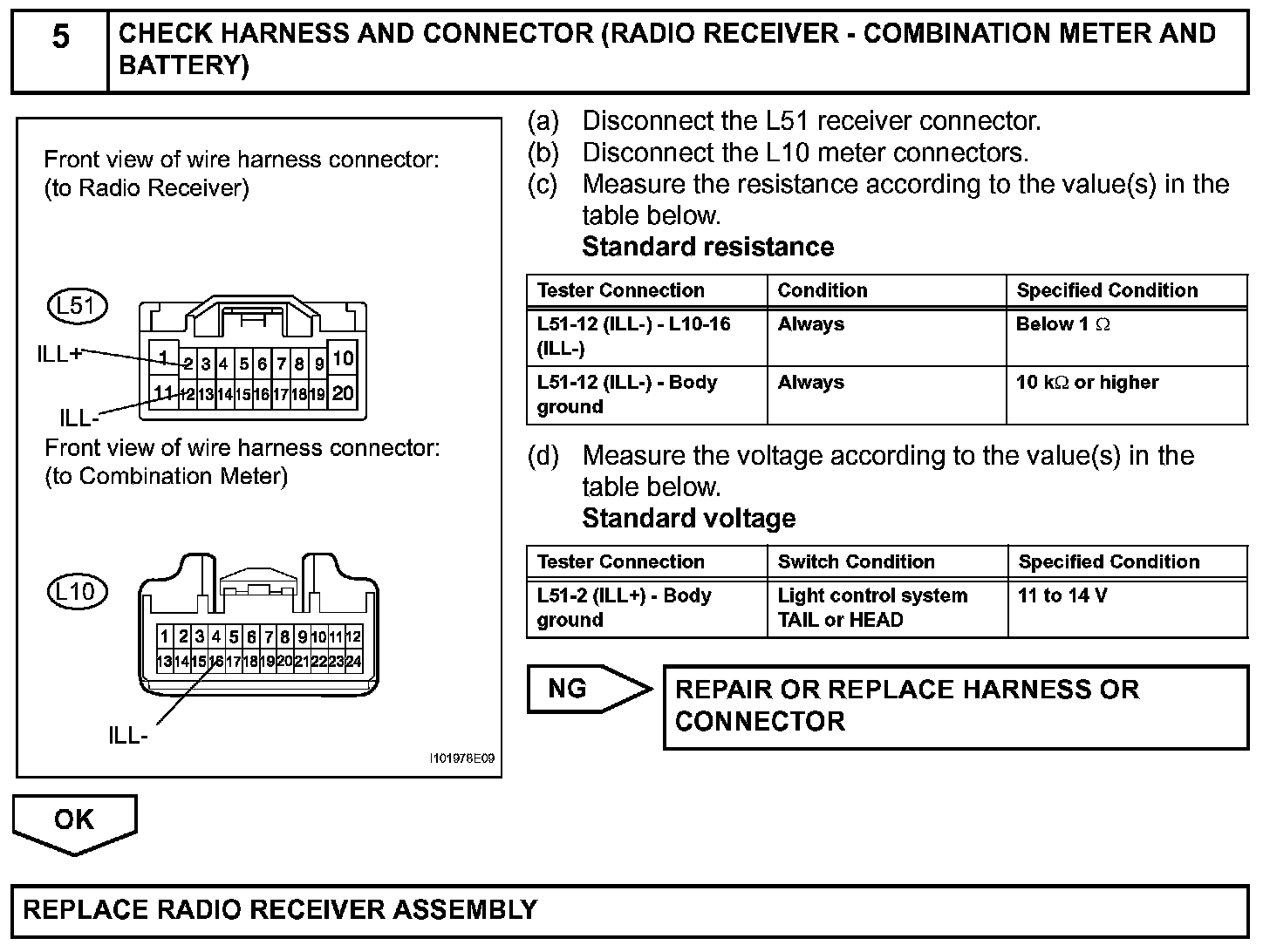

Step 5:

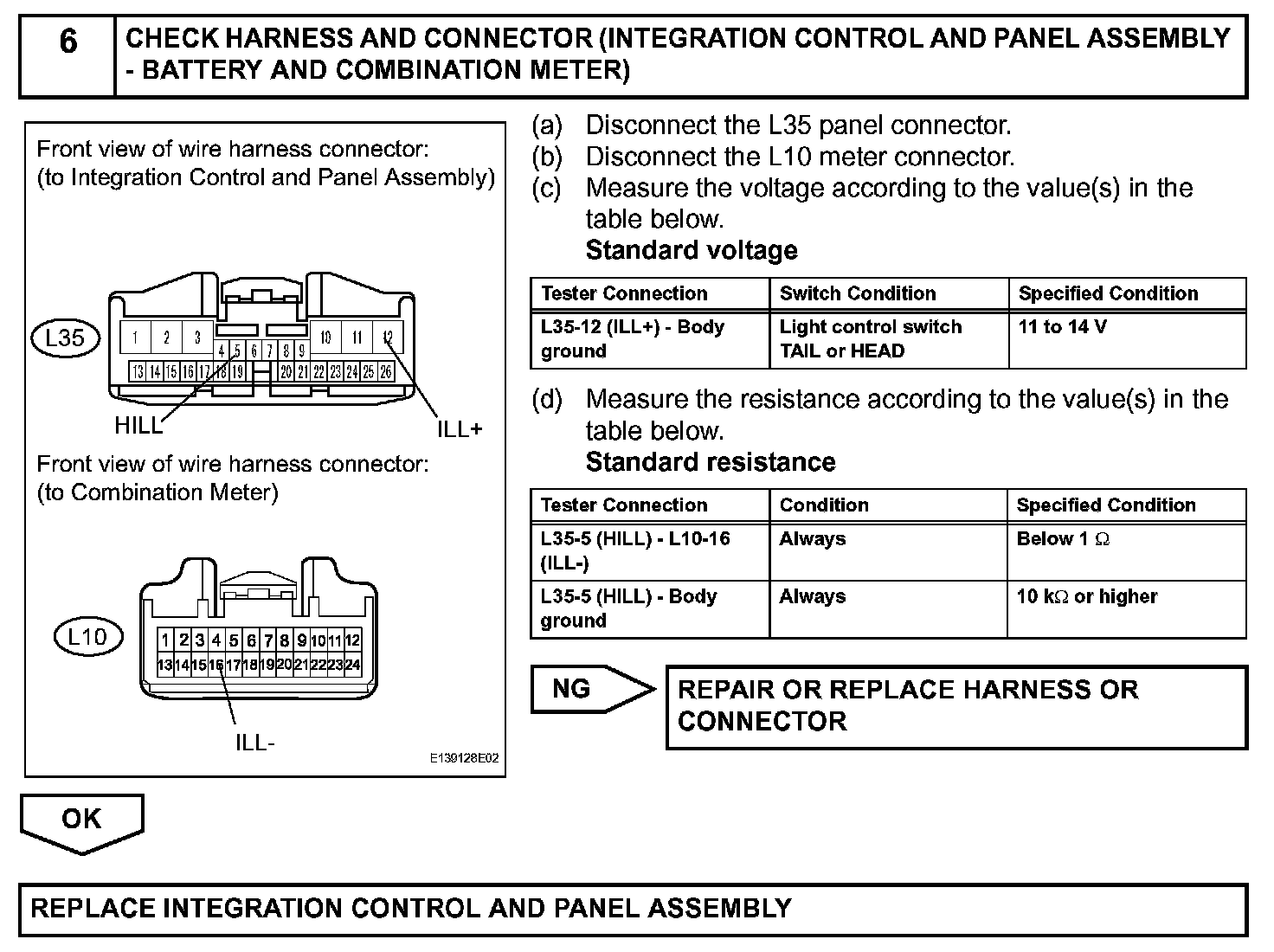

Step 6:

INSPECTION PROCEDURE

NOTE: The vehicle is equipped with an SRS (Supplemental Restraint System) which includes components such as airbags. Before servicing (including removal or installation of parts), be sure to read the PRECAUTION in the SRS (Refer to Restraint Systems Service Precautions).
