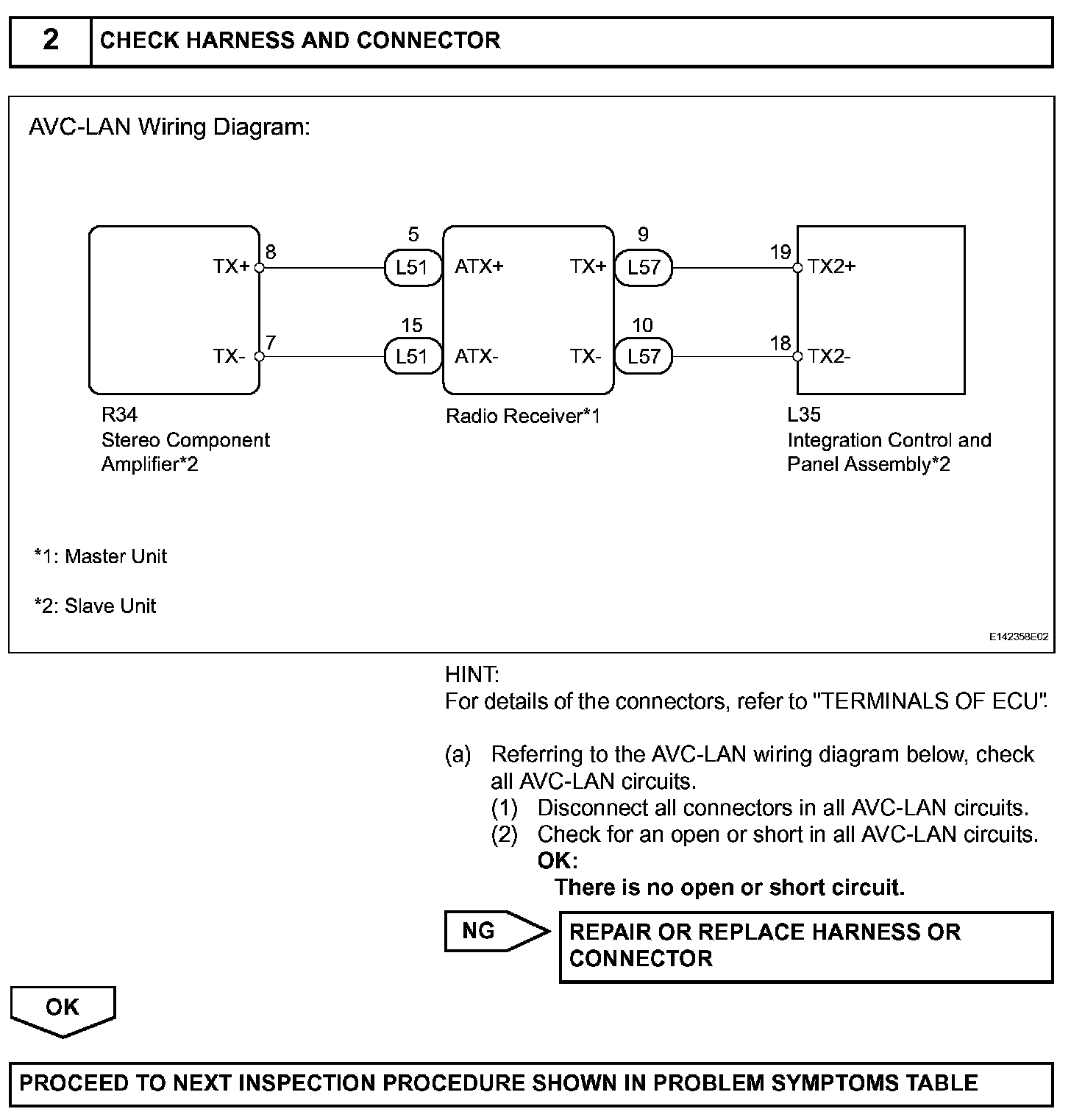

AVC-LAN Circuit

AVC-LAN Circuit

DESCRIPTION
Each unit of the audio system connected to the AVC-LAN (communication bus) communicates by transferring the signals from each switch.

When a short to +B or short to ground occurs in this AVC-LAN, the audio system will not function normally as the communication is discontinued.
