Speaker Circuit
Speaker CircuitDESCRIPTION
The stereo component amplifier sends sound signals to the speaker.

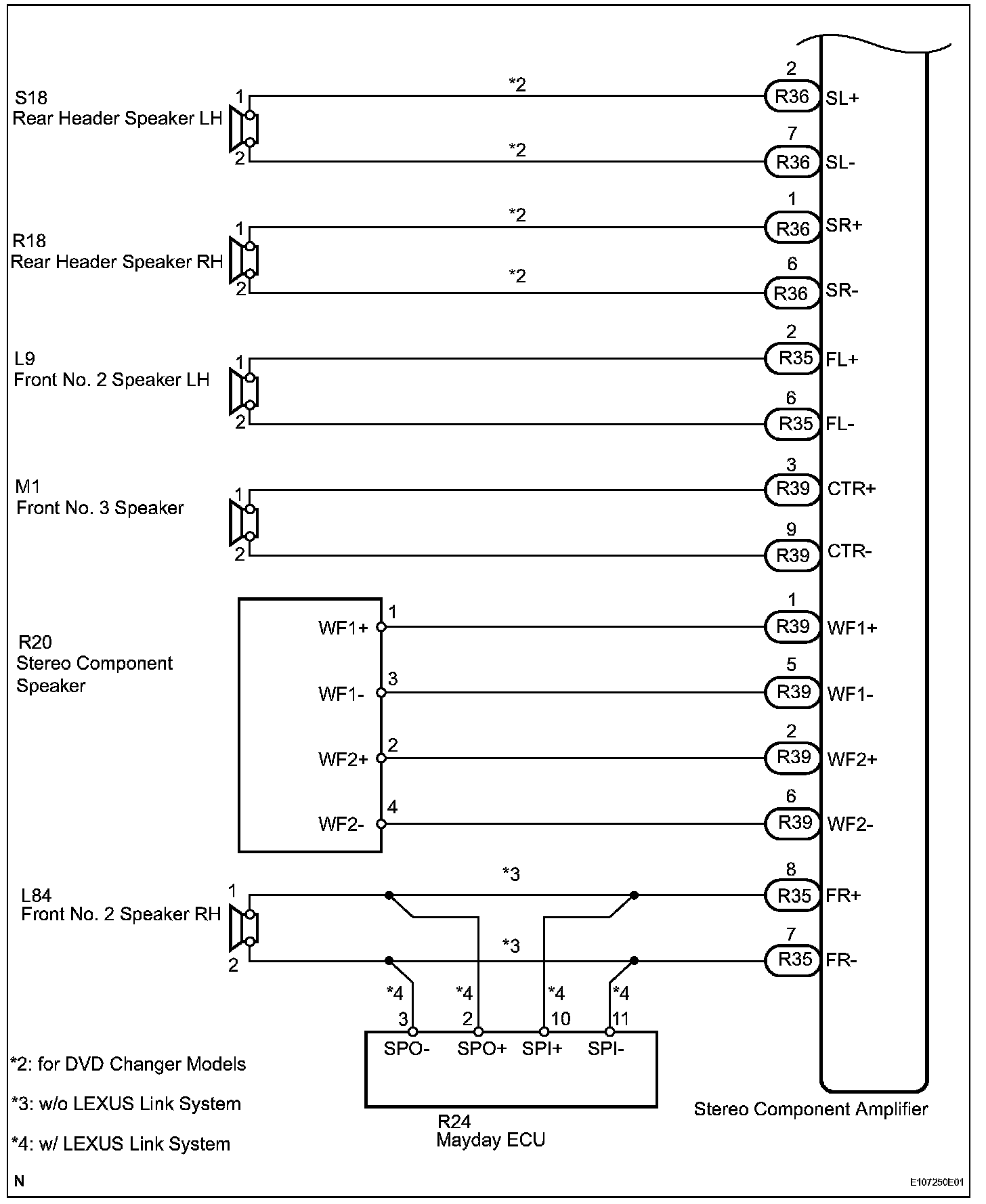

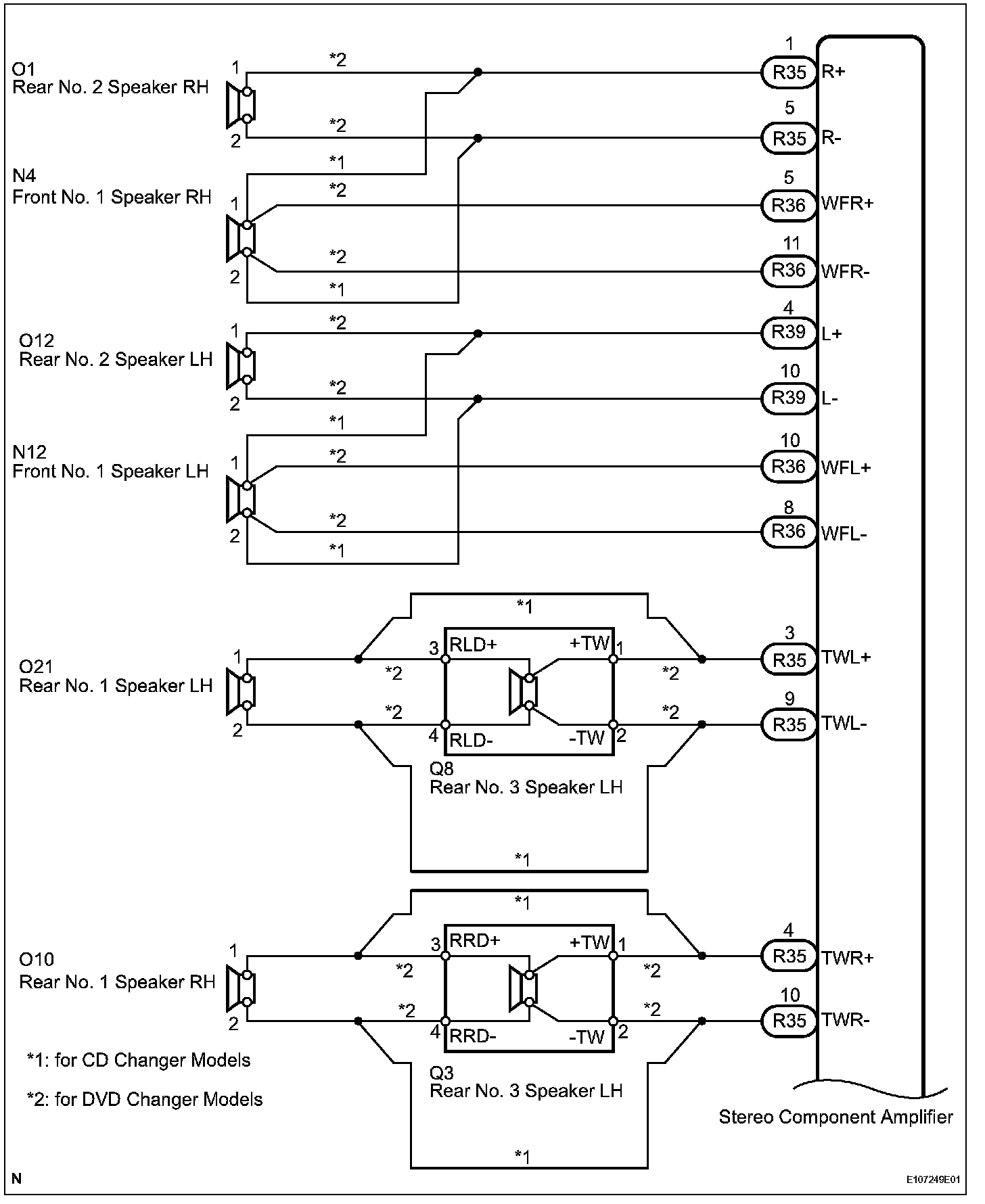

Wiring Diagram (Part 1):
Wiring Diagram (Part 2):

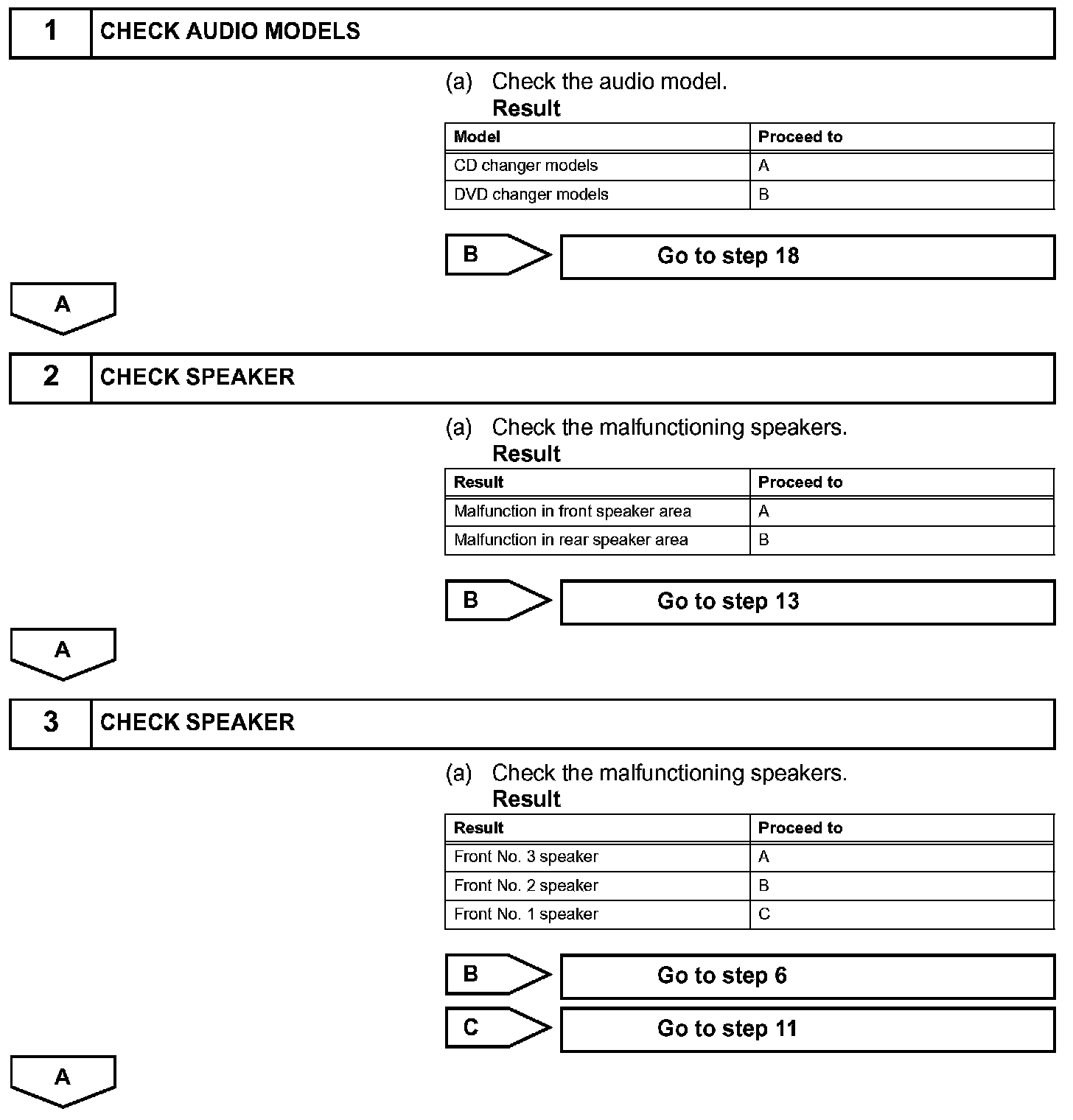

Step 1-3:

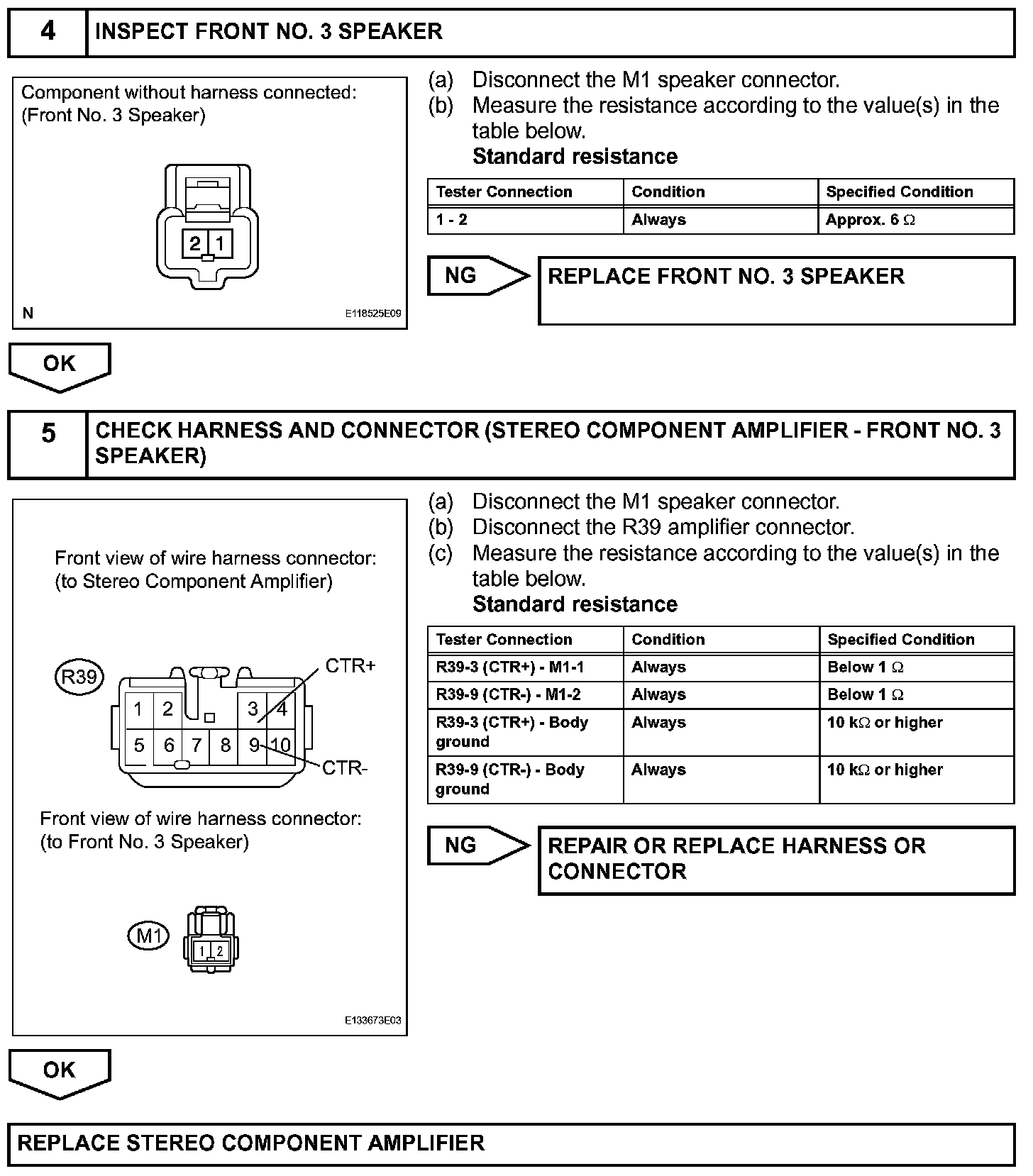

Step 4-5:

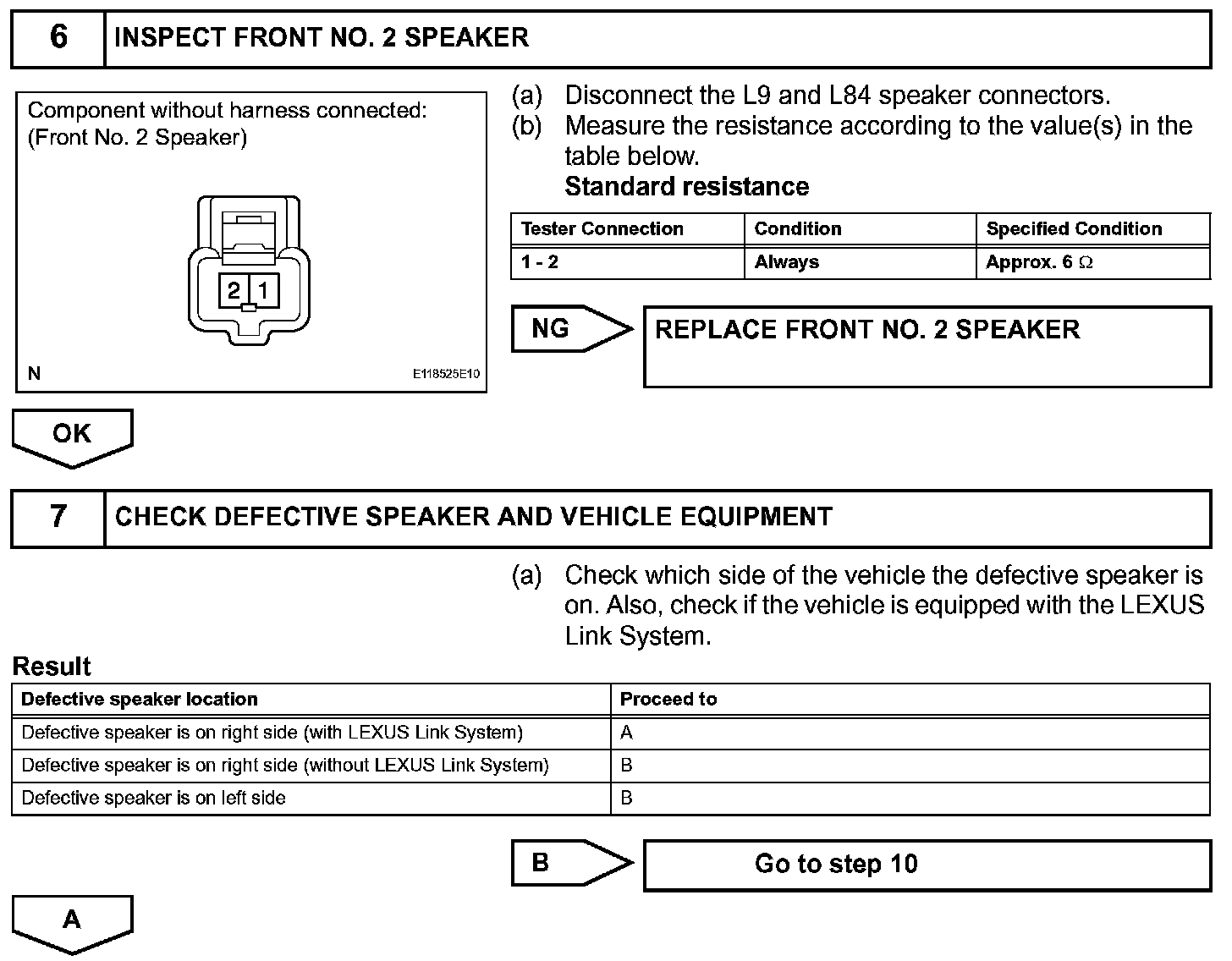

Step 6-7:

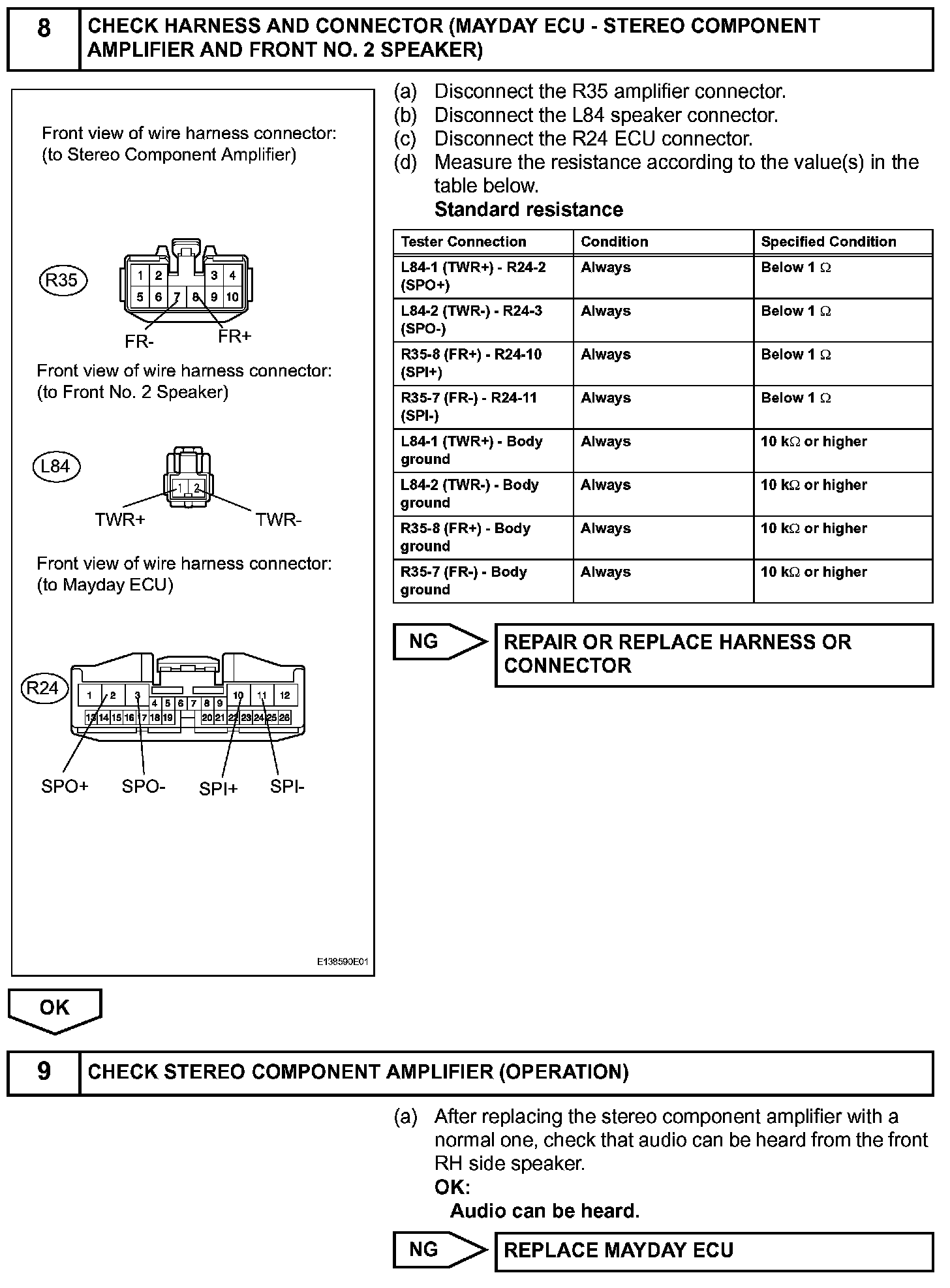

Step 8-9:
Step 9 (Continued)-11:
Step 12-13:

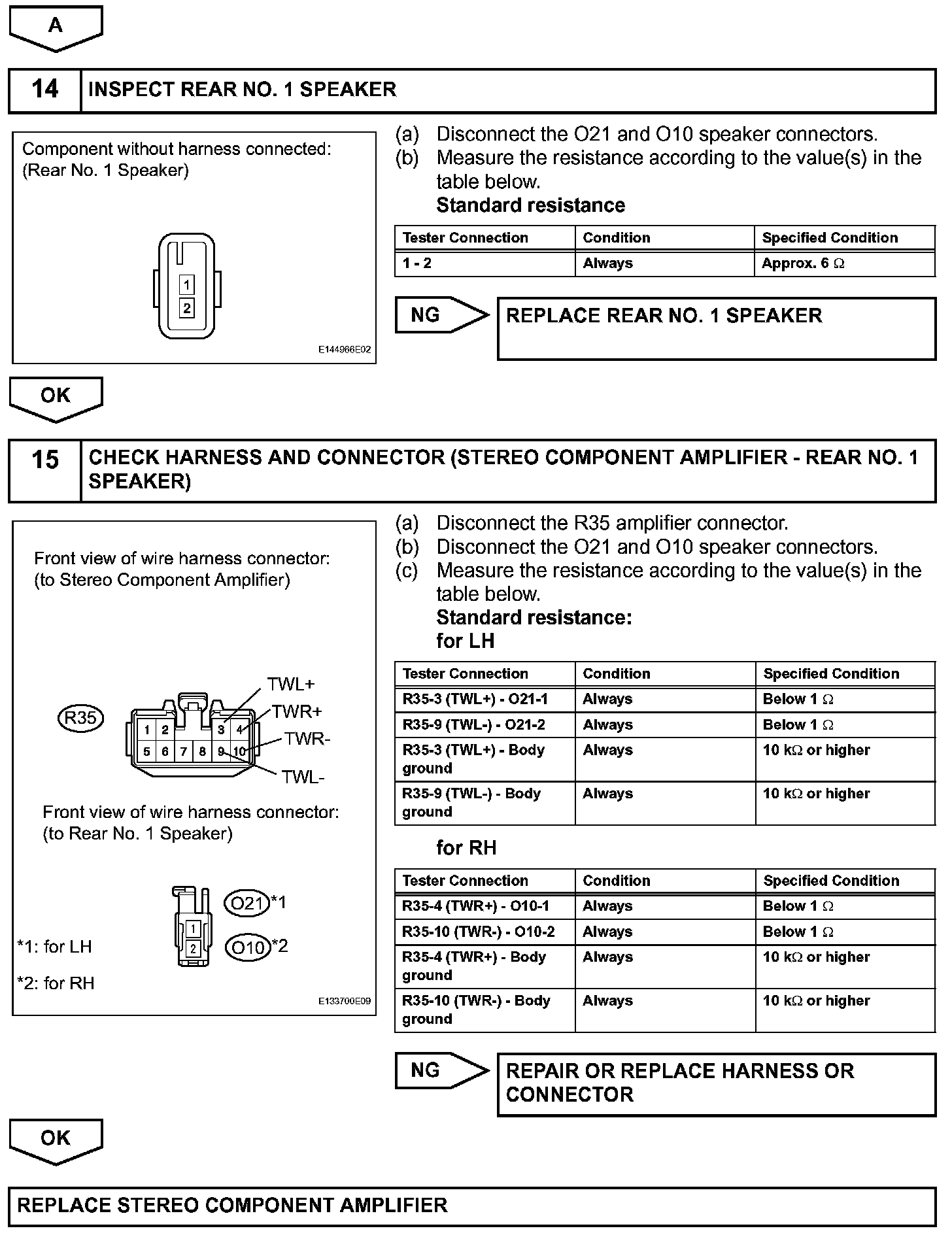

Step 13 (Continued)-15:

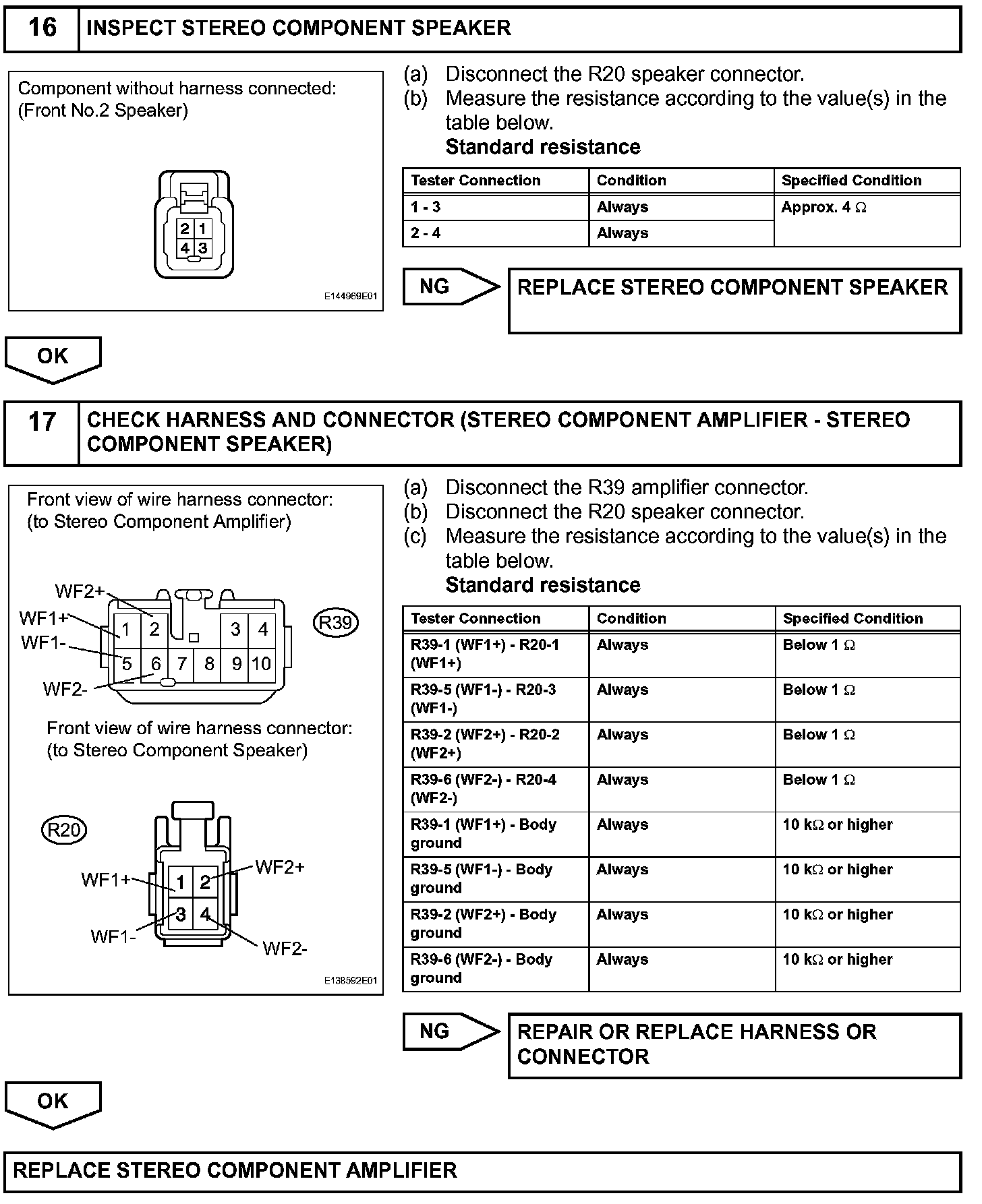

Step 16-17:

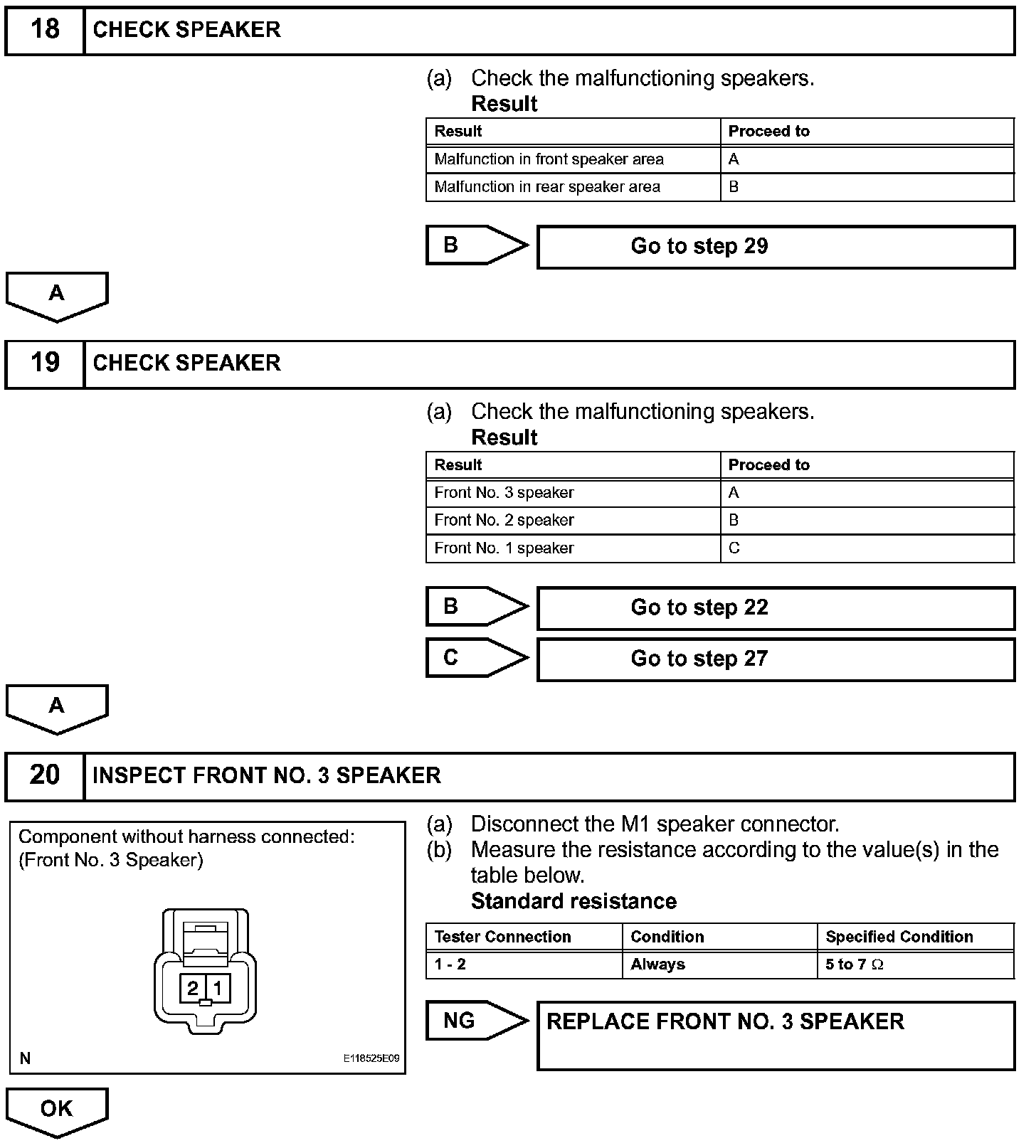

Step 18-20:

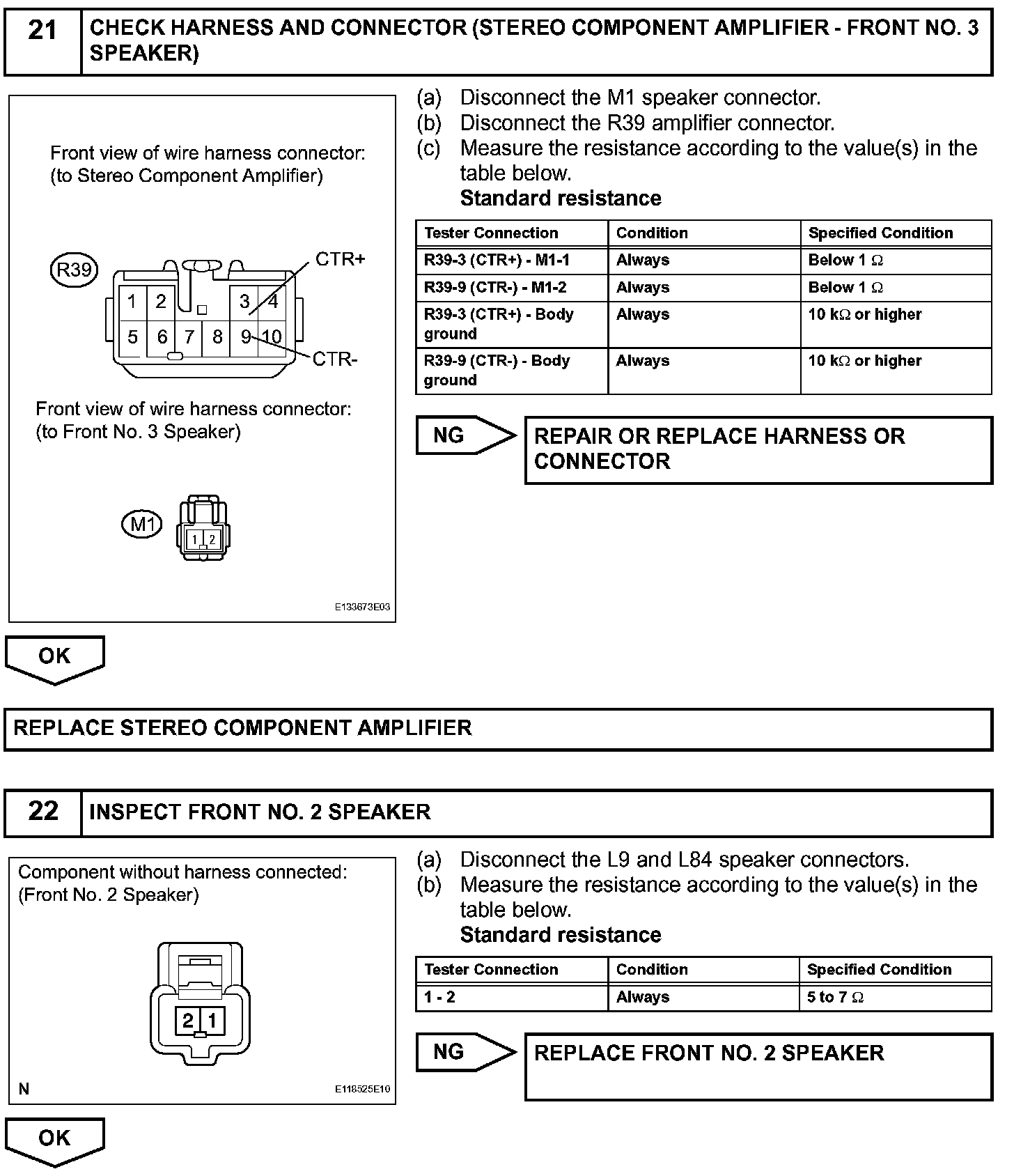

Step 21-22:

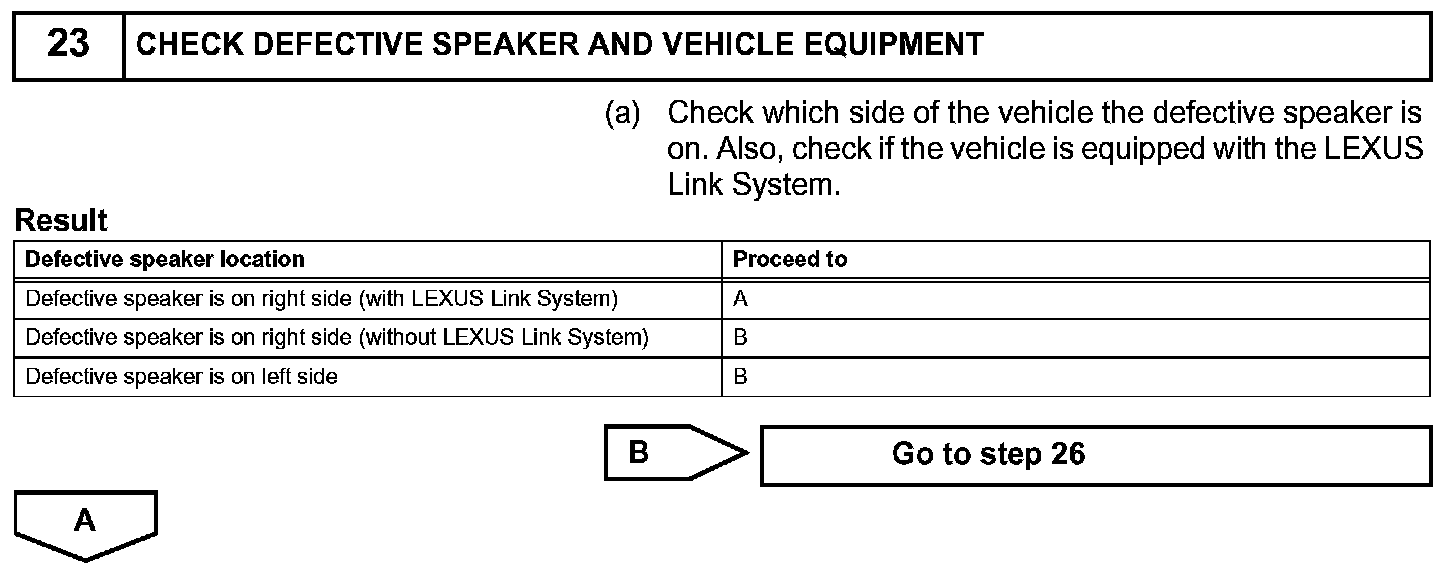

Step 23:

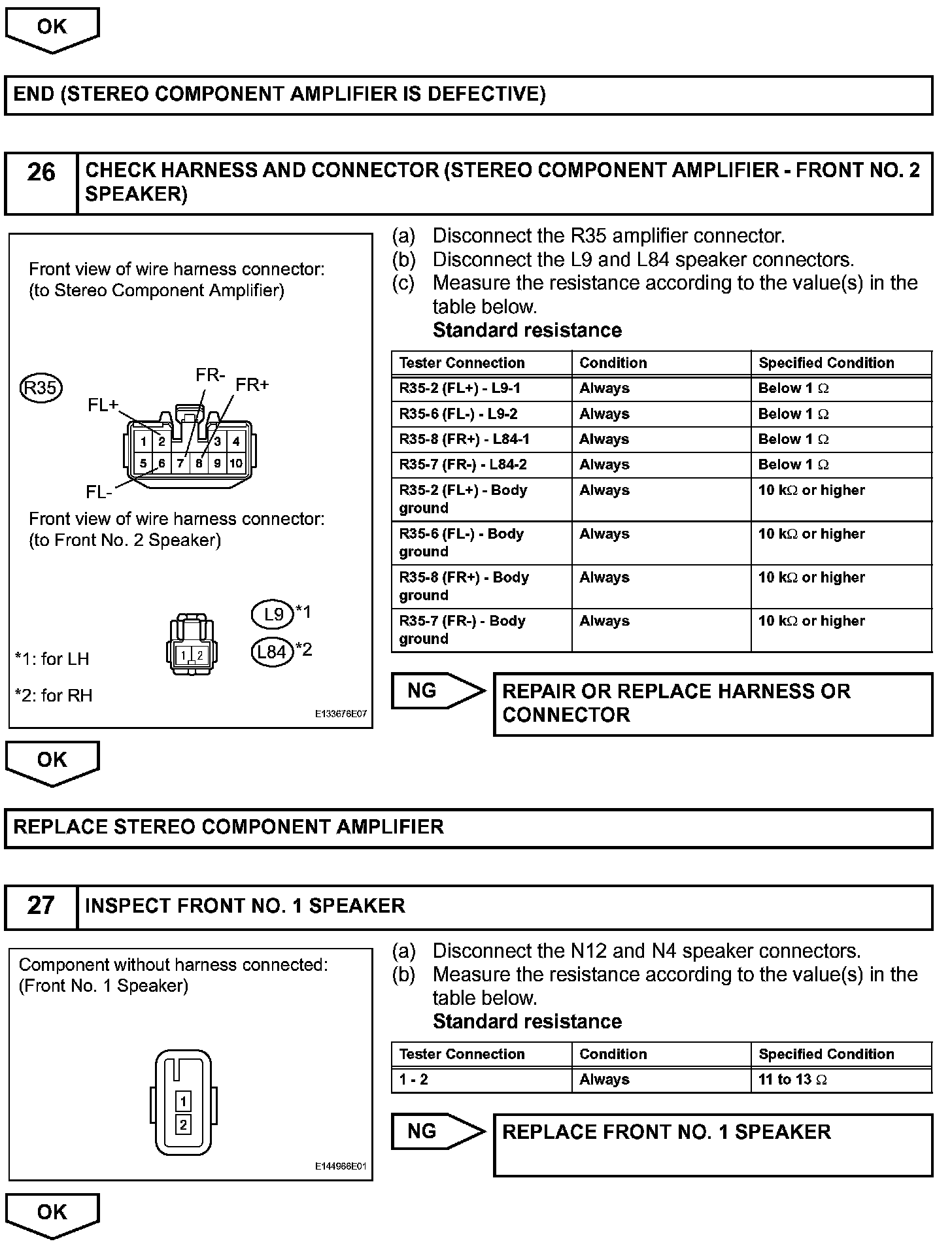

Step 24-25:
Step 25 (Continued)-27:

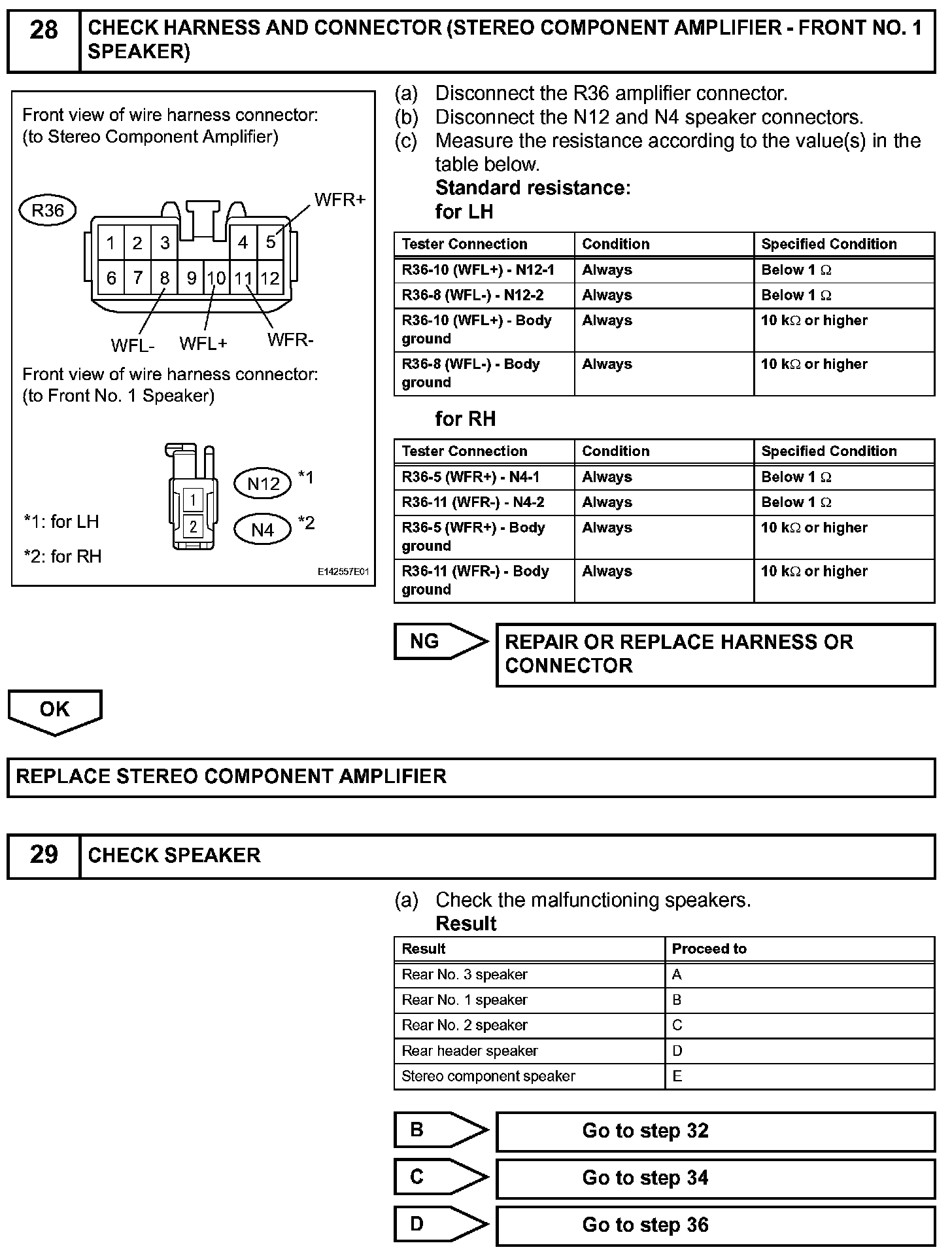

Step 28-29:

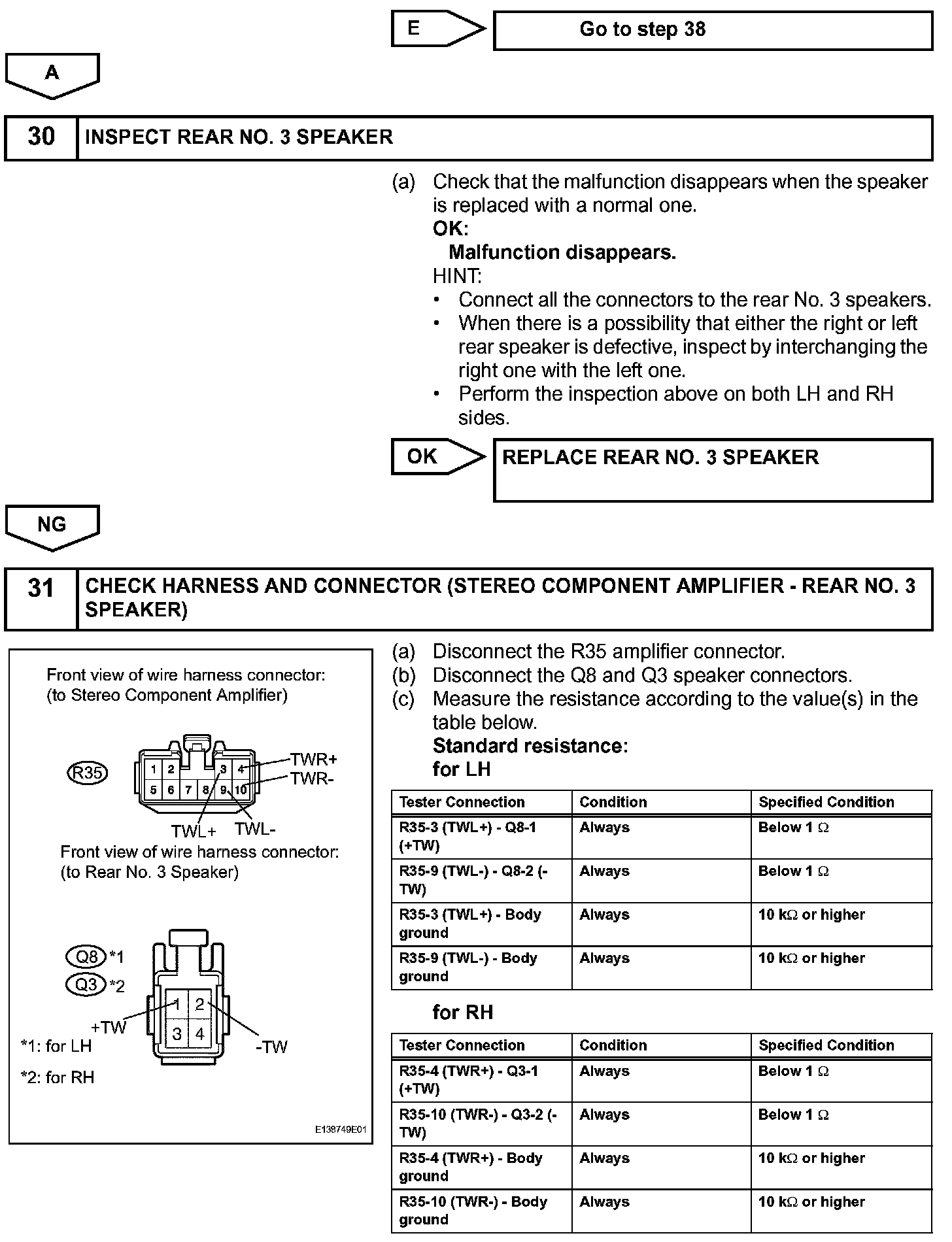

Step 29 (Continued)-31:

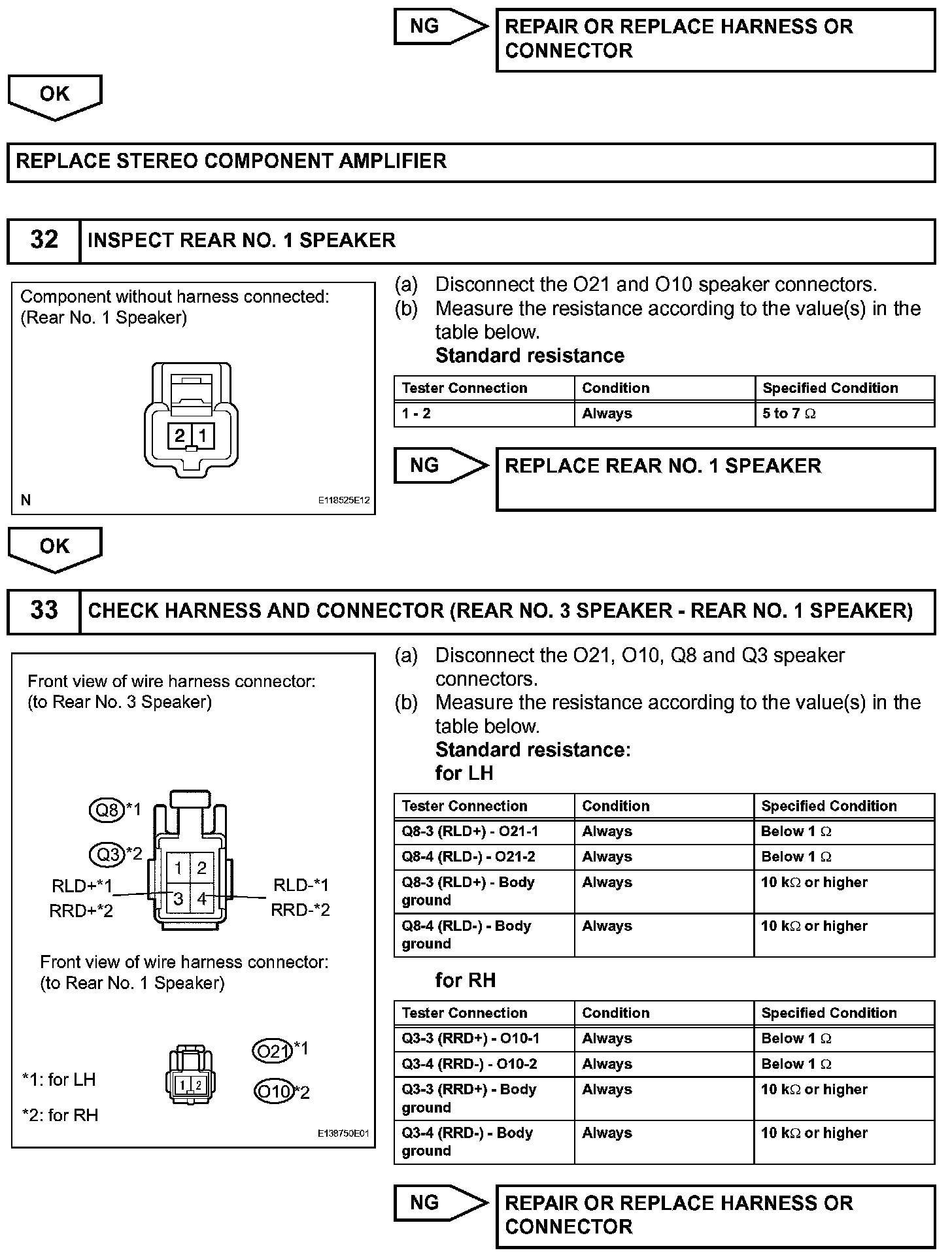

Step 31 (Continued)-33:

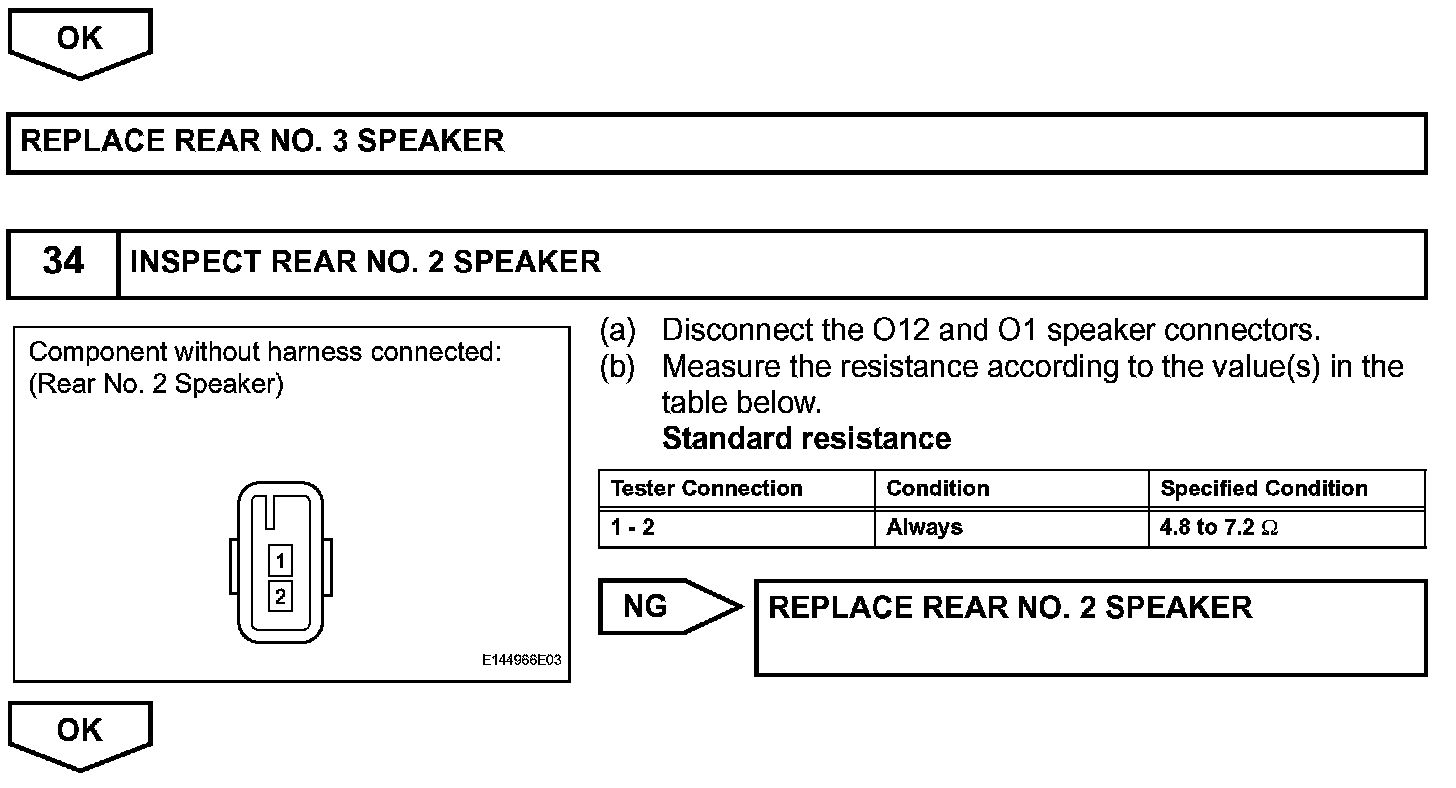

Step 33 (Continued)-34:

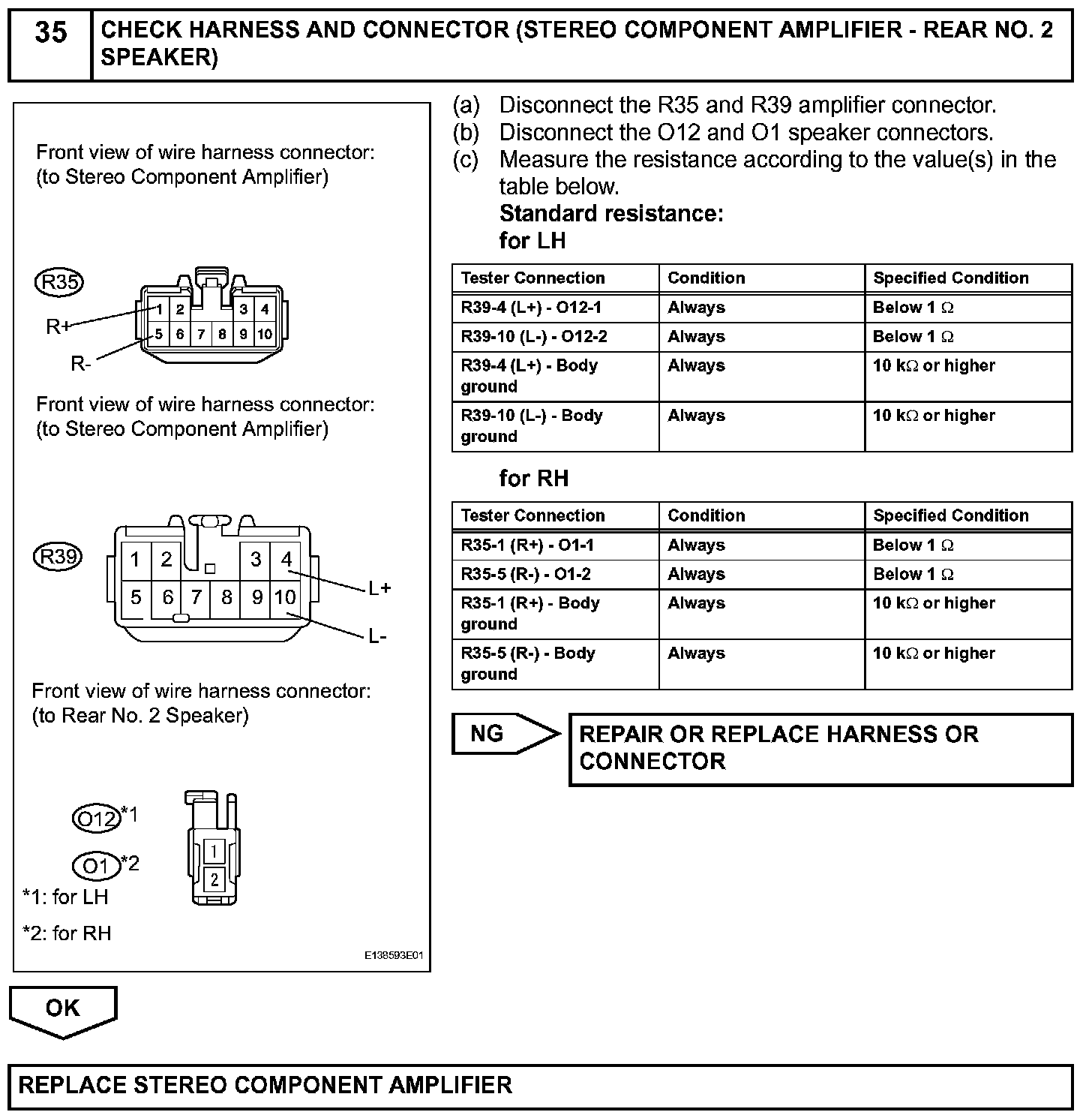

Step 35:

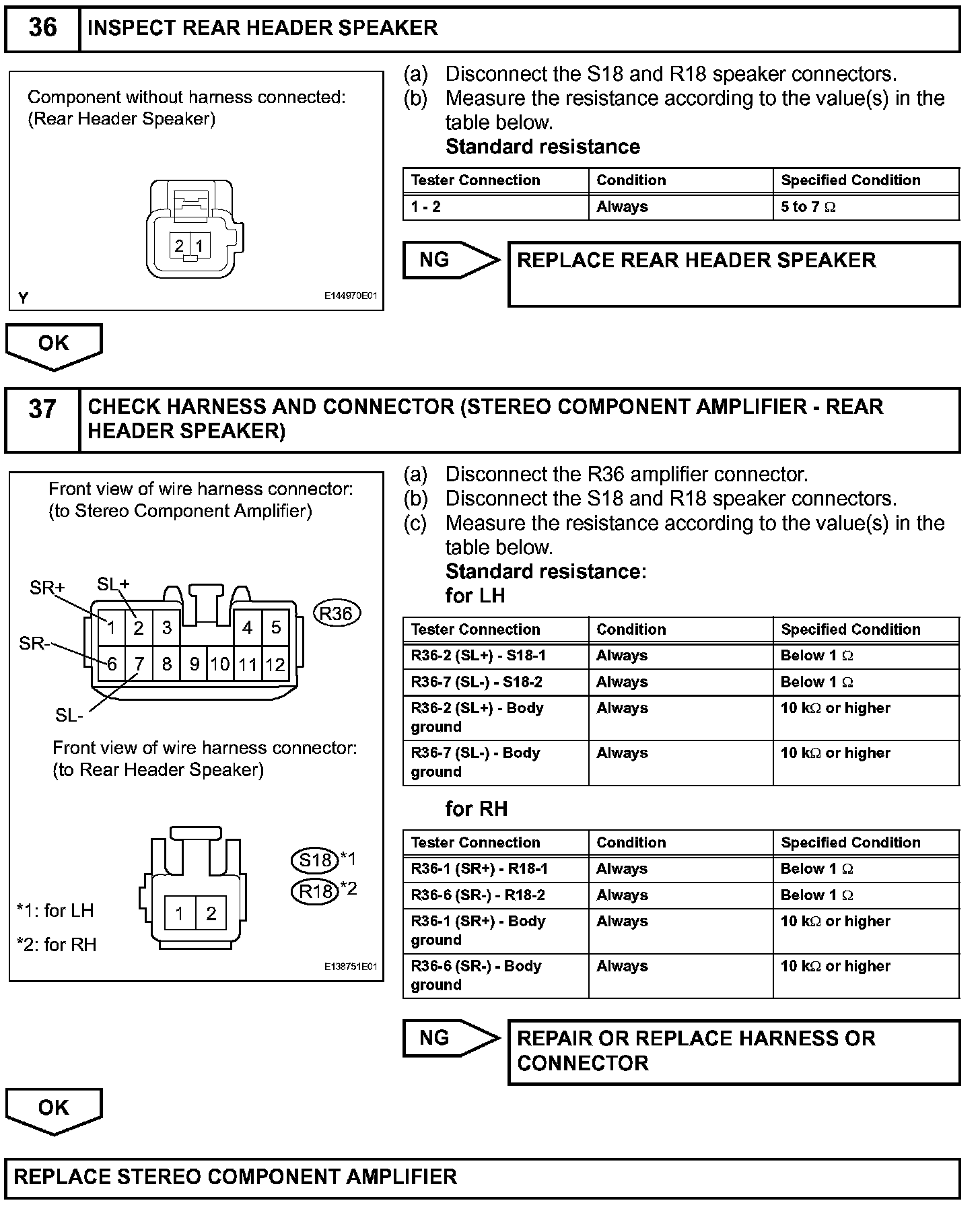

Step 36-37:

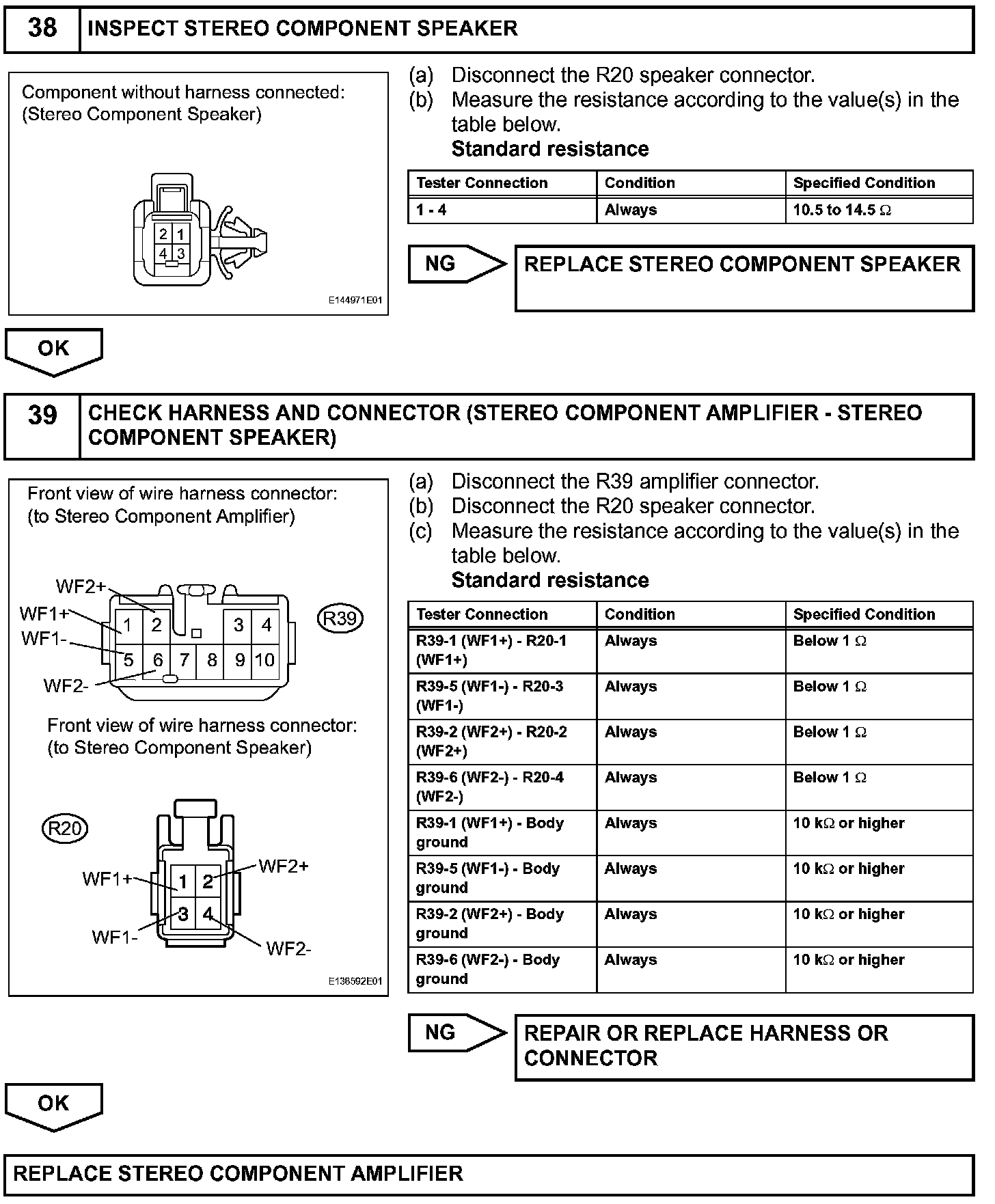

Step 38-39:
INSPECTION PROCEDURE
