Sound Signal Circuit Between Radio Receiver and Multi-Display Controller

Sound Signal Circuit between Radio Receiver and Multi-display Controller

DESCRIPTION
This is the sound signal circuit from the radio receiver to the multi-display controller.

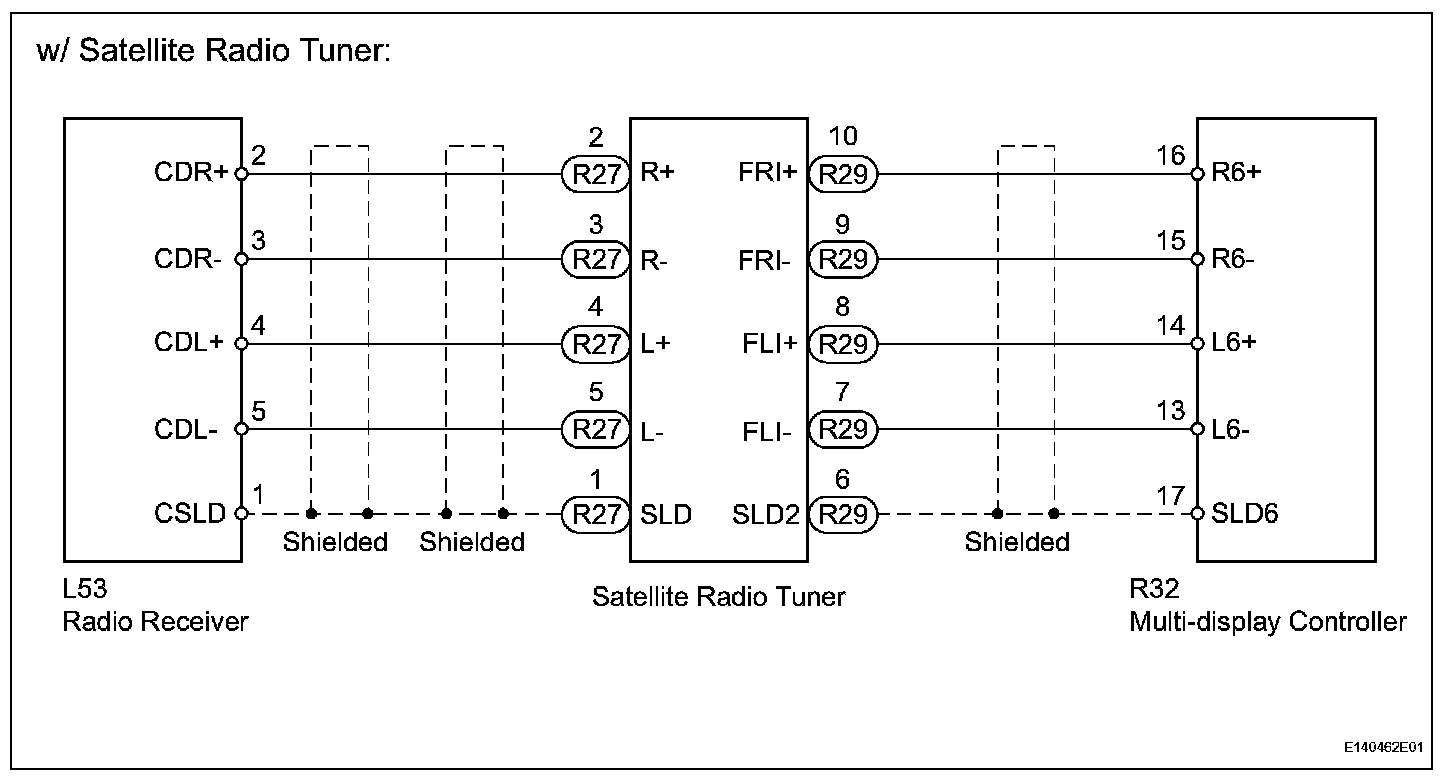

Wiring Diagram (Part 1):

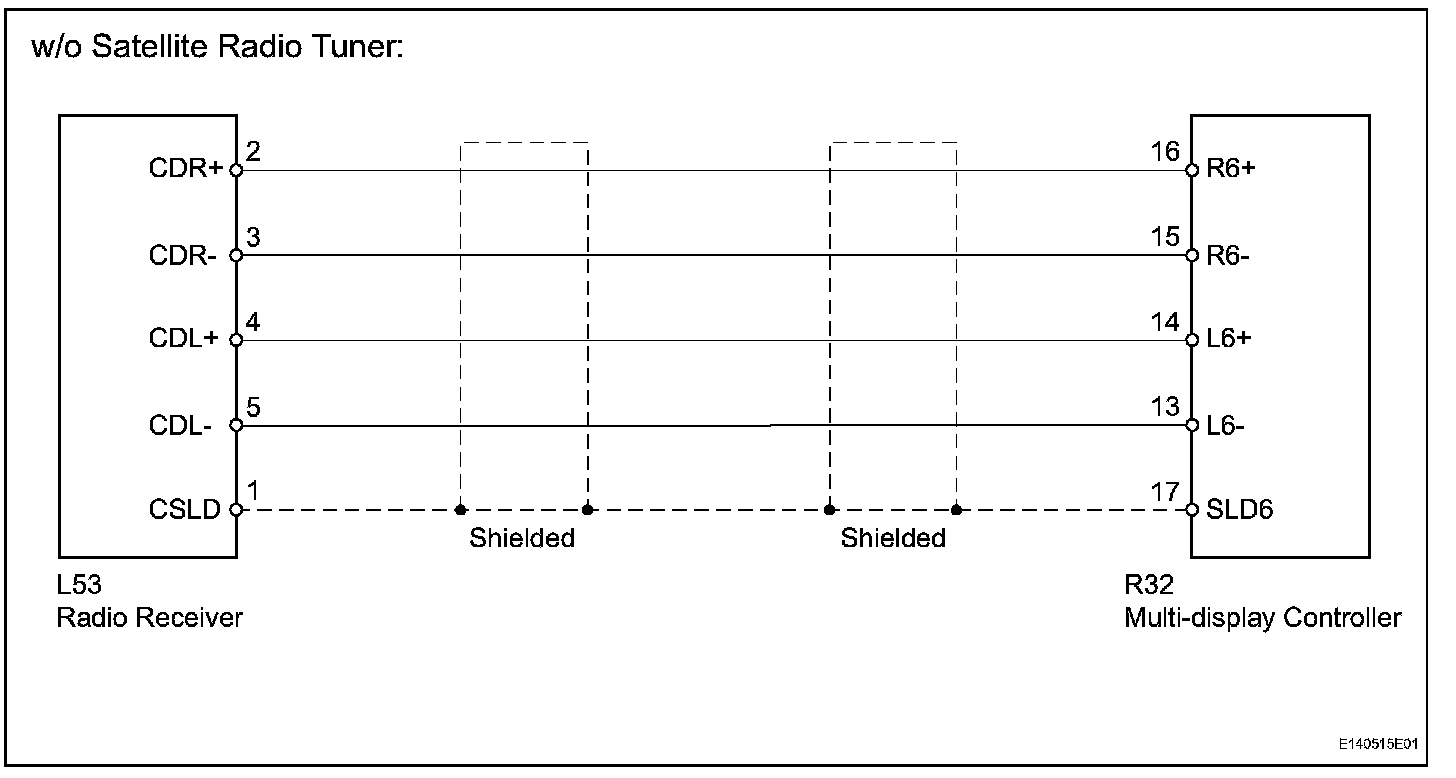

Wiring Diagram (Part 2):

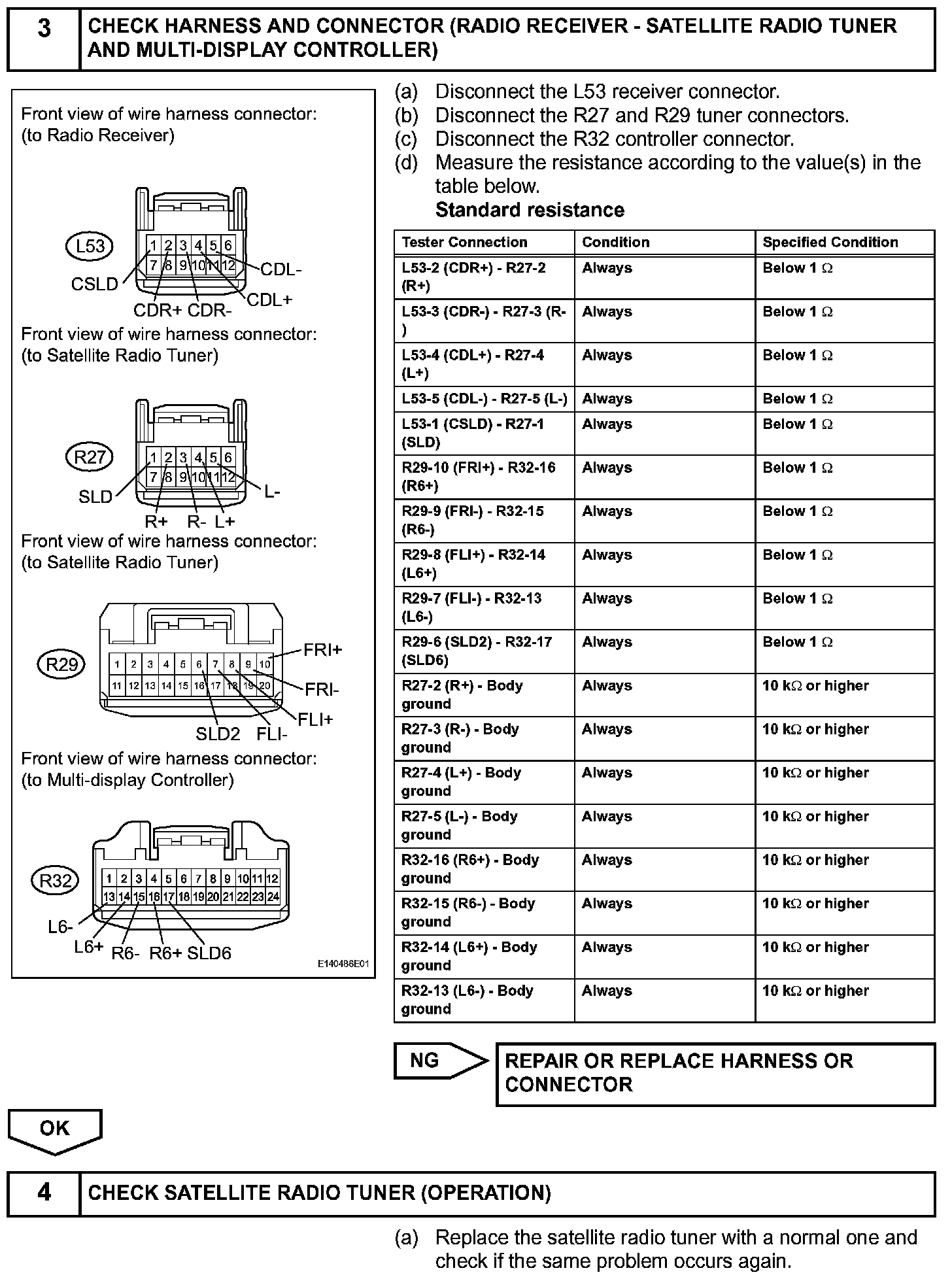

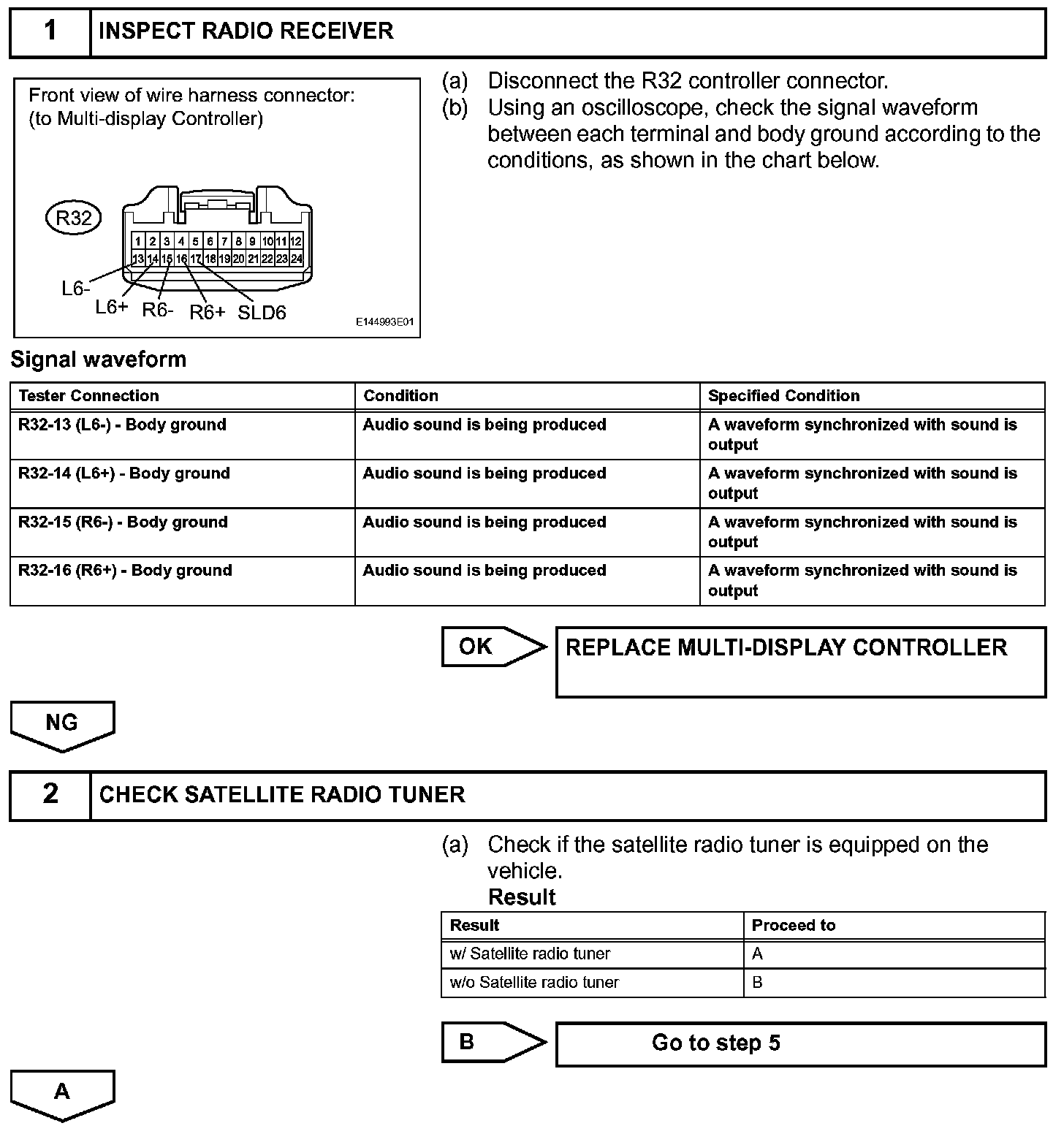

Step 1-2:

Step 3-4:

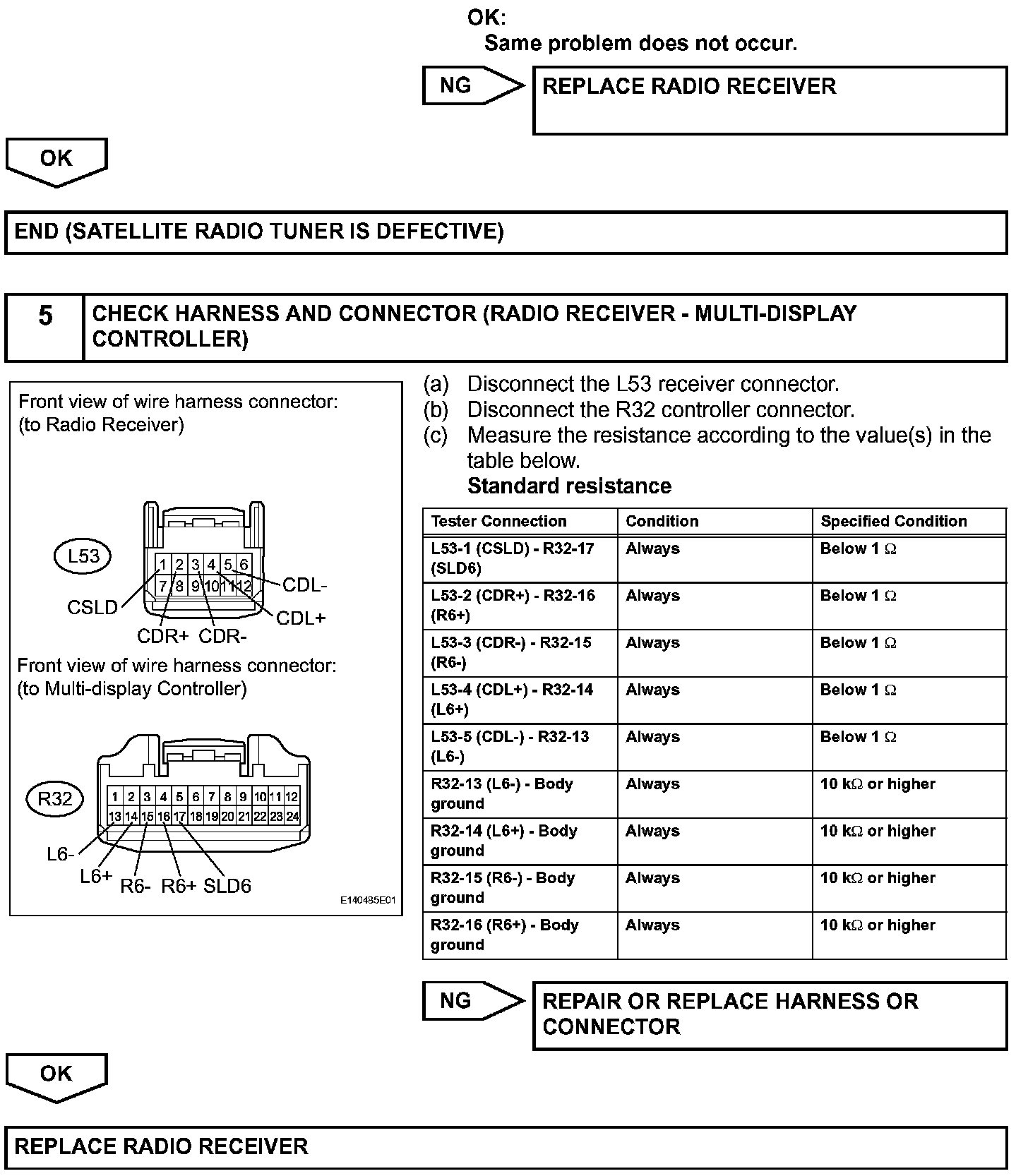

Step 4 (Continued)-5:

INSPECTION PROCEDURE
