Satellite Radio Tuner Power Source Circuit

Satellite Radio Tuner Power Source Circuit

DESCRIPTION
This circuit provides power to the satellite radio tuner.

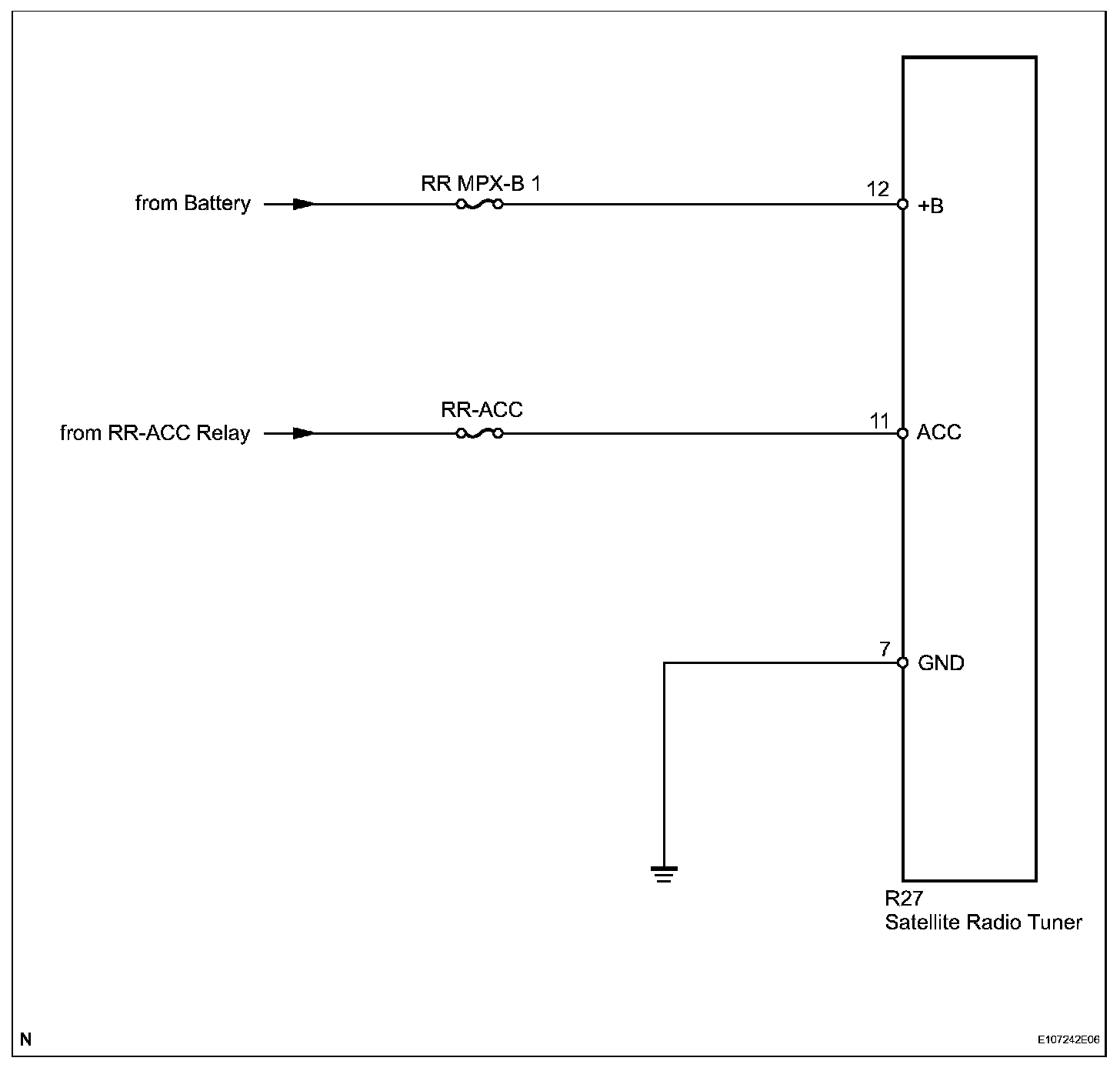

Wiring Diagram:

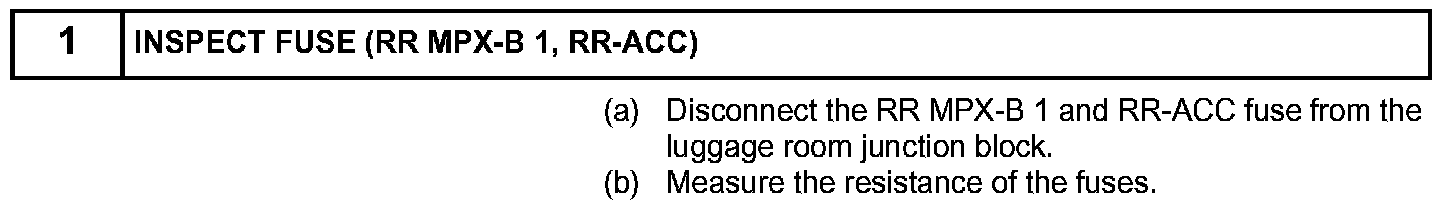

Step 1:

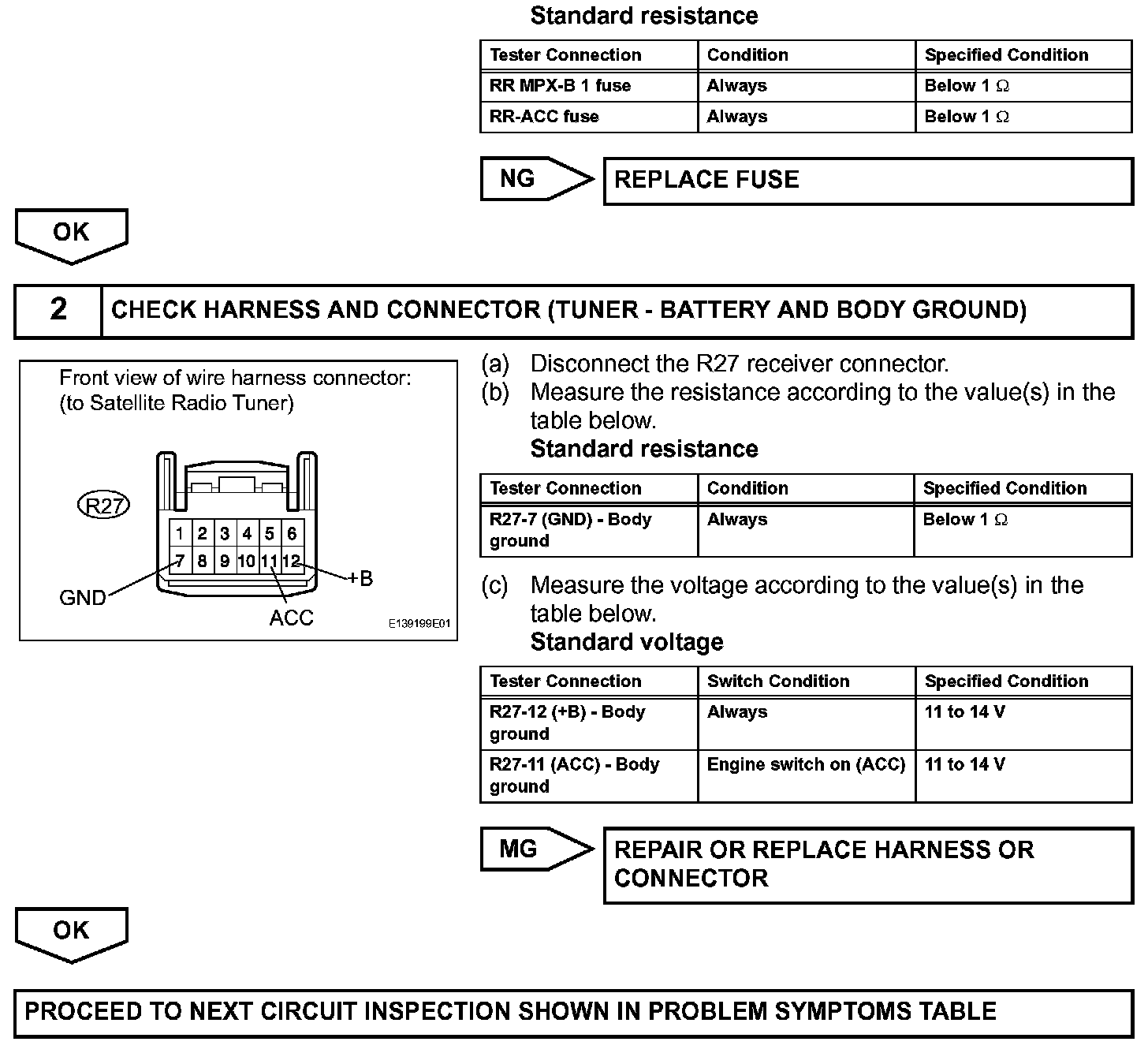

Step 1 (Continued)-2:




INSPECTION PROCEDURE
