Reverse Signal Circuit

Reverse Signal Circuit

DESCRIPTION
The multi-display receives a reverse signal from the rear junction block ECU and then adjusts vehicle position.

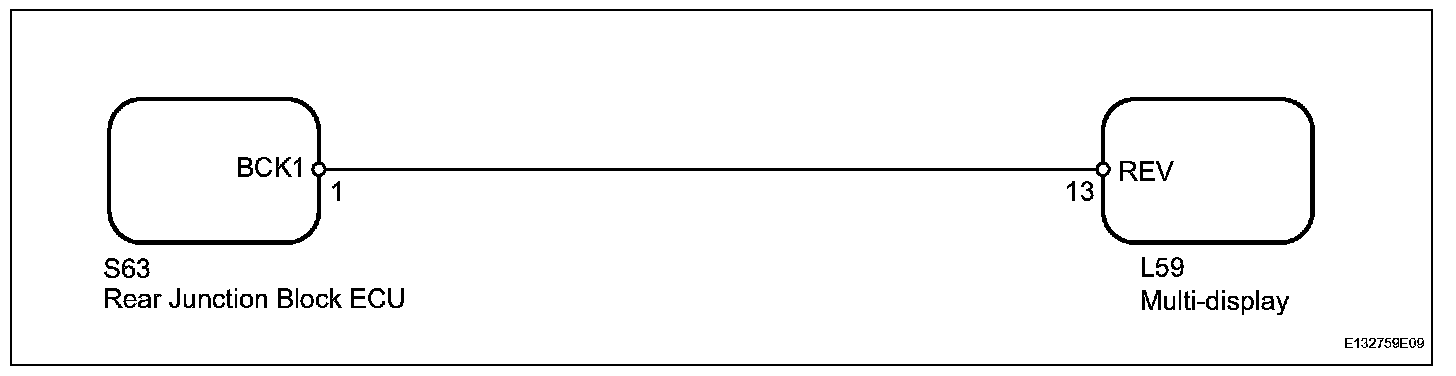

Wiring Diagram:

Step 1-2:

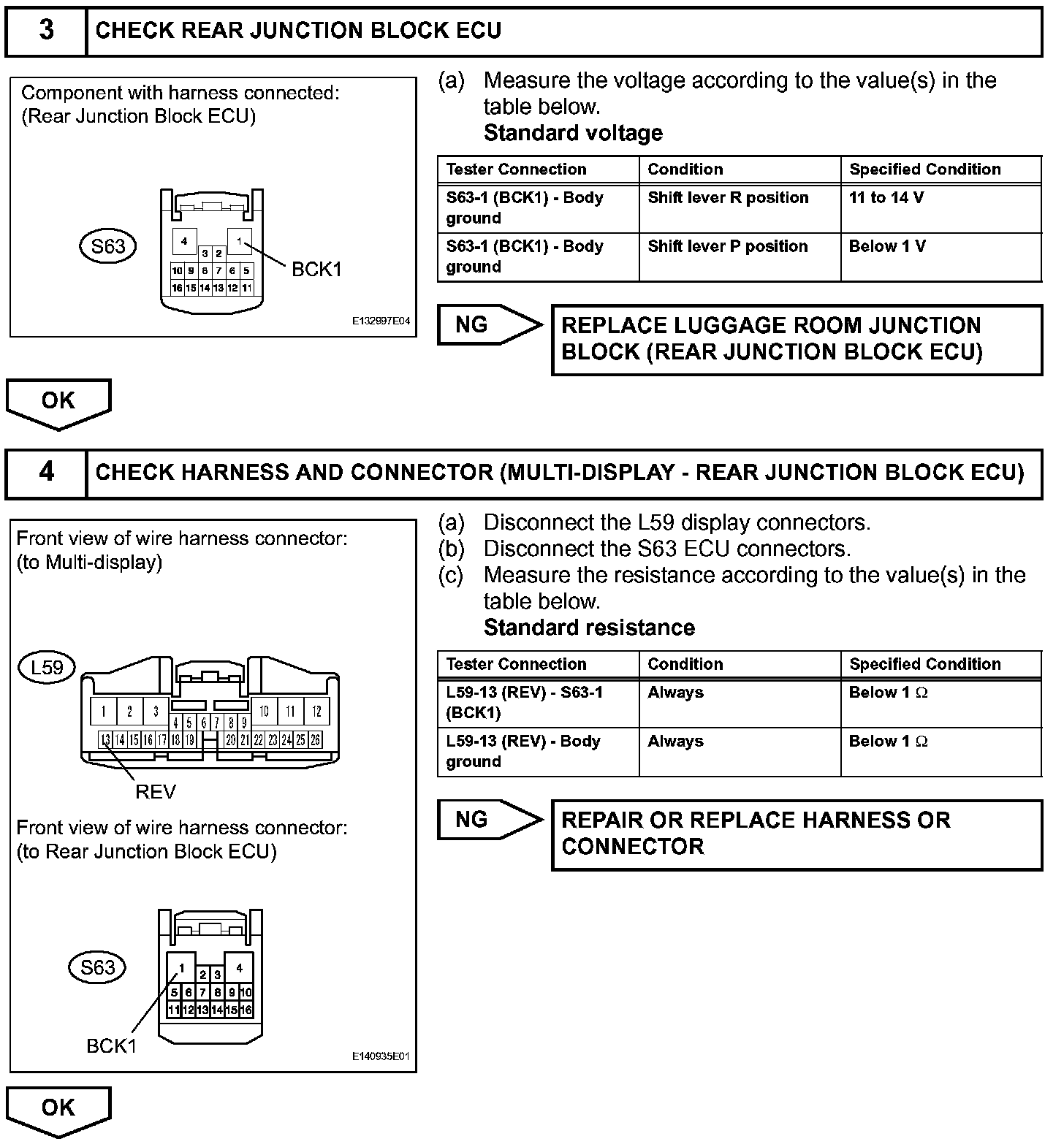

Step 3-4:

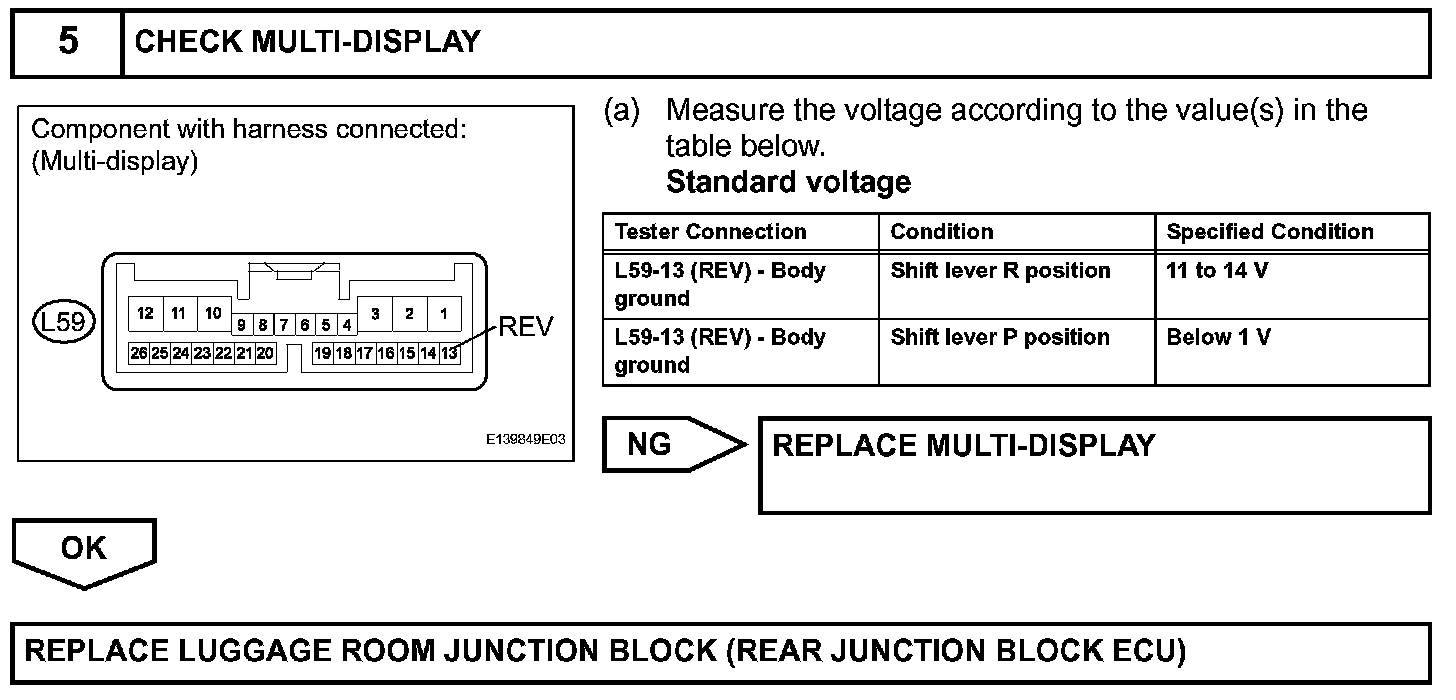

Step 5:

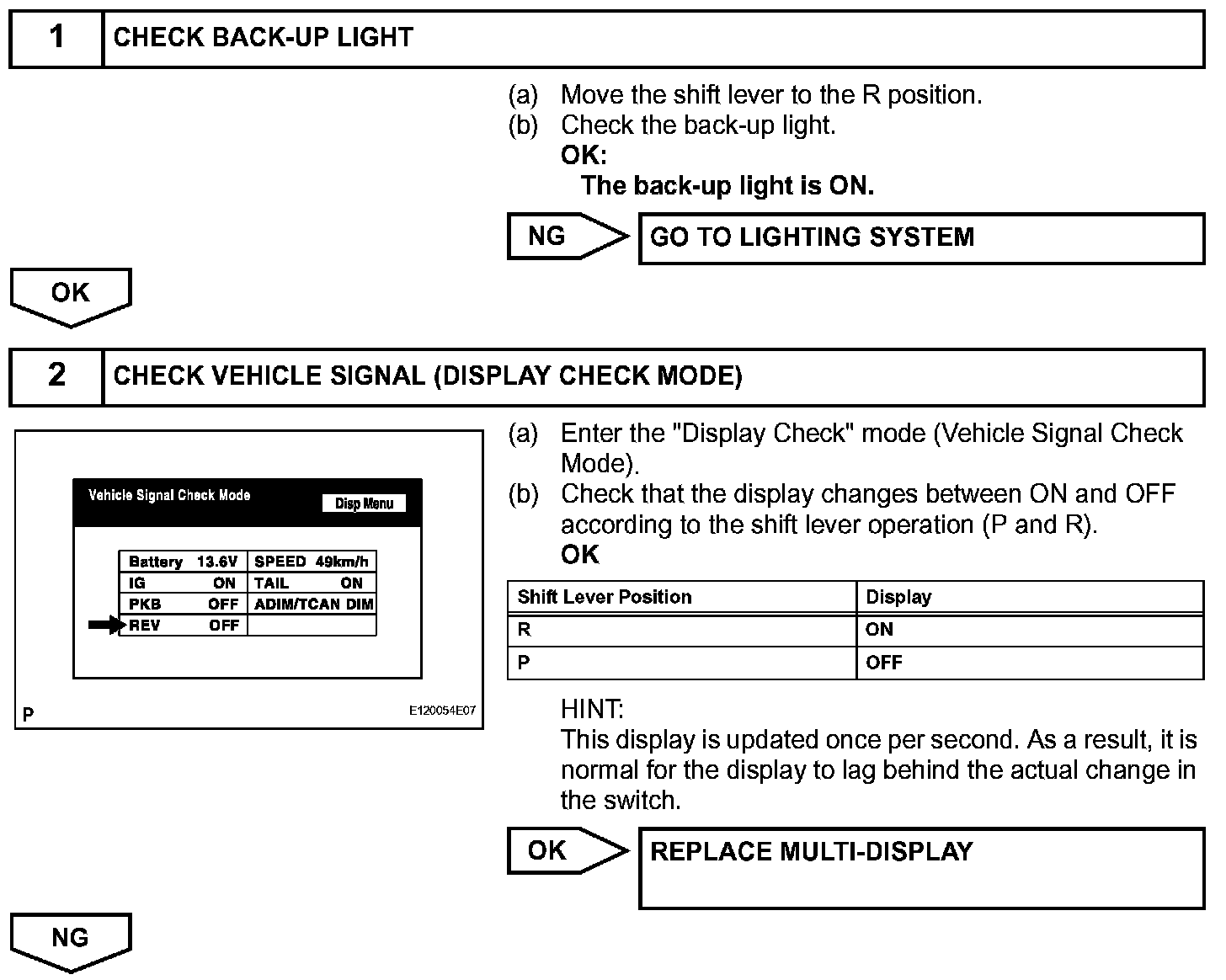

INSPECTION PROCEDURE
