Rear Seat Control Switch Power Source Circuit

Rear Seat Control Switch Power Source Circuit

DESCRIPTION
This is the power source circuit to operate the rear power seat module switch.

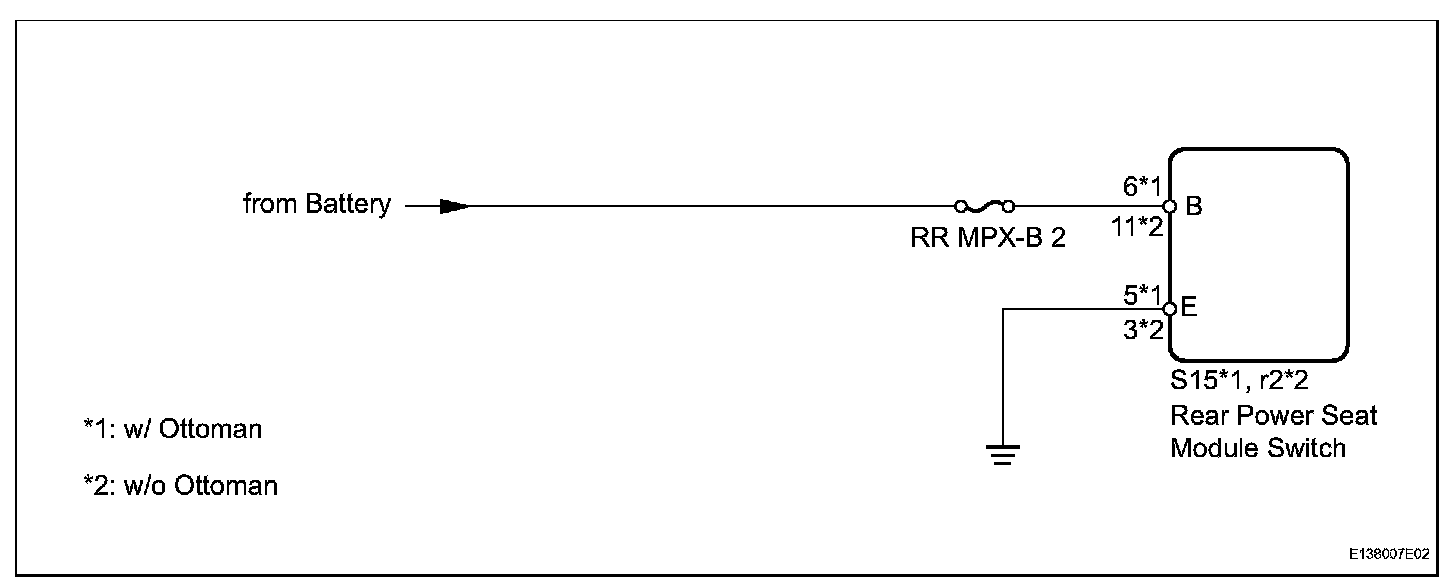

Wiring Diagram:

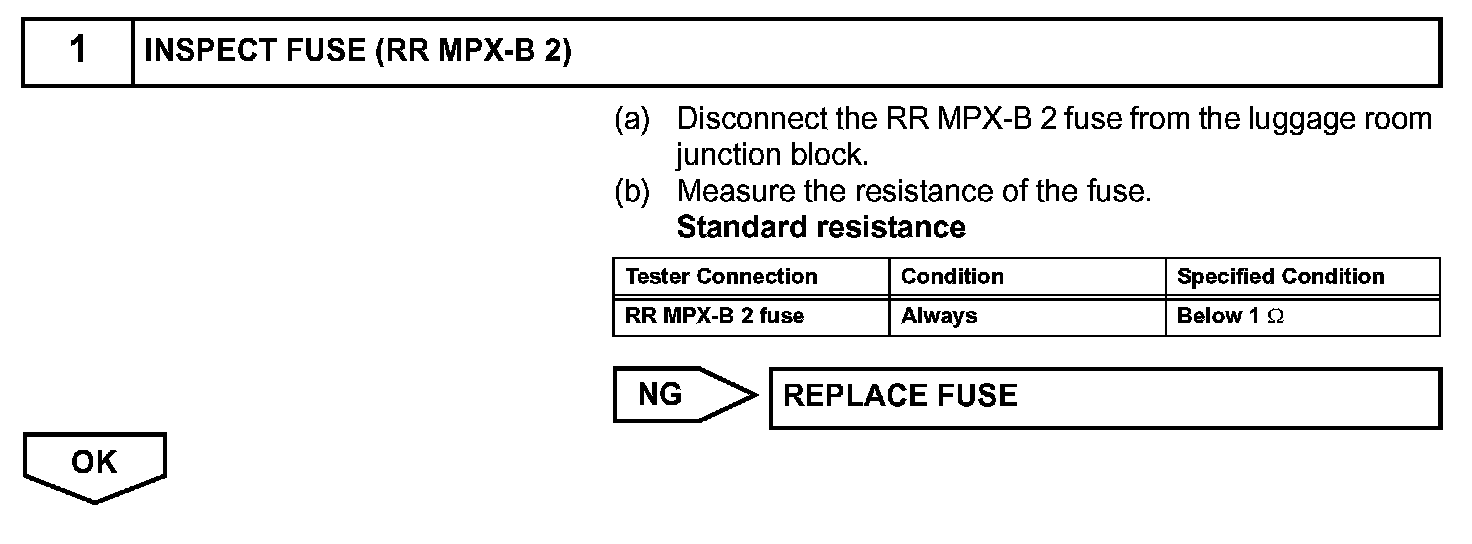

Step 1:

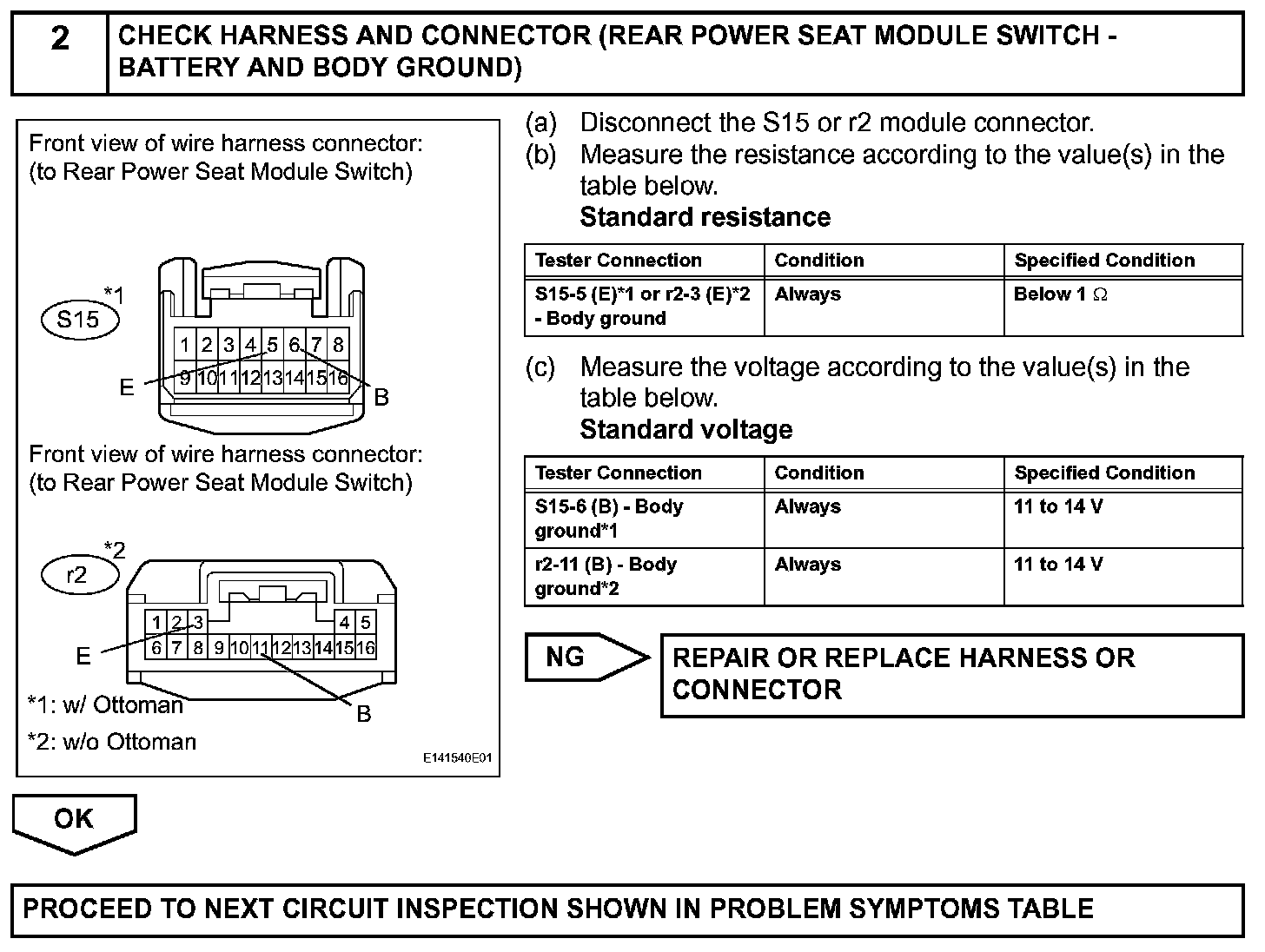

Step 2:

INSPECTION PROCEDURE

HINT: First make sure the CAN communication system is operating normally.
