Rear Package Tray Speaker

INSPECTION

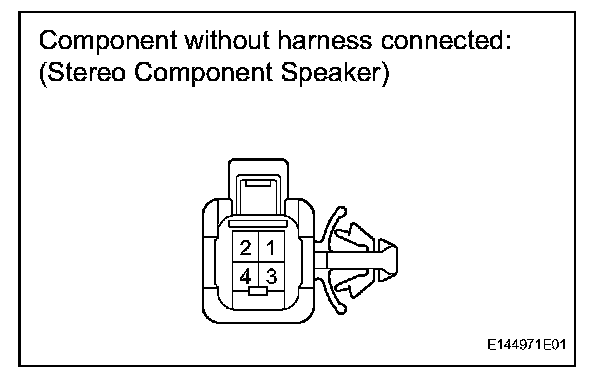

1. INSPECT STEREO COMPONENT SPEAKER ASSEMBLY

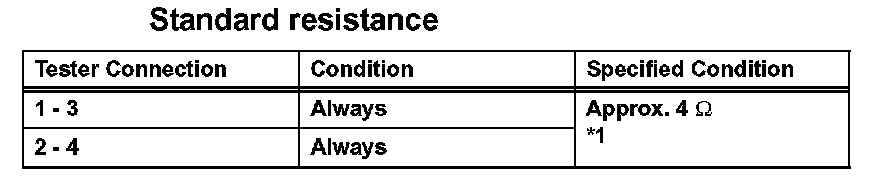

a. Measure the resistance according to the value(s) in the table.

If the result is not as specified, replace the speaker assembly.

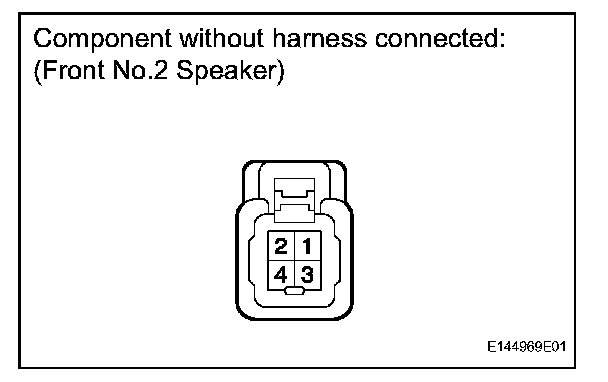

2. INSPECT STEREO COMPONENT SPEAKER ASSEMBLY (for 19 Speakers)

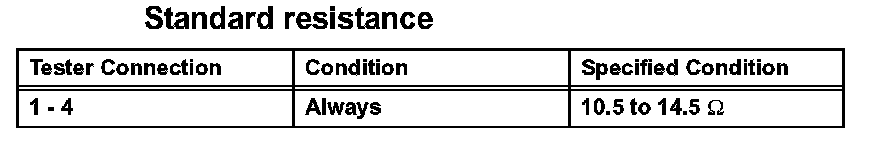

a. Measure the resistance according to the value(s) in the table.

If the result is not as specified, replace the speaker assembly.
