Rear Door Speaker (For Standard Body)

INSPECTION

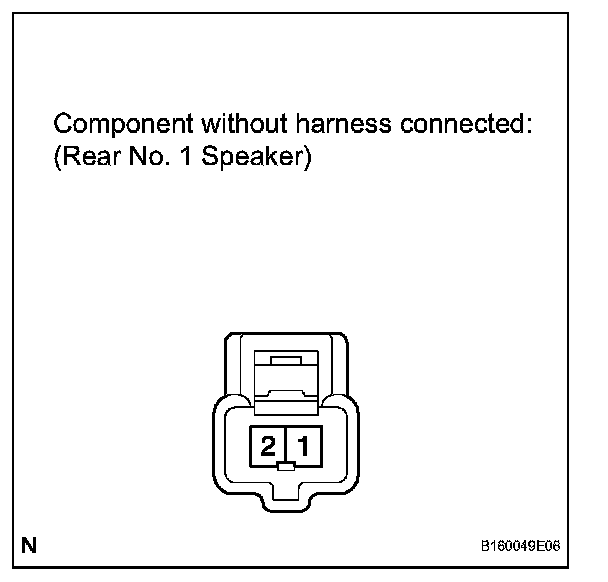

1. INSPECT REAR NO. 1 SPEAKER ASSEMBLY

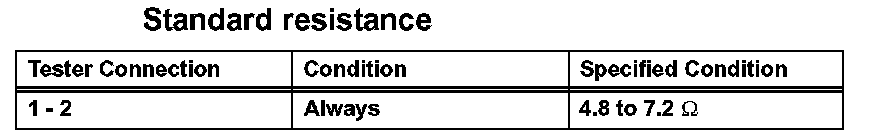

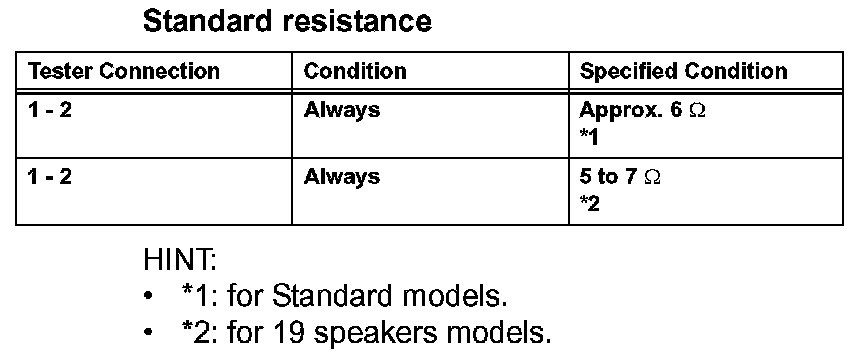

a. Measure the resistance according to the value(s) in the table.

If the result is not as specified, replace the speaker assembly.

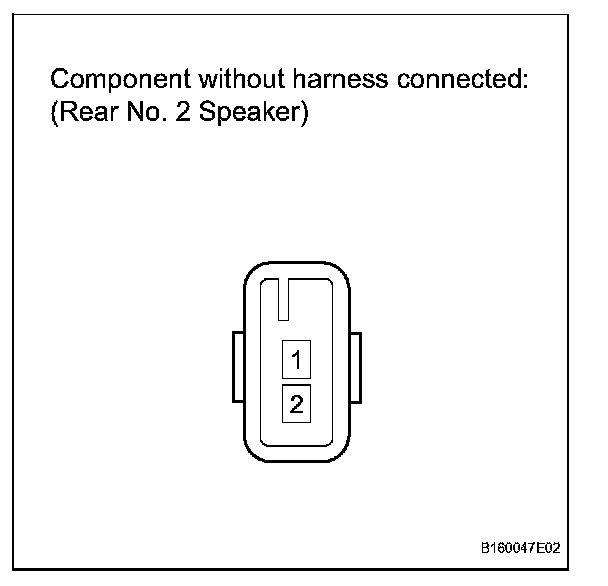

2. INSPECT REAR NO. 2 SPEAKER ASSEMBLY







a. Measure the resistance according to the value(s) in the table.

If the result is not as specified, replace the speaker assembly.

3. INSPECT REAR NO. 3 SPEAKER ASSEMBLY
a. Check that the malfunction disappears when the speaker is replaced with a normal one.

OK: Malfunction disappears.

HINT:
- Connect all the connectors to the rear No. 3 speakers.
- When there is a possibility that either the right or left rear speaker is defective, inspect by interchanging the right one with the left one.
- Perform the inspection above on both LH and RH sides.
