Pillar Speaker (For Quarter)

INSPECTION

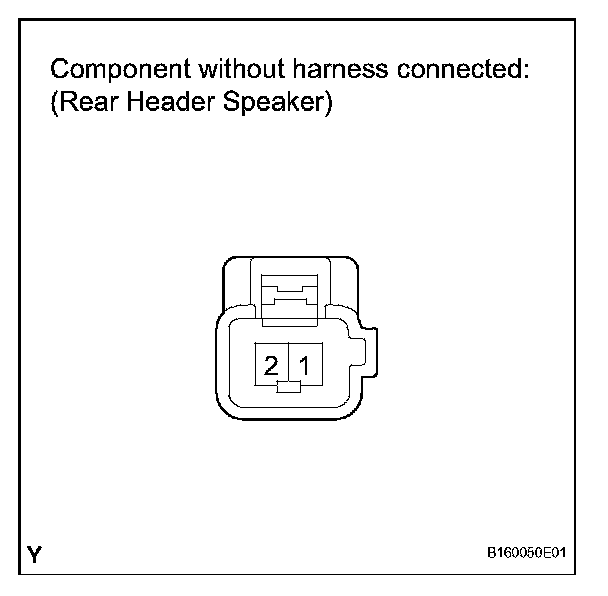

1. INSPECT REAR HEADER SPEAKER ASSEMBLY

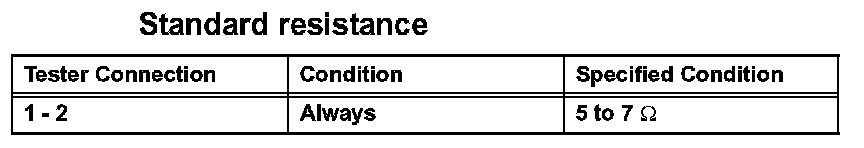

a. Measure the resistance according to the value(s) in the table.

If the result is not as specified, replace the speaker assembly.
