Instrument Panel Speaker

INSPECTION

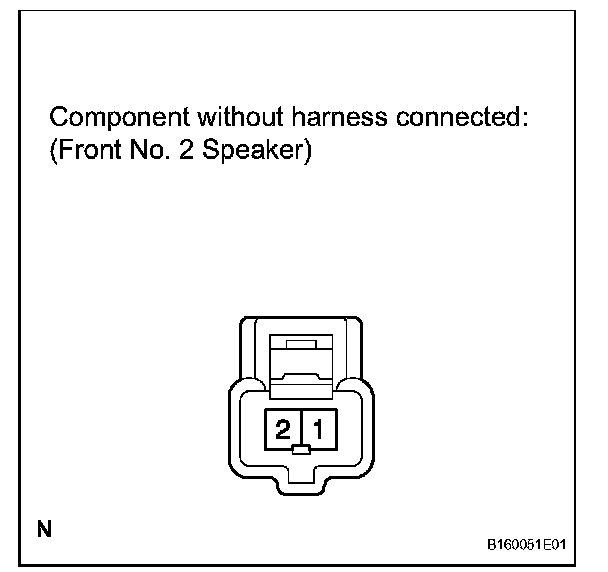

1. INSPECT FRONT NO. 2 SPEAKER ASSEMBLY

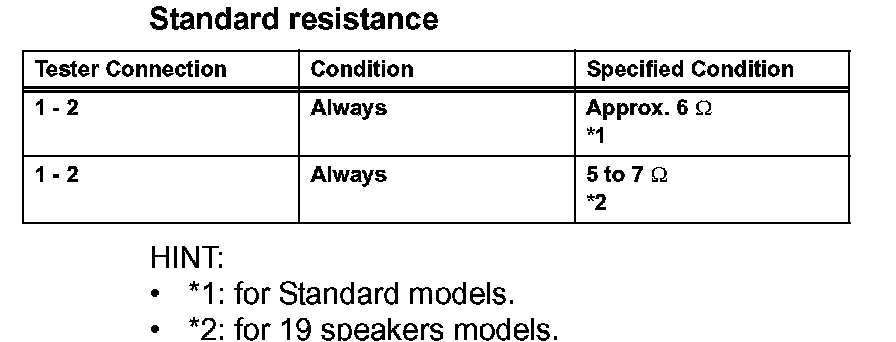

a. Measure the resistance according to the value(s) in the table.

If the result is not as specified, replace the speaker assembly.

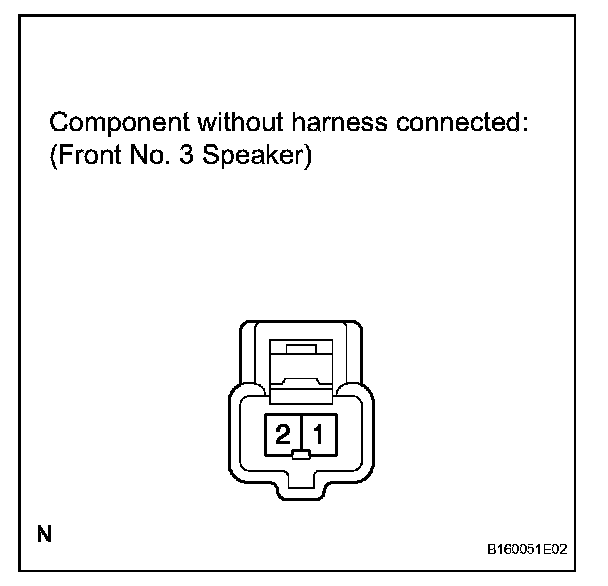

2. INSPECT FRONT NO. 3 SPEAKER ASSEMBLY







a. Measure the resistance according to the value(s) in the table.

If the result is not as specified, replace the speaker assembly.
