Front Door Speaker
Front Door Speaker
INSPECTION
1.

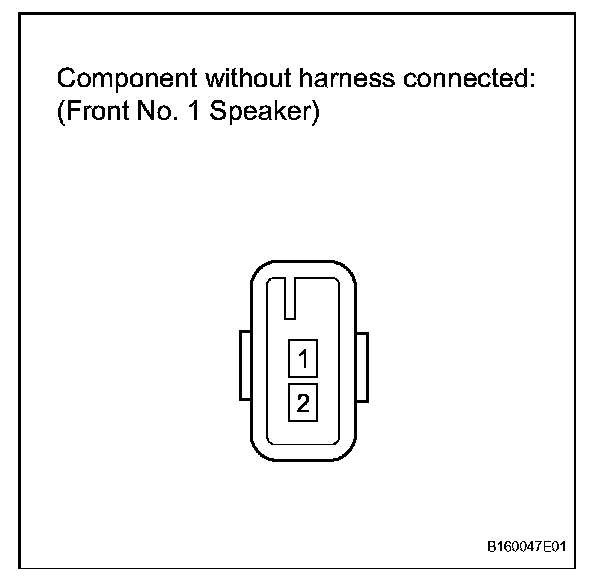

INSPECT FRONT NO. 1 SPEAKER ASSEMBLY
a.

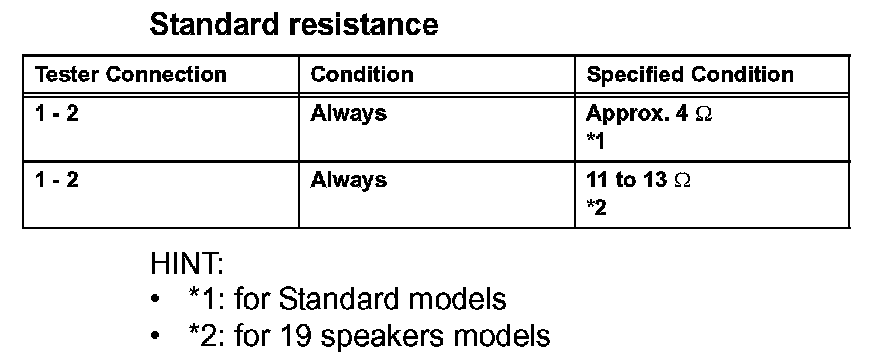

Measure the resistance according to the value(s) in the table.
