REAR PACKAGE TRAY SPEAKER

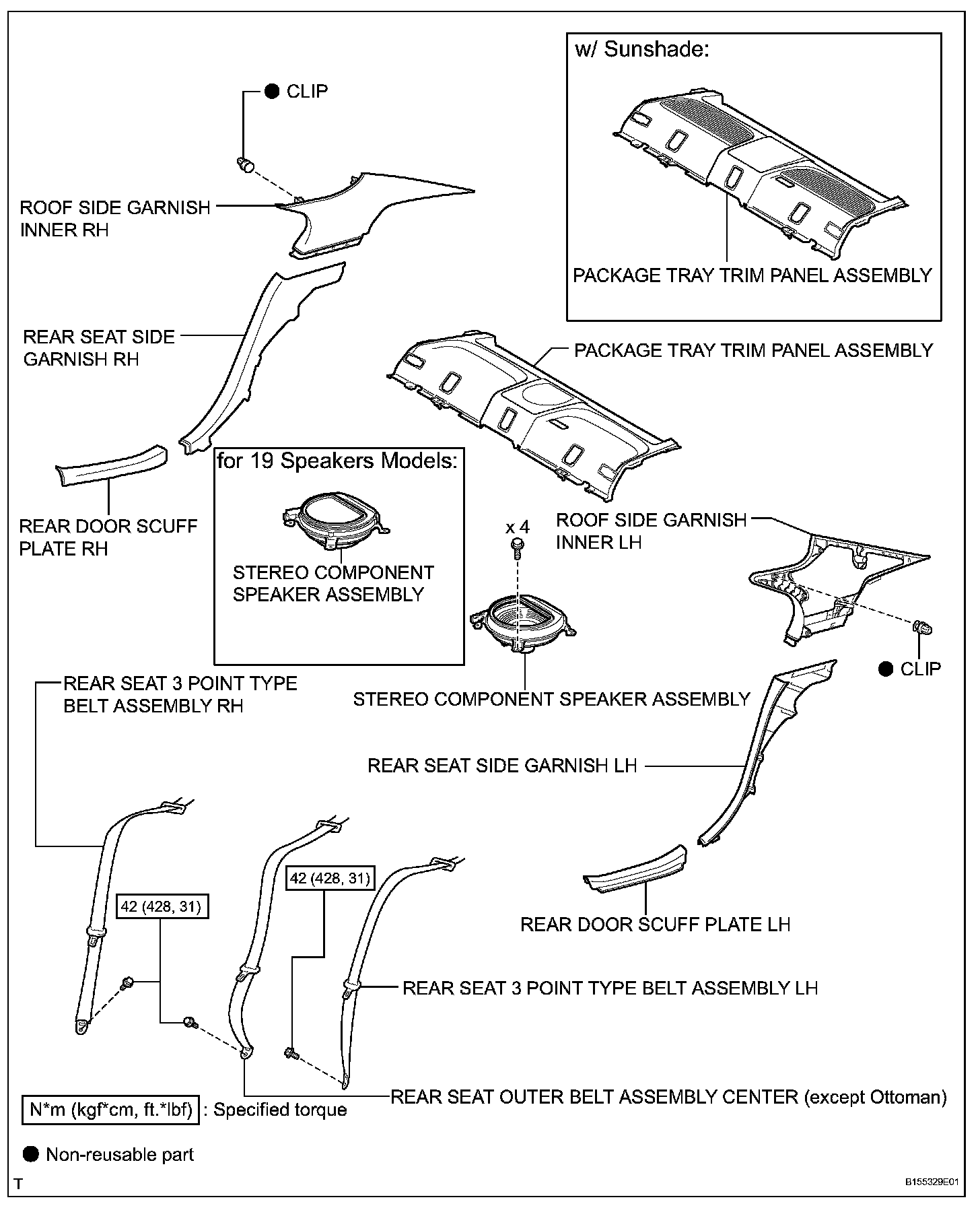

REMOVAL
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
2. REMOVE REAR DOOR SCUFF PLATE LH
a. Remove the rear door scuff plate LH for standard body.
b. Remove the rear door scuff plate LH for long body.
3. REMOVE REAR DOOR SCUFF PLATE RH
a. Remove the rear door scuff plate RH for standard body.
b. Remove the rear door scuff plate RH for long body.
4. REMOVE REAR SEAT ASSEMBLY
a. Remove the rear seat for power seat.
b. Remove the rear seat for ottoman.
c. Remove the rear seat for fixed seat.
5. REMOVE REAR SEAT SIDE GARNISH LH
6. REMOVE REAR SEAT SIDE GARNISH RH
7. REMOVE ROOF SIDE GARNISH INNER LH
8. REMOVE ROOF SIDE GARNISH INNER RH
9. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY
10. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Sunshade)

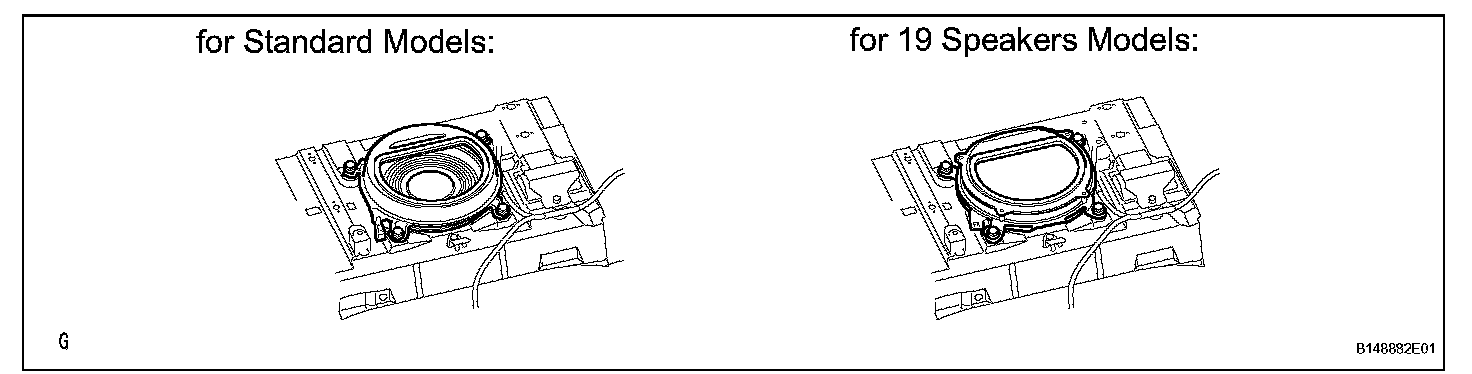

11. REMOVE STEREO COMPONENT SPEAKER ASSEMBLY
a. Disconnect the speaker connector.
b. Remove the 4 bolts and speaker.
NOTE: Do not touch the cone part of the speaker.
INSTALLATION
HINT: A bolt without a torque specification is shown in the standard bolt chart.
1. INSTALL STEREO COMPONENT SPEAKER ASSEMBLY
a. Install the speaker with the 4 bolts.
NOTE: Do not touch the cone part of the speaker.

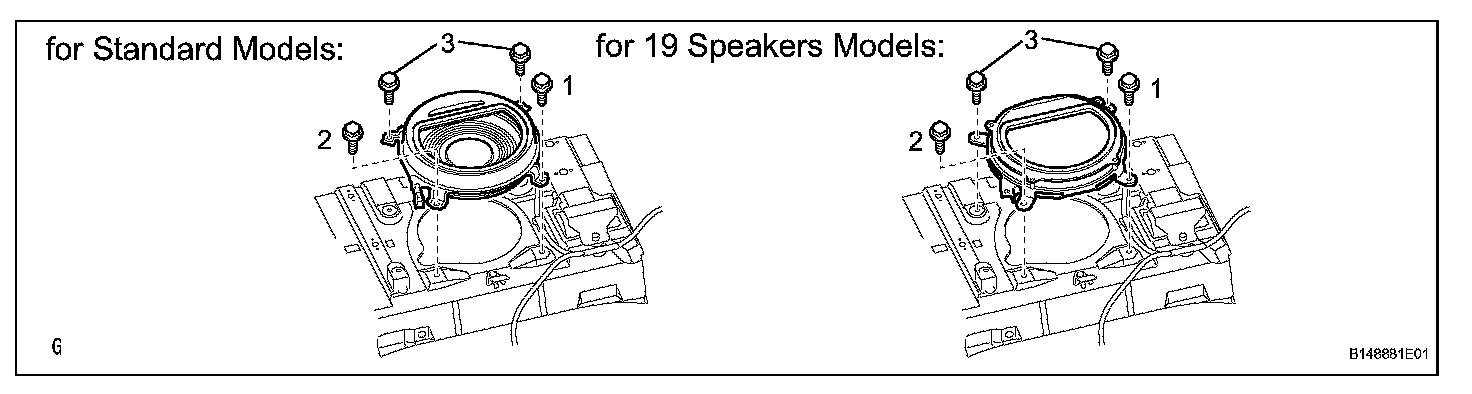

HINT: Install the bolts in the order shown in the illustration.
b. Connect the speaker connector.
2. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY
3. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Sunshade)
4. INSTALL ROOF SIDE GARNISH INNER RH
5. INSTALL ROOF SIDE GARNISH INNER LH
6. INSTALL REAR SEAT SIDE GARNISH RH
7. INSTALL REAR SEAT SIDE GARNISH LH
8. INSTALL REAR SEAT ASSEMBLY
a. Install the rear seat assembly for power seat.
b. Install the rear seat assembly for ottoman.
c. Install the rear seat assembly for fixed seat.
9. INSTALL REAR DOOR SCUFF PLATE LH
a. Install the rear door scuff plate LH for standard body.
b. Install the rear door scuff plate LH for long body.
10. INSTALL REAR DOOR SCUFF PLATE RH
a. Install the rear door scuff plate RH for standard body.
b. Install the rear door scuff plate RH for long body.
11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
12. PERFORM INITIALIZATION
a. Perform initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
