Pillar Speaker (For Quarter)

Pillar Speaker (For Quarter):

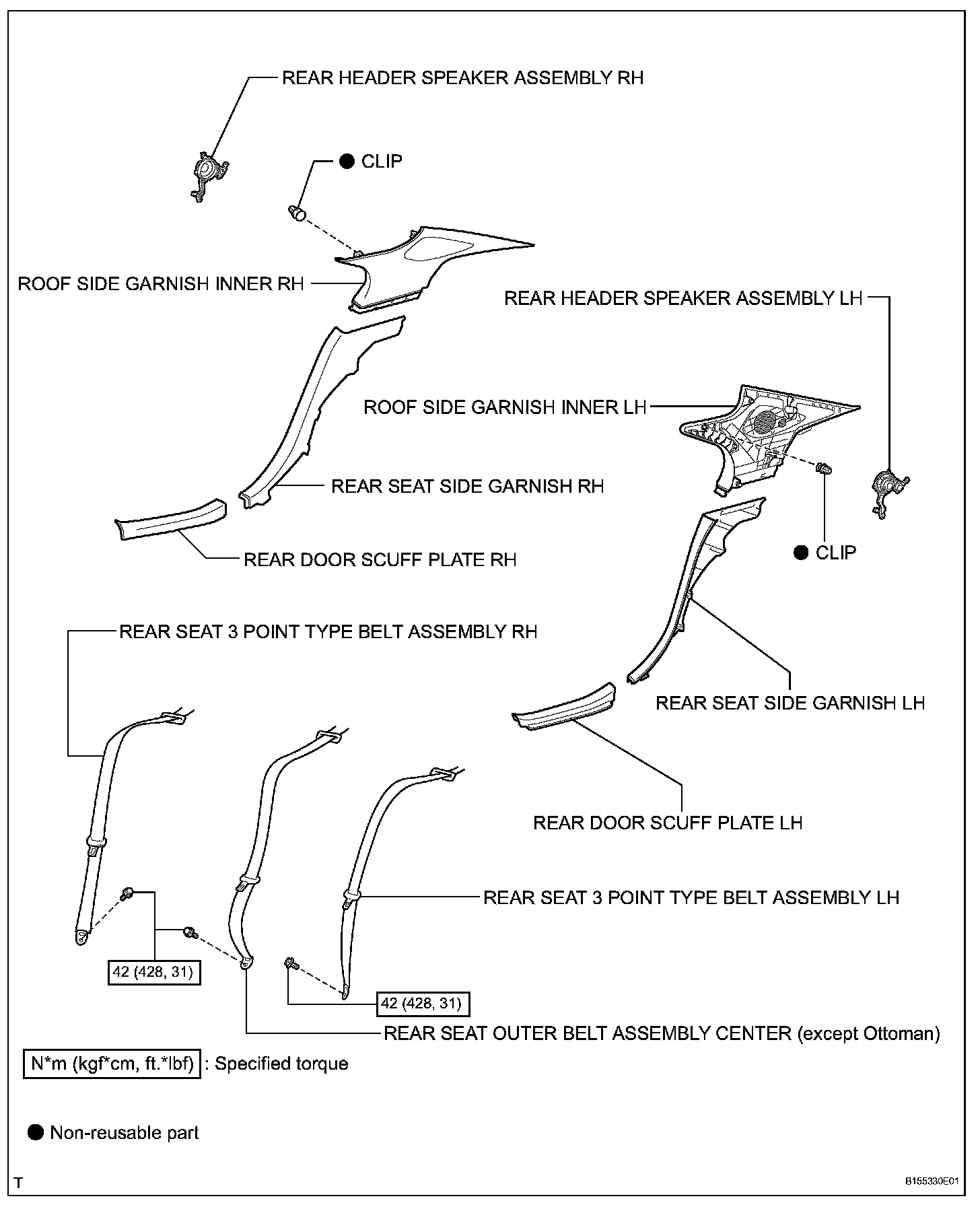

PILLAR SPEAKER (for Quarter)

REMOVAL

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

2. REMOVE REAR DOOR SCUFF PLATE LH
a. Remove the rear door scuff plate LH for standard body.
b. Remove the rear door scuff plate LH for long body.

3. REMOVE REAR SEAT ASSEMBLY
a. Remove the rear seat for power seat.
b. Remove the rear seat for ottoman.
c. Remove the rear seat for fixed seat.

4. REMOVE REAR SEAT SIDE GARNISH LH
5. REMOVE ROOF SIDE GARNISH INNER LH

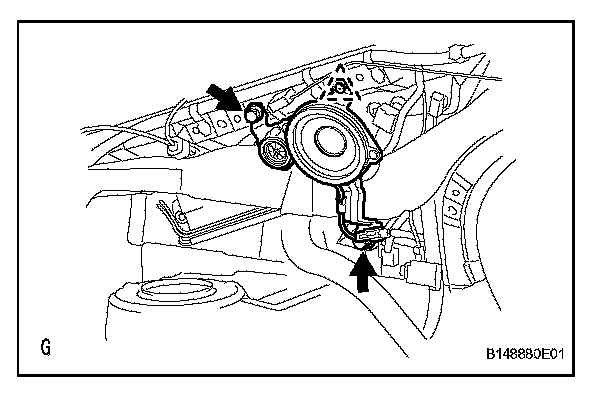

6. REMOVE REAR HEADER SPEAKER ASSEMBLY (for 19 Speakers)




a. Remove the 2 bolts.
b. Detach the clip, disconnect the speaker connector and remove the speaker.

NOTE: Do not touch the cone part of the speaker.

INSTALLATION

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

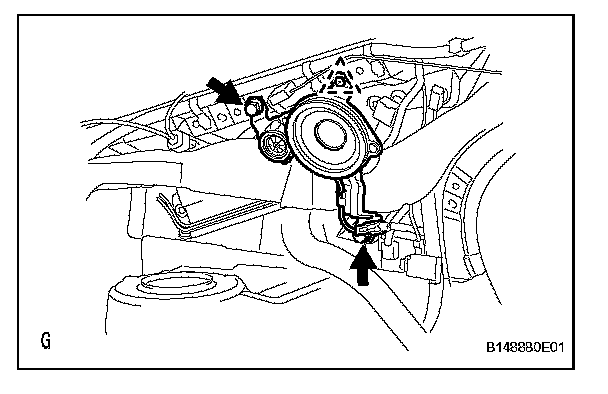

1. INSTALL REAR HEADER SPEAKER ASSEMBLY (for 19 Speakers)




a. Connect the speaker connector.
b. Install the speaker and attach the clip.
c. Install the bolt.

NOTE: Do not touch the cone part of the speaker.

2. INSTALL ROOF SIDE GARNISH INNER LH
3. INSTALL REAR SEAT SIDE GARNISH LH
4. INSTALL REAR SEAT ASSEMBLY
a. Install the rear seat for power seat.
b. Install the rear seat for ottoman.
c. Install the rear seat for fixed seat.

5. INSTALL REAR DOOR SCUFF PLATE LH
a. Install the rear door scuff plate LH for standard body.
b. Install the rear door scuff plate LH for long body.

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
