Front Door Speaker

Front Door Speaker:

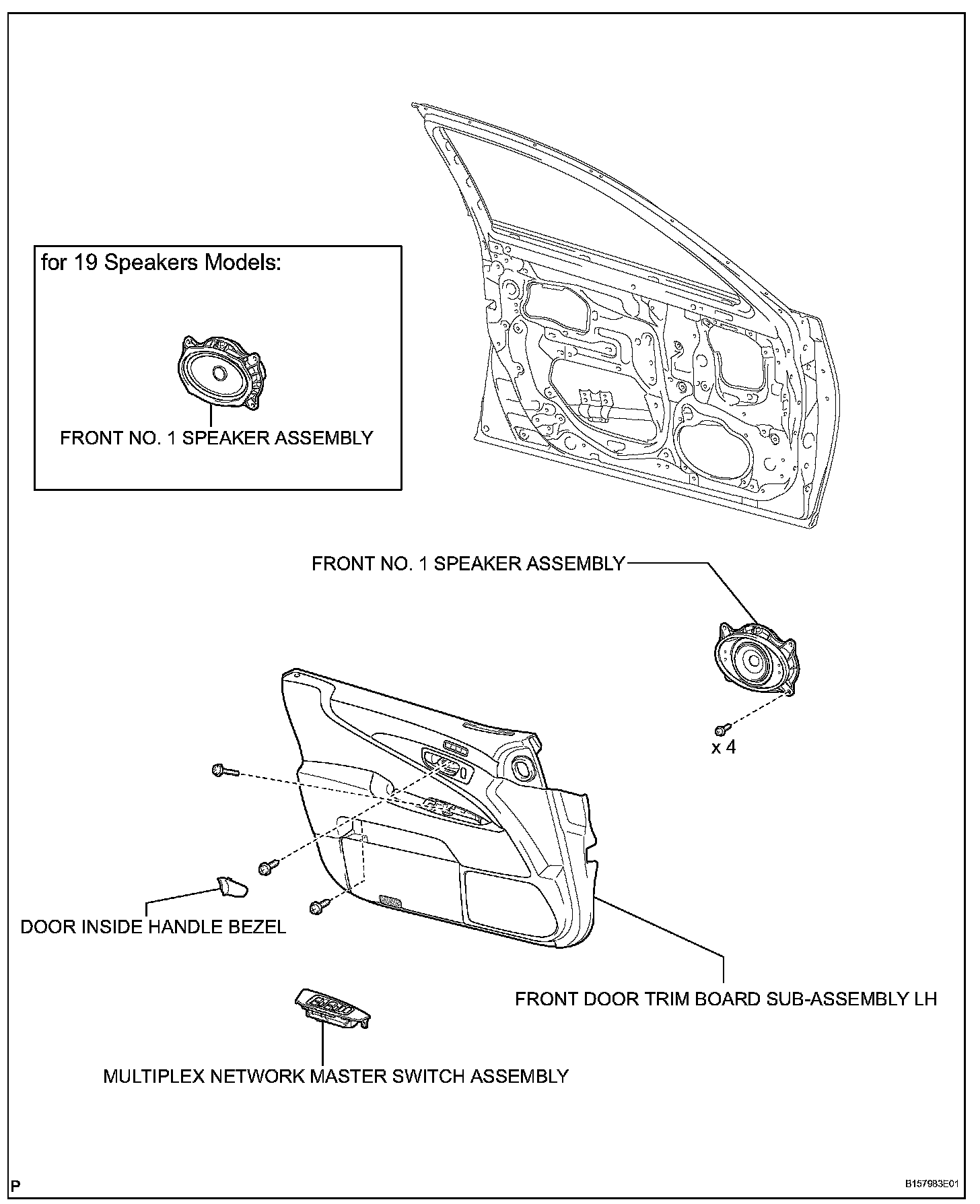

FRONT DOOR SPEAKER

REMOVAL

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

2. REMOVE DOOR INSIDE HANDLE BEZEL
3. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
5. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY




a. Disconnect the speaker connector.

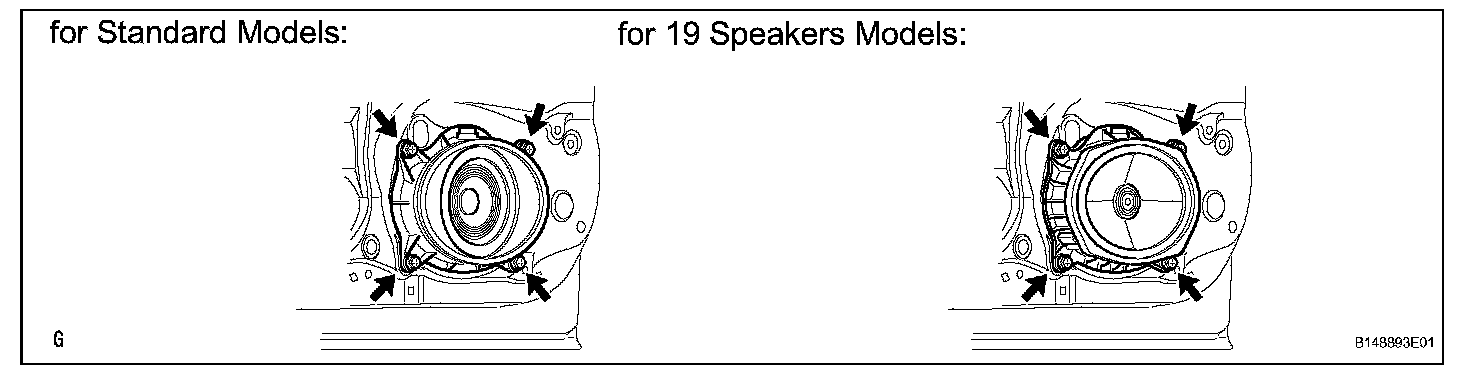

b. Remove the 4 screws and speaker.

NOTE: Do not touch the cone part of the speaker.

INSTALLATION

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. INSTALL FRONT NO. 1 SPEAKER ASSEMBLY




a. Connect the connector.
b. Temporarily install the speaker by attaching the claws of the speaker to the door panel.
c. Install the speaker with the 3 screws.

NOTE: Do not touch the cone part of the speaker.

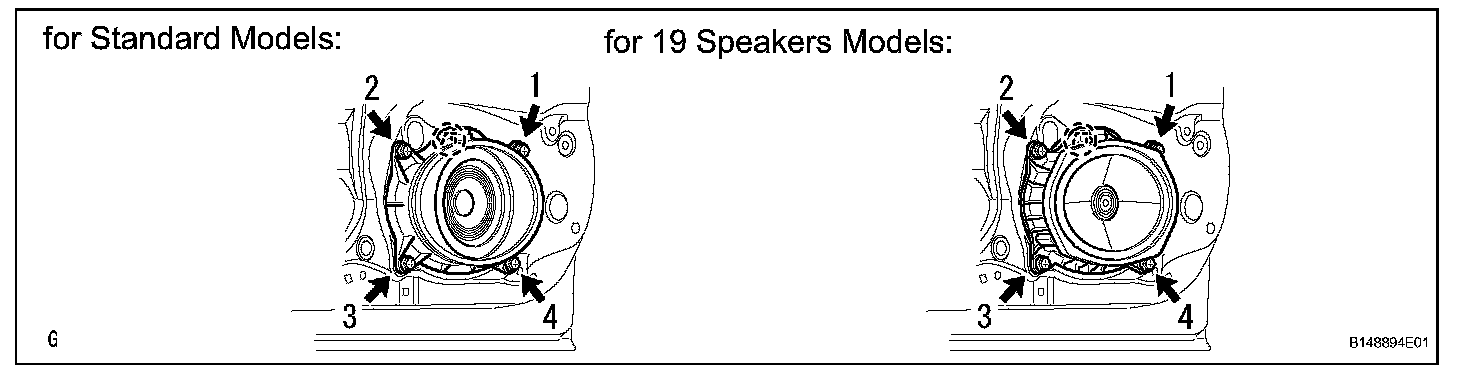

HINT: Install the screws in the order shown in the illustration.

2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
3. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
4. INSTALL DOOR INSIDE HANDLE BEZEL
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
