Rear Audio Control Switch (For Power Seat)

Audio And Rear Air Conditioner Control Switch (For Power Seat):

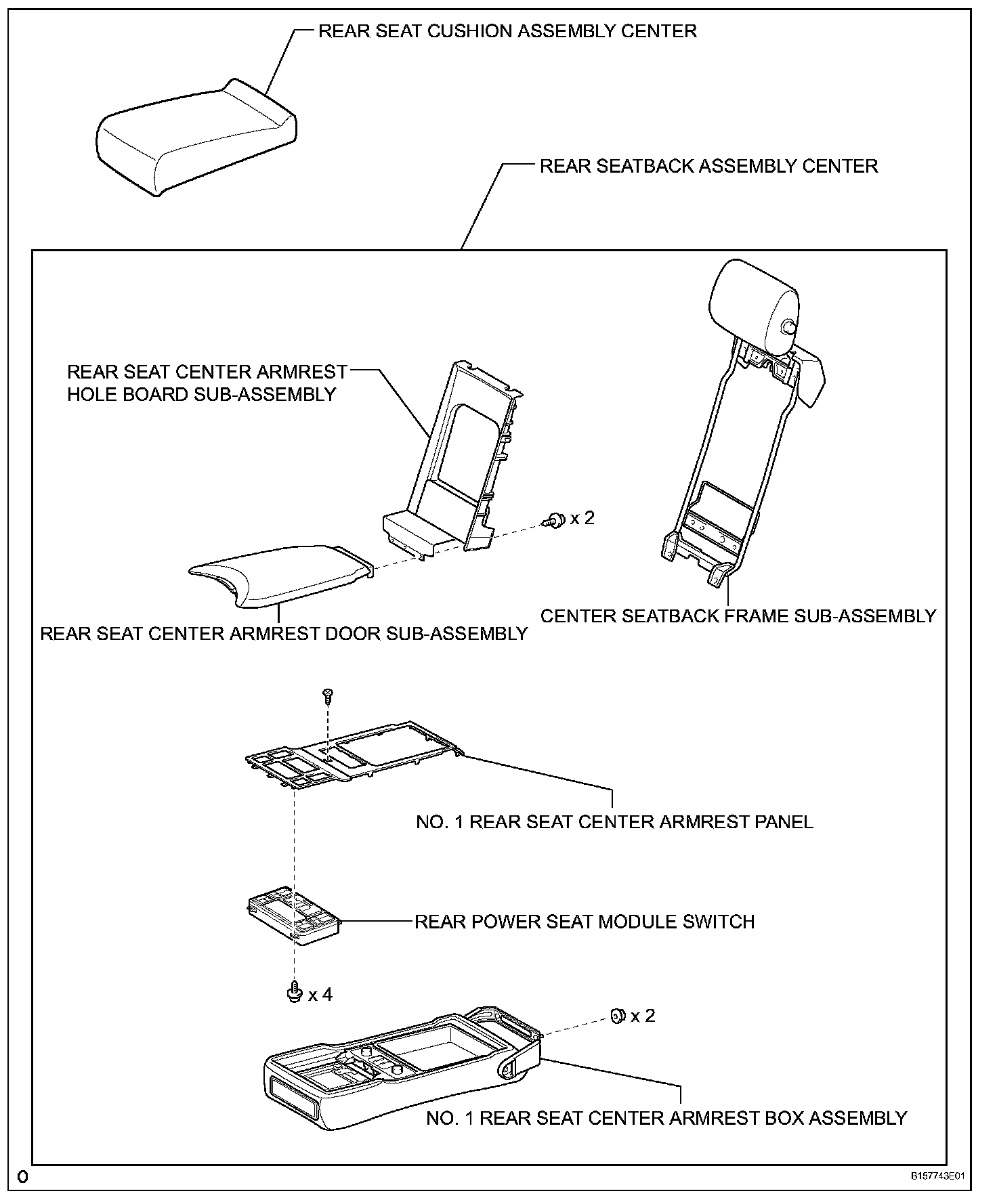

AUDIO AND REAR AIR CONDITIONER CONTROL SWITCH (for Power Seat)

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

2. REMOVE REAR SEAT CUSHION ASSEMBLY CENTER
3. REMOVE REAR SEATBACK ASSEMBLY CENTER
4. REMOVE REAR SEAT CENTER ARMREST ASSEMBLY
5. REMOVE NO. 1 REAR SEAT CENTER ARMREST PANEL
6. REMOVE REAR POWER SEAT MODULE SWITCH

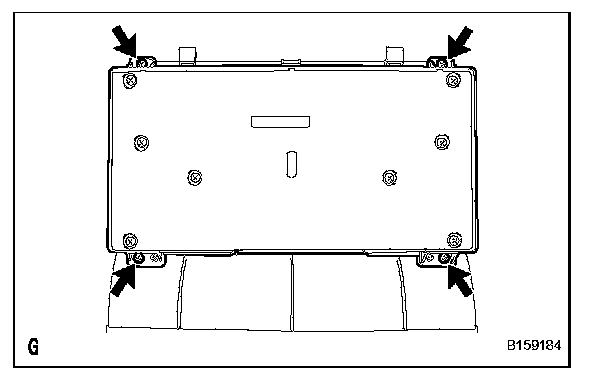

a. Remove the 4 screws and rear power seat module.

INSTALLATION

1. INSTALL REAR POWER SEAT MODULE SWITCH




a. Install the radio switch and volume with the 4 screws.

2. INSTALL NO. 1 REAR SEAT CENTER ARMREST PANEL
3. INSTALL REAR SEAT CENTER ARMREST ASSEMBLY
4. INSTALL REAR SEATBACK ASSEMBLY CENTER
5. INSTALL REAR SEAT CUSHION ASSEMBLY CENTER
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
