Rear Audio Control Switch (For Ottoman)

Audio And Rear Air Conditioner Control Switch (For Ottoman):

AUDIO AND REAR AIR CONDITIONER CONTROL SWITCH (for Ottoman)

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

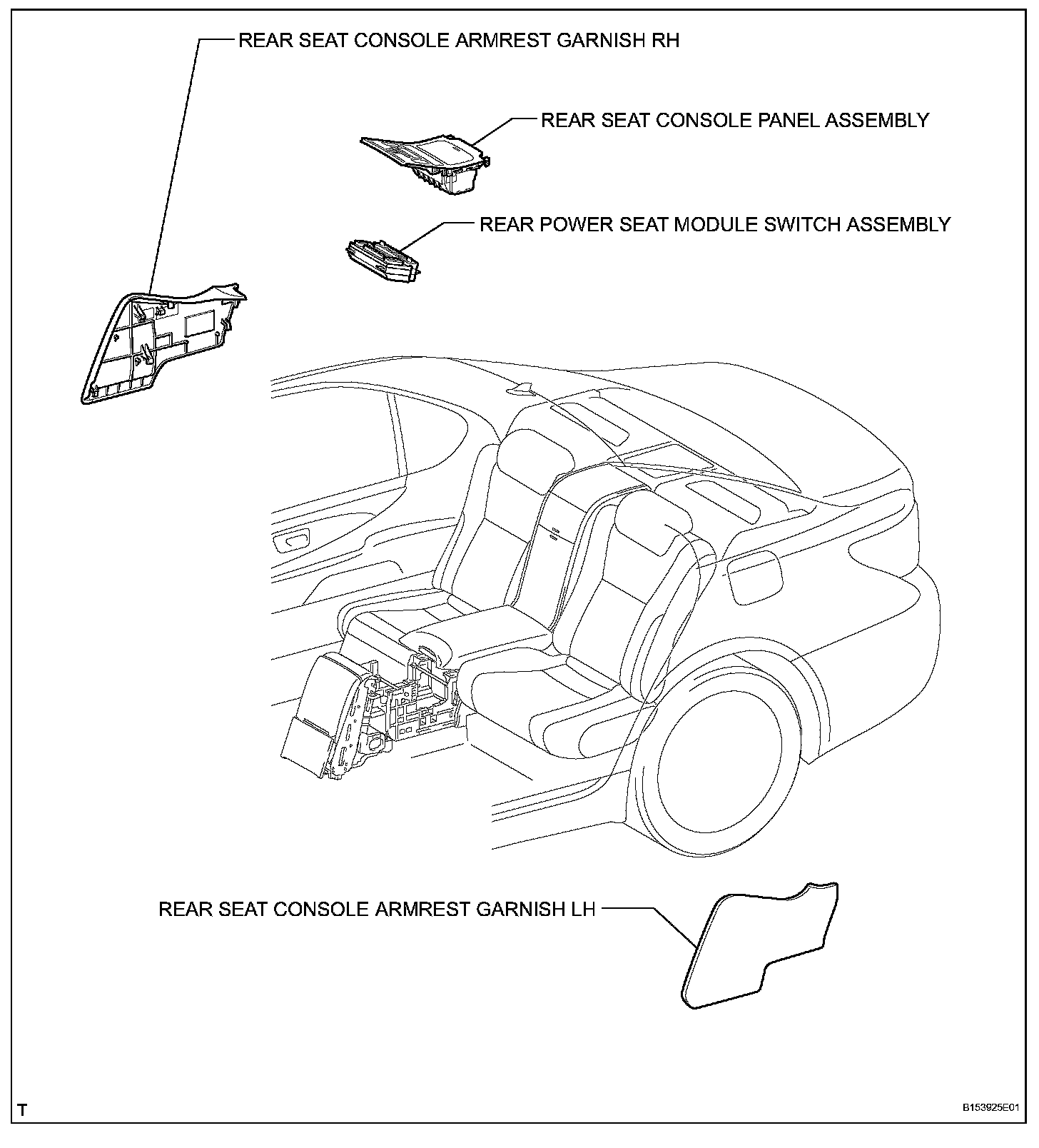

2. REMOVE REAR SEAT CONSOLE ARMREST GARNISH LH
3. REMOVE REAR SEAT CONSOLE ARMREST GARNISH RH
4. REMOVE REAR SEAT CONSOLE PANEL ASSEMBLY
5. REMOVE REAR POWER SEAT MODULE SWITCH ASSEMBLY

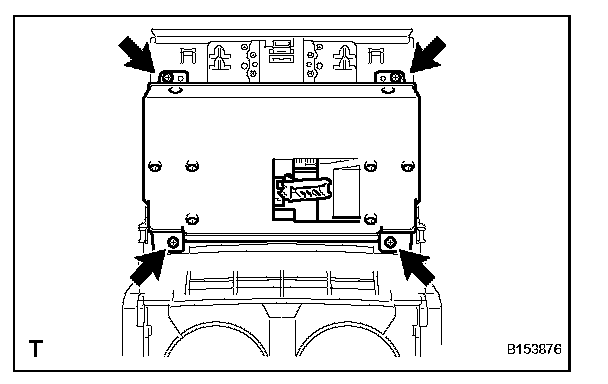

a. Remove the 4 screws and rear switch.

INSTALLATION

1. INSTALL REAR POWER SEAT MODULE SWITCH ASSEMBLY

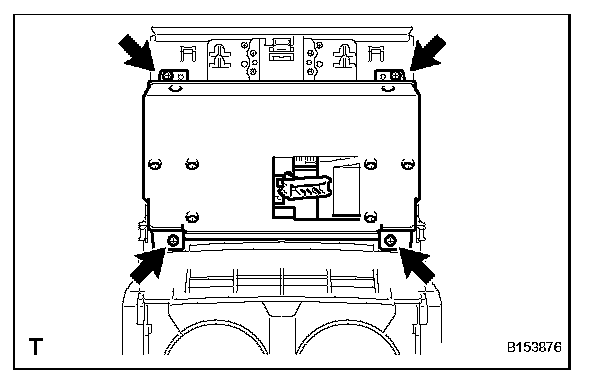

a. Install the rear switch with the 4 screws.

2. INSTALL REAR SEAT CONSOLE PANEL ASSEMBLY
3. INSTALL REAR SEAT CONSOLE ARMREST GARNISH RH
4. INSTALL REAR SEAT CONSOLE ARMREST GARNISH LH
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
