Display Does Not Dim When Light Control Switch Is Turned ON
Display Does Not Dim When Light Control Switch Is Turned ON
Display does not Dim when Light Control Switch is Turned ON

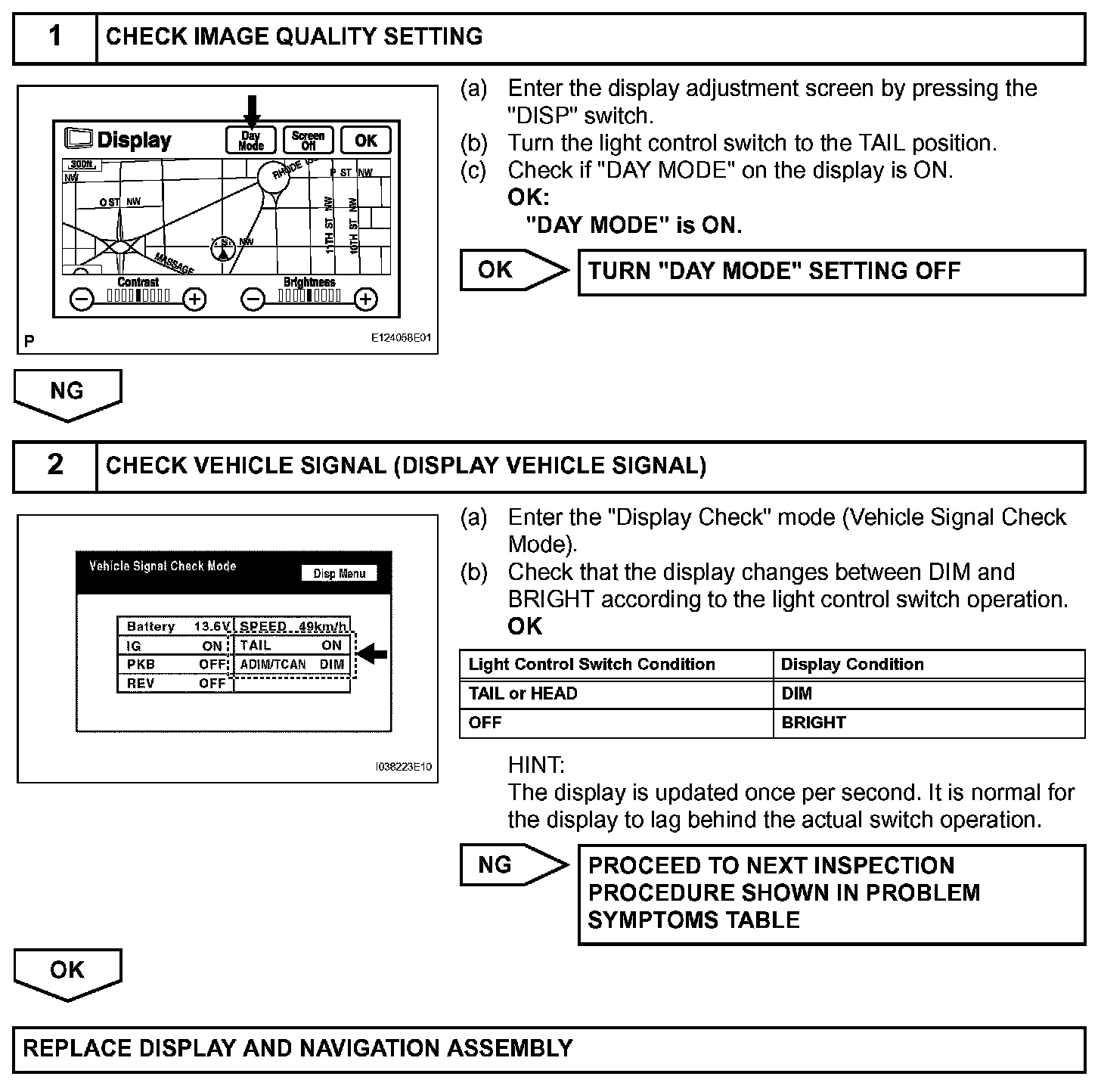

Step 1-2:
INSPECTION PROCEDURE
