Navigation System (For HDD)

TERMINALS OF ECU

1. CHECK DISPLAY AND NAVIGATION ASSEMBLY

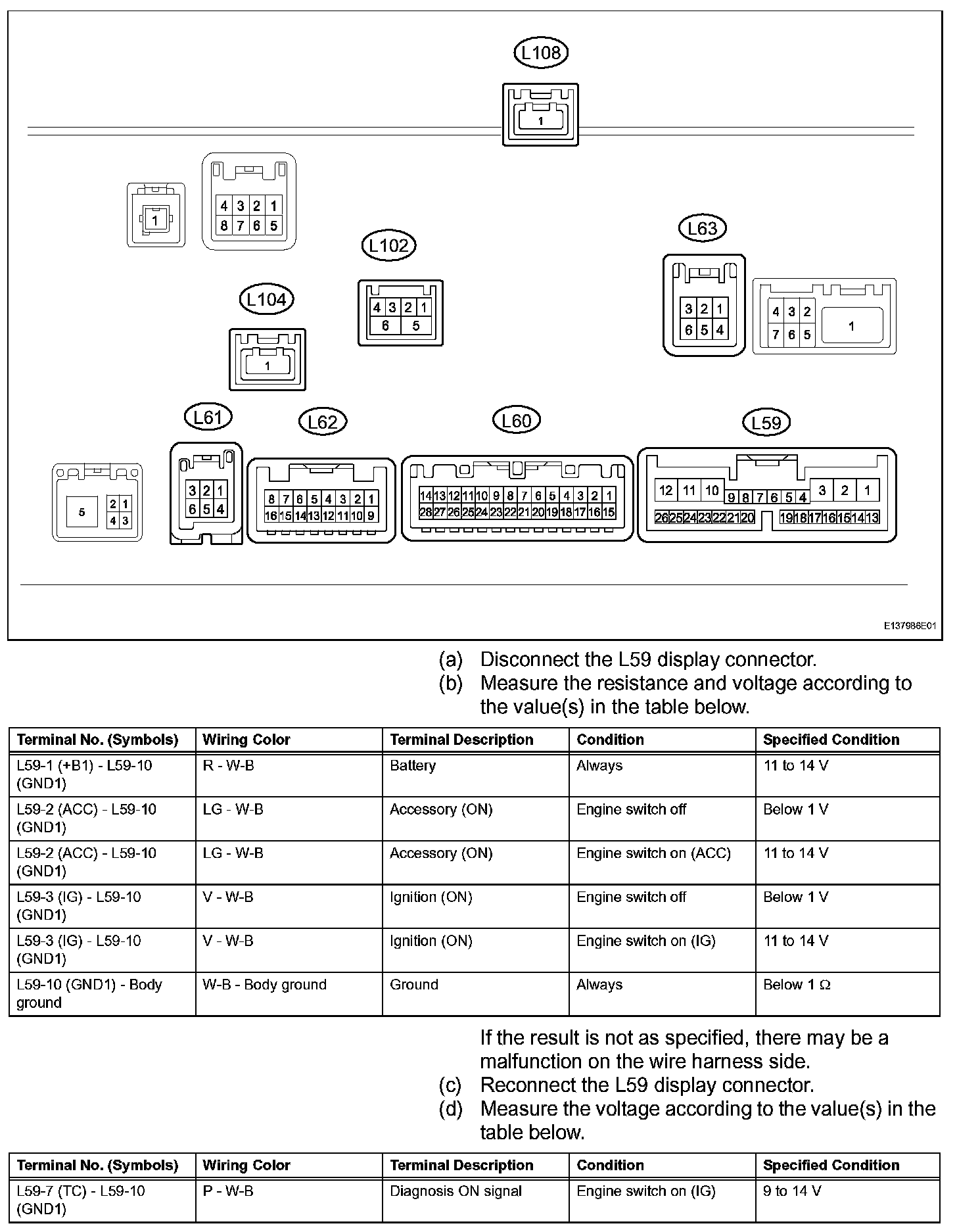

Terminals Of Control Module/Pinouts - Check Display And Navigation Assembly (Part 1):

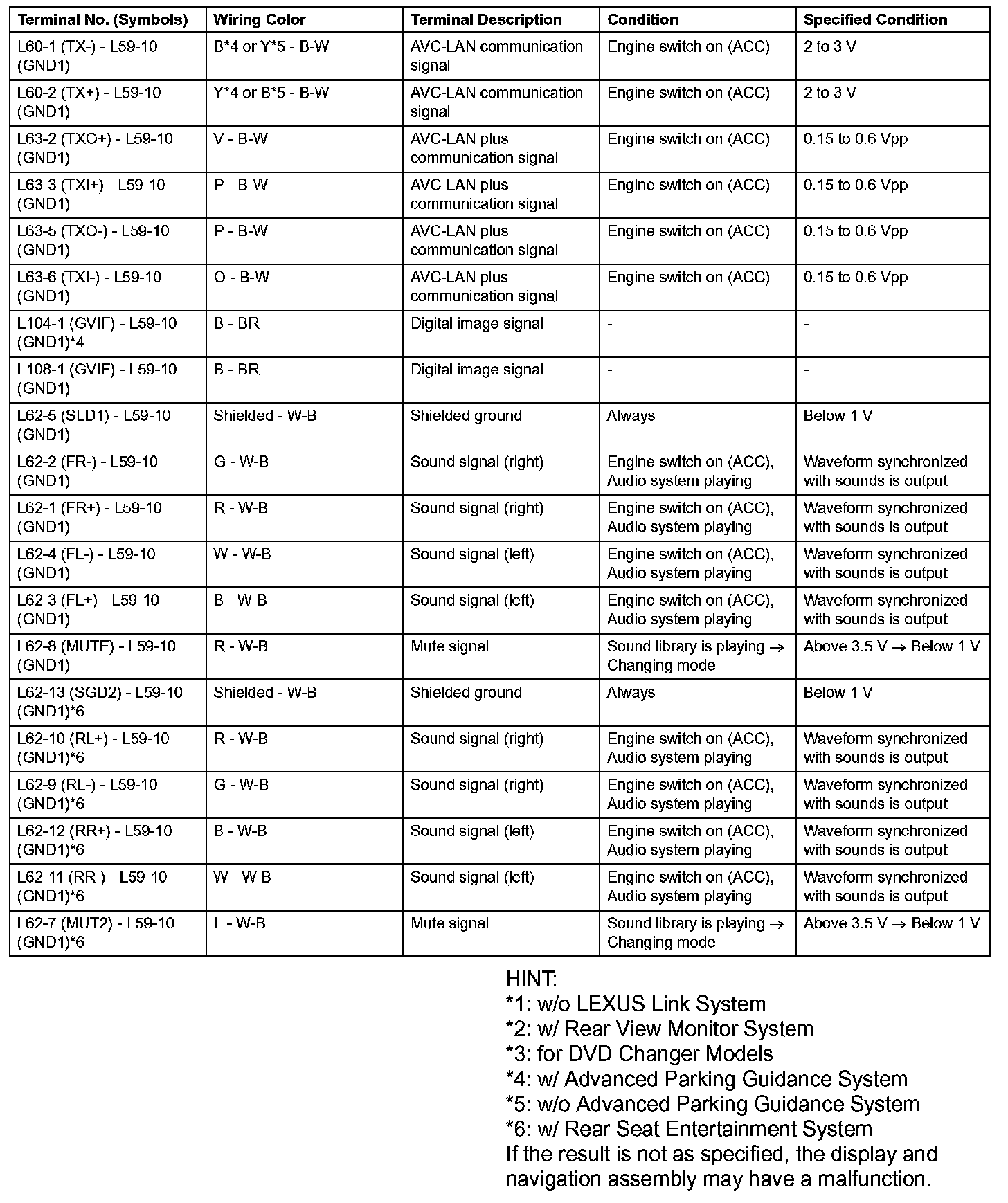

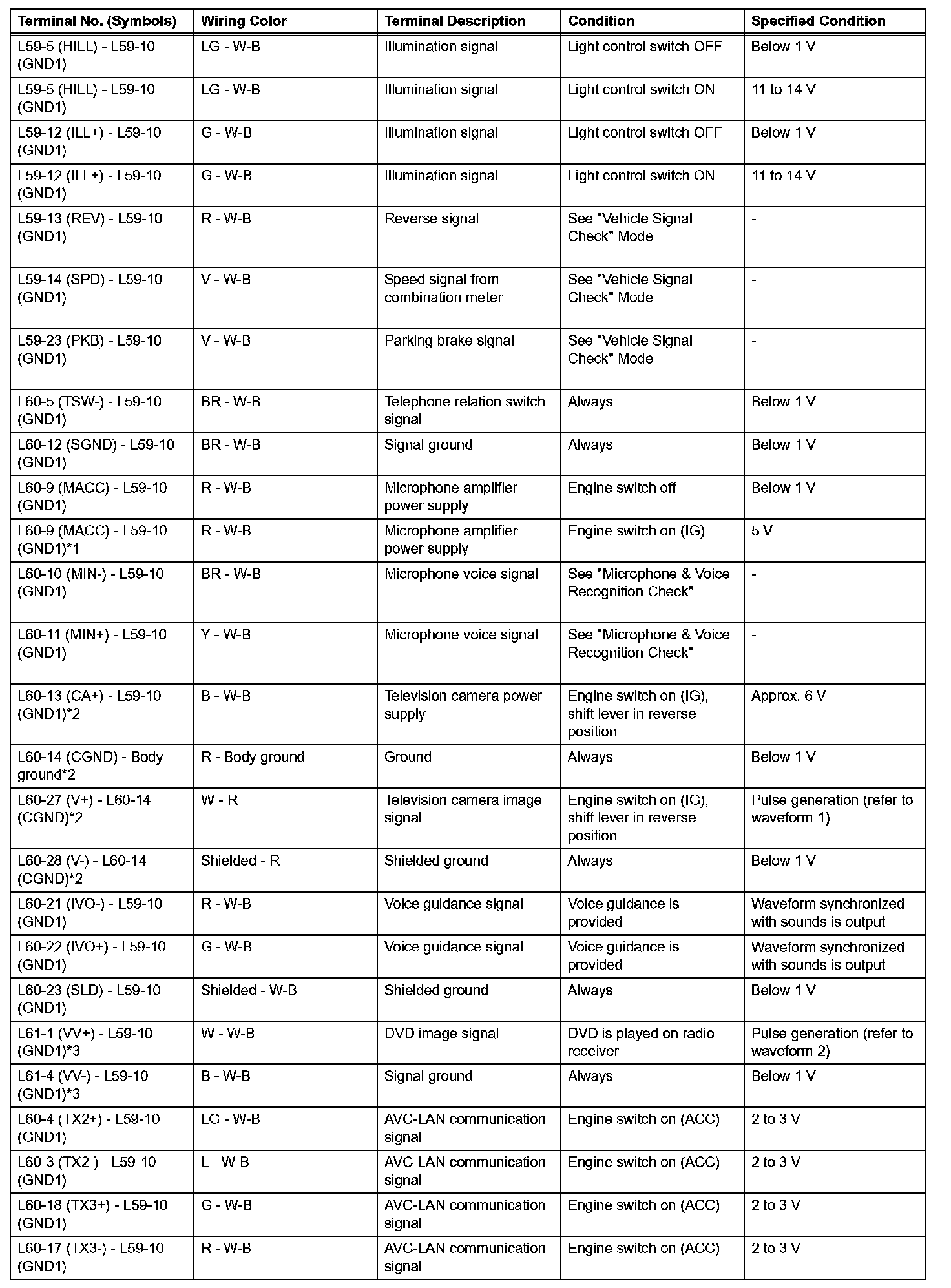

Terminals Of Control Module/Pinouts - Check Display And Navigation Assembly (Part 2):

Terminals Of Control Module/Pinouts - Check Display And Navigation Assembly (Part 3):

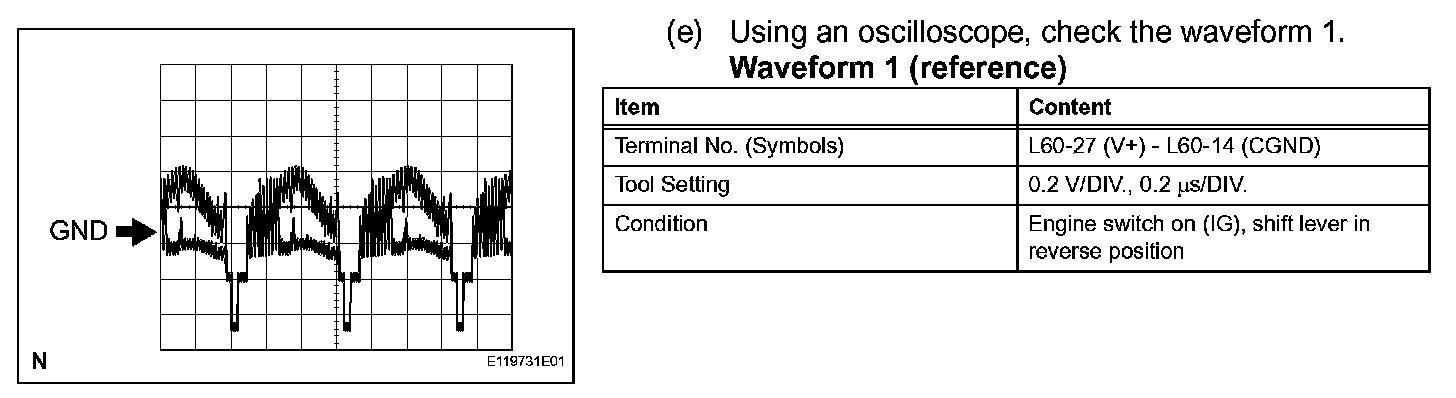

Check Display And Navigation Assembly - Oscilloscope Waveform:

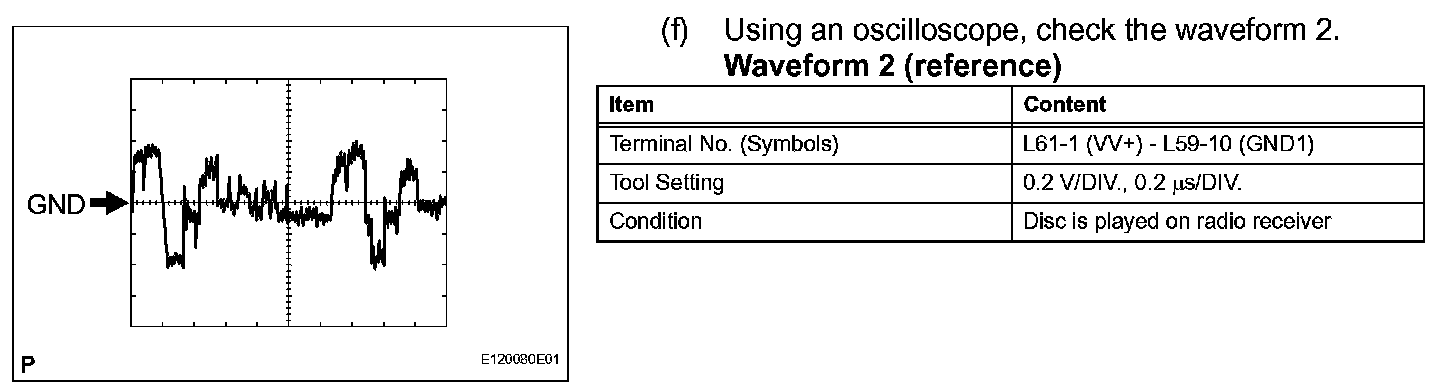

Check Display And Navigation Assembly - Oscilloscope Waveform:

2. CHECK REAR POWER SEAT MODULE SWITCH (w/o Ottoman)

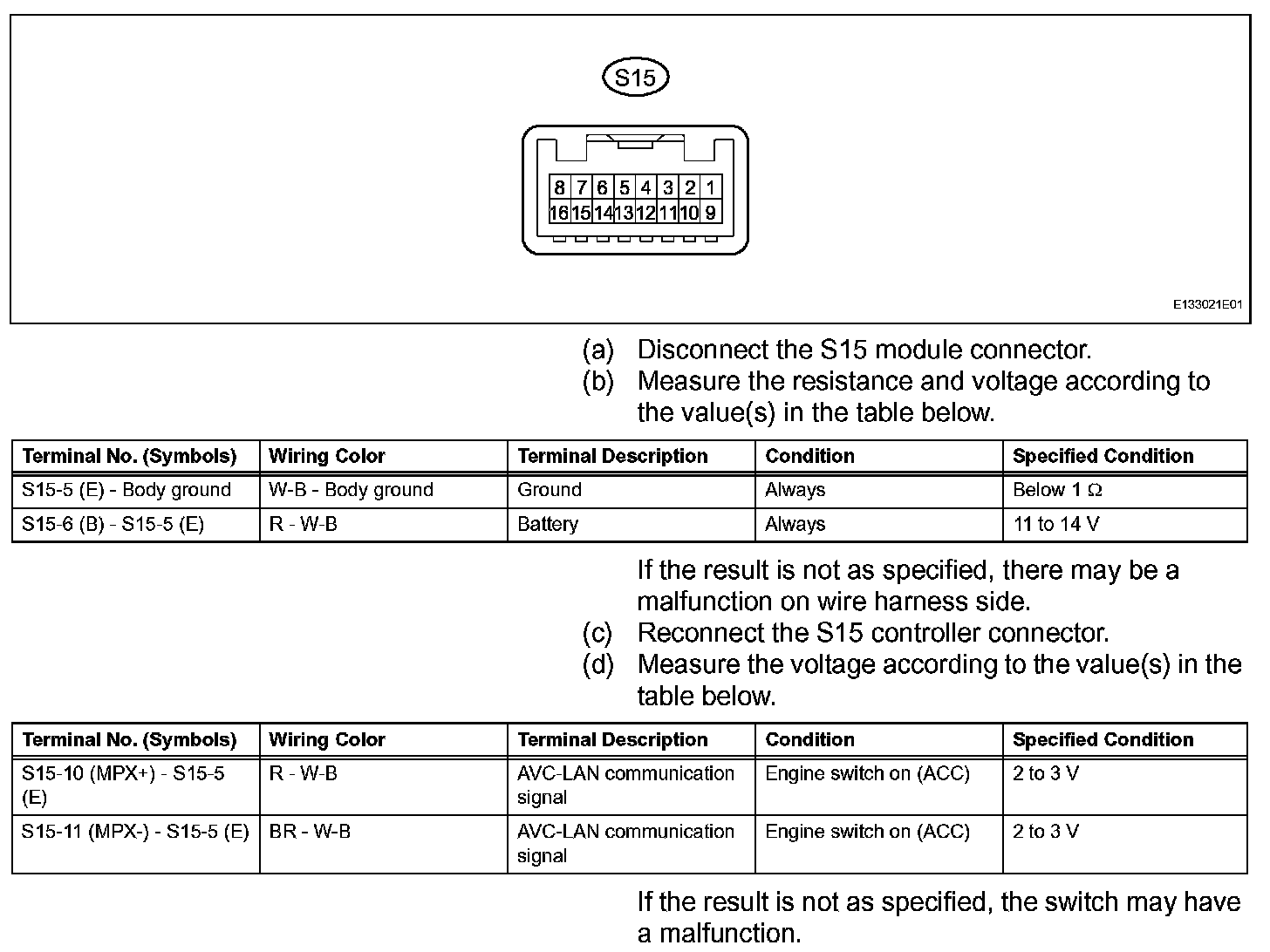

Terminals Of Control Module/Pinouts - Check Rear Power Seat Module Switch (W/o Ottoman):

3. CHECK REAR POWER SEAT MODULE SWITCH (w/ Ottoman)

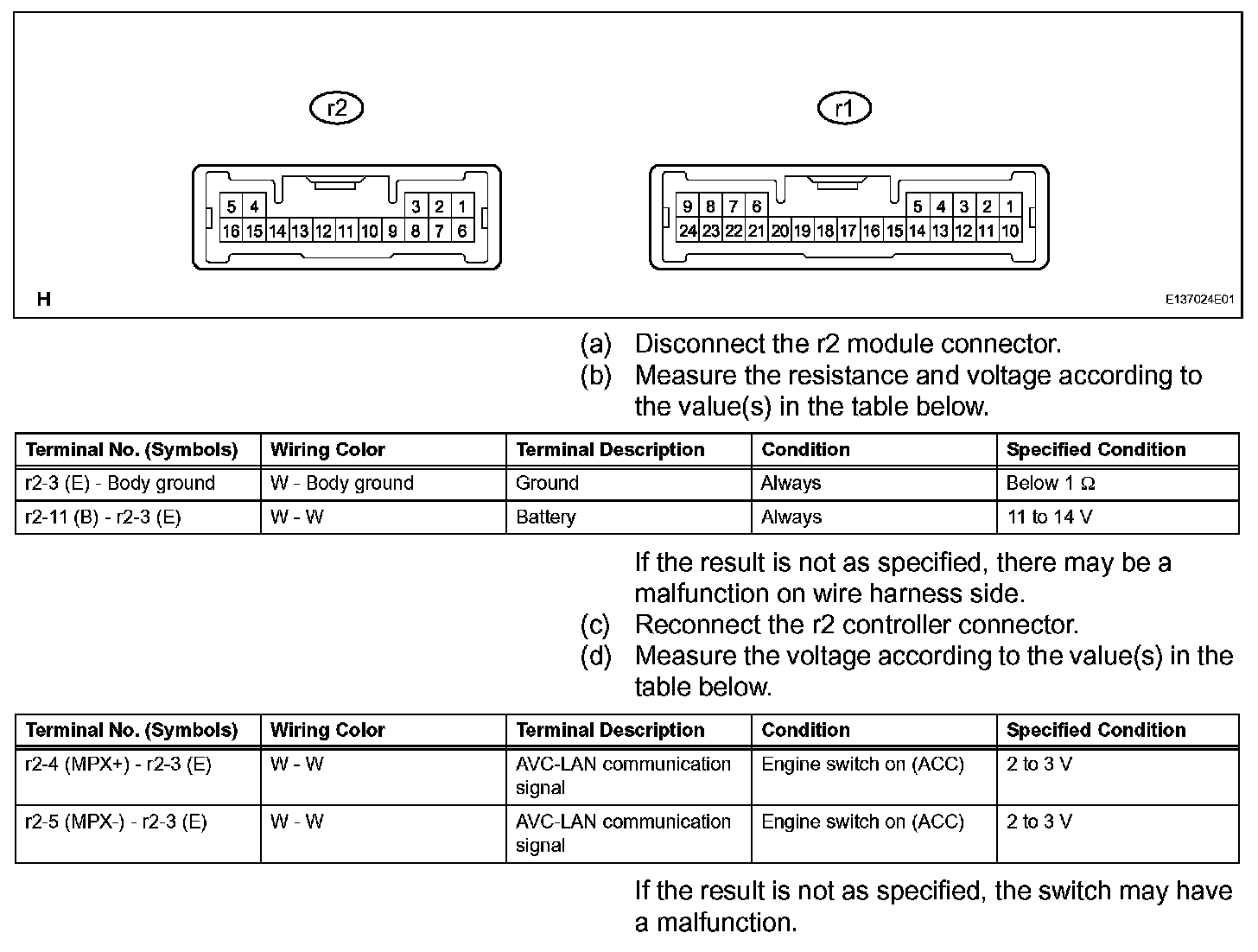

Terminals Of Control Module/Pinouts - Check Rear Power Seat Module Switch (W/ Ottoman):

4. CHECK SATELLITE RADIO TUNER

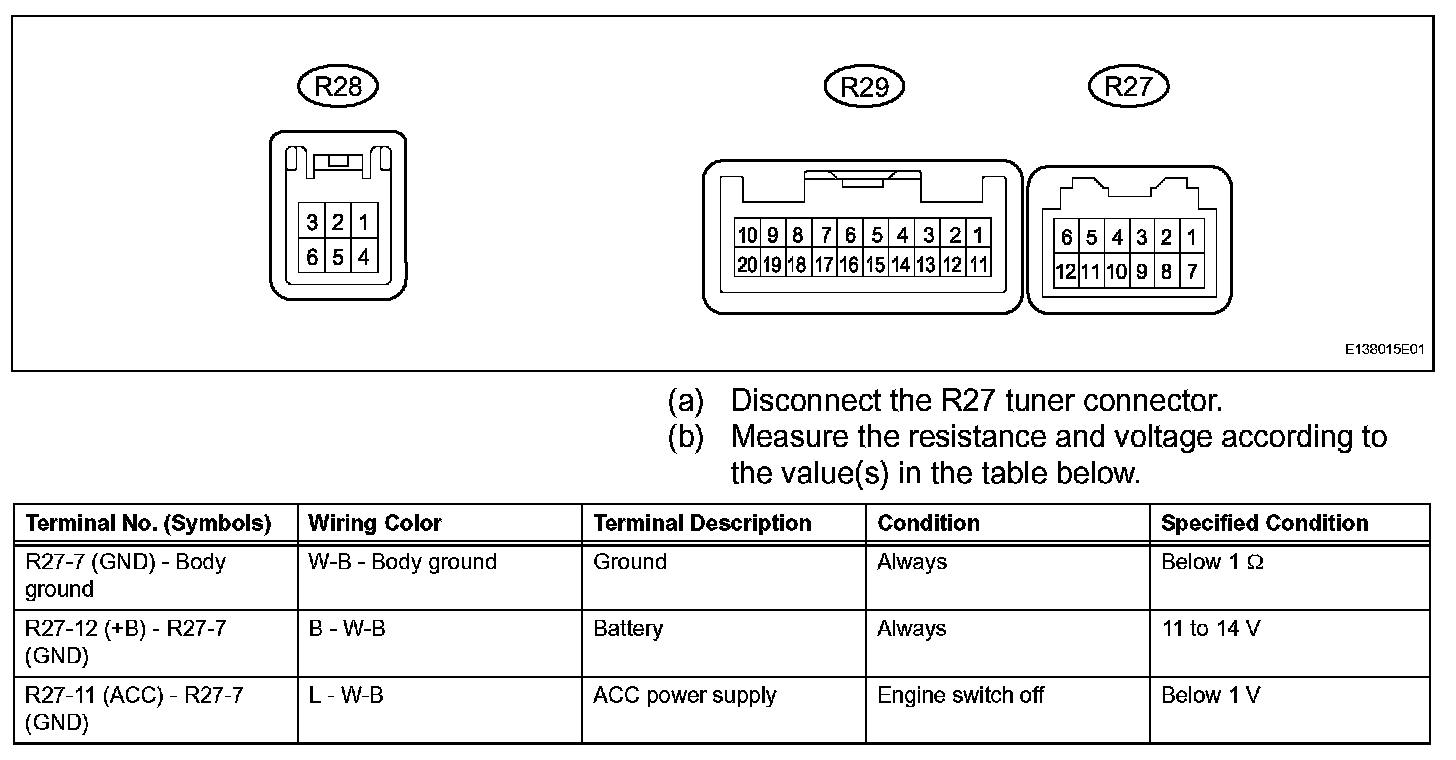

Terminals Of Control Module/Pinouts - Check Satellite Radio Tuner (Part 1):

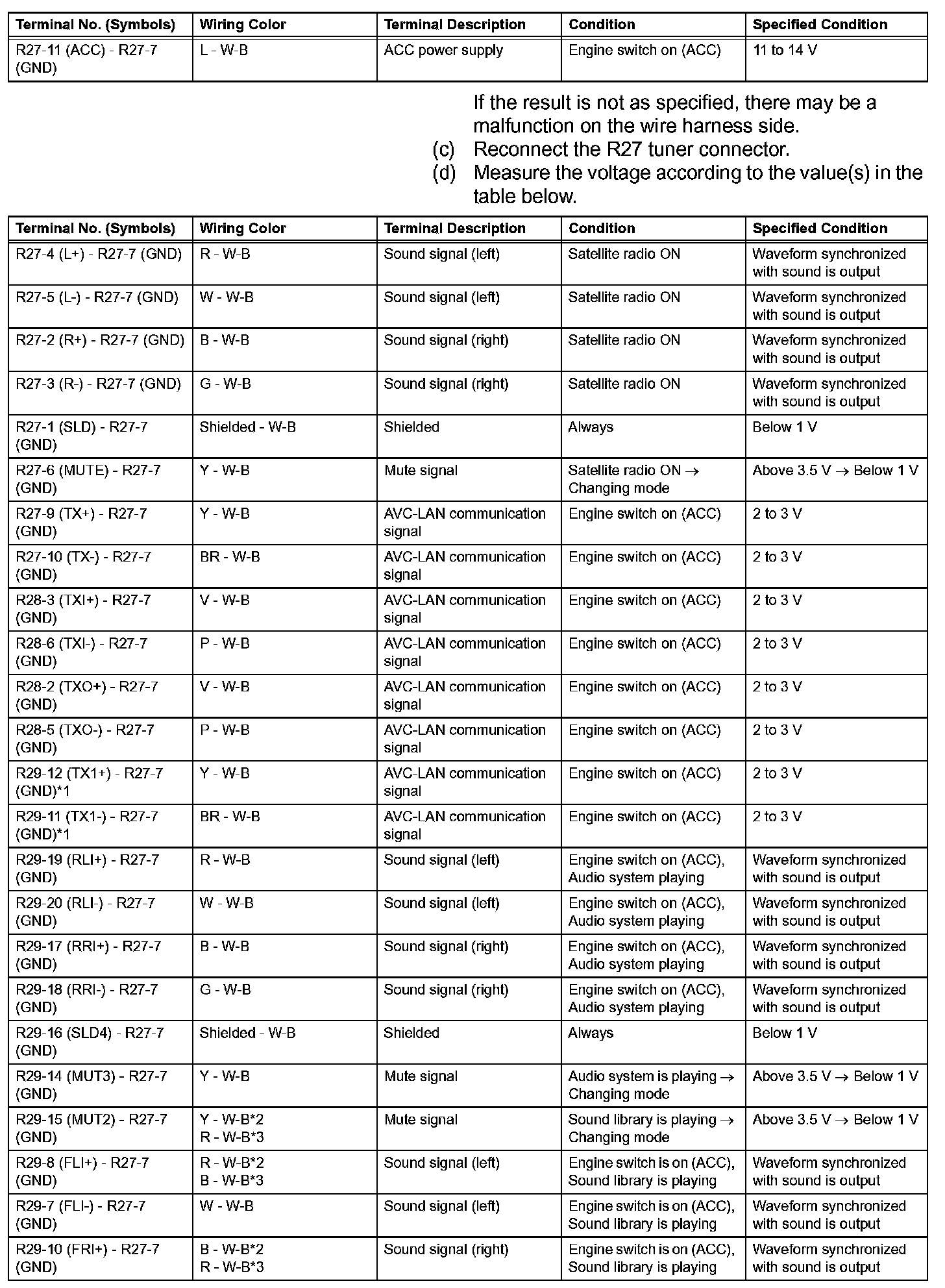

Terminals Of Control Module/Pinouts - Check Satellite Radio Tuner (Part 2):

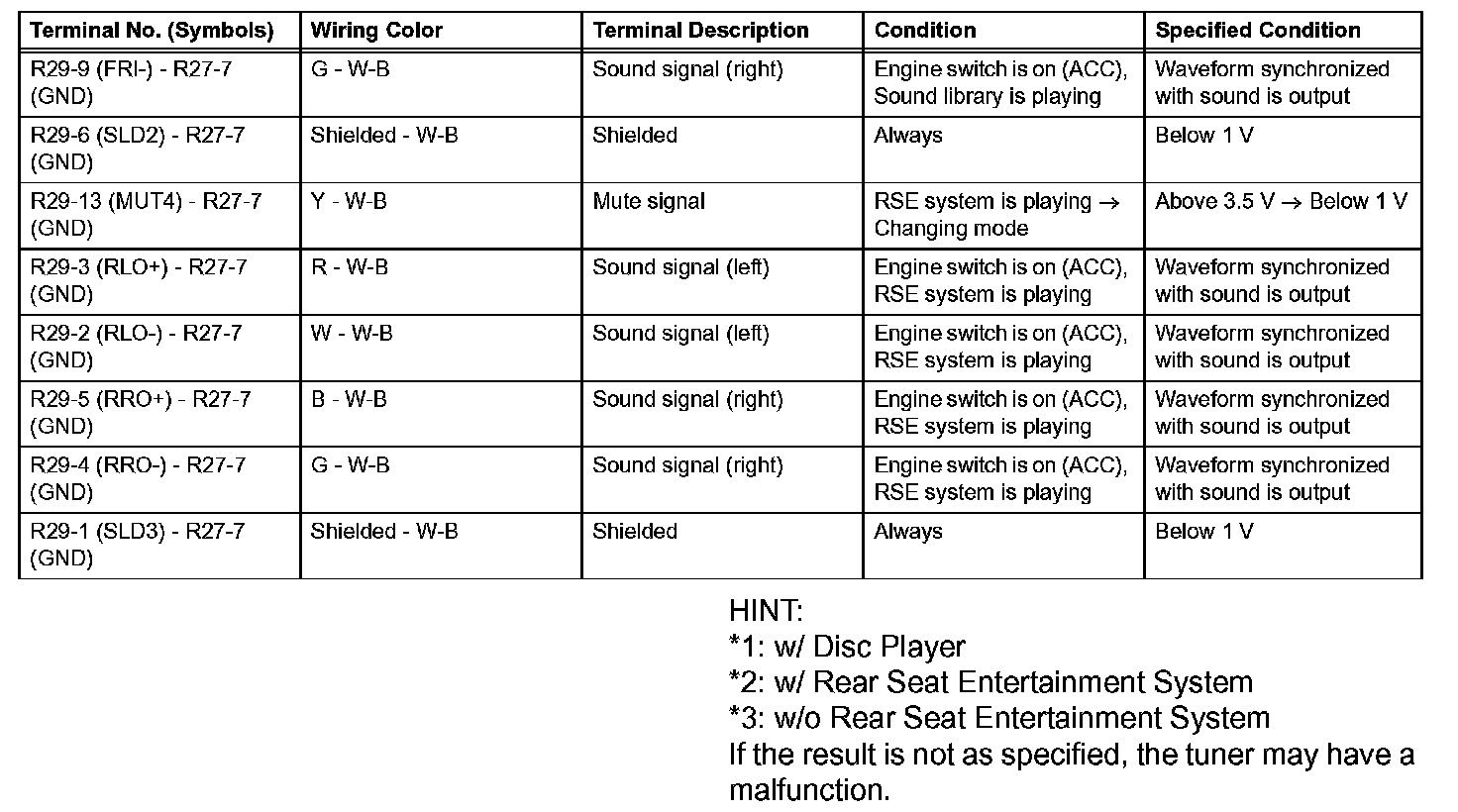

Terminals Of Control Module/Pinouts - Check Satellite Radio Tuner (Part 3):

5. CHECK RADIO RECEIVER

W/ Multi-Display

Terminals Of Control Module/Pinouts-Check Radio Receiver (Part 1):

Terminals Of Control Module/Pinouts-Check Radio Receiver (Part 2):

Terminals Of Control Module/Pinouts-Check Radio Receiver (Part 3):

Terminals Of Control Module/Pinouts-Check Radio Receiver (Part 4):

W/O Multi-Display

Terminals Of Control Module/Pinouts-Check Radio Receiver (Part 1):

Terminals Of Control Module/Pinouts-Check Radio Receiver (Part 2):

6. CHECK STEREO COMPONENT AMPLIFIER

W/ Multi-Display

Terminals Of Control Module/Pinouts-Check Stereo Component Amplifier (Part 1):

Terminals Of Control Module/Pinouts-Check Stereo Component Amplifier (Part 2):

Terminals Of Control Module/Pinouts-Check Stereo Component Amplifier (Part 3):

W/O Multi-Display

Terminals Of Control Module/Pinouts-Check Stereo Component Amplifier (Part 1):

Terminals Of Control Module/Pinouts-Check Stereo Component Amplifier (Part 2):
