Navigation System (For DVD)

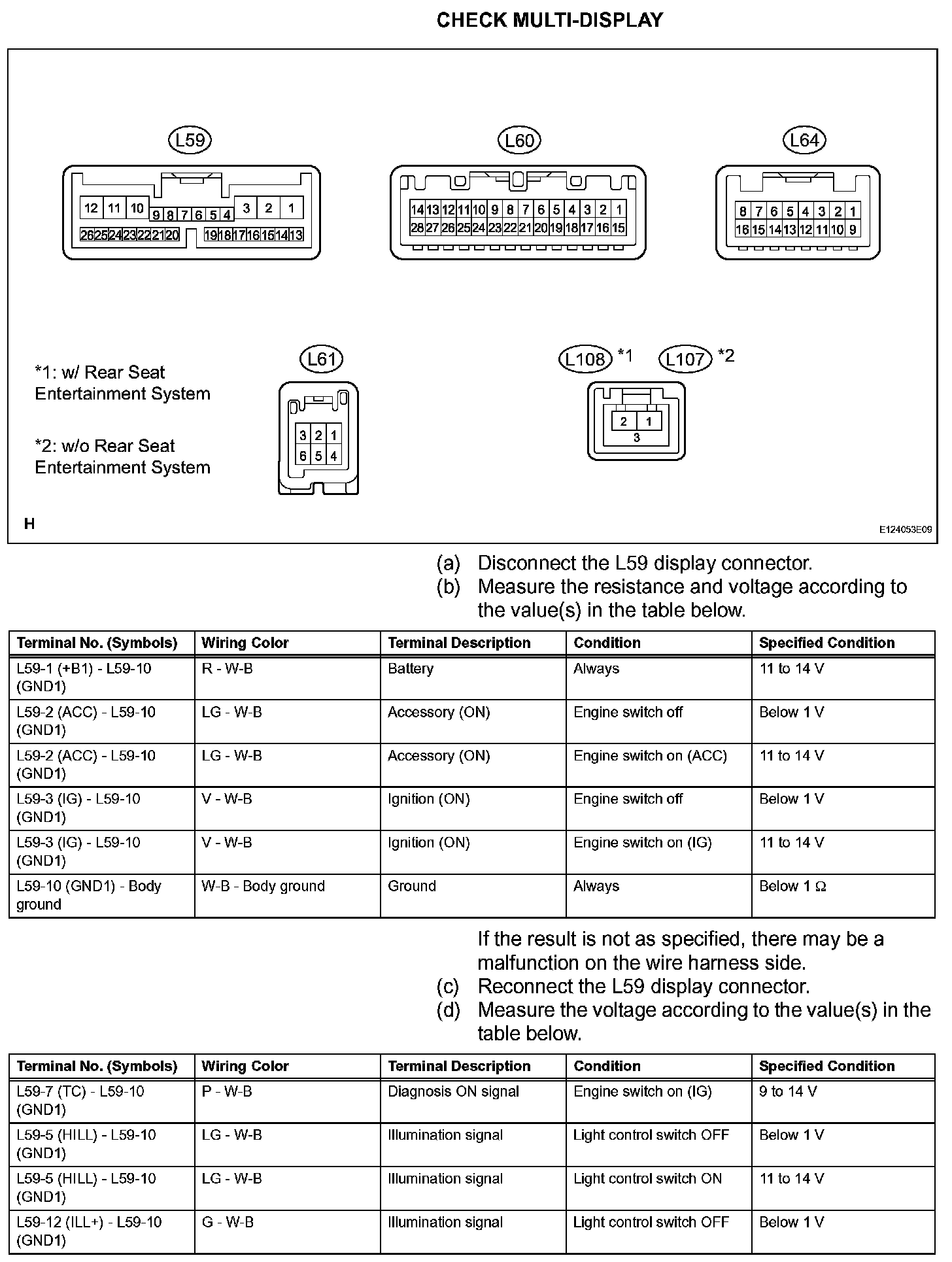

Terminals Of Control Module/Pinouts - Check Multi-Display (Part 1):

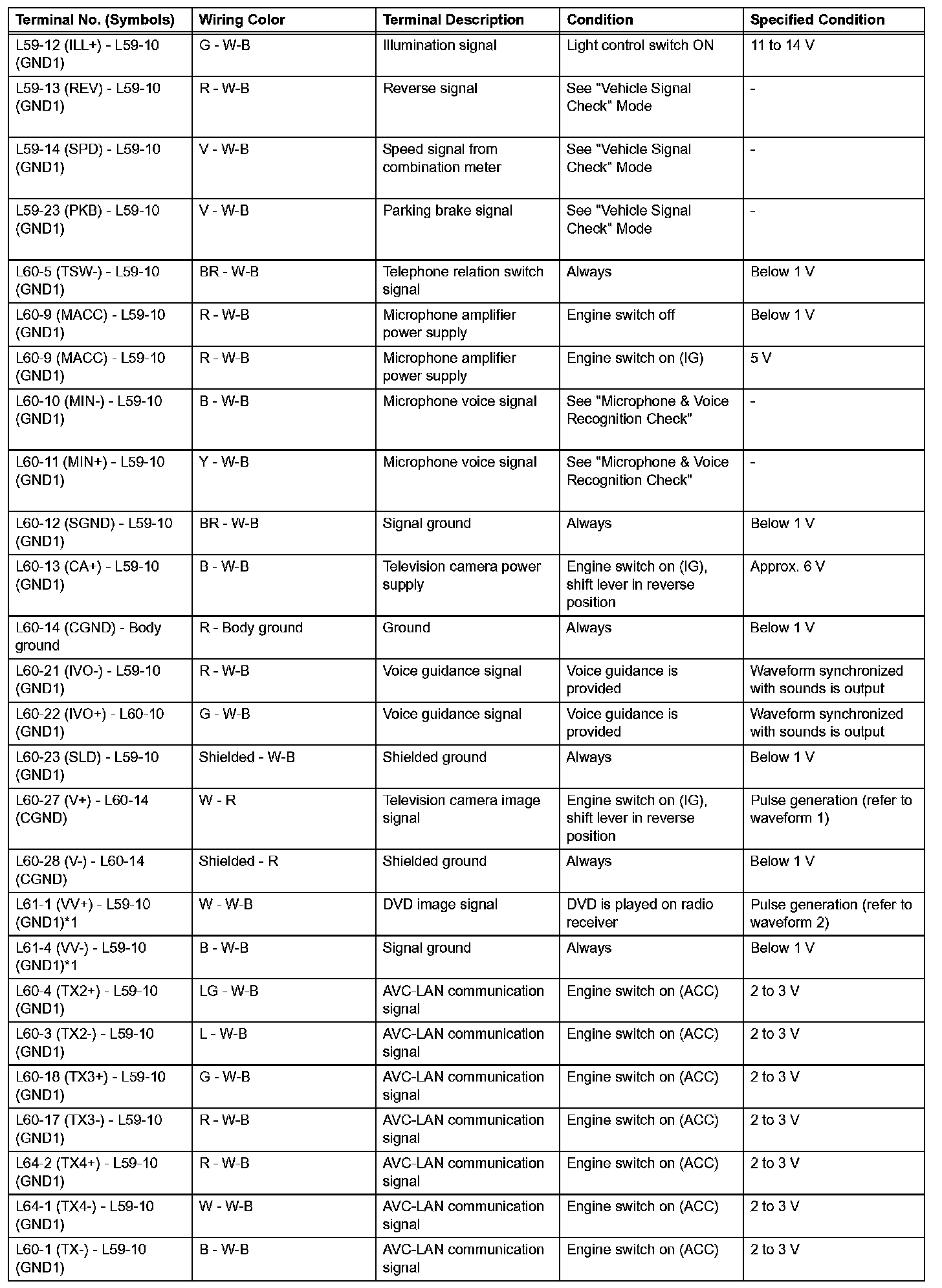

Terminals Of Control Module/Pinouts - Check Multi-Display (Part 2):

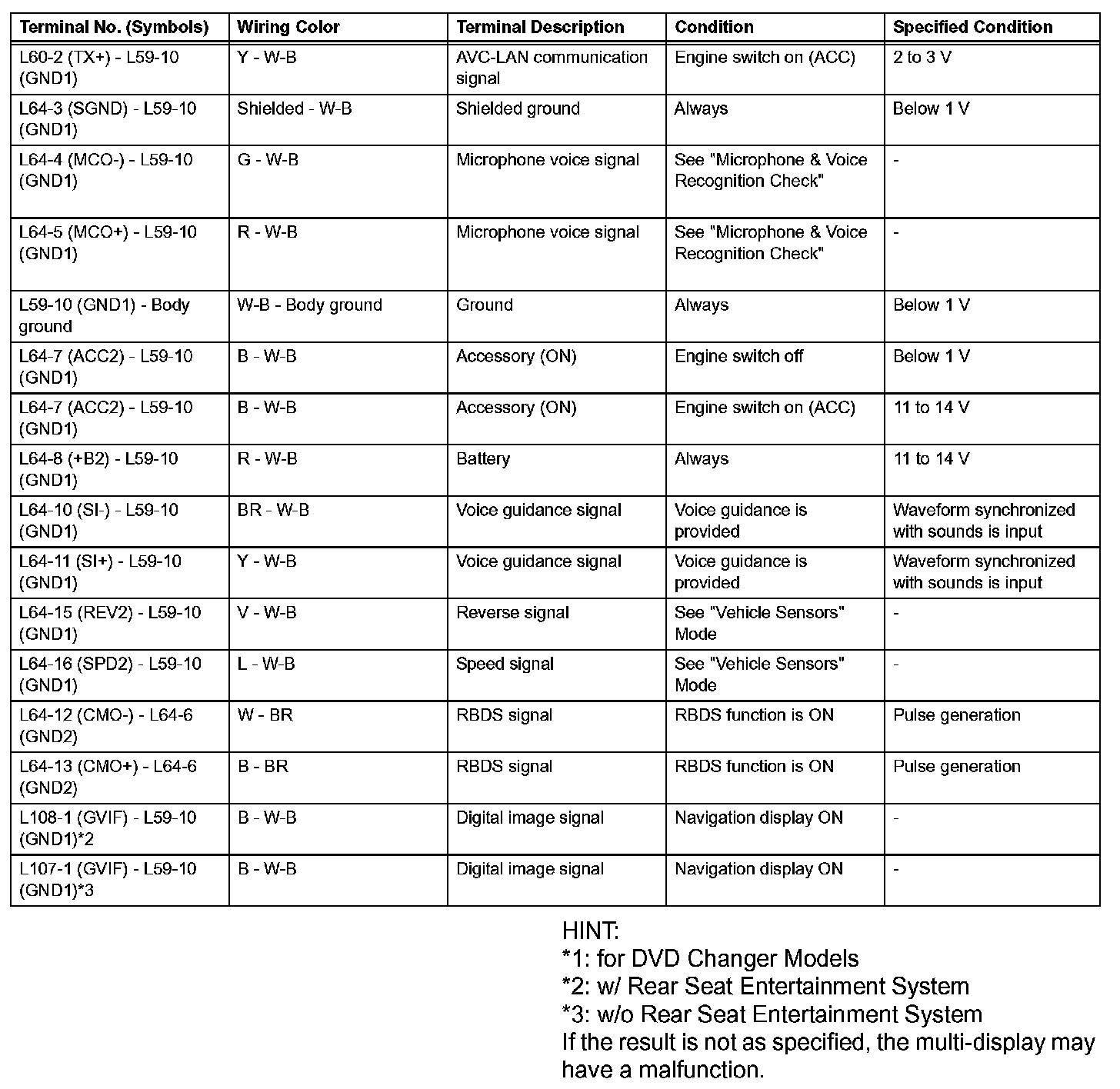

Terminals Of Control Module/Pinouts - Check Multi-Display (Part 3):

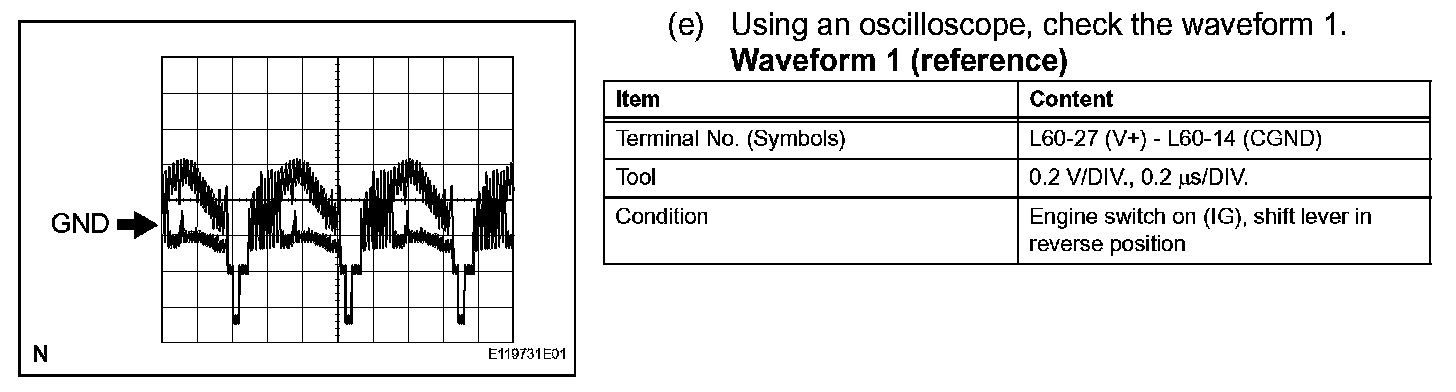

Check Multi-Display - Oscilloscope Waveform:

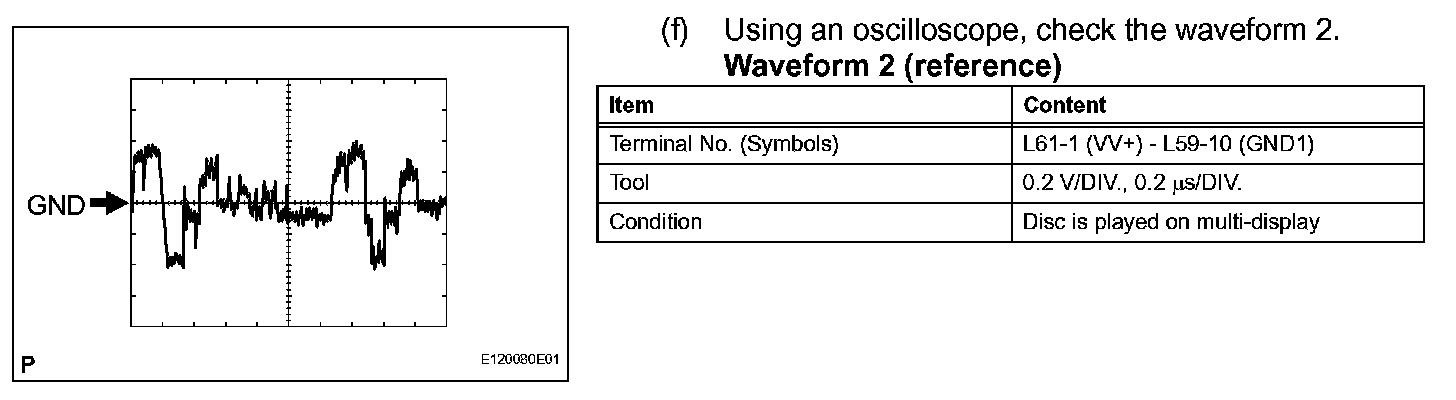

Check Multi-Display - Oscilloscope Waveform:

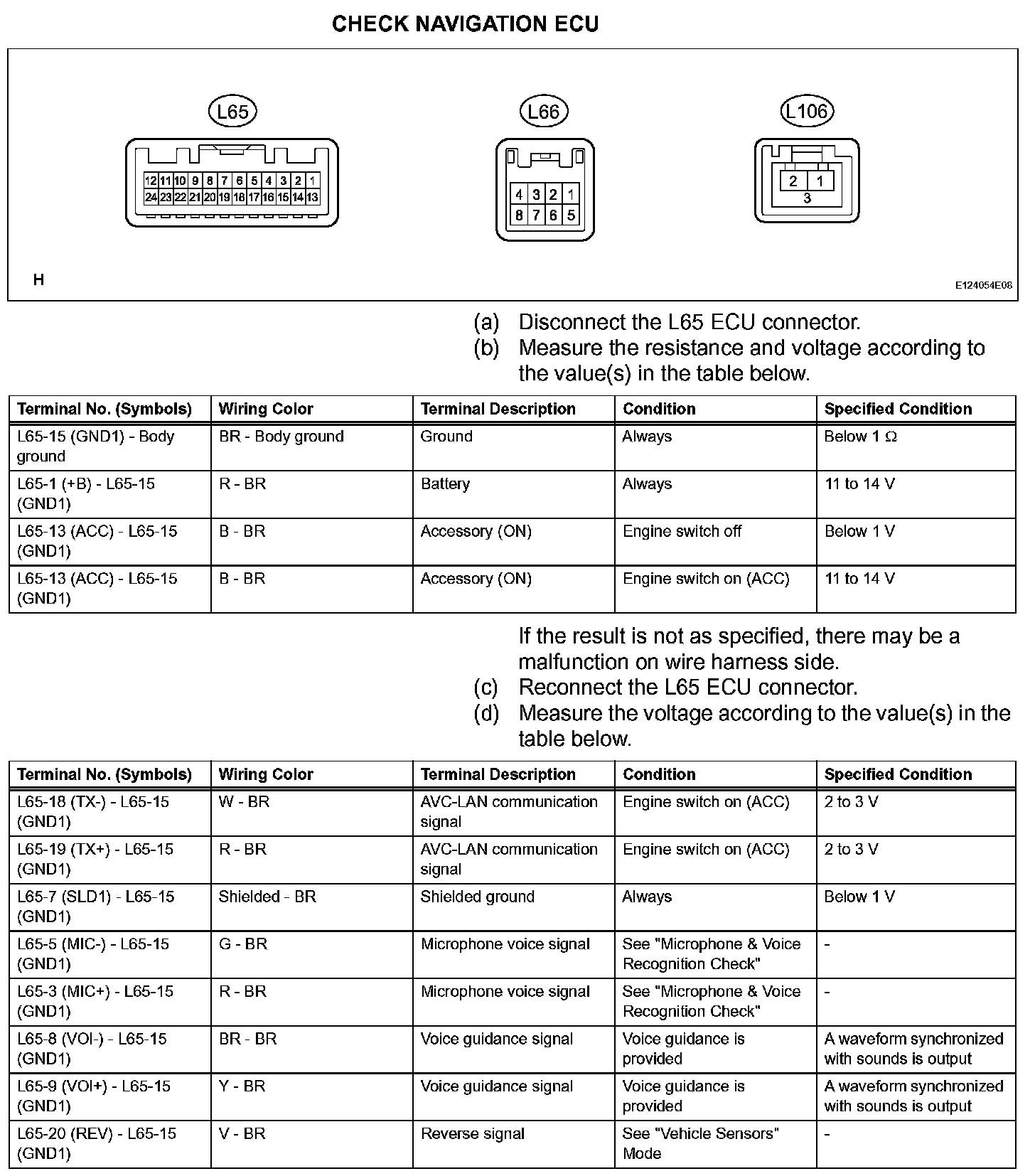

Terminals Of Control Module/Pinouts - Check Navigation ECU (Part 1):

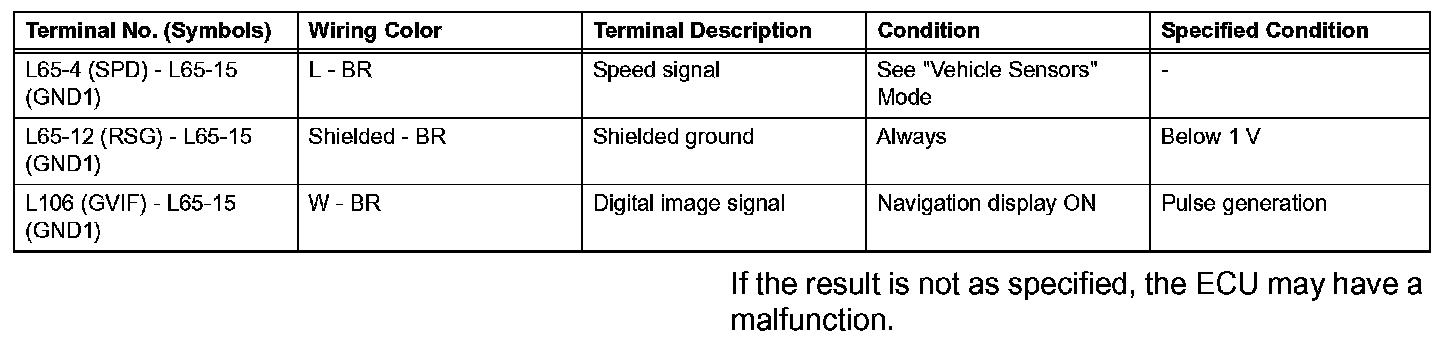

Terminals Of Control Module/Pinouts - Check Navigation ECU (Part 2):

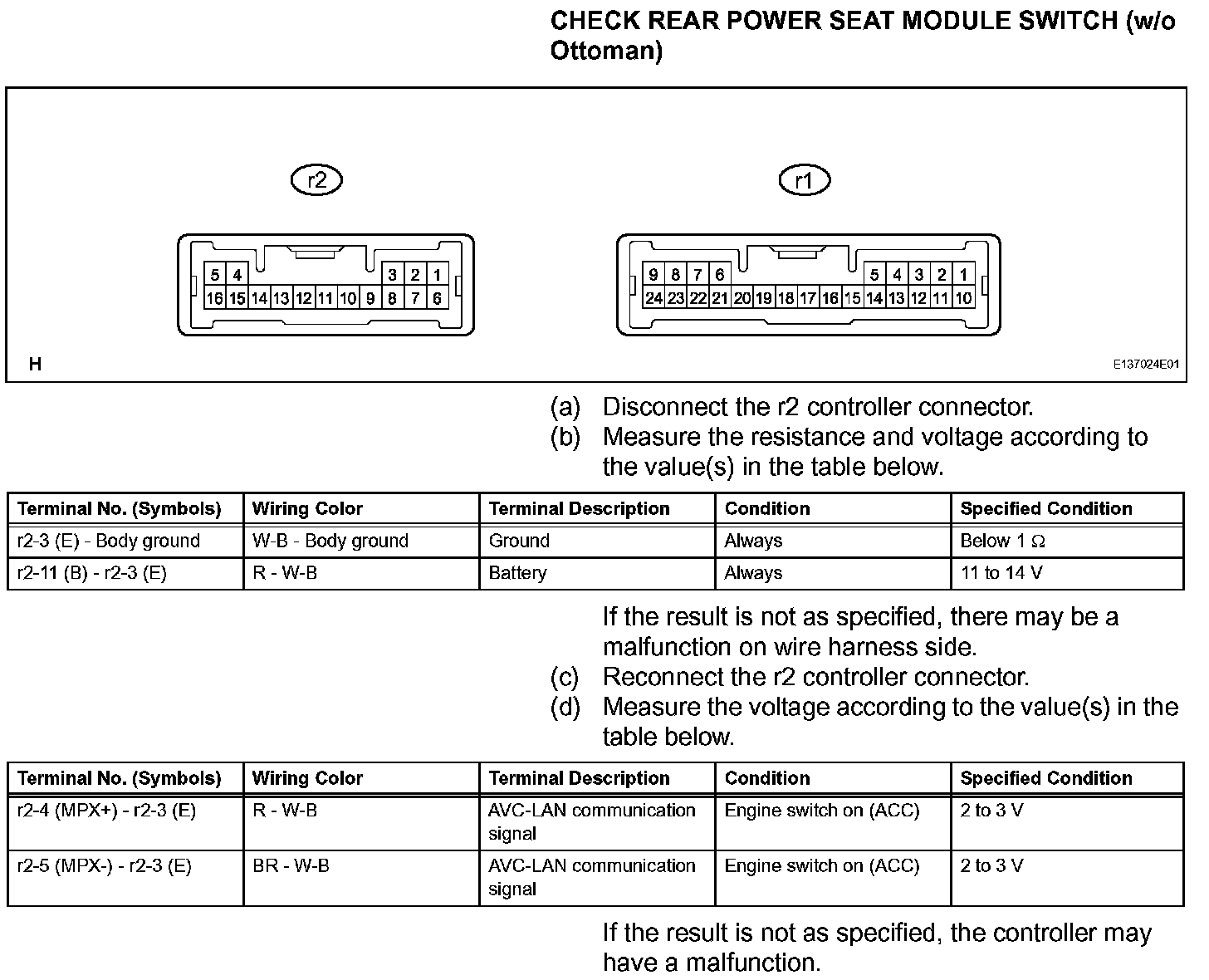

Terminals Of Control Module/Pinouts - Check Rear Power Seat Module Switch(w/o Ottoman):

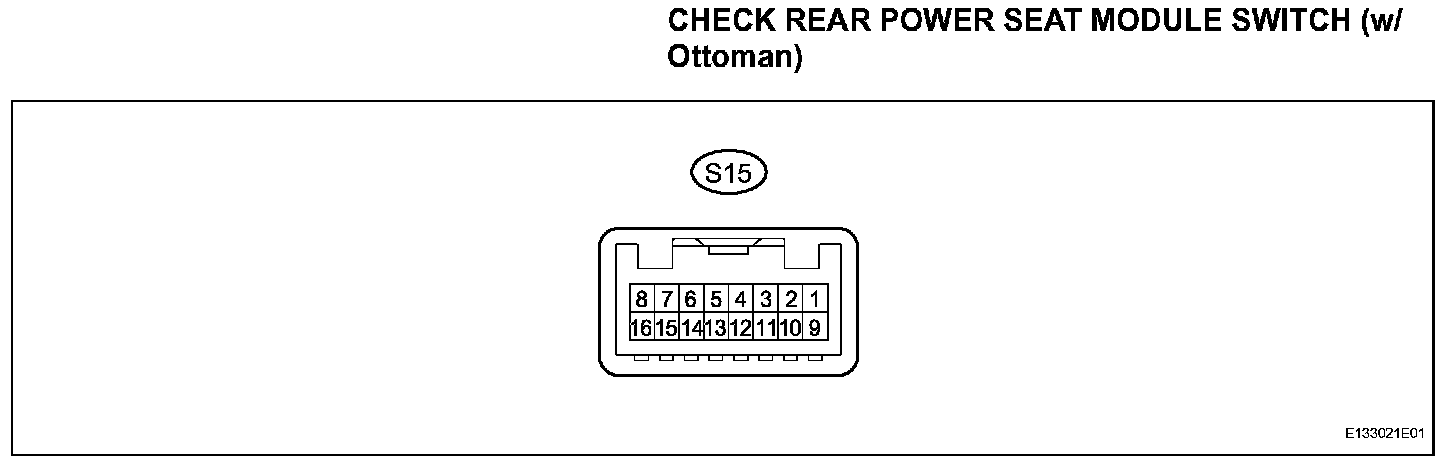

Terminals Of Control Module/Pinouts - Check Rear Power Seat Module Switch(w/ Ottoman) (Part 1):

Terminals Of Control Module/Pinouts - Check Rear Power Seat Module Switch(w/ Ottoman) (Part 2):
