Vehicle Speed Signal Circuit

Vehicle Speed Signal Circuit

DESCRIPTION

The display and navigation assembly performs switch operation control during driving by receiving a vehicle speed signal from the combination meter.

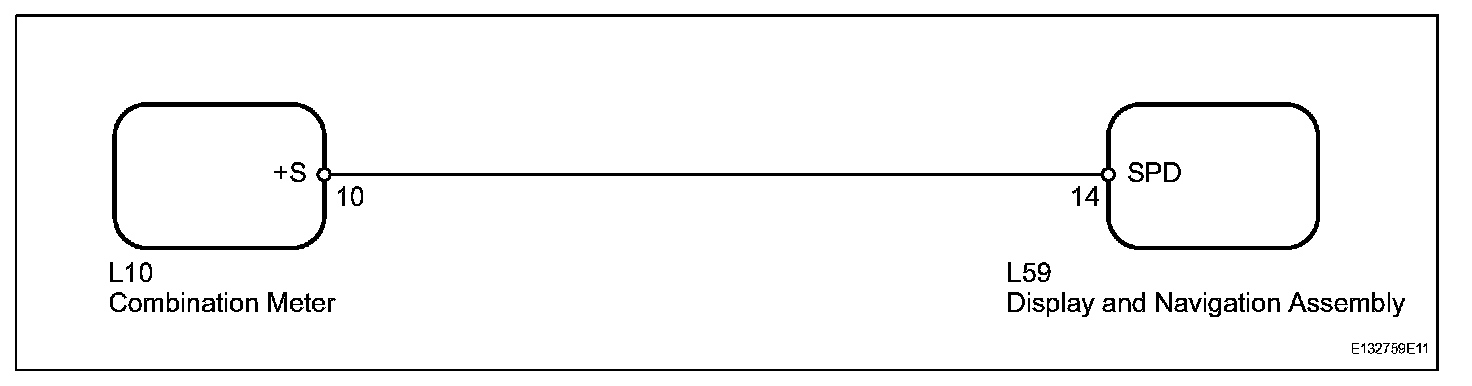

Wiring Diagram:

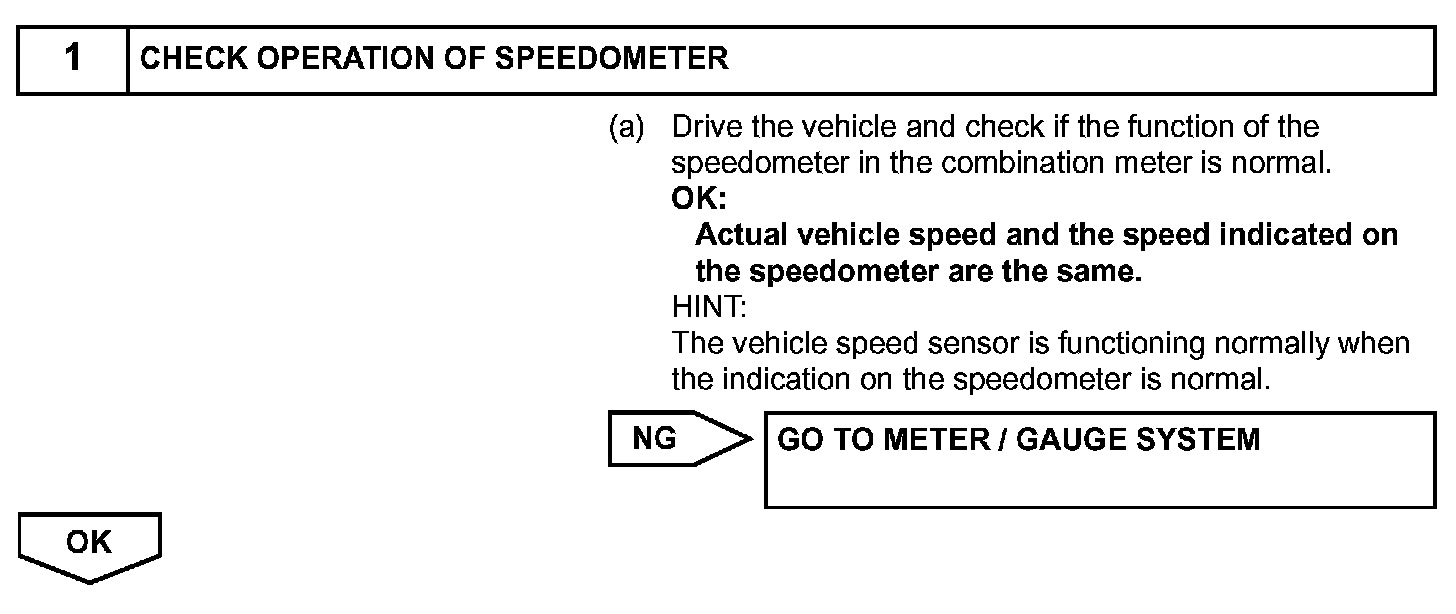

Step 1:

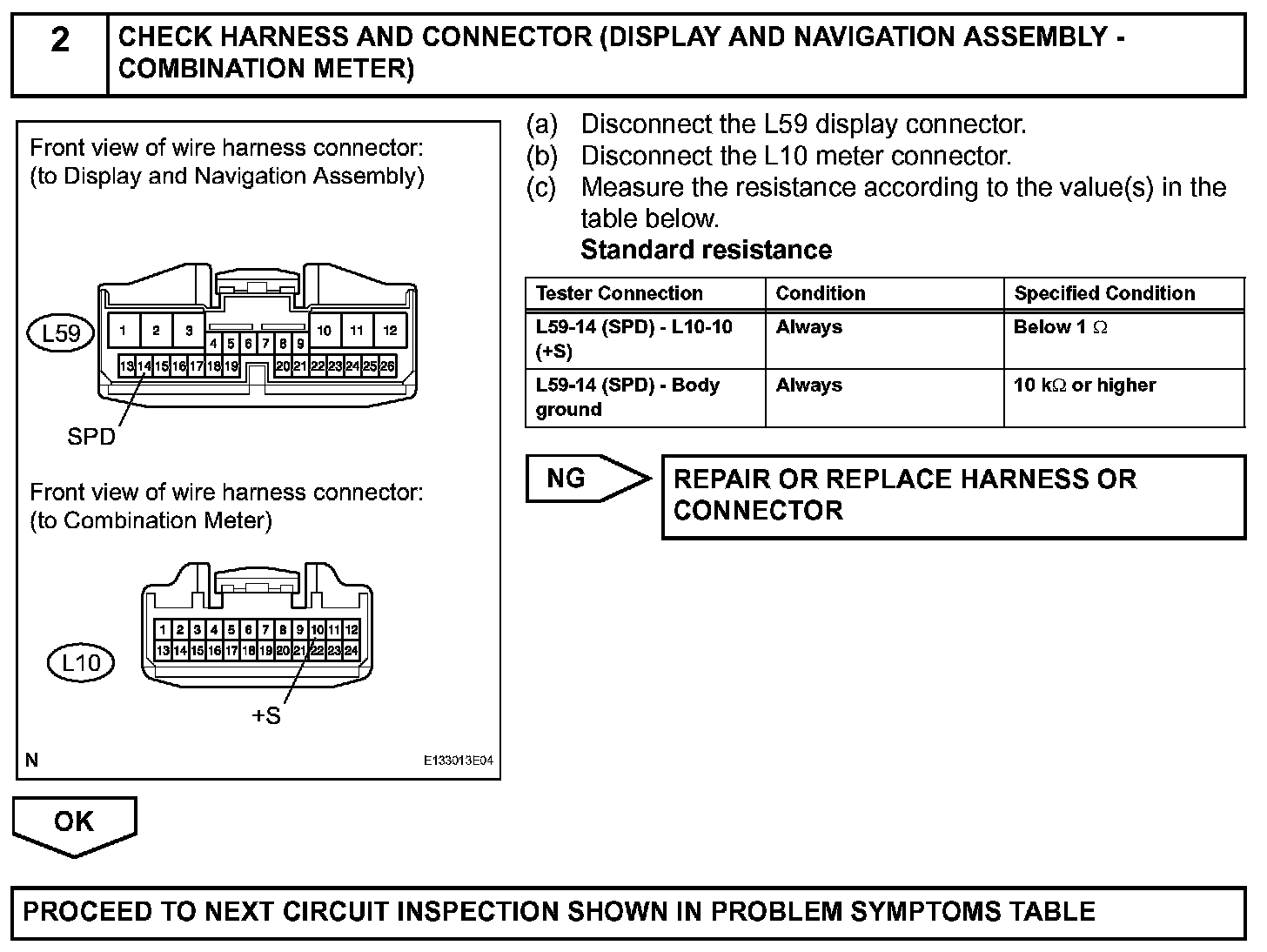

Step 2:




INSPECTION PROCEDURE
