Satellite Radio Tuner Power Source Circuit

Satellite Radio Tuner Power Source Circuit

DESCRIPTION

This is the power source circuit to operate the satellite radio tuner.

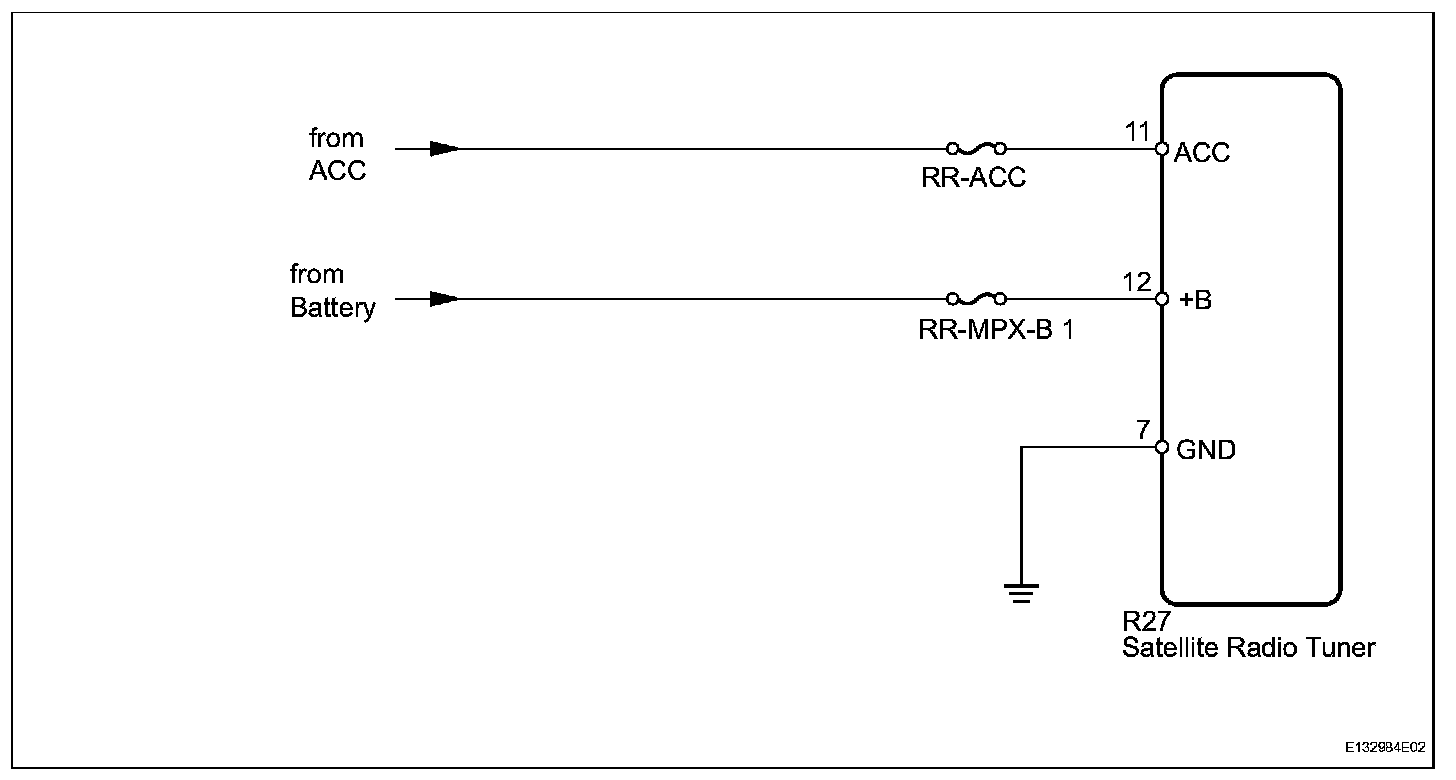

Wiring Diagram:

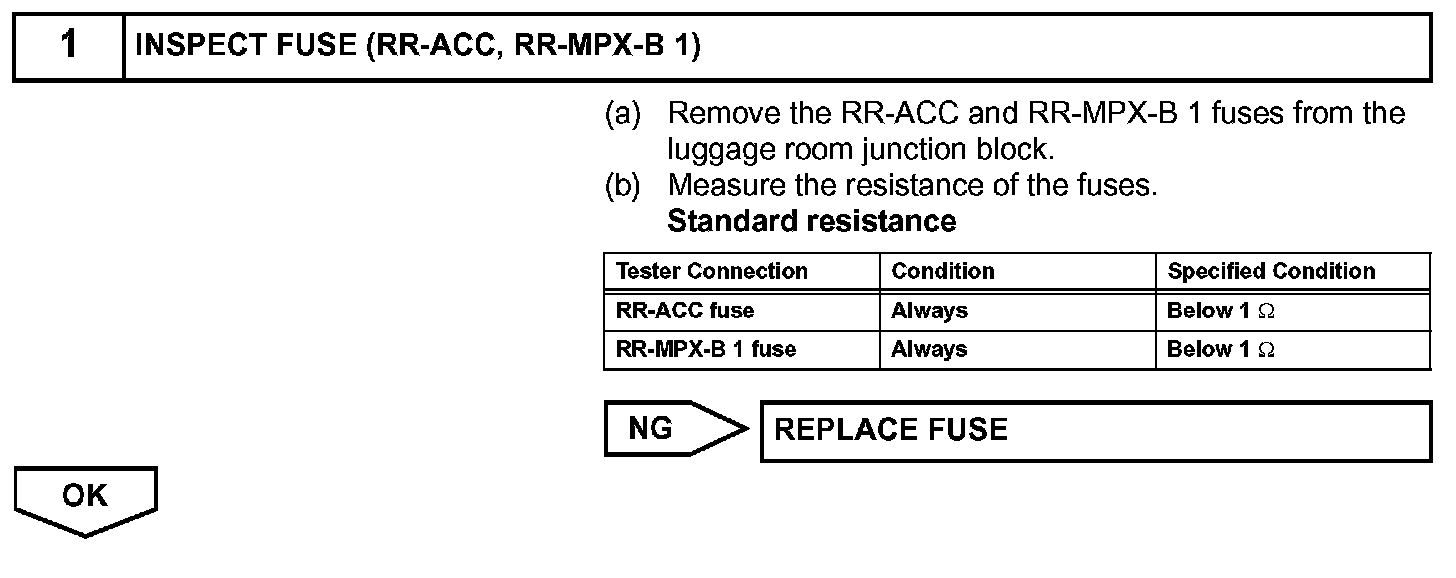

Step 1:

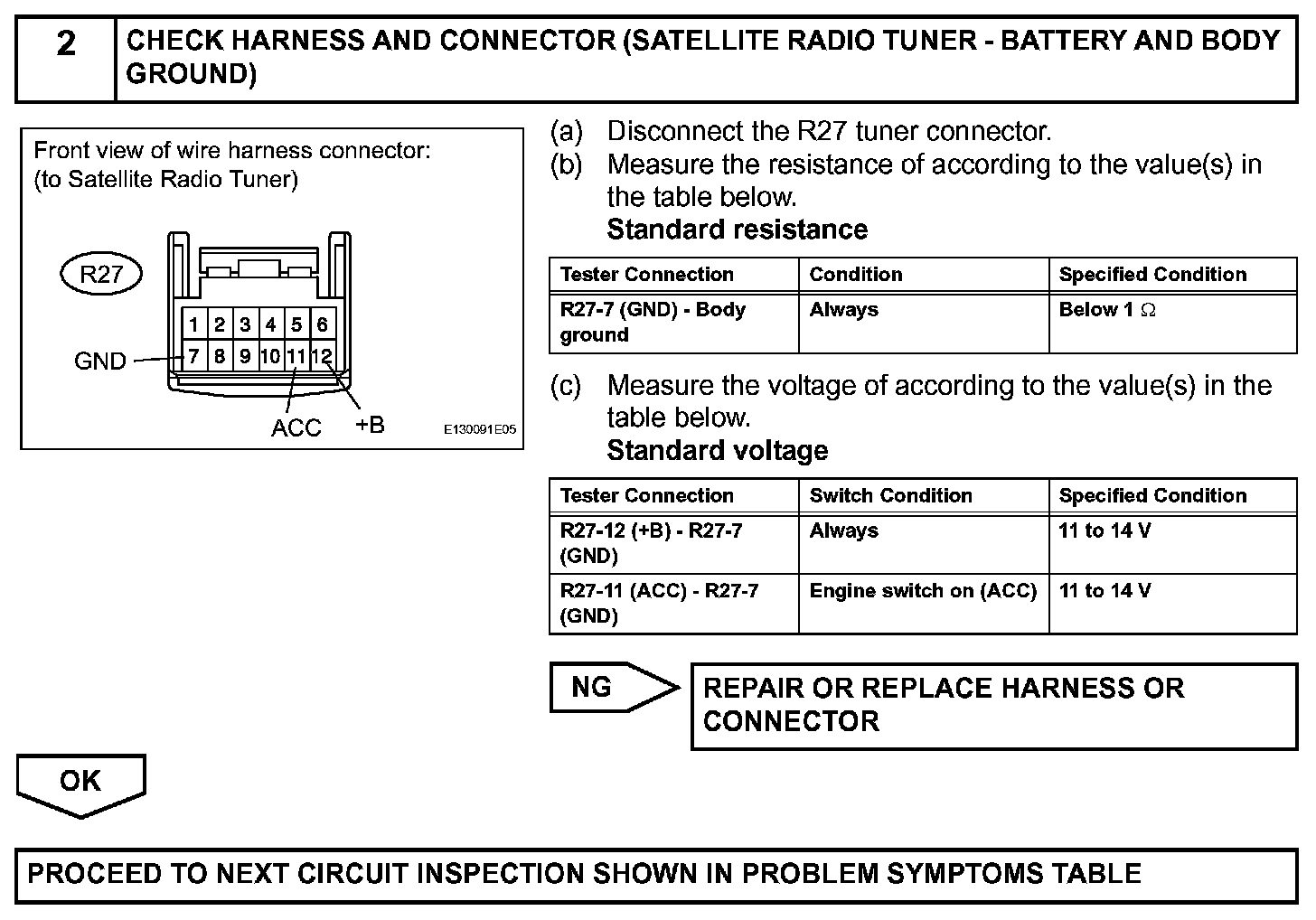

Step 2:




INSPECTION PROCEDURE
