Reverse Signal Circuit
Reverse Signal CircuitDESCRIPTION
The display and navigation assembly receives a reverse signal from the luggage room junction block ECU and information about the navigation antenna, and then adjusts vehicle position.

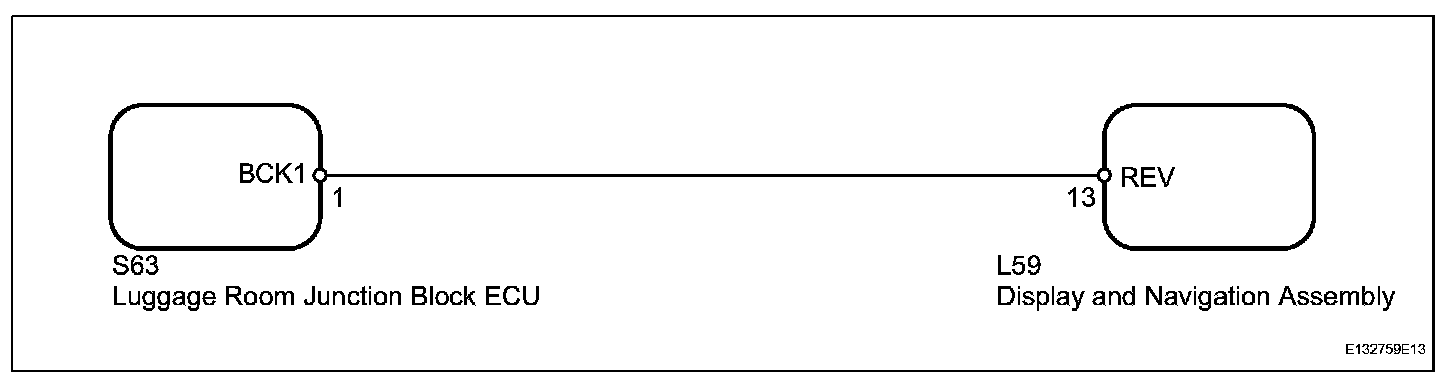

Wiring Diagram:
Step 1-2:

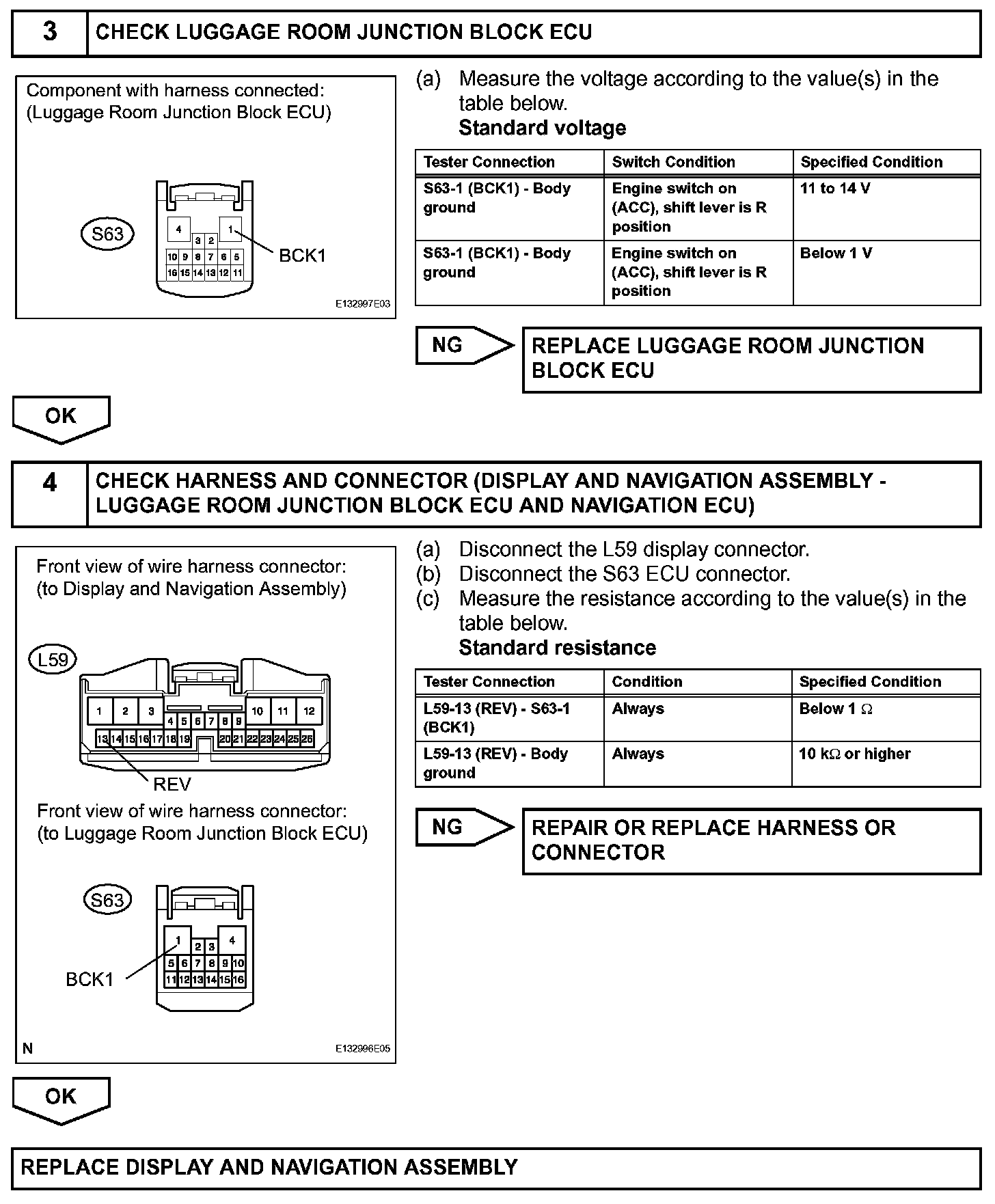

Step 3-4:
INSPECTION PROCEDURE
