Rear Seat Control Switch Power Source Circuit

Rear Seat Control Switch Power Source Circuit

DESCRIPTION

This is the power source circuit to operate the rear power seat module switch.

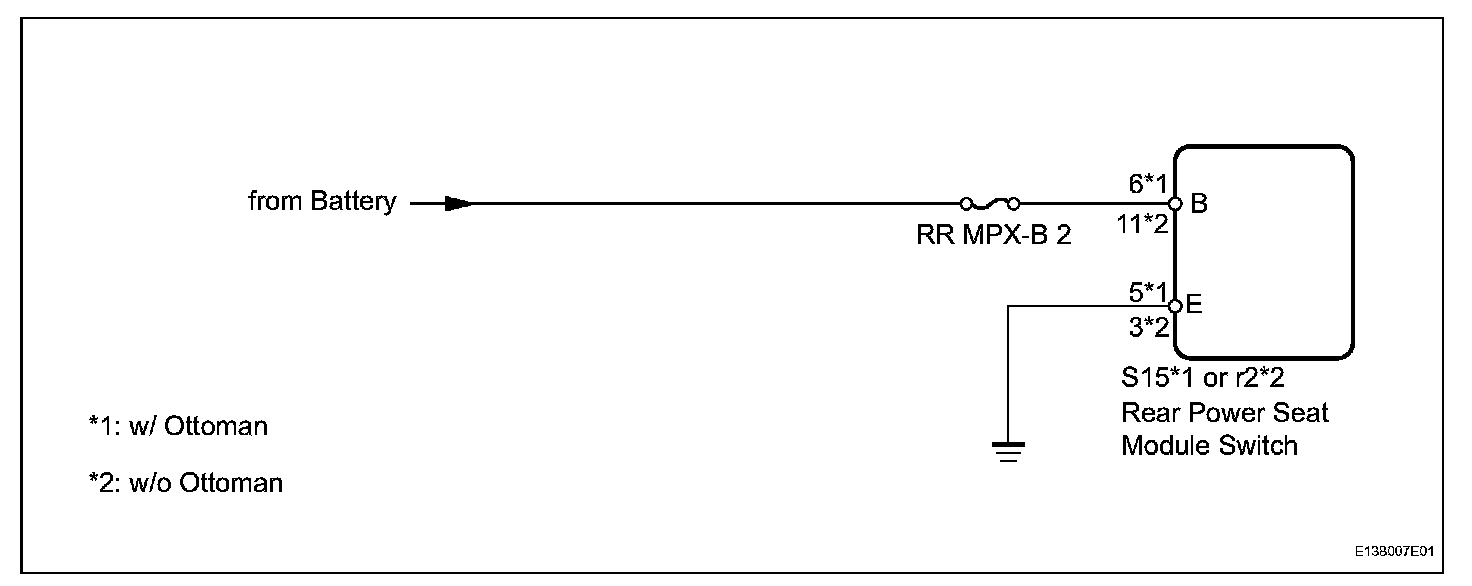

Wiring Diagram:

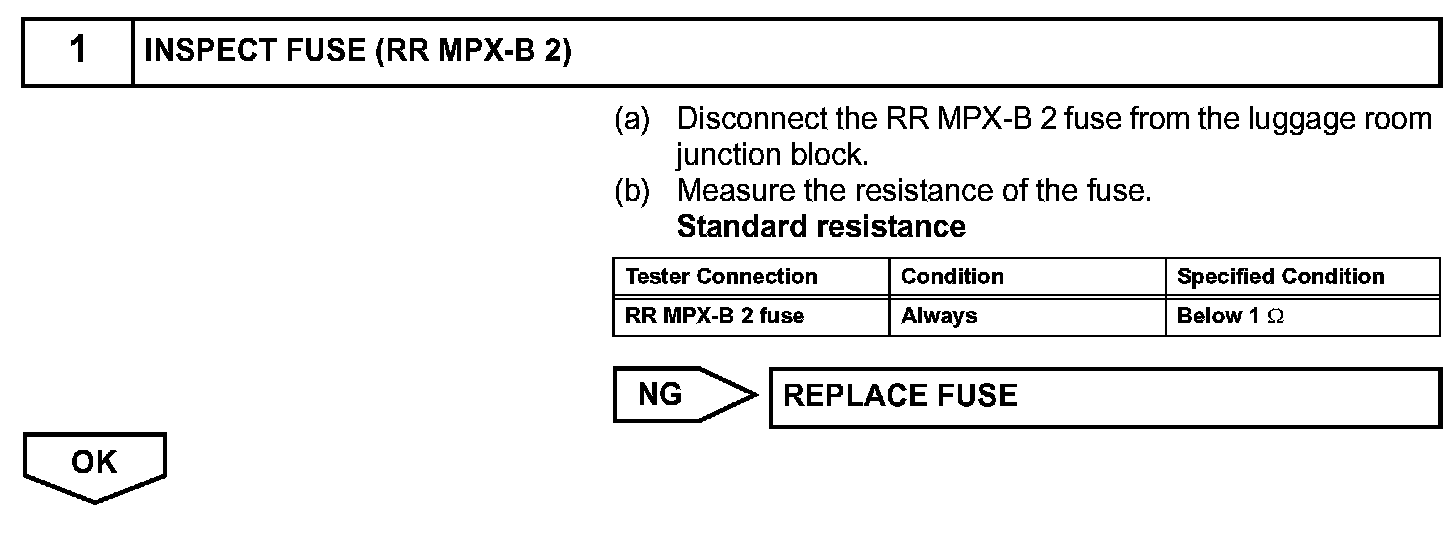

Step 1:

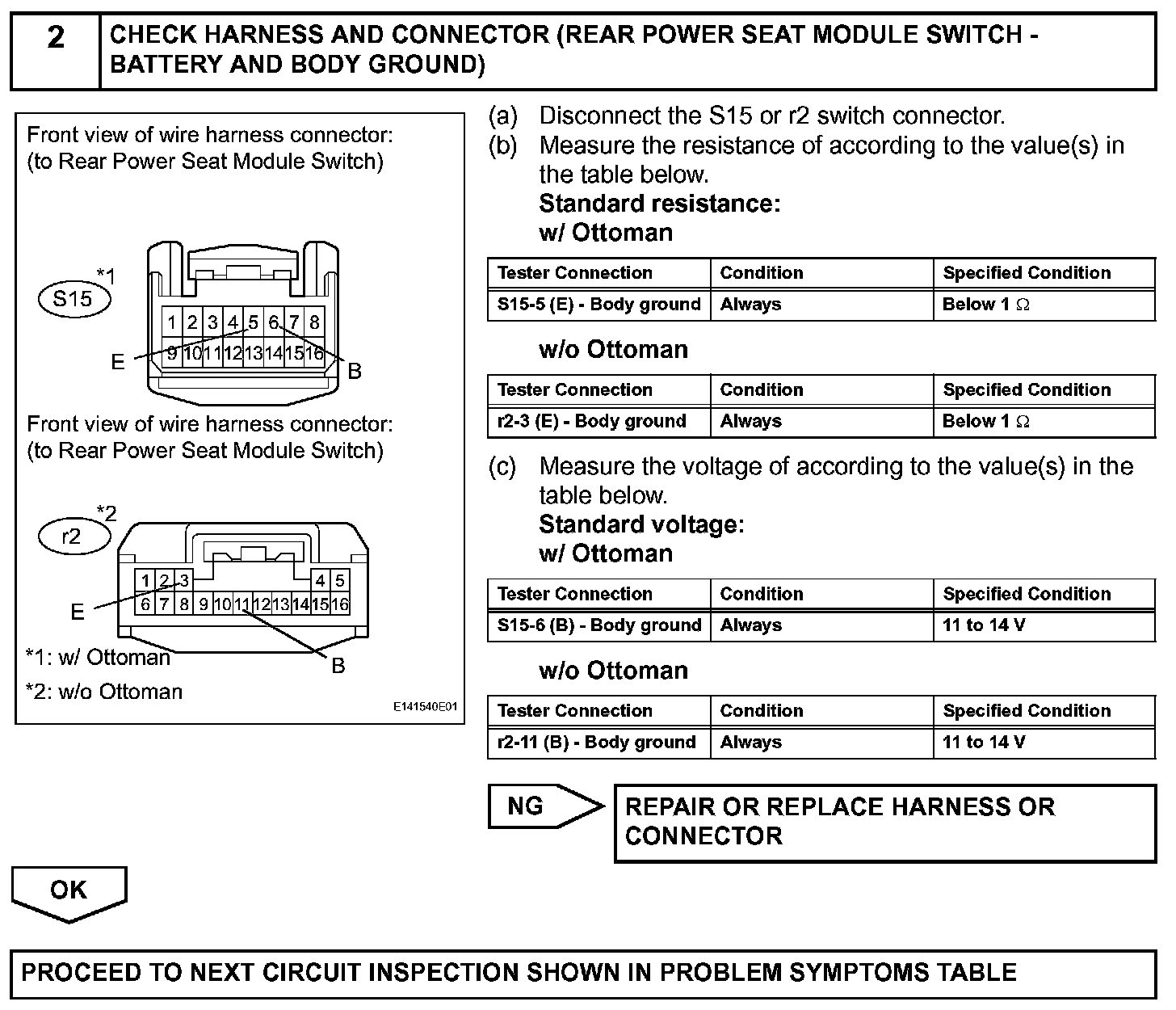

Step 2:




INSPECTION PROCEDURE
