Parking Brake Switch Circuit

Parking Brake Switch Circuit

DESCRIPTION

This circuit is from the parking brake switch to the display and navigation assembly.

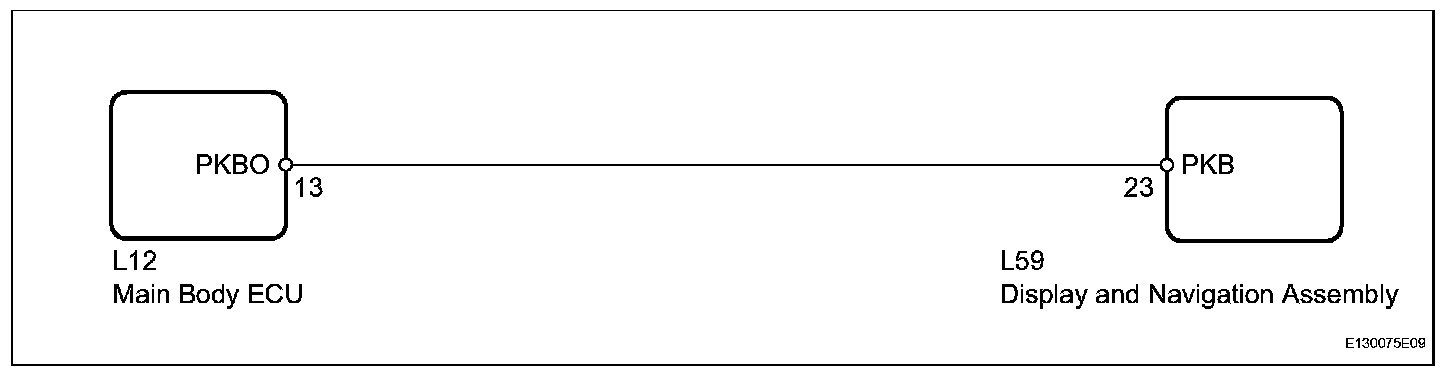

Wiring Diagram:

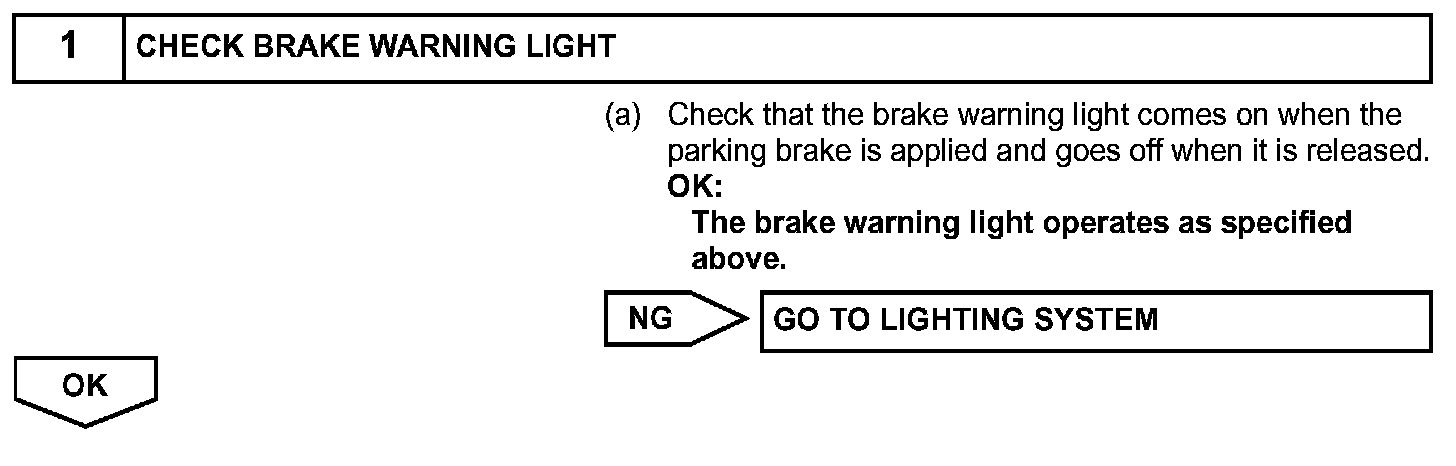

Step 1:

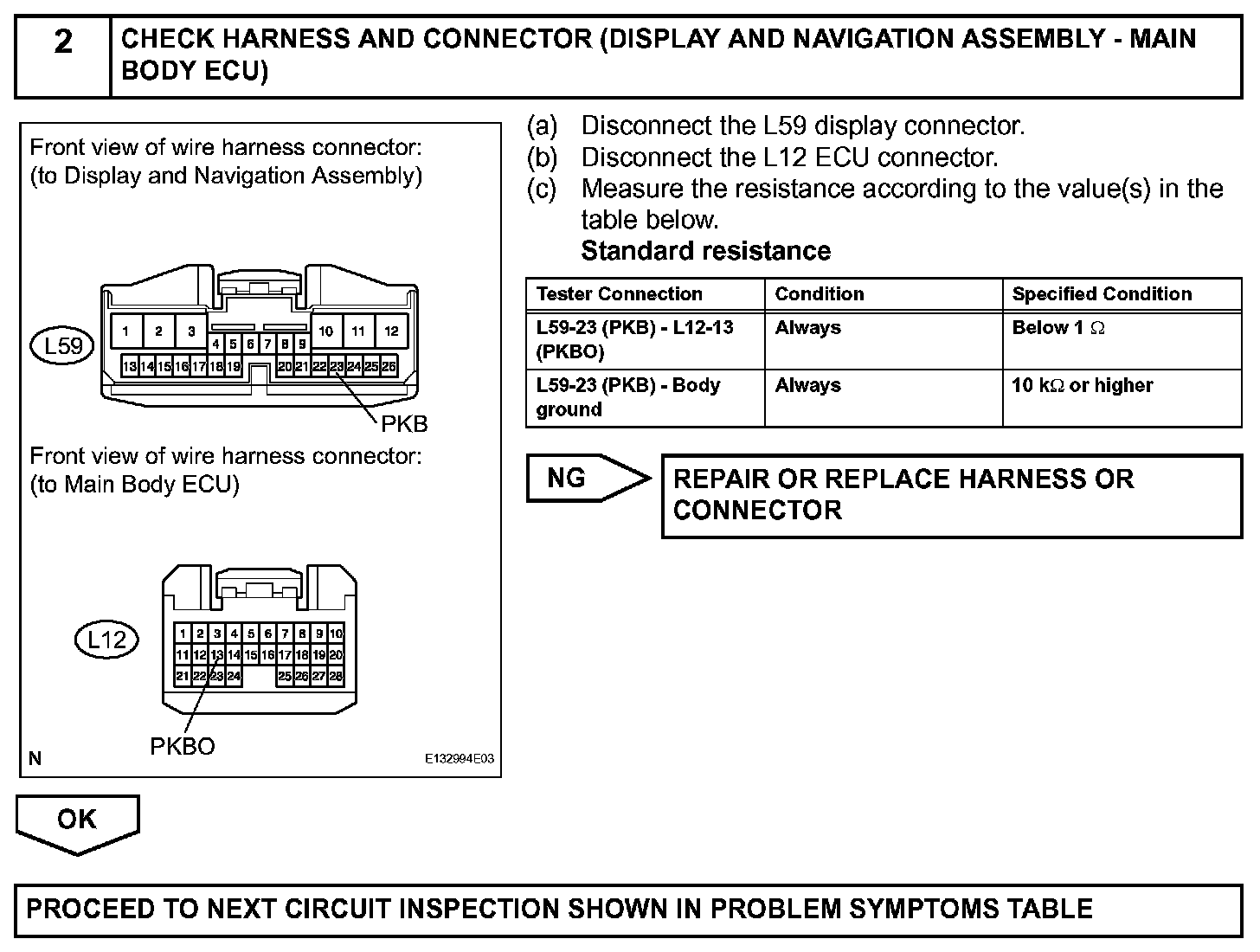

Step 2:




INSPECTION PROCEDURE
