Display and Navigation Assembly Power Source Circuit

Display and Navigation Assembly Power Source Circuit

DESCRIPTION

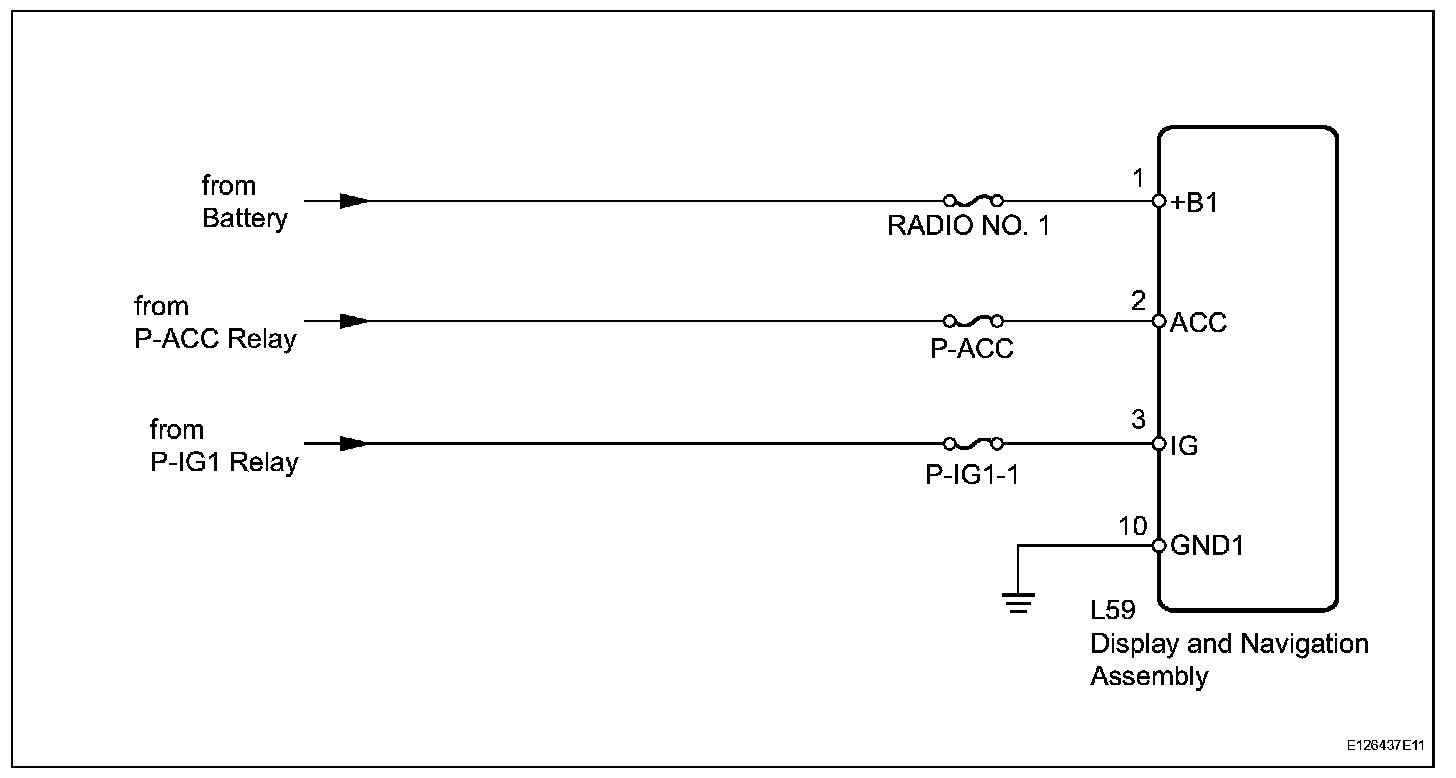

Wiring Diagram:

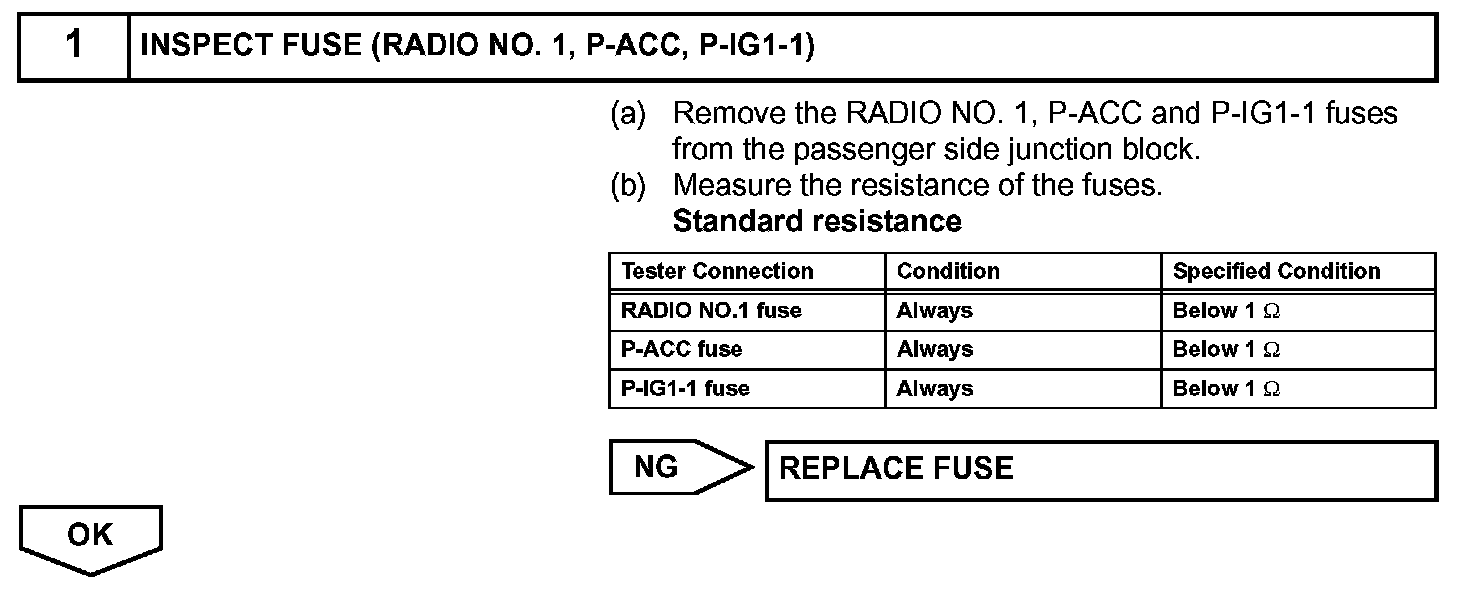

Step 1:

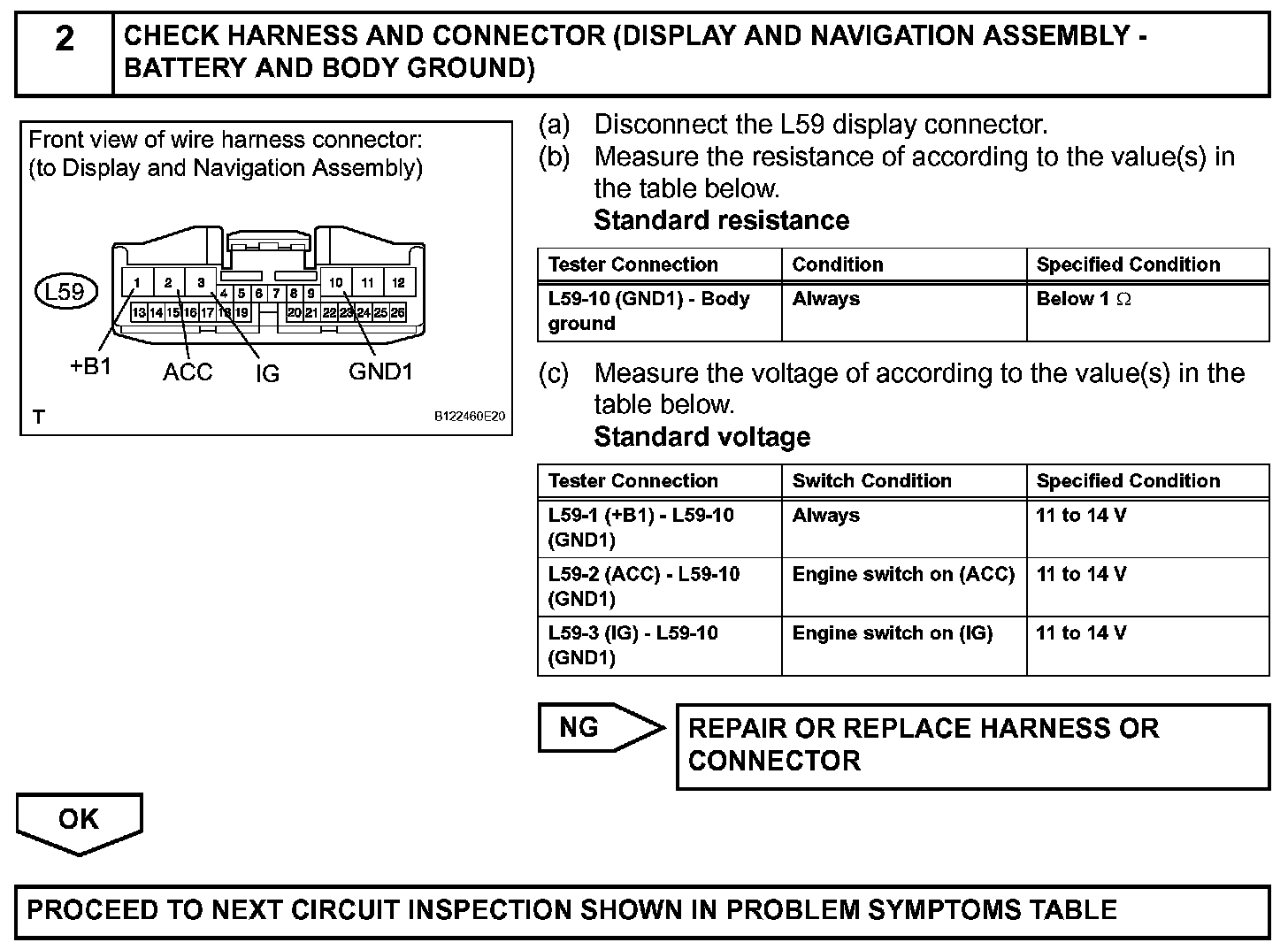

Step 2:




INSPECTION PROCEDURE

This is the power source circuit to operate the display and navigation assembly.
