Home >> Lexus >> 2007 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Component Tests and General Diagnostics >> Navigation System (For HDD) >> Disc Player Communication Error

Disc Player Communication Error

Disc Player Communication Error

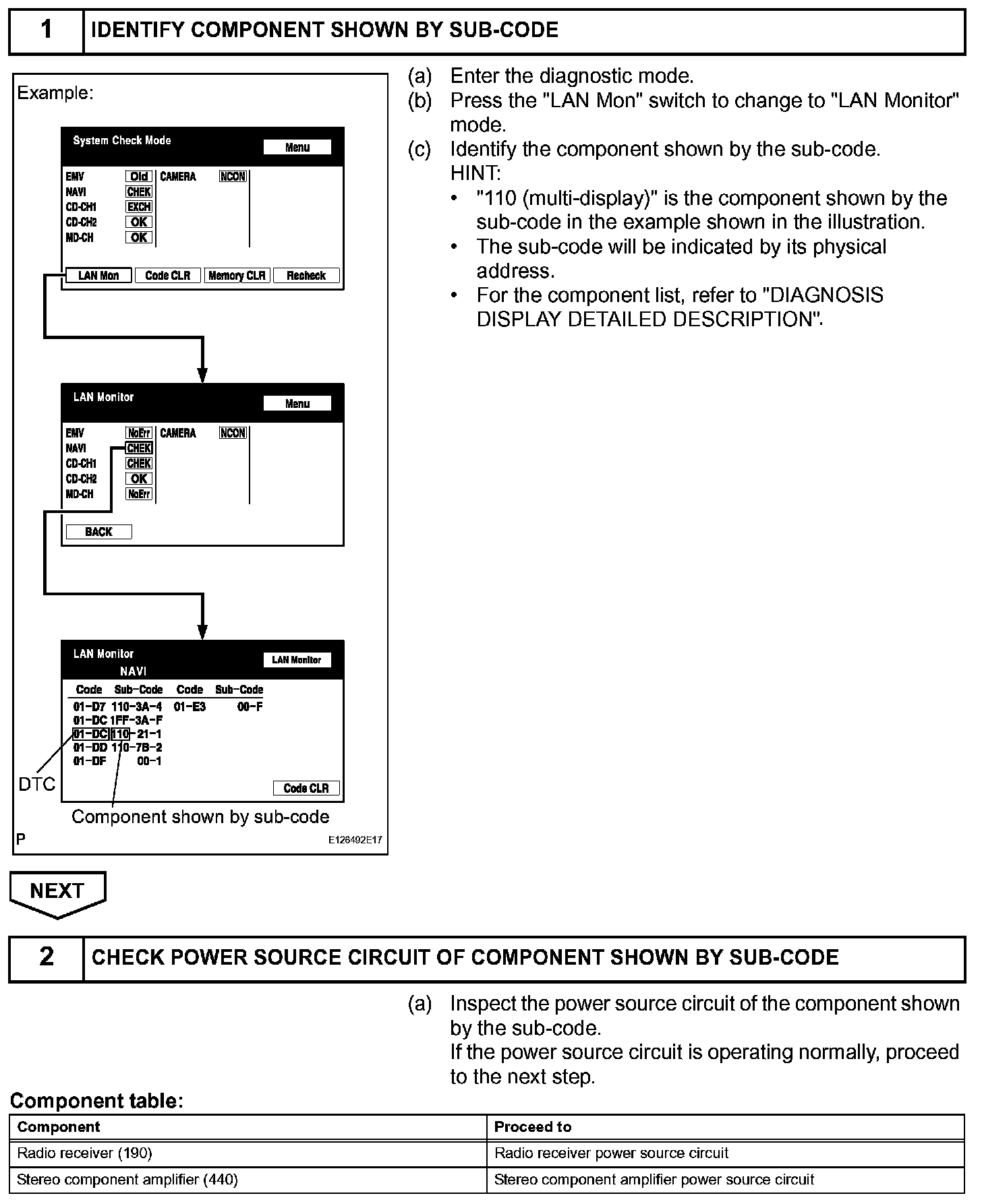

Step 1-2:

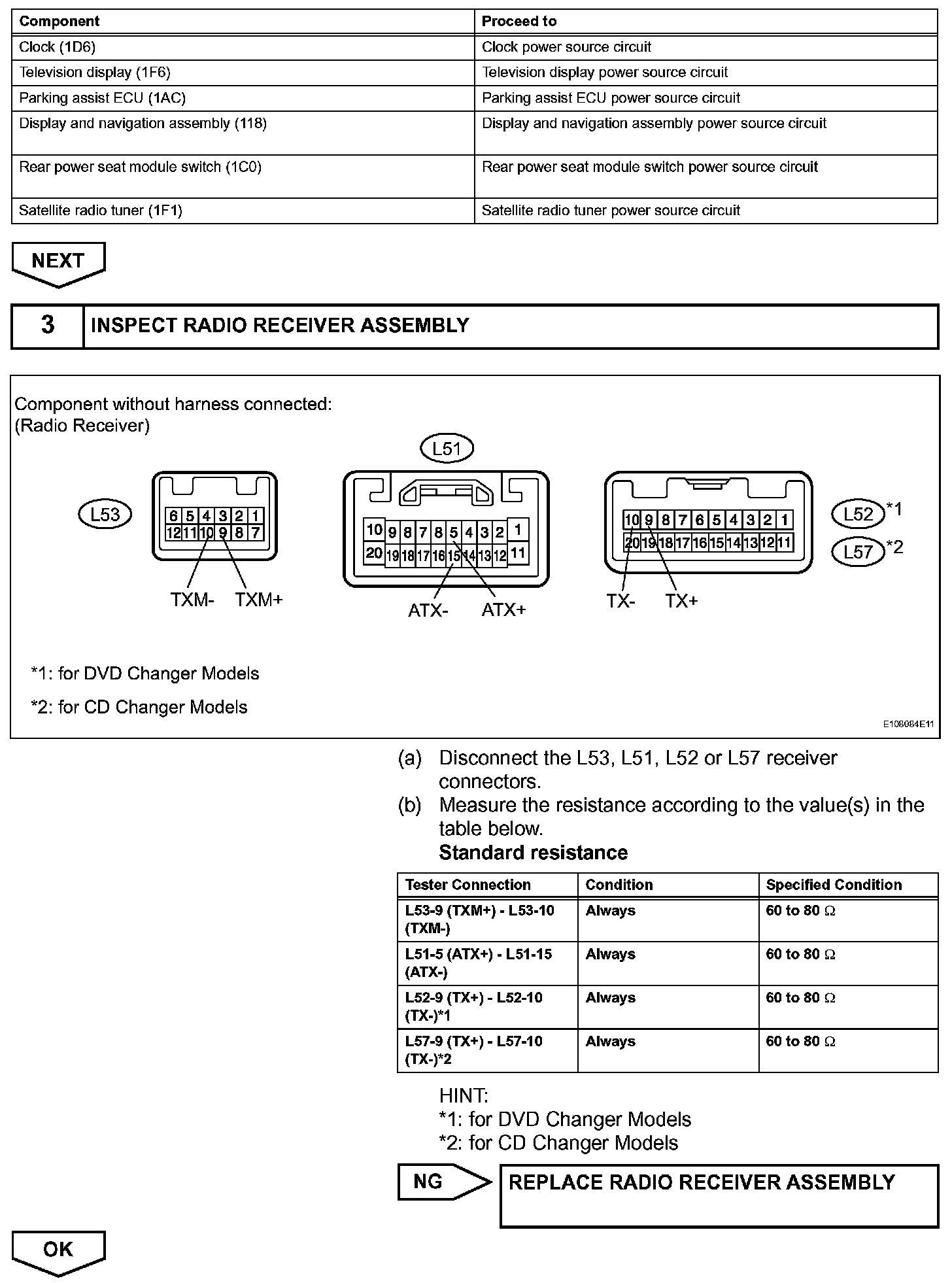

Step 2 (Continued)-3:

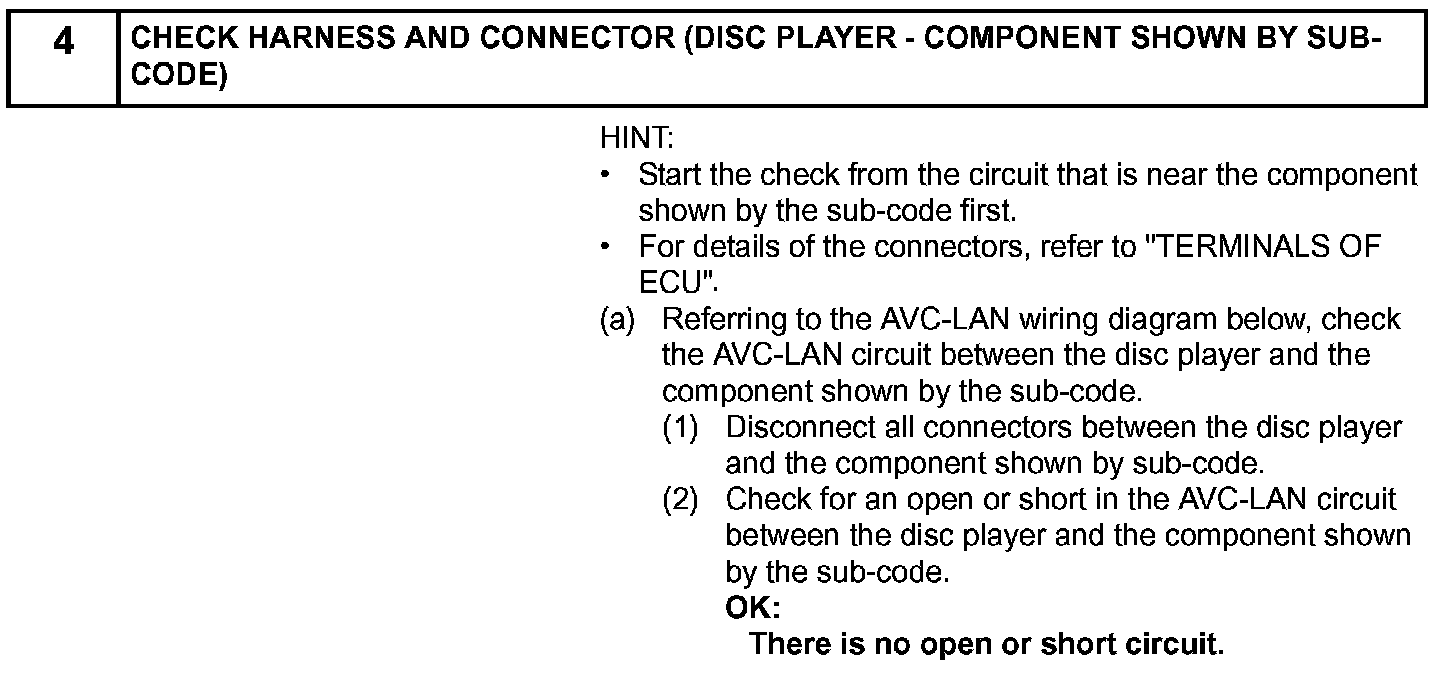

Step 4:

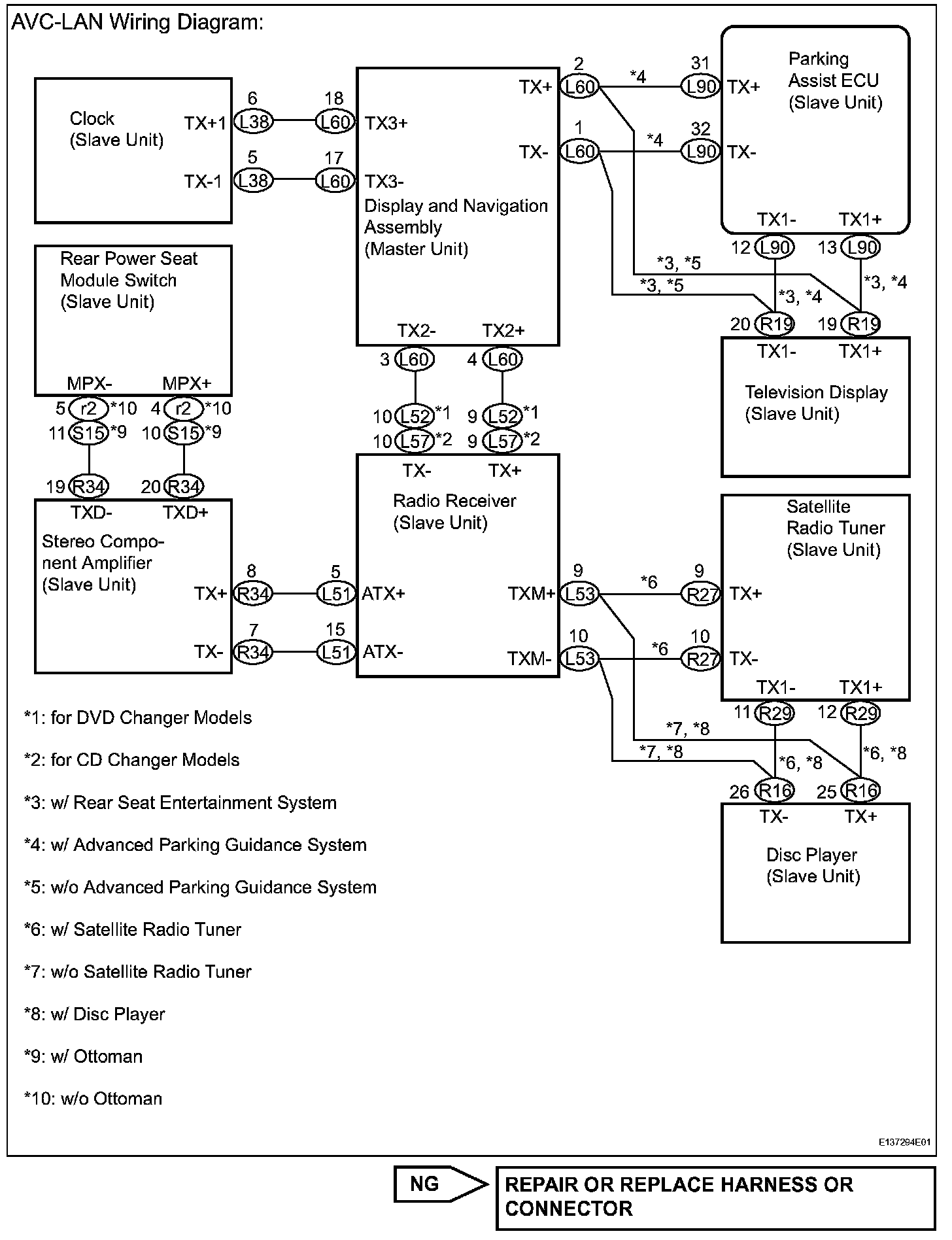

Step 4 (Continued):

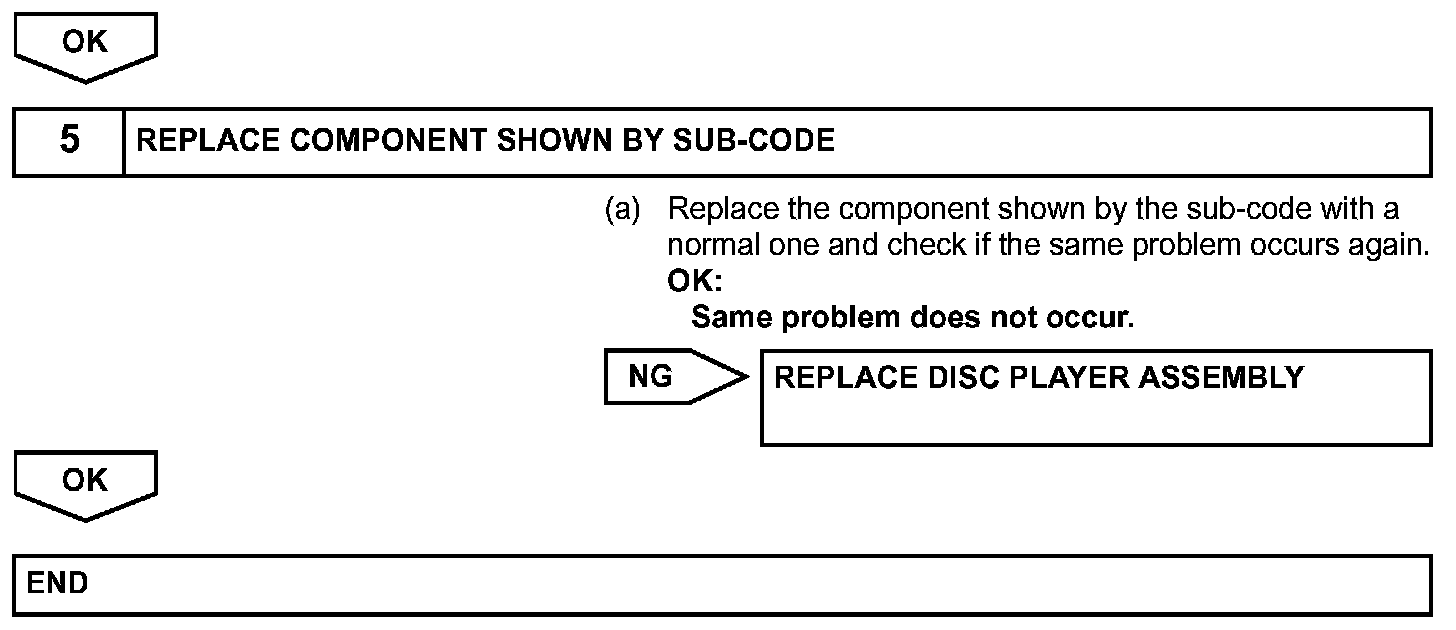

Step 4 (Continued)-5:




INSPECTION PROCEDURE
