Dimmer Signal Circuit
Dimmer Signal CircuitDESCRIPTION
The display and navigation assembly dims the display and panel switches by receiving a TAIL cancel signal from the main body ECU.

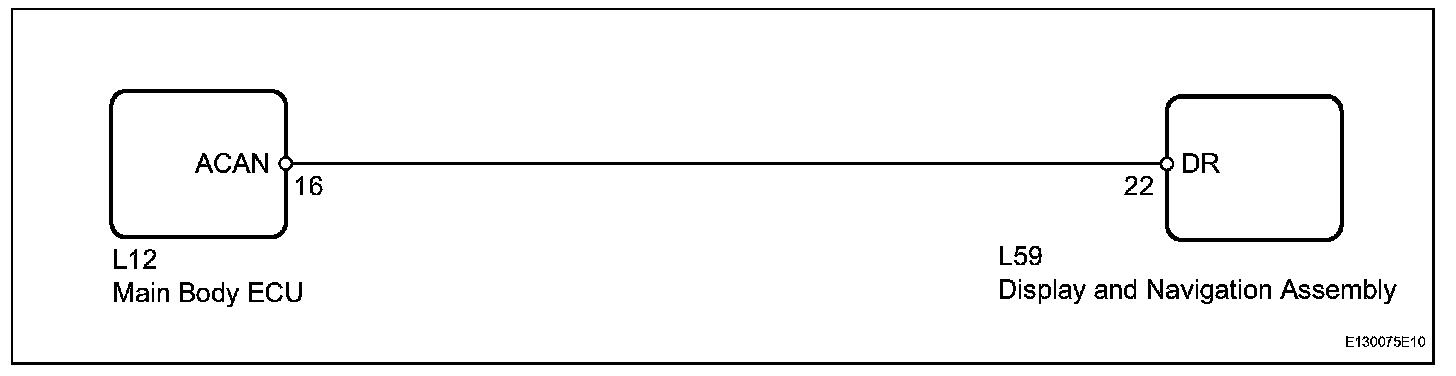

Wiring Diagram:

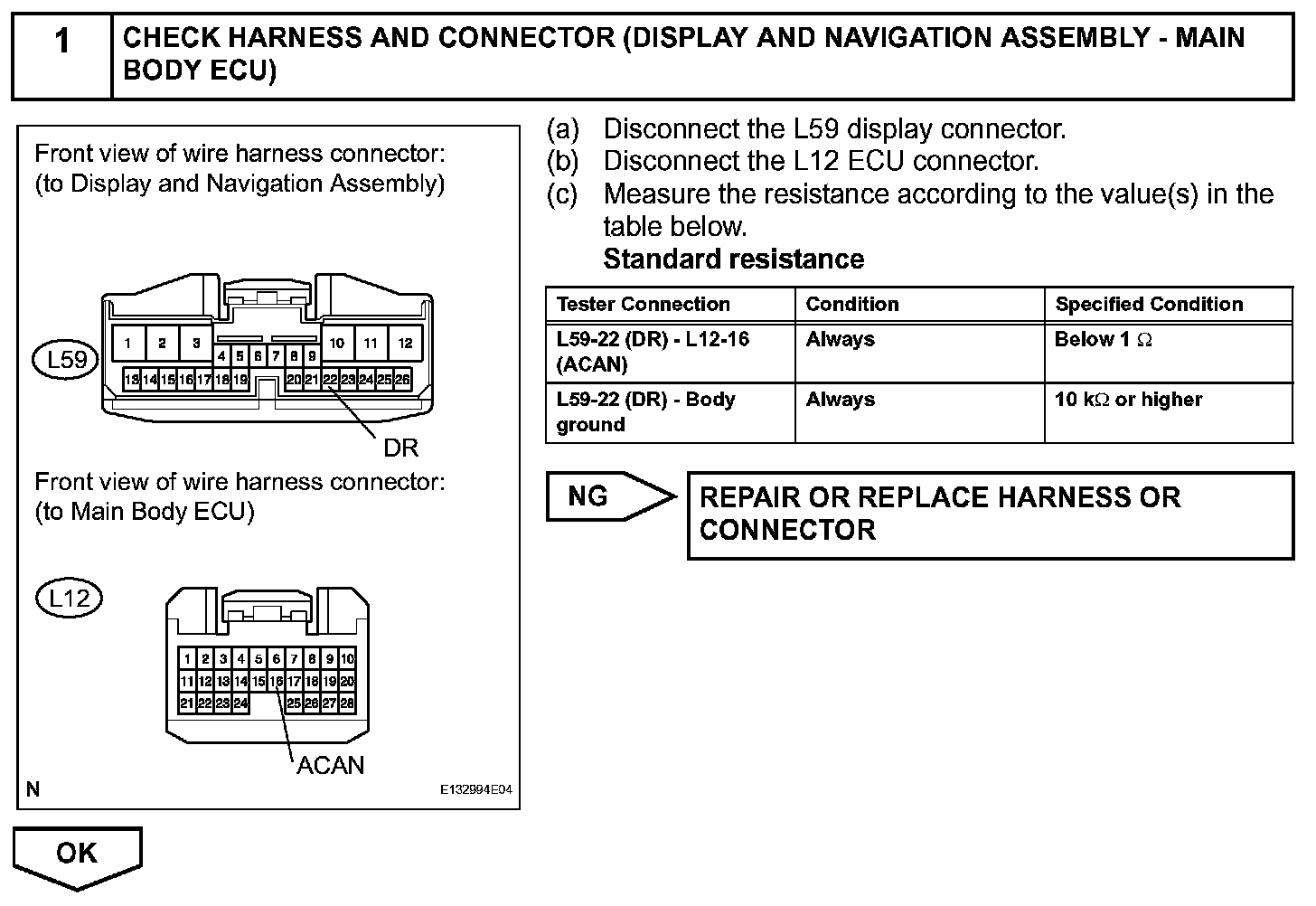

Step 1:

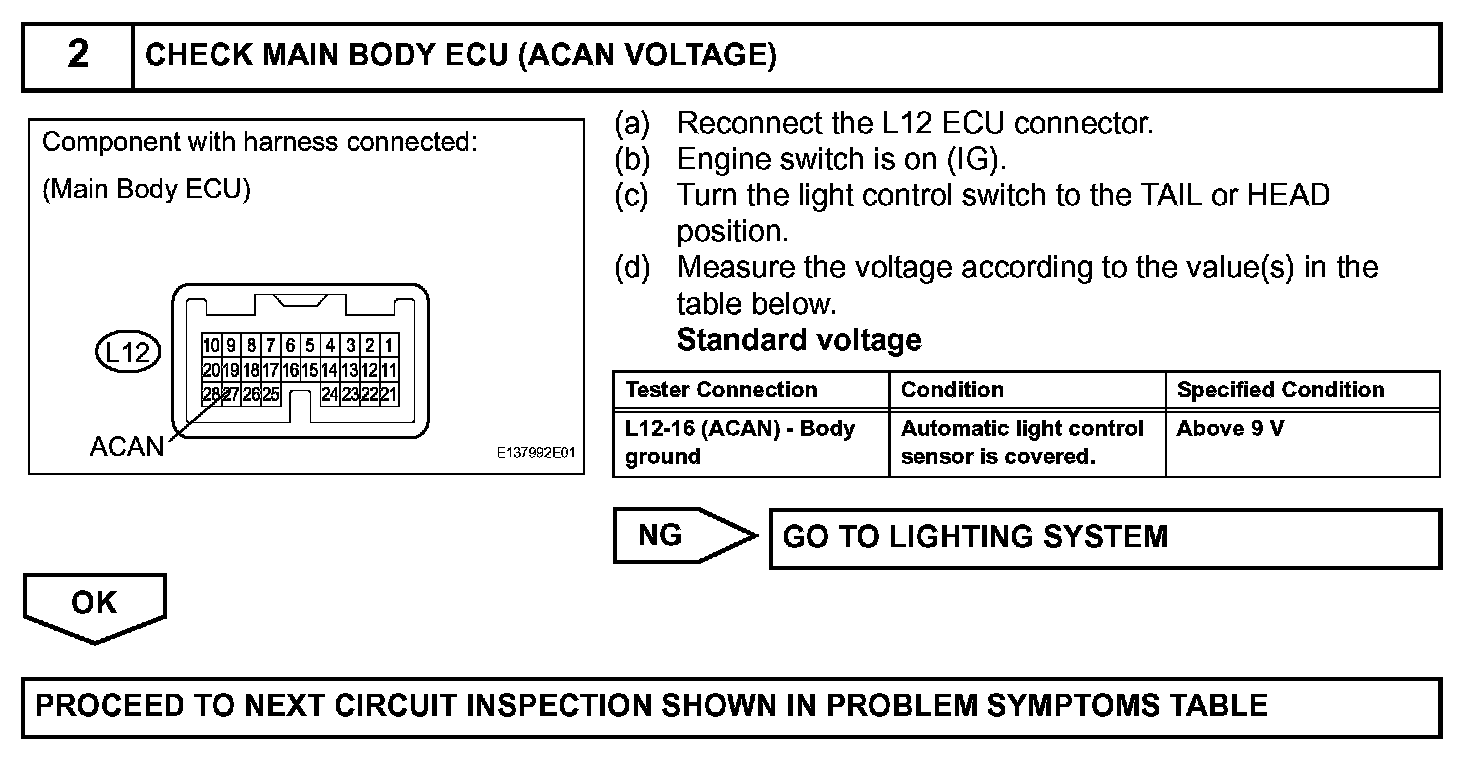

Step 2:
INSPECTION PROCEDURE
DESCRIPTION
The display and navigation assembly dims the display and panel switches by receiving a TAIL cancel signal from the main body ECU.
INSPECTION PROCEDURE
