AVC-LAN Plus Circuit

AVC-LAN Plus Circuit

DESCRIPTION

The navigation system (for HDD) uses AVC-LAN plus communication between components when performing sound library recording, and when displaying the satellite radio traffic information screen. If a +B short, ground short, or other malfunction occurs in the AVC-LAN plus circuit, communication is stopped and the system does not operate normally.

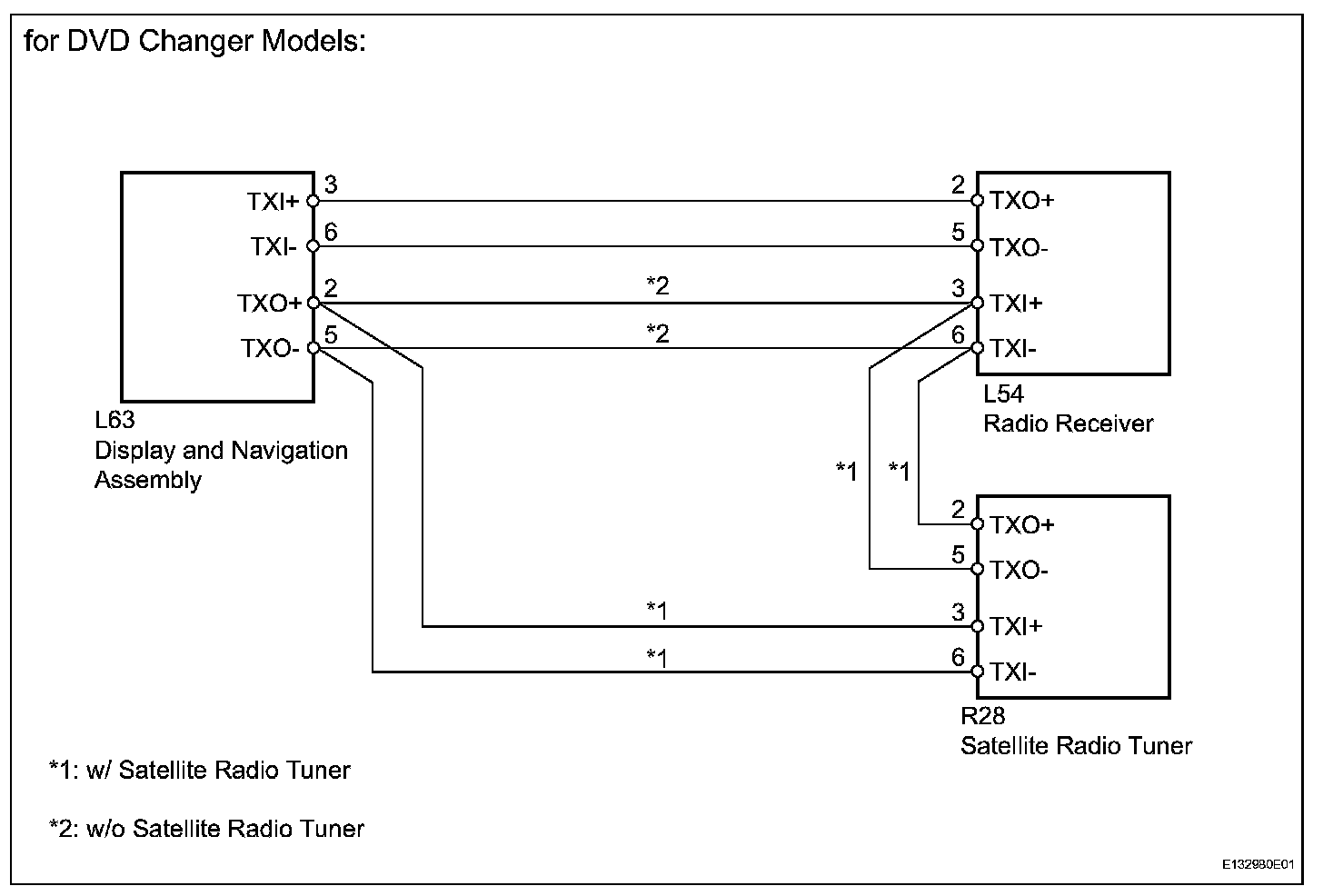

Wiring Diagram (Part 1):

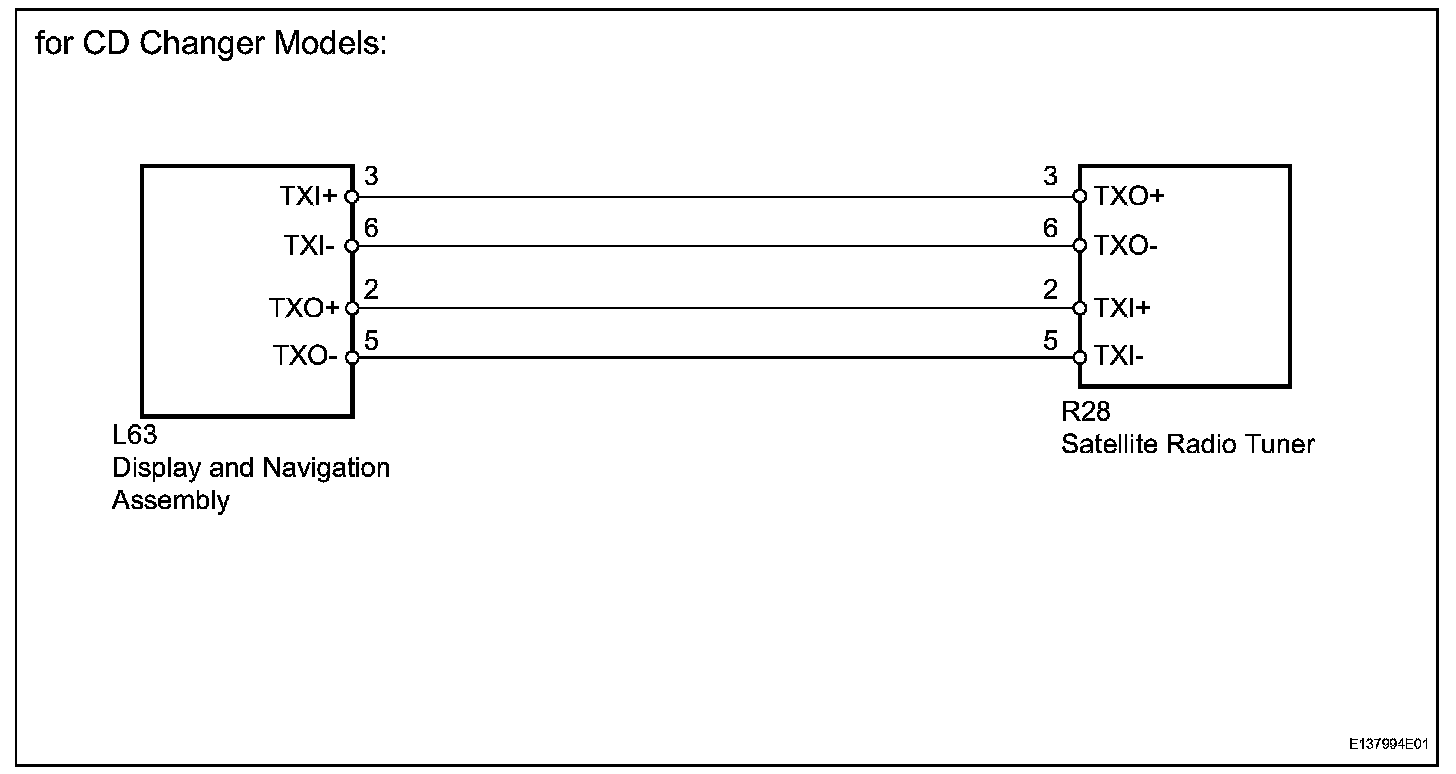

Wiring Diagram (Part 2):

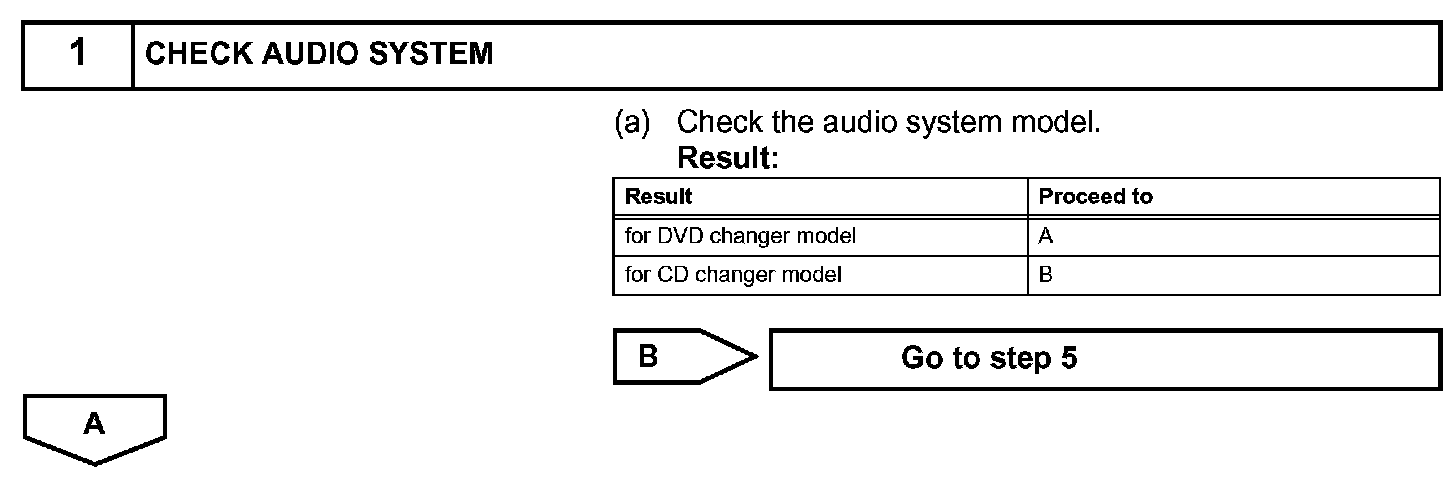

Step 1:

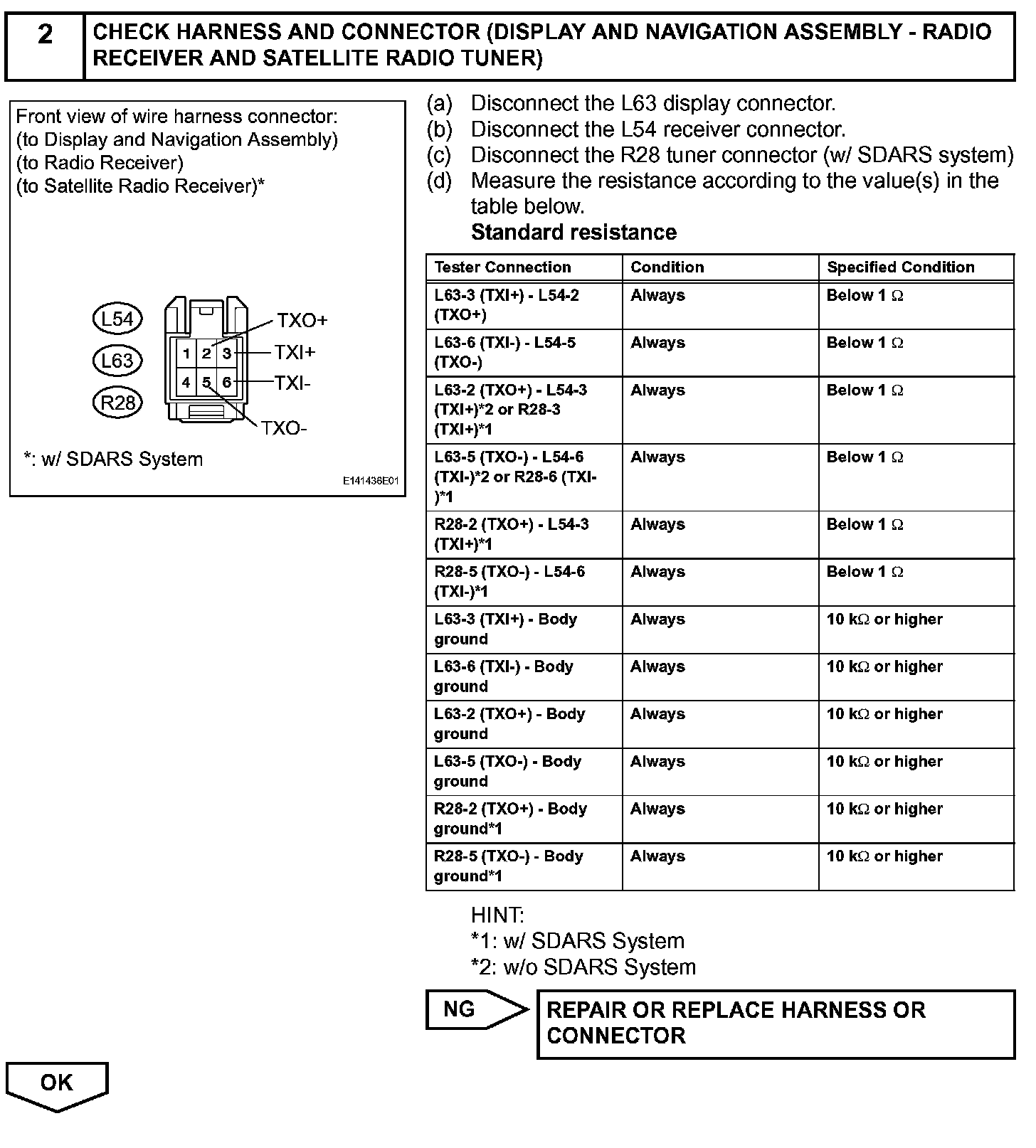

Step 2:

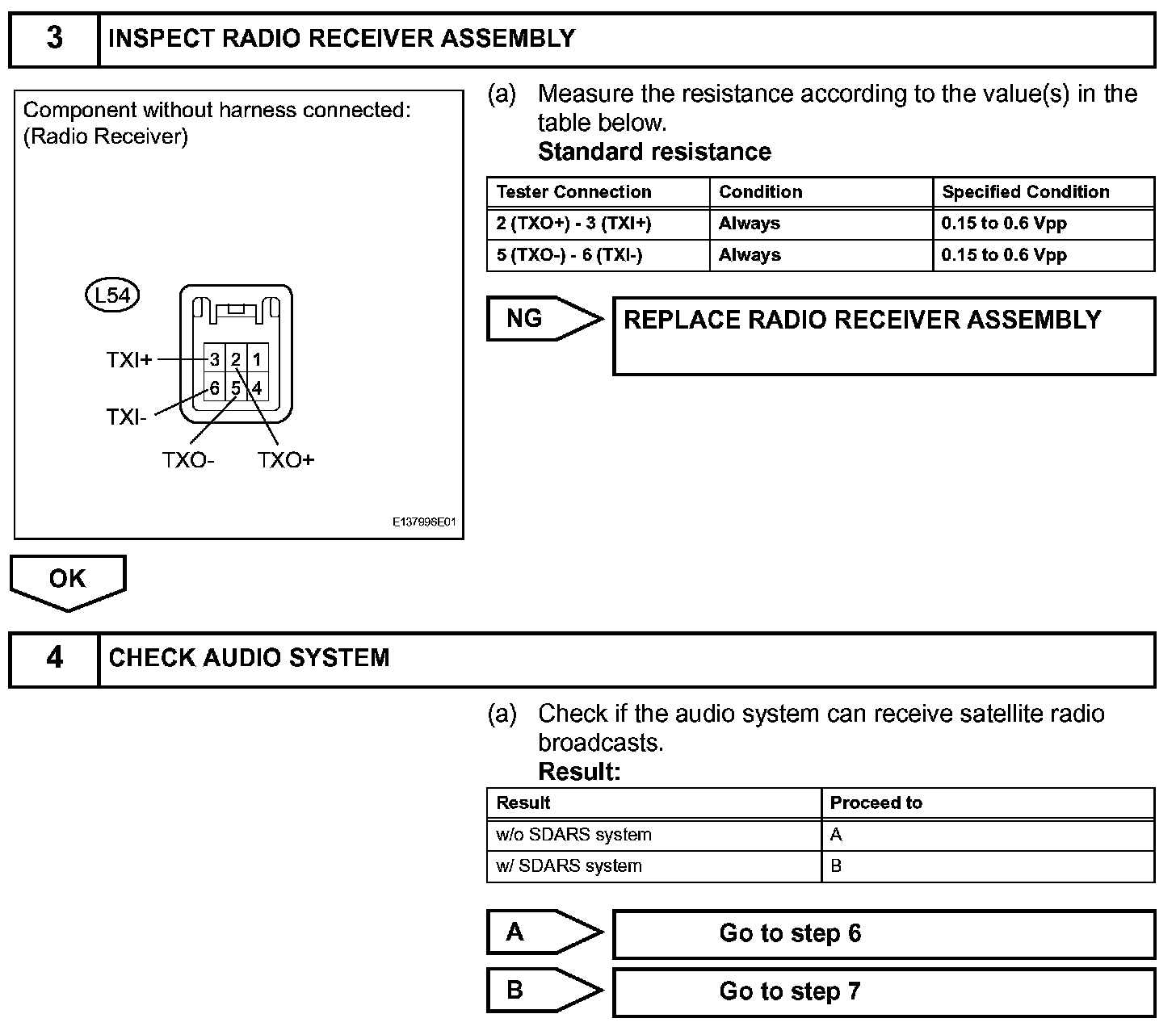

Step 3-4:

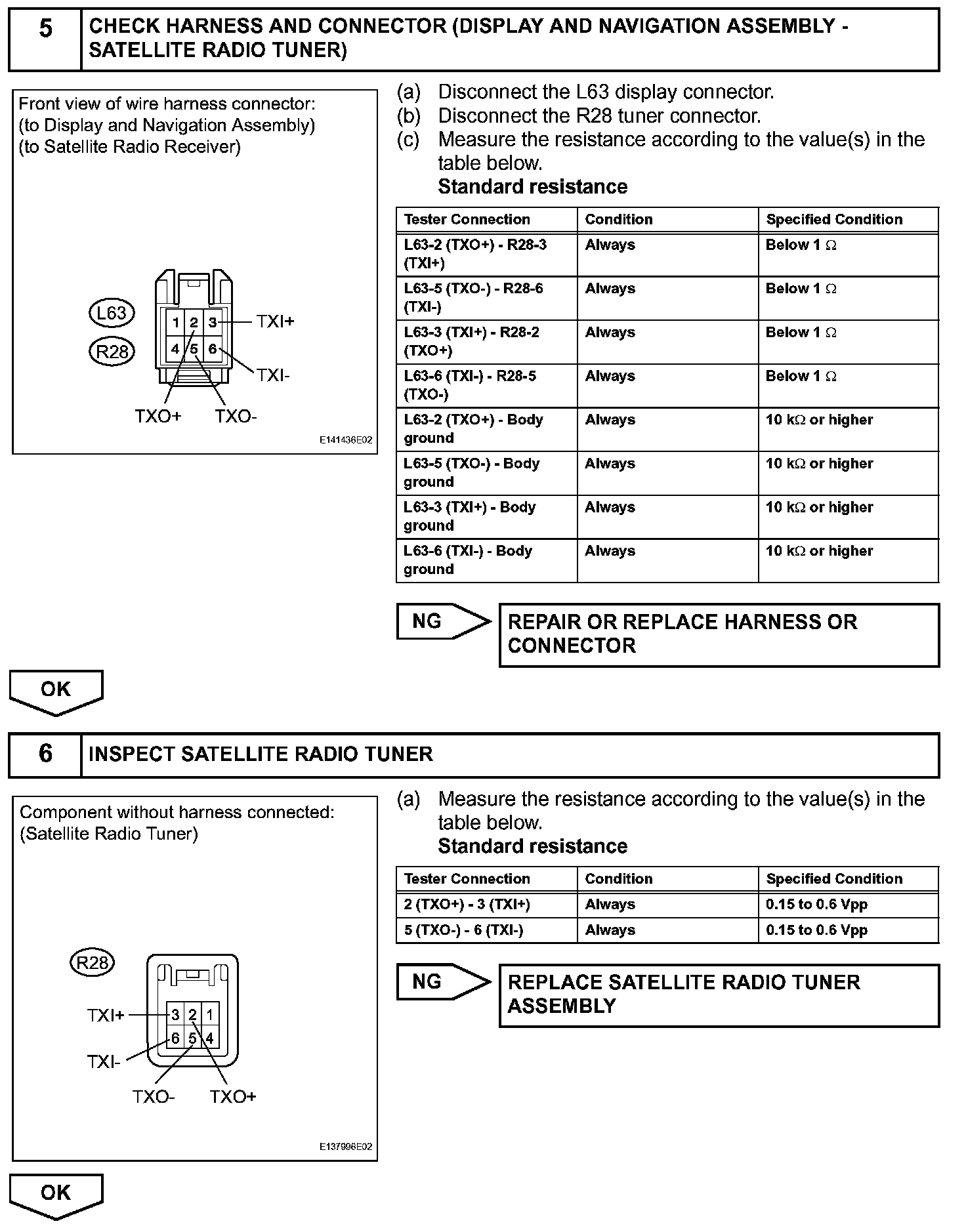

Step 5-6:

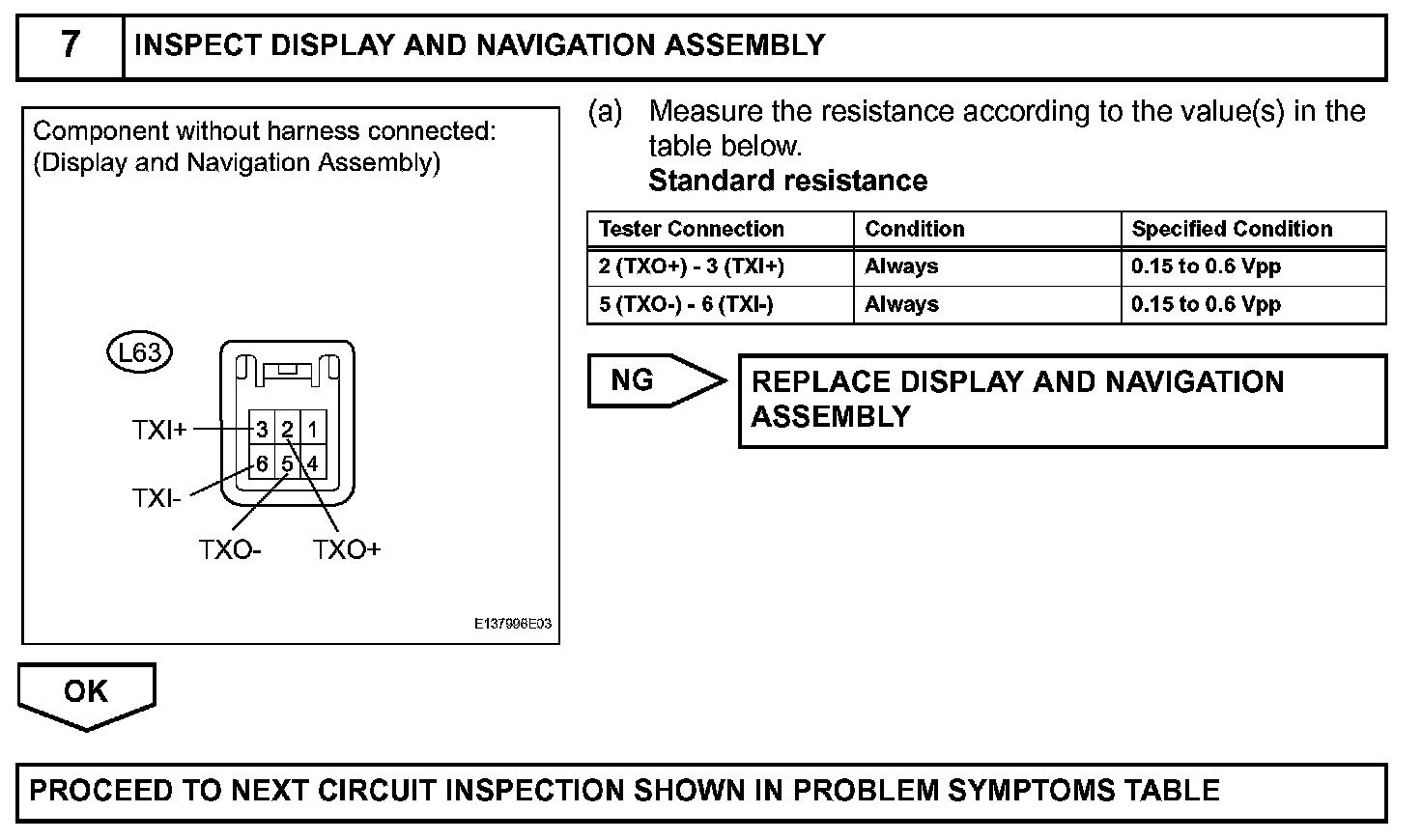

Step 7:

INSPECTION PROCEDURE

NOTE: After replacing the satellite radio tuner of vehicles subscribed to pay-type satellite radio broadcasts, the ID registration is necessary.
