Reverse Signal Circuit
Reverse Signal CircuitDESCRIPTION
The navigation ECU receives a reverse signal from the luggage room junction block ECU LH and information about the navigation antenna, and then adjusts vehicle position.

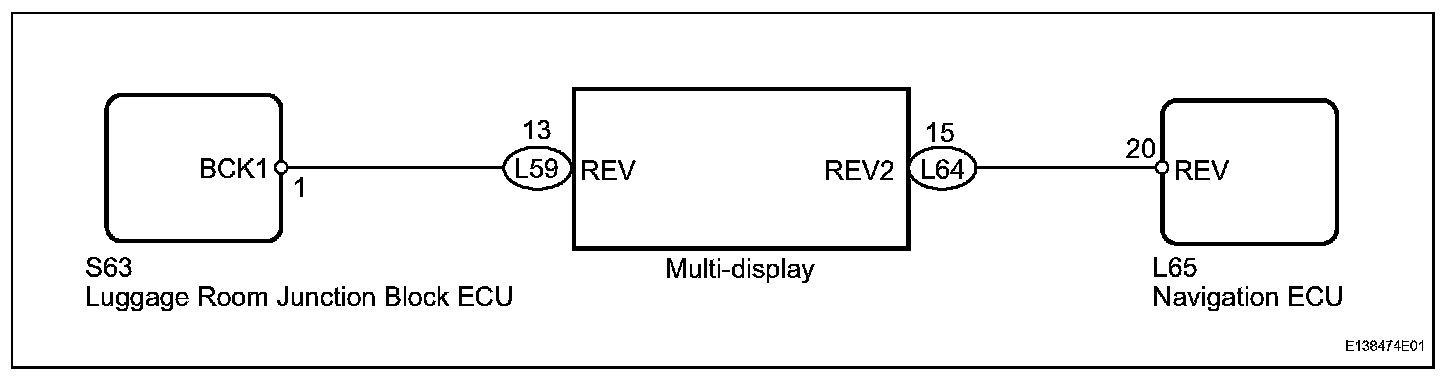

Wiring Diagram:
Step 1-2:
Step 3-4:
Step 4 (Continued)-5:

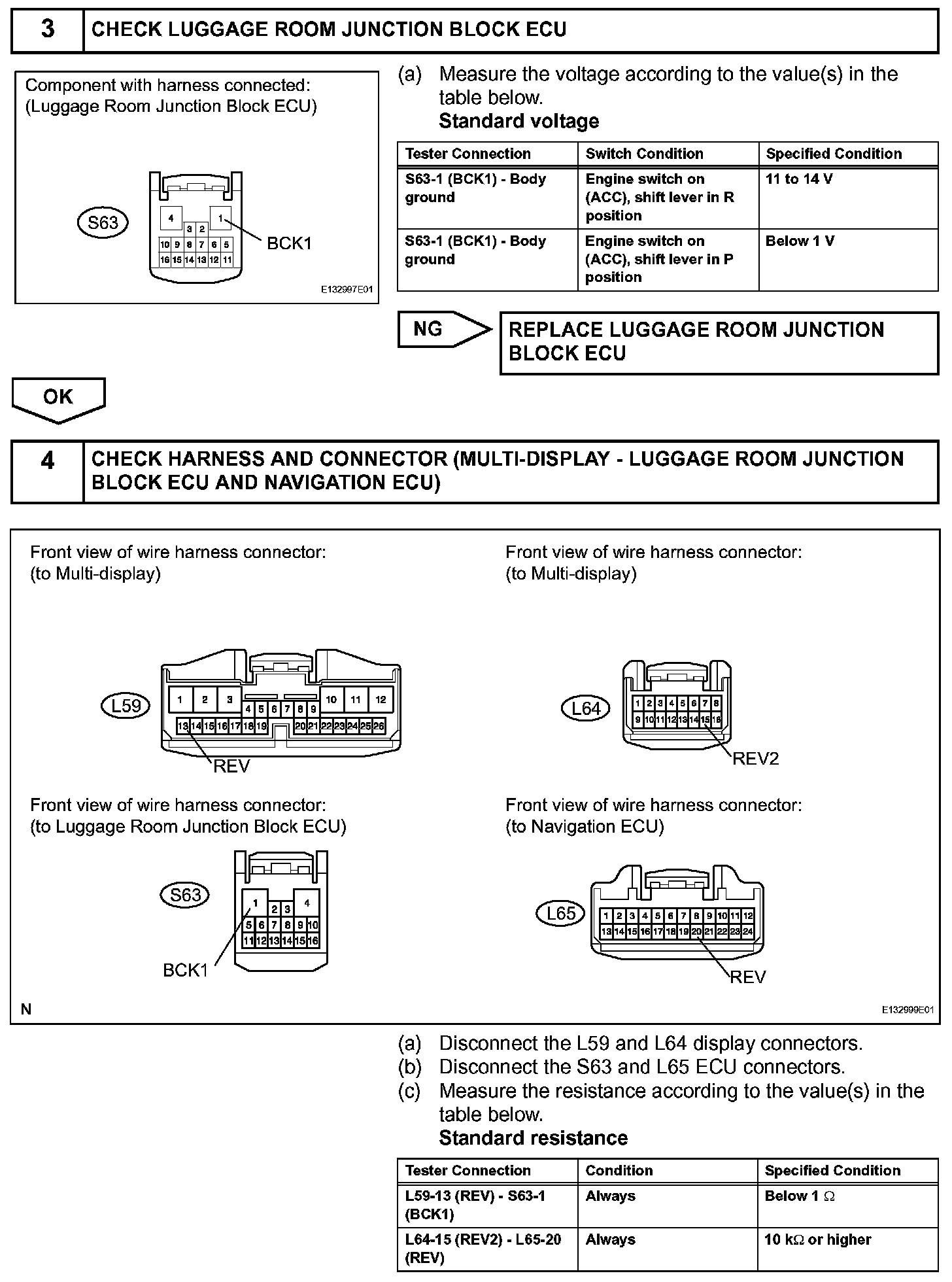

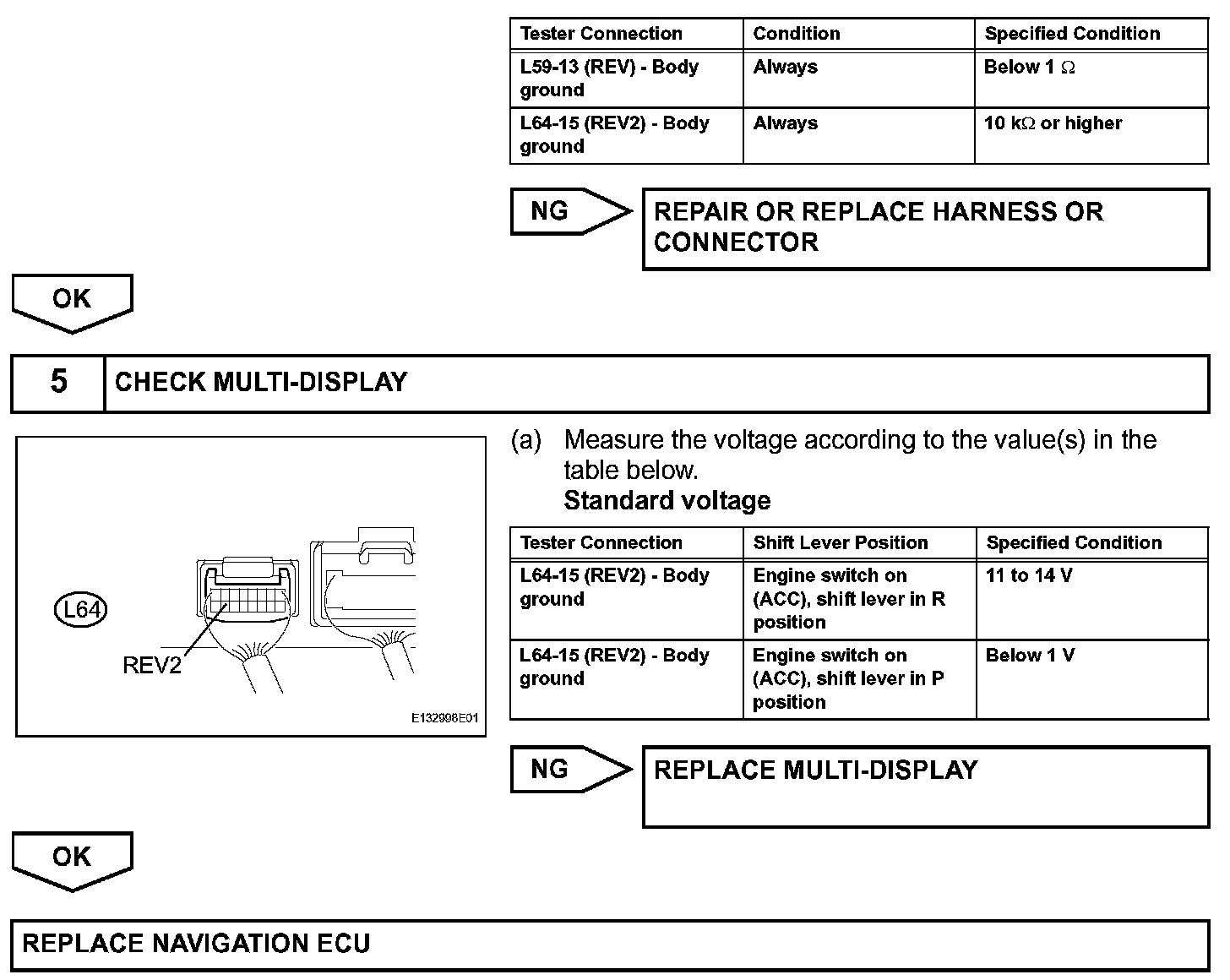

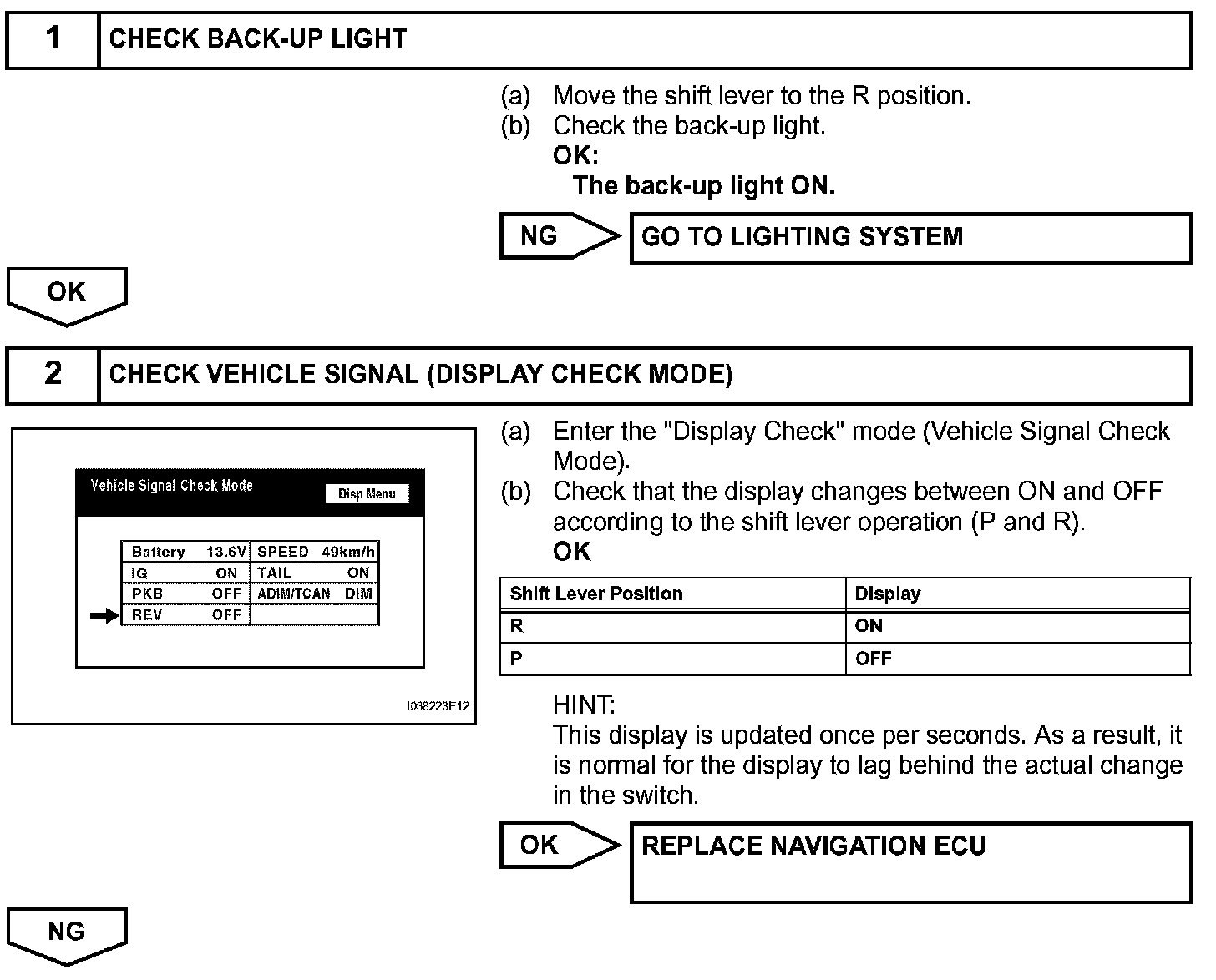

INSPECTION PROCEDURE
