Microphone Circuit Between Overhead J/B and Multi-Display

Microphone Circuit between Overhead J/B and Multi-display

DESCRIPTION

This circuit sends a microphone signal from the microphone to the multi-display.

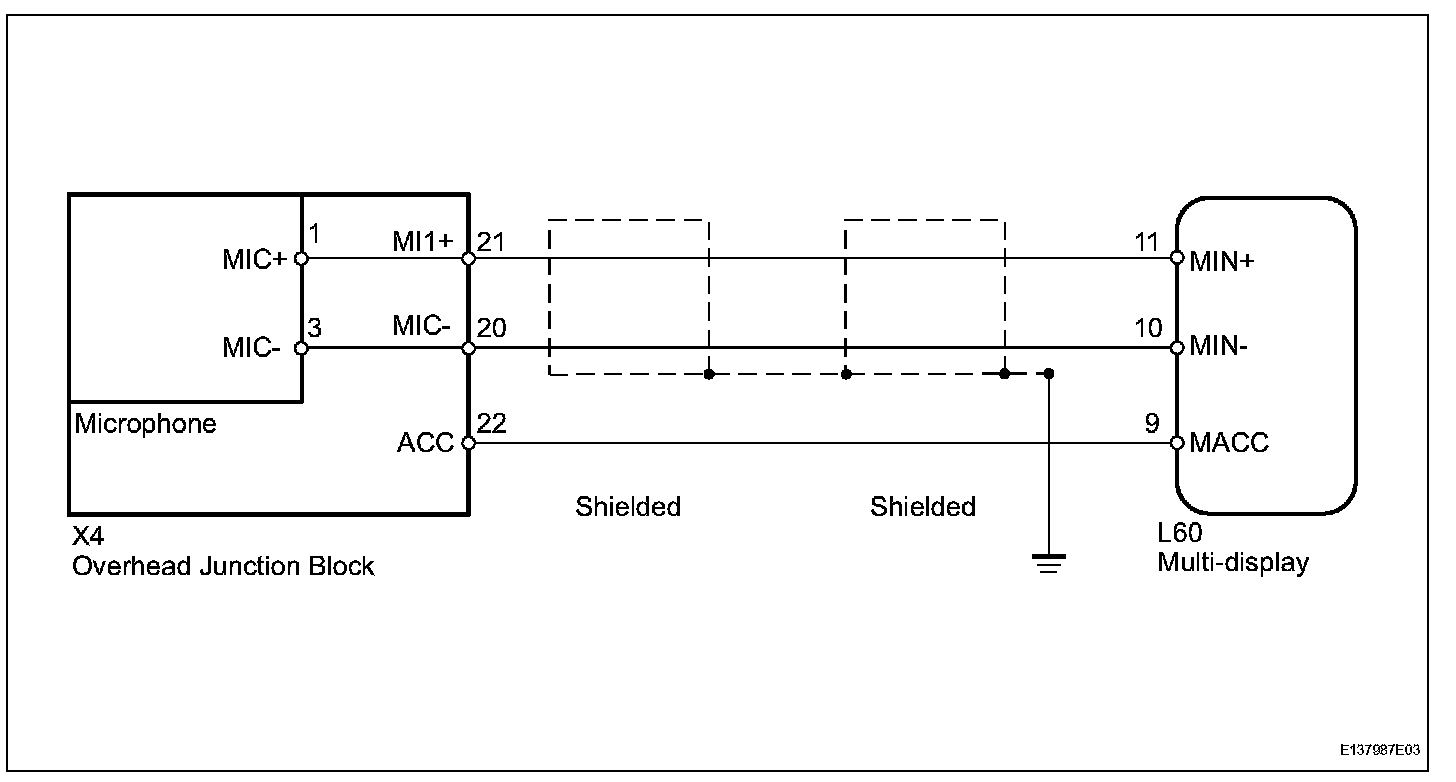

Wiring Diagram:

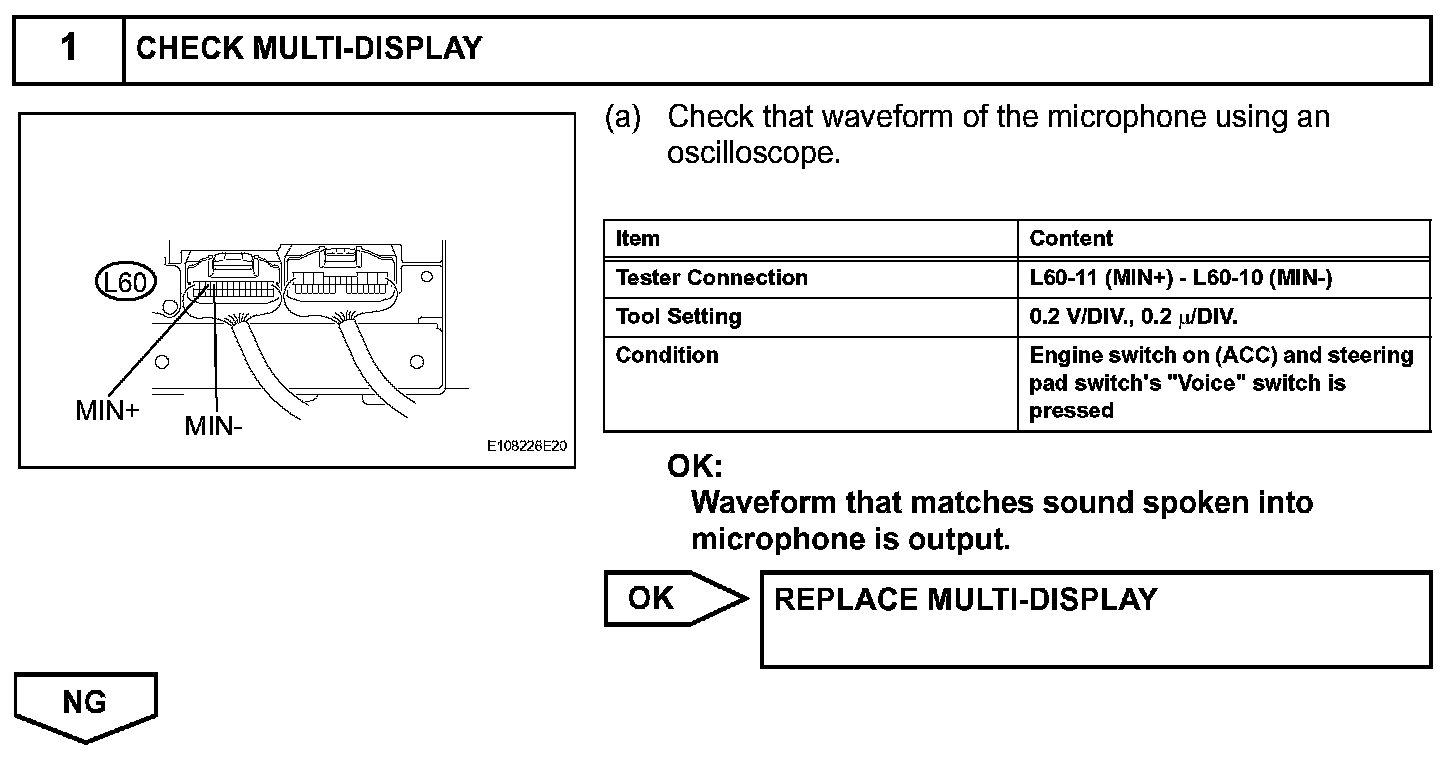

Step 1:

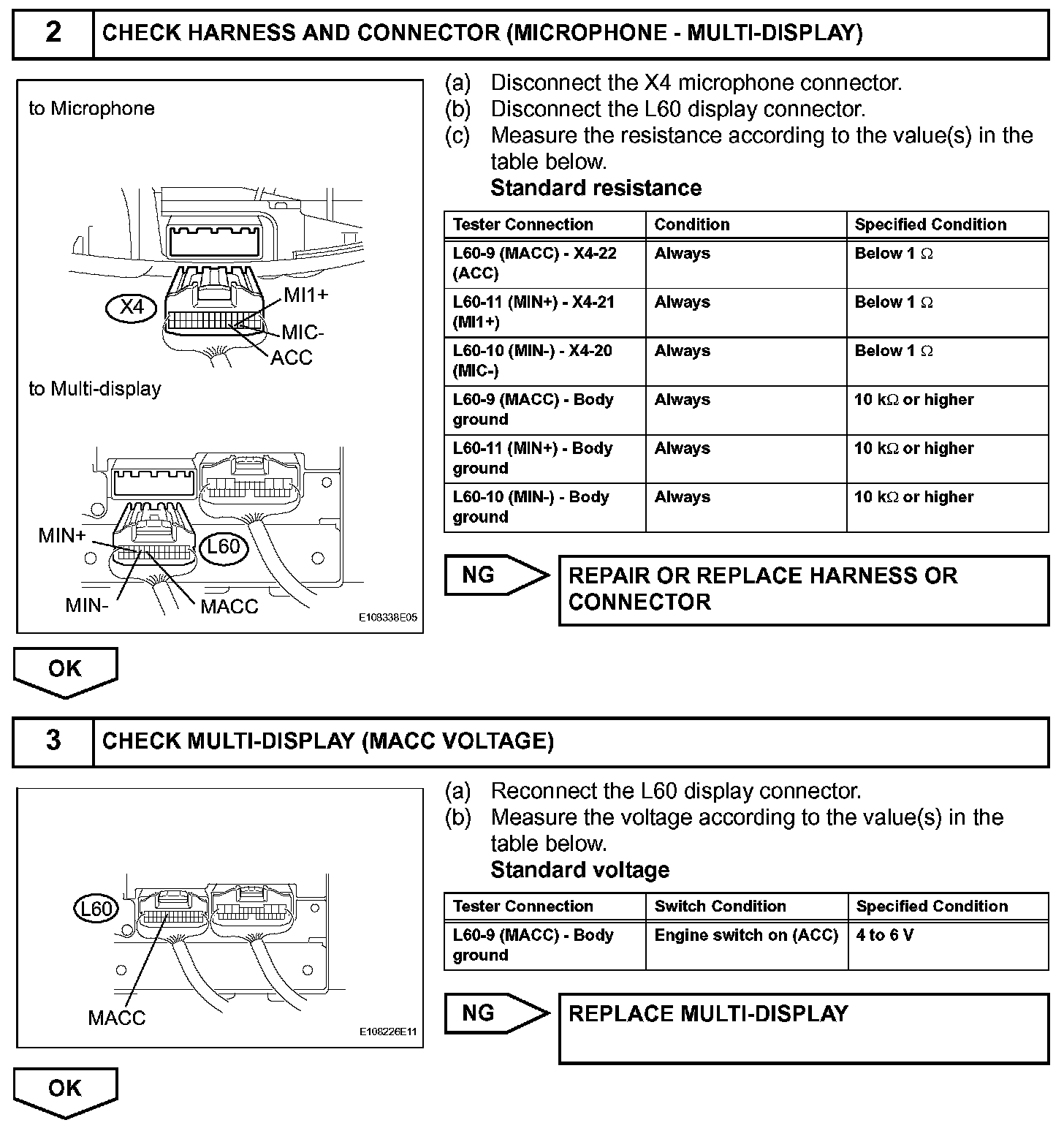

Step 2-3:

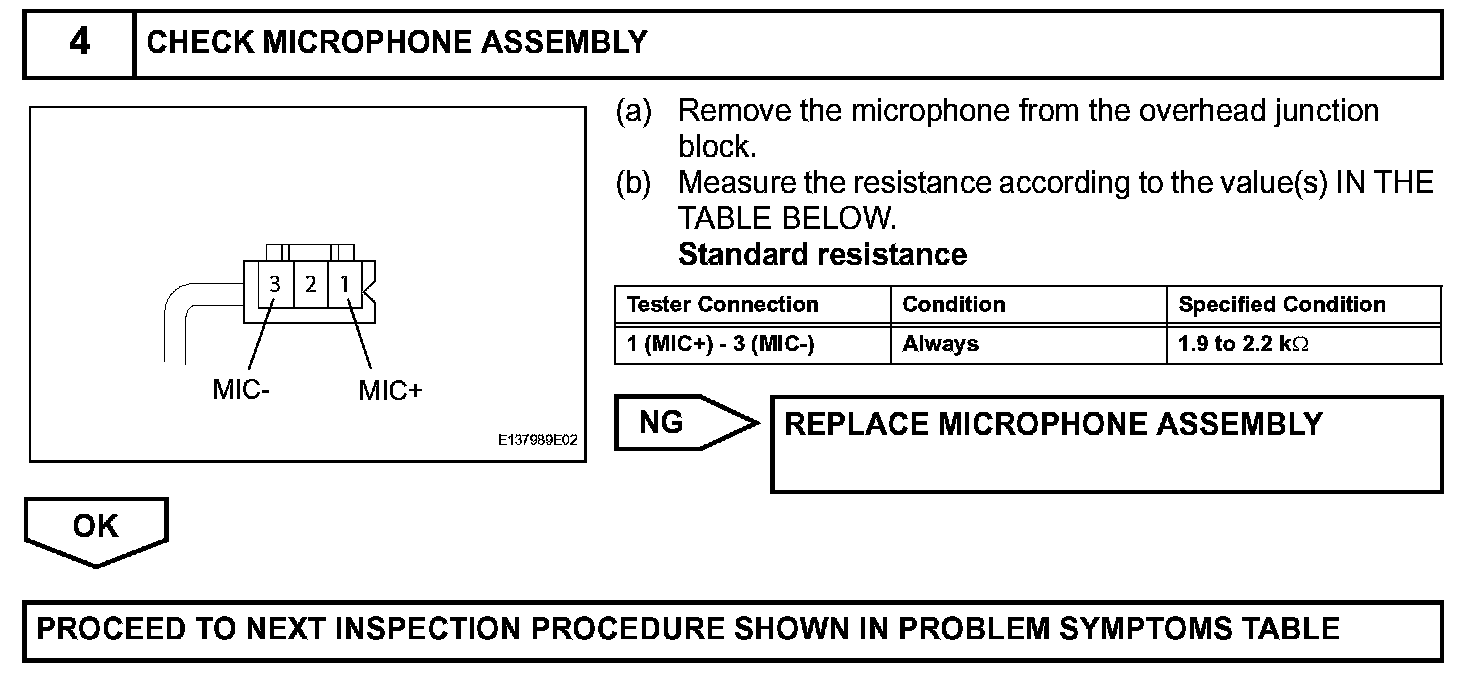

Step 4:




INSPECTION PROCEDURE
