Home >> Lexus >> 2007 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Entertainment Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Television Display Screen Is White

Television Display Screen Is White

Television Display Screen is White

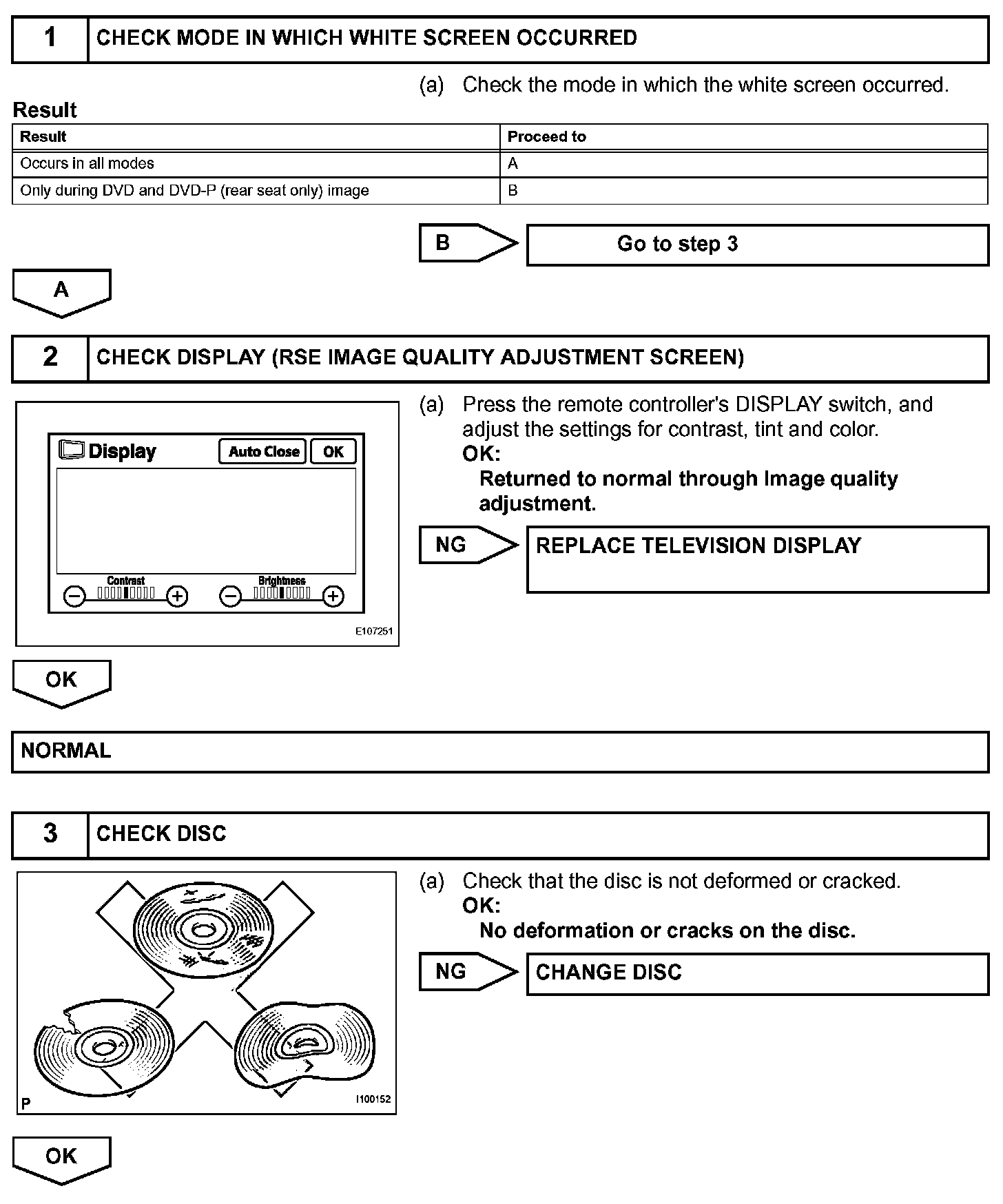

Step 1-3:

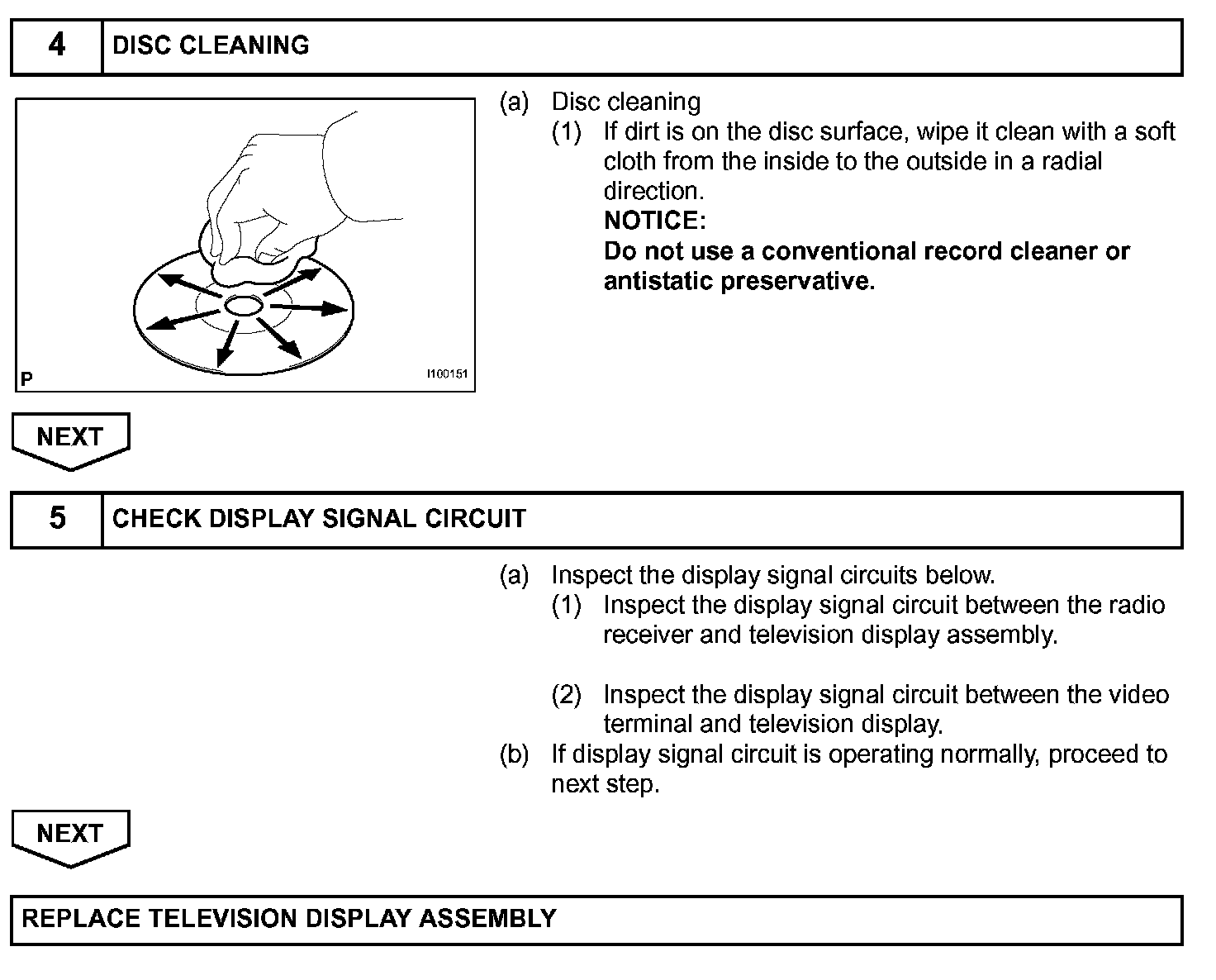

Step 4-5:




INSPECTION PROCEDURE
