Television Display Does Not Turn ON
Television Display Does Not Turn ON
Television Display does not Turn ON

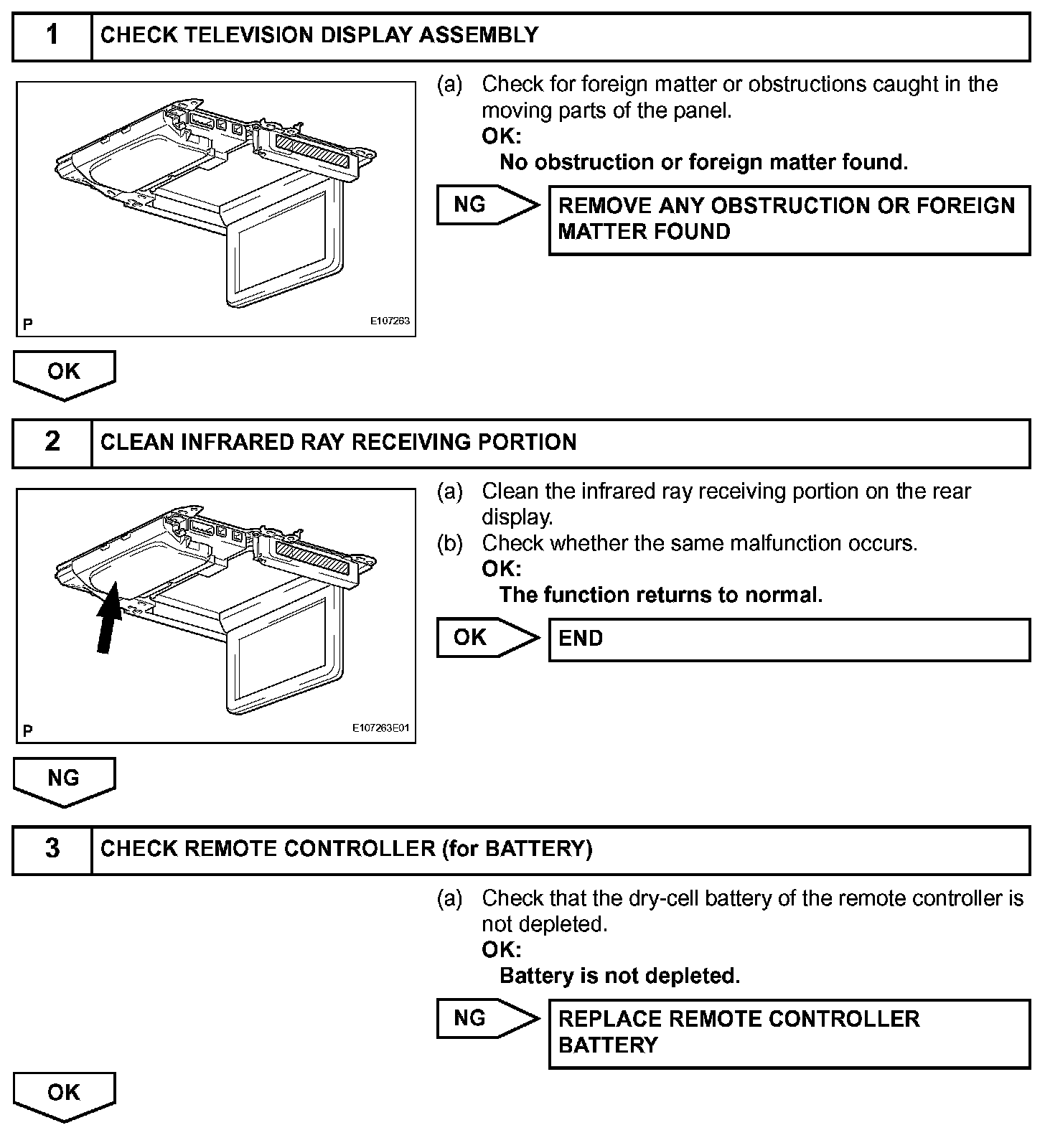

Step 1-3:

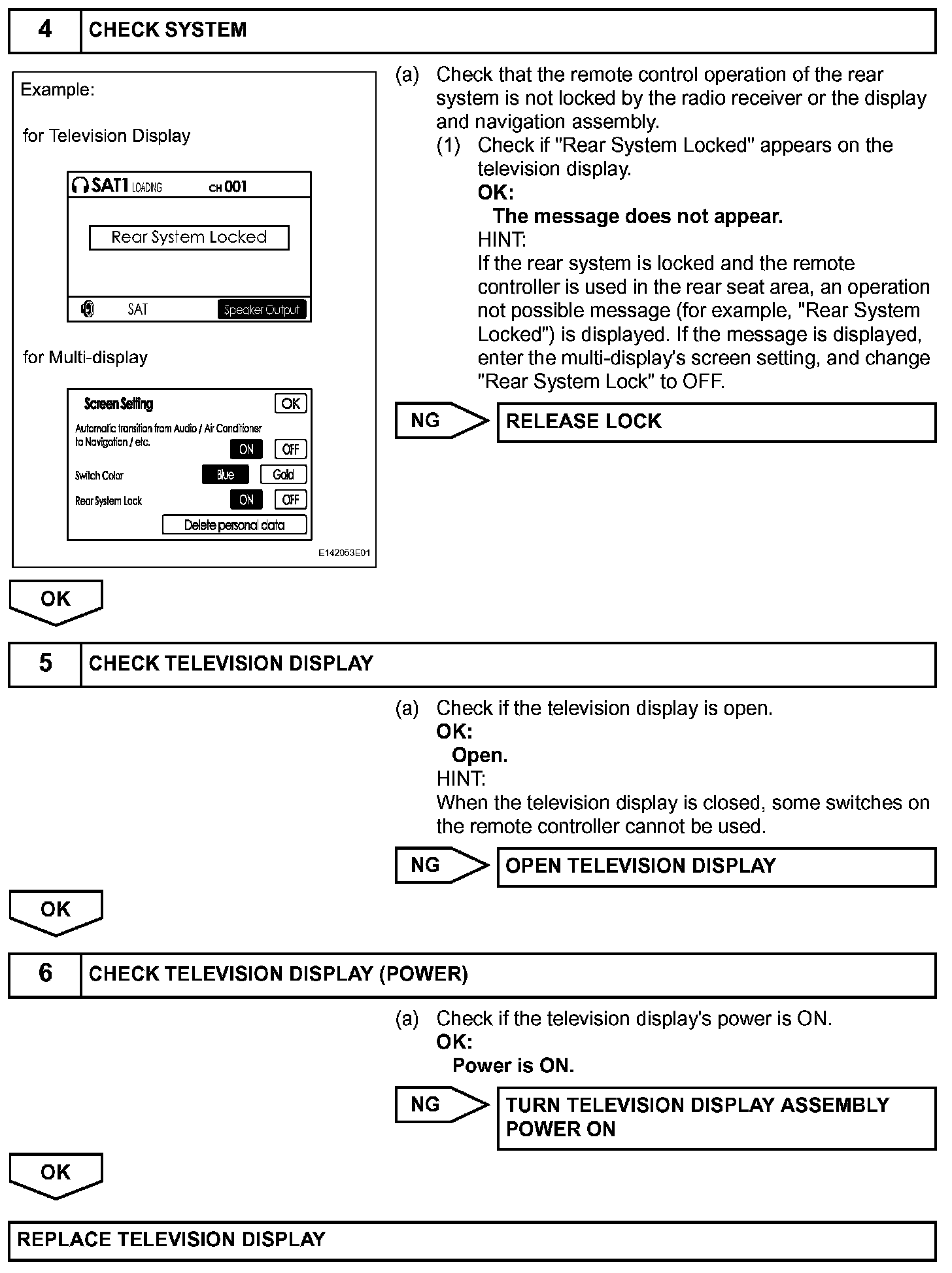

Step 4-6:
INSPECTION PROCEDURE
