Television Display Cannot Open, Close and Tilt

Television Display cannot Open, Close and Tilt

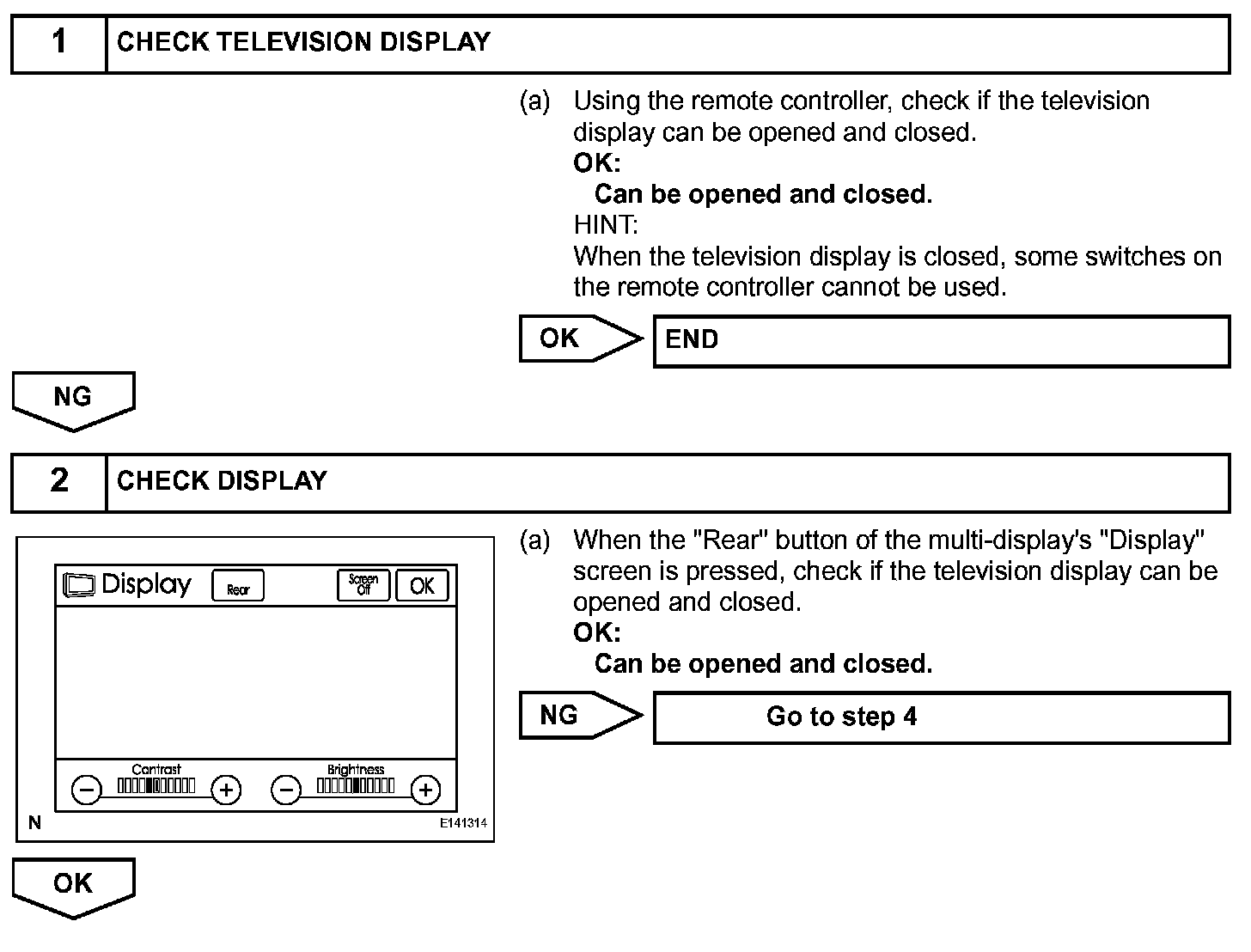

Step 1-2:




Step 3-5:

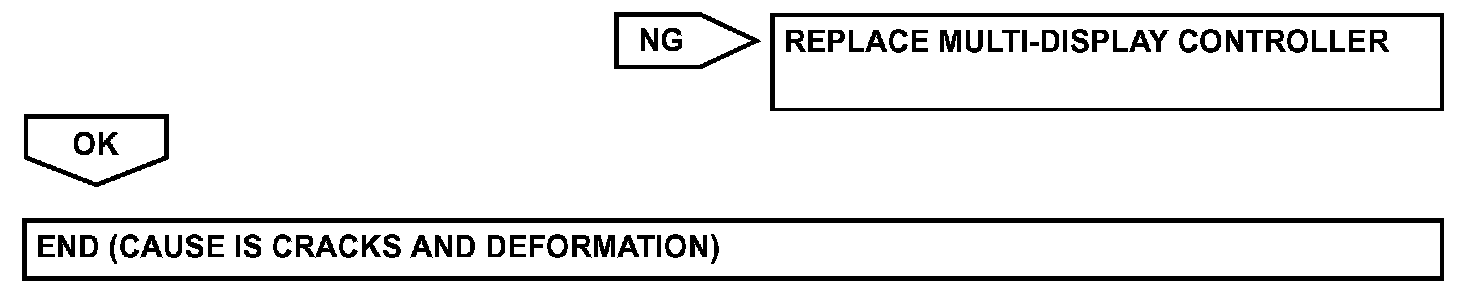

Step 5 (Continued):




INSPECTION PROCEDURE
