Only Display Screen of External Device Does Not Appear or Is Not Stabilized
Only Display Screen of External Device Does Not Appear or Is Not Stabilized
Only Display Screen of External Device does not Appear or is not Stabilized

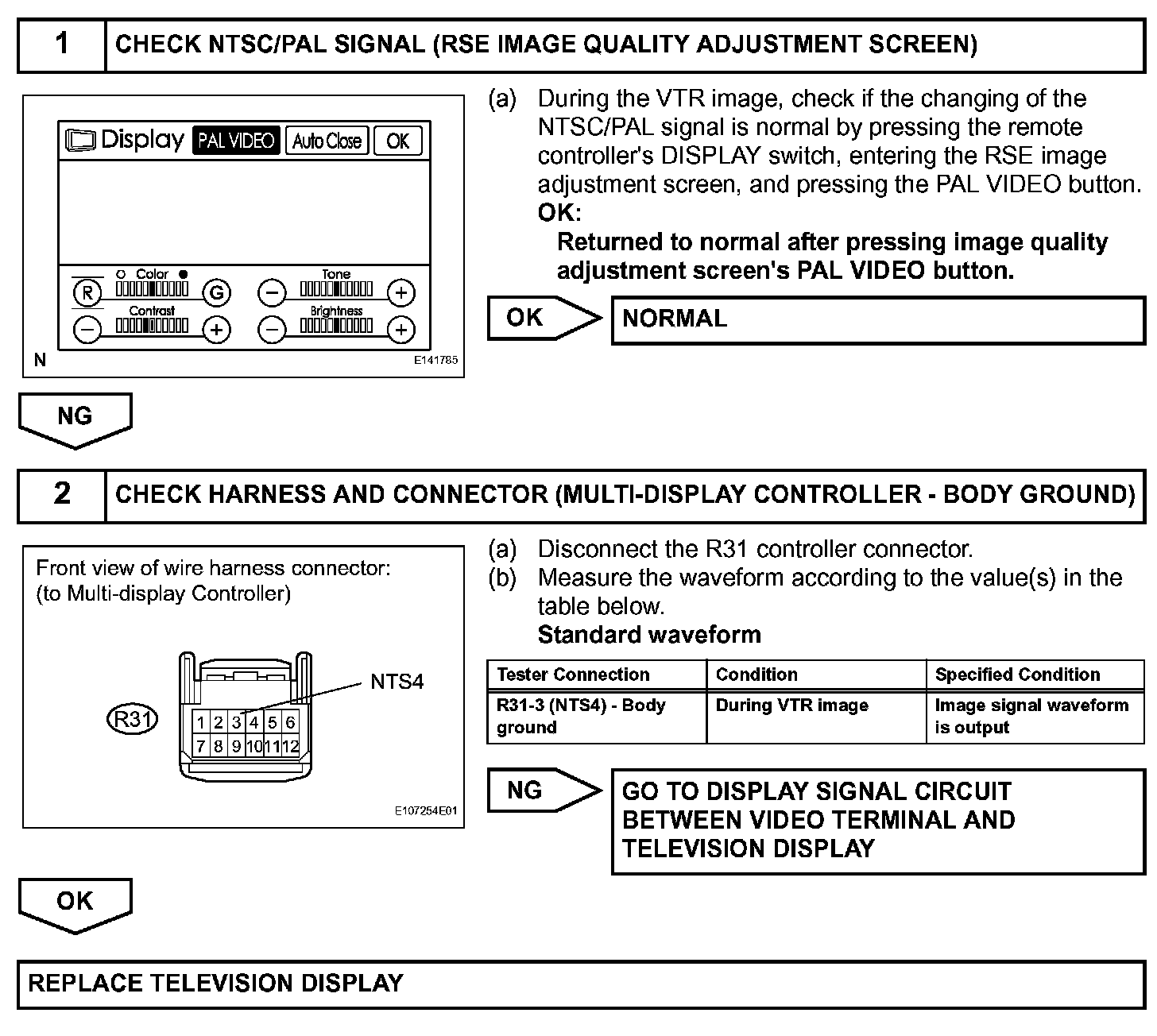

Step 1-2:
INSPECTION PROCEDURE
