Home >> Lexus >> 2007 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Entertainment Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Only DVD or VTR Screen Does Not Appear or Is Not Stabilized

Only DVD or VTR Screen Does Not Appear or Is Not Stabilized

Only DVD or VTR Screen does not Appear or is not Stabilized

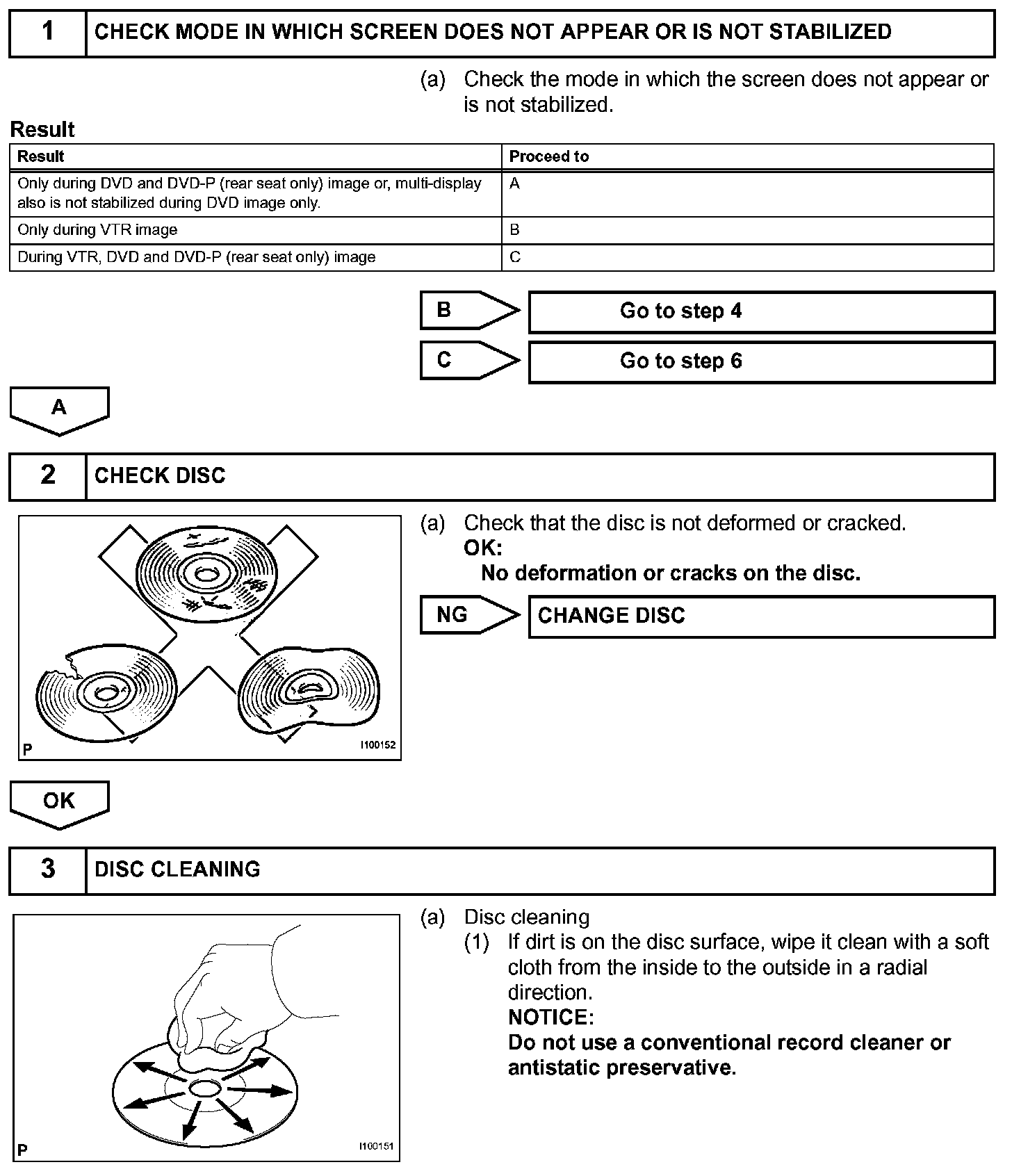

Step 1-3:

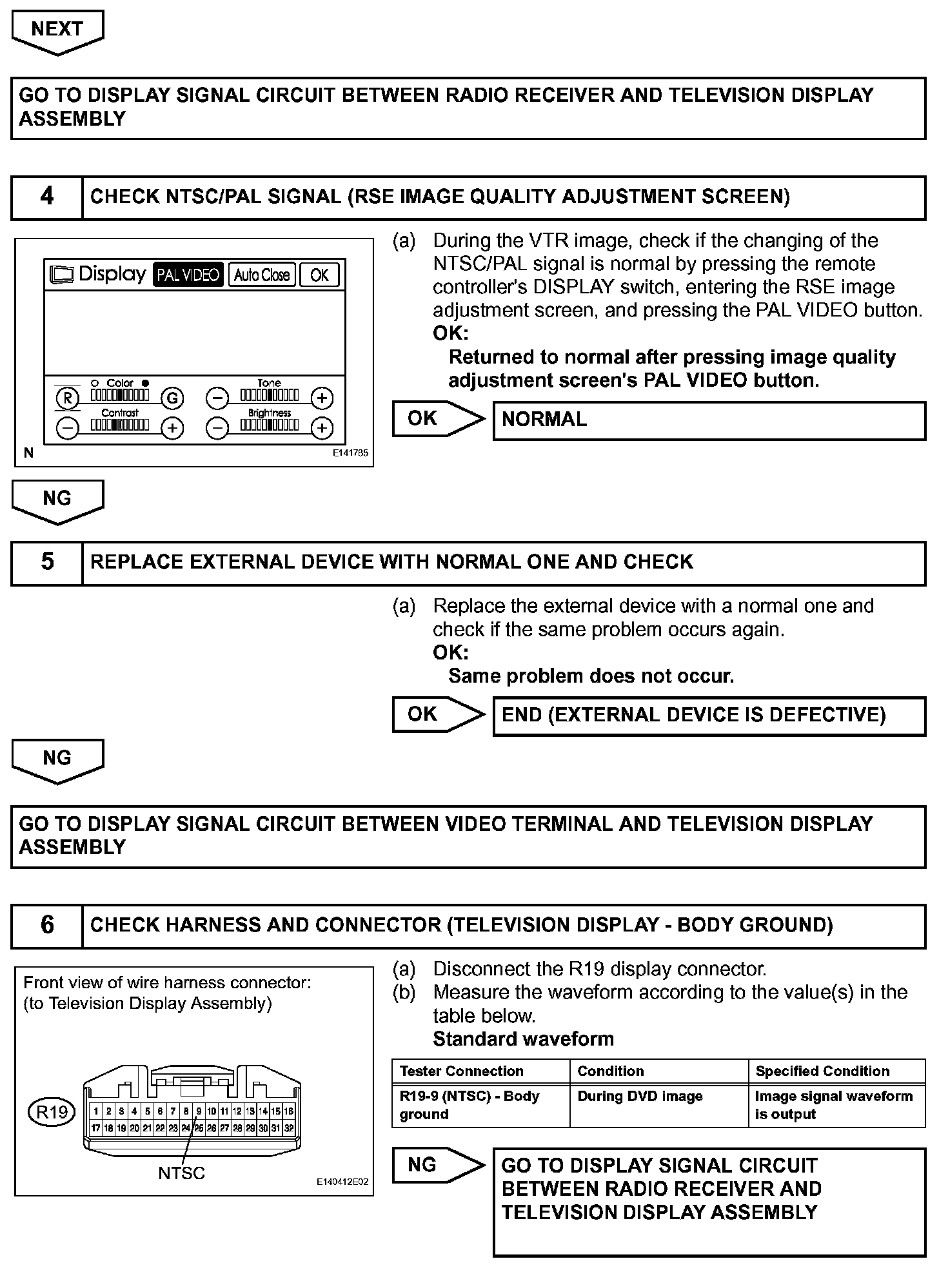

Step 3 (Continued)-6:

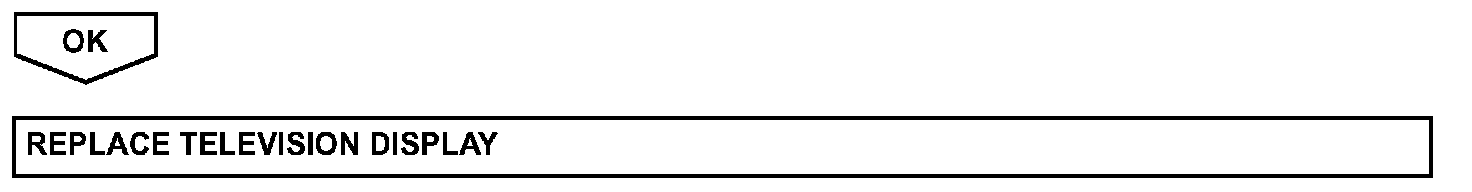

Step 6 (Continued):




INSPECTION PROCEDURE
