Television Display Power Source Circuit

Television Display Power Source Circuit

DESCRIPTION
This circuit provides power to the television display. The power is sent from the battery to the television display assembly through the multi-display controller.

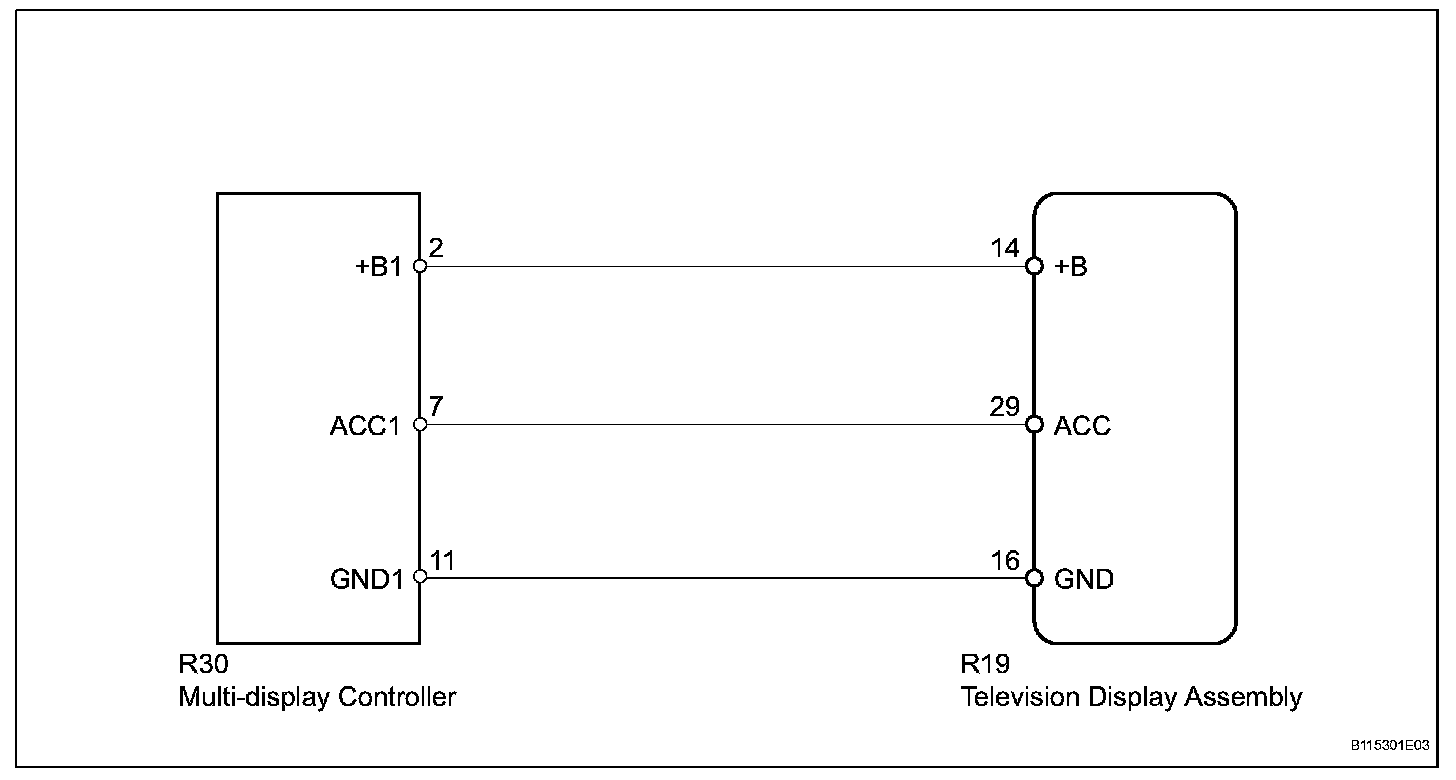

Wiring Diagram:

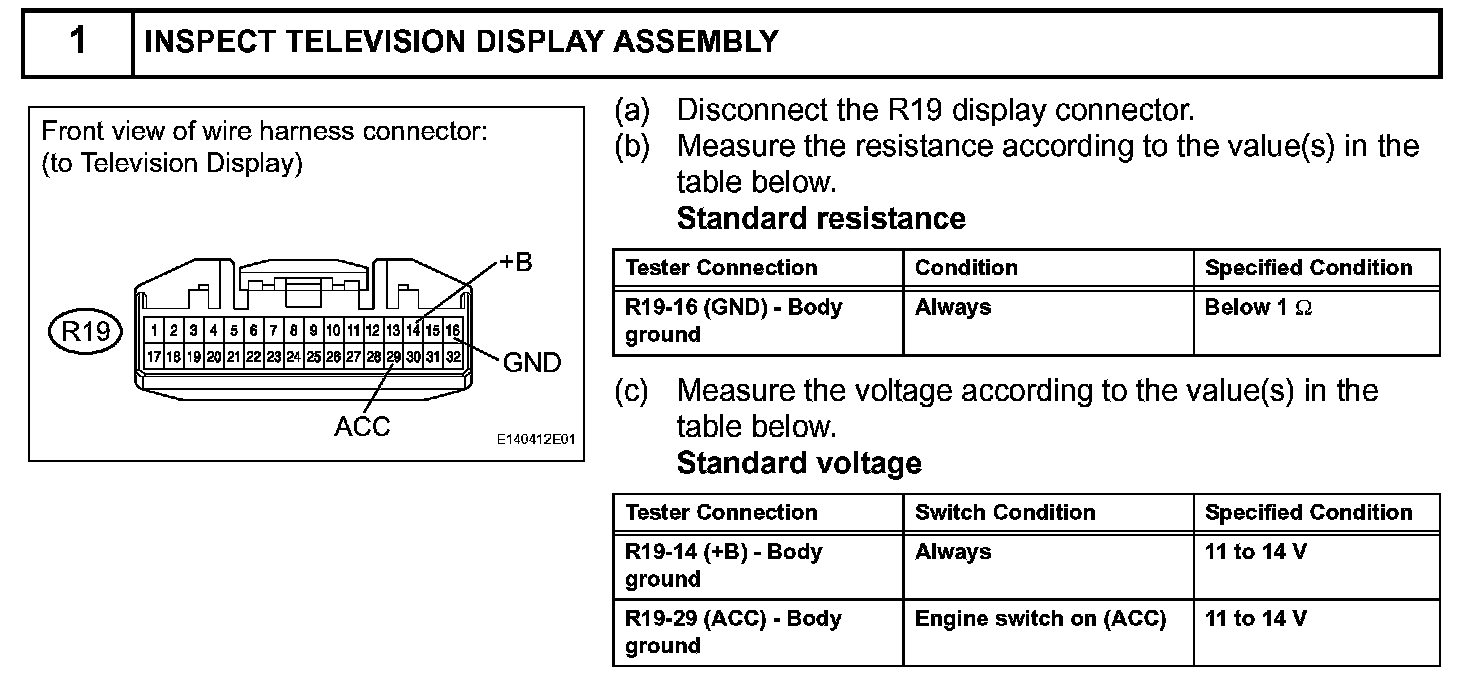

Step 1:

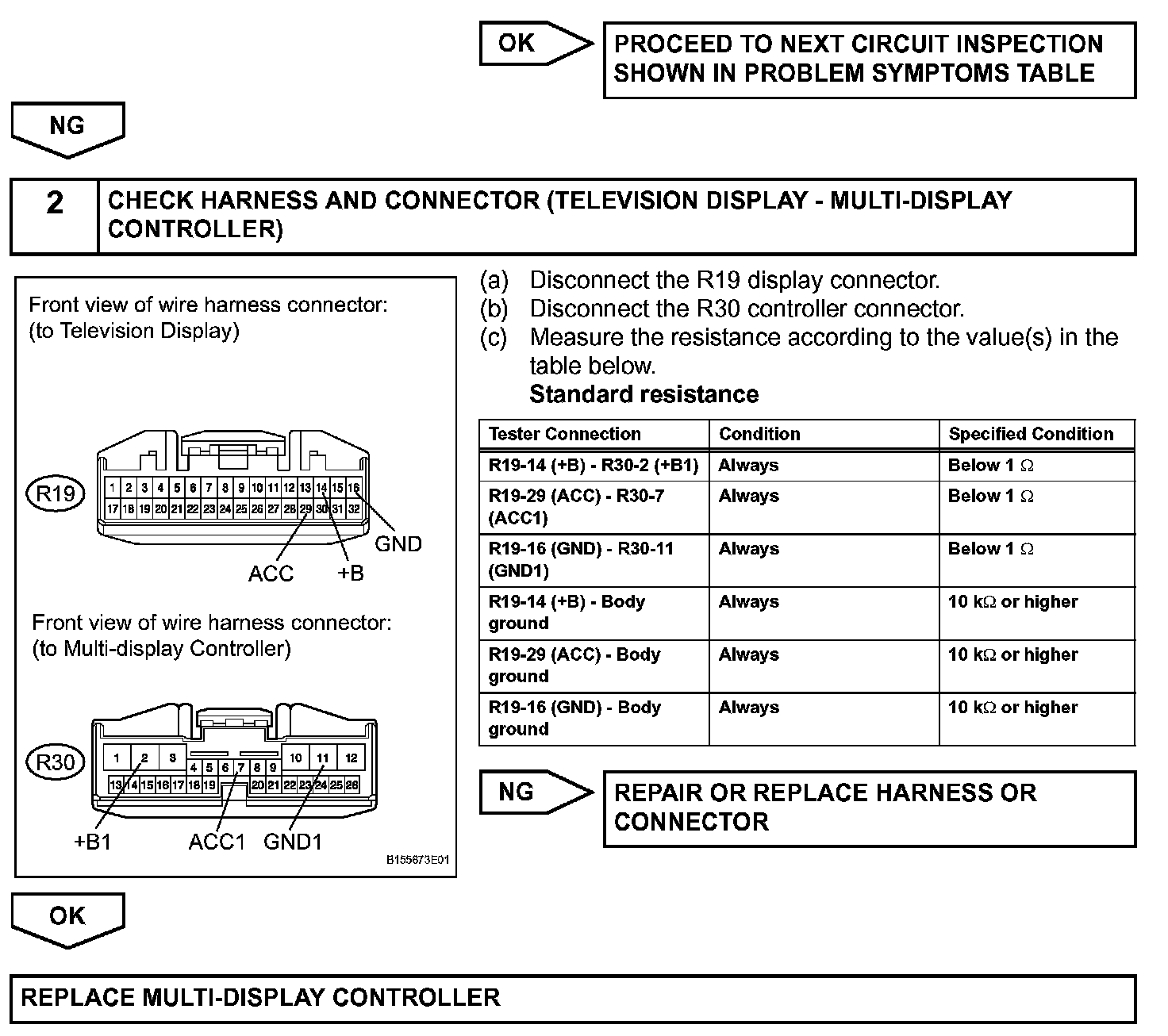

Step 1 (Continued)-2:

INSPECTION PROCEDURE
