Sound Signal Circuit Between Video Terminal and Multi-Display Controller

Sound Signal Circuit between Video Terminal and Multi-display Controller

DESCRIPTION
This is the sound signal circuit from the video (video adapter) terminal to the multi-display controller.

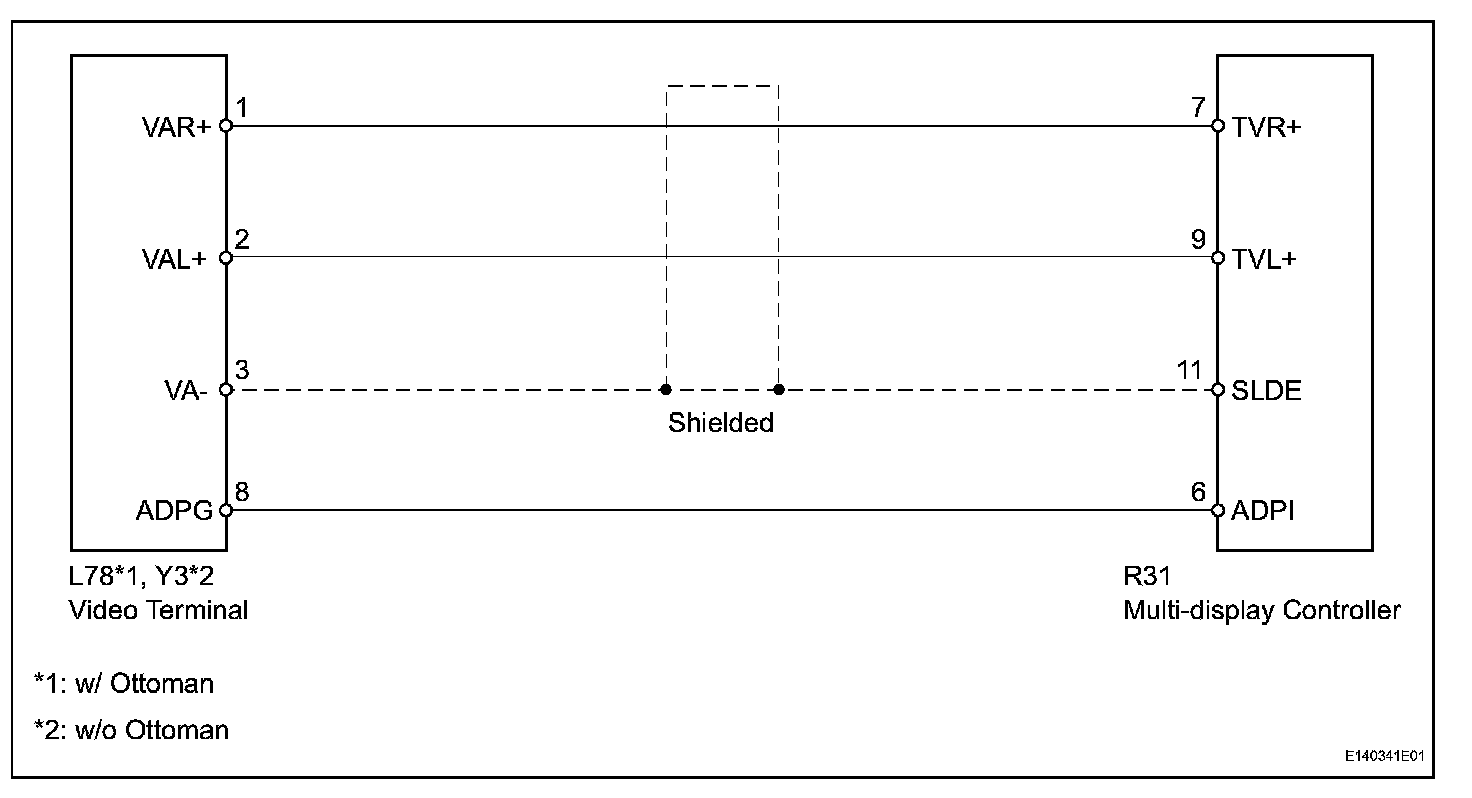

Wiring Diagram:

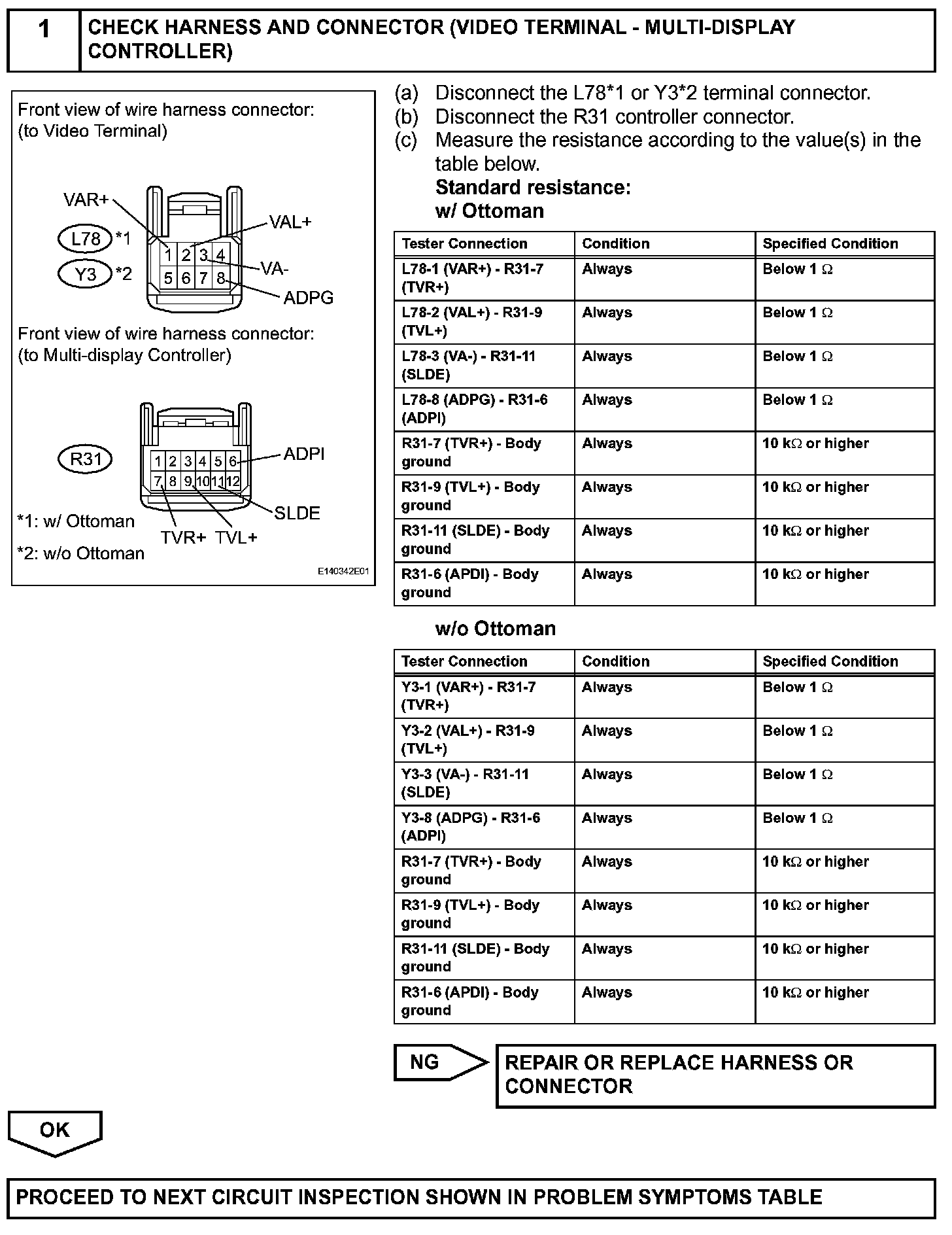

Step 1:




INSPECTION PROCEDURE
