Sound Signal Circuit Between Radio Receiver and Multi-Display Controller

Sound Signal Circuit between Radio Receiver and Multi-display Controller

DESCRIPTION
This is the sound signal circuit from the radio receiver to the multi-display controller.

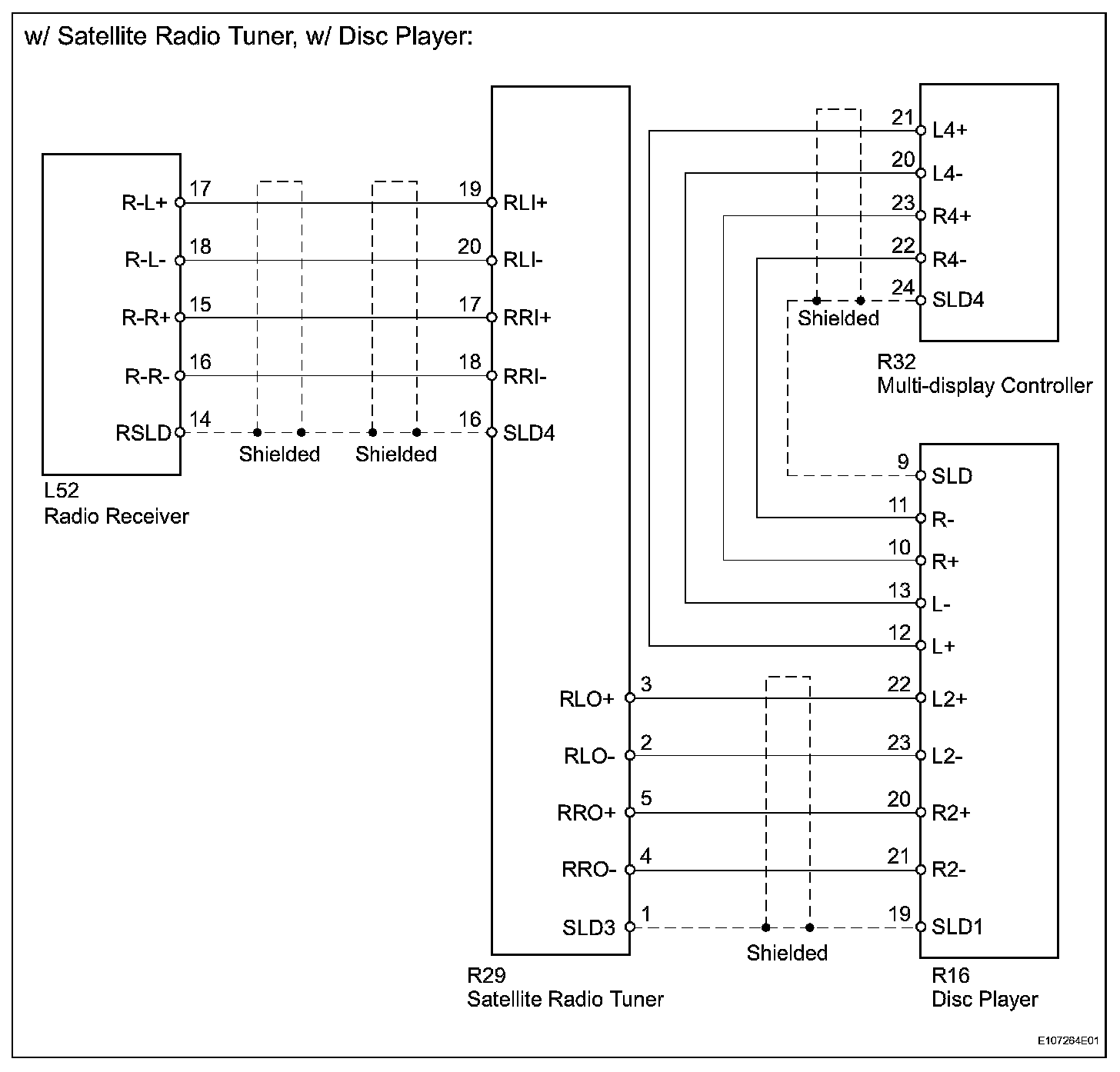

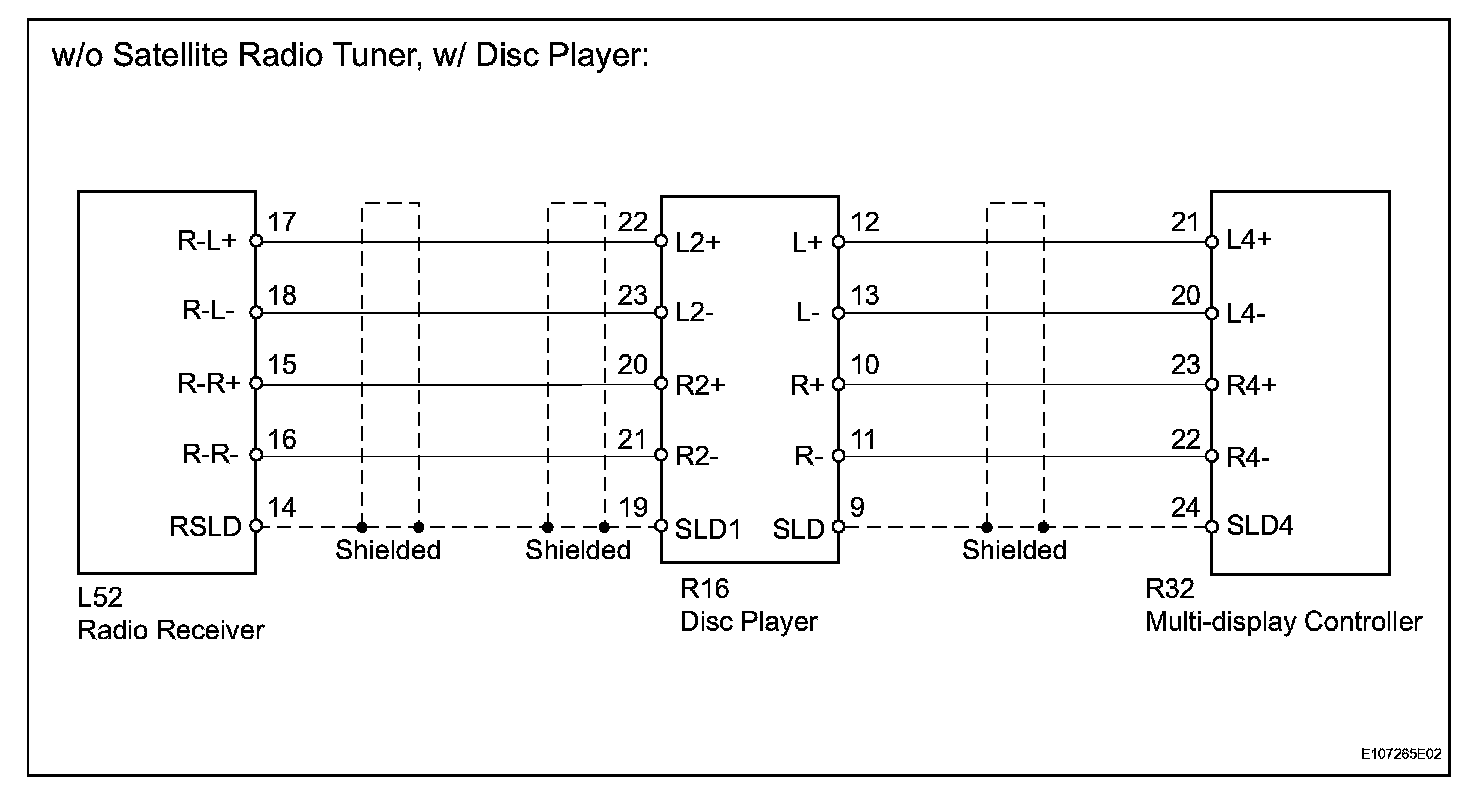

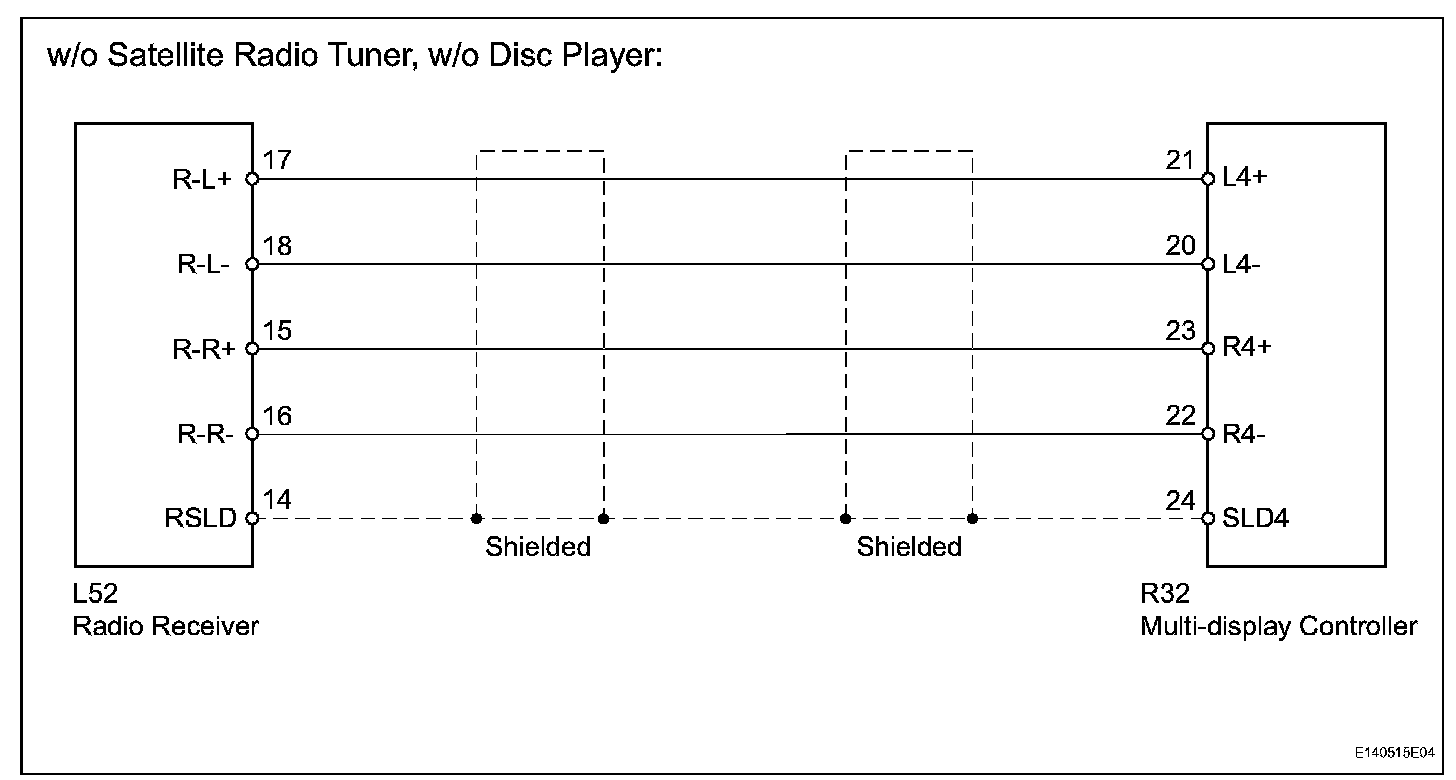

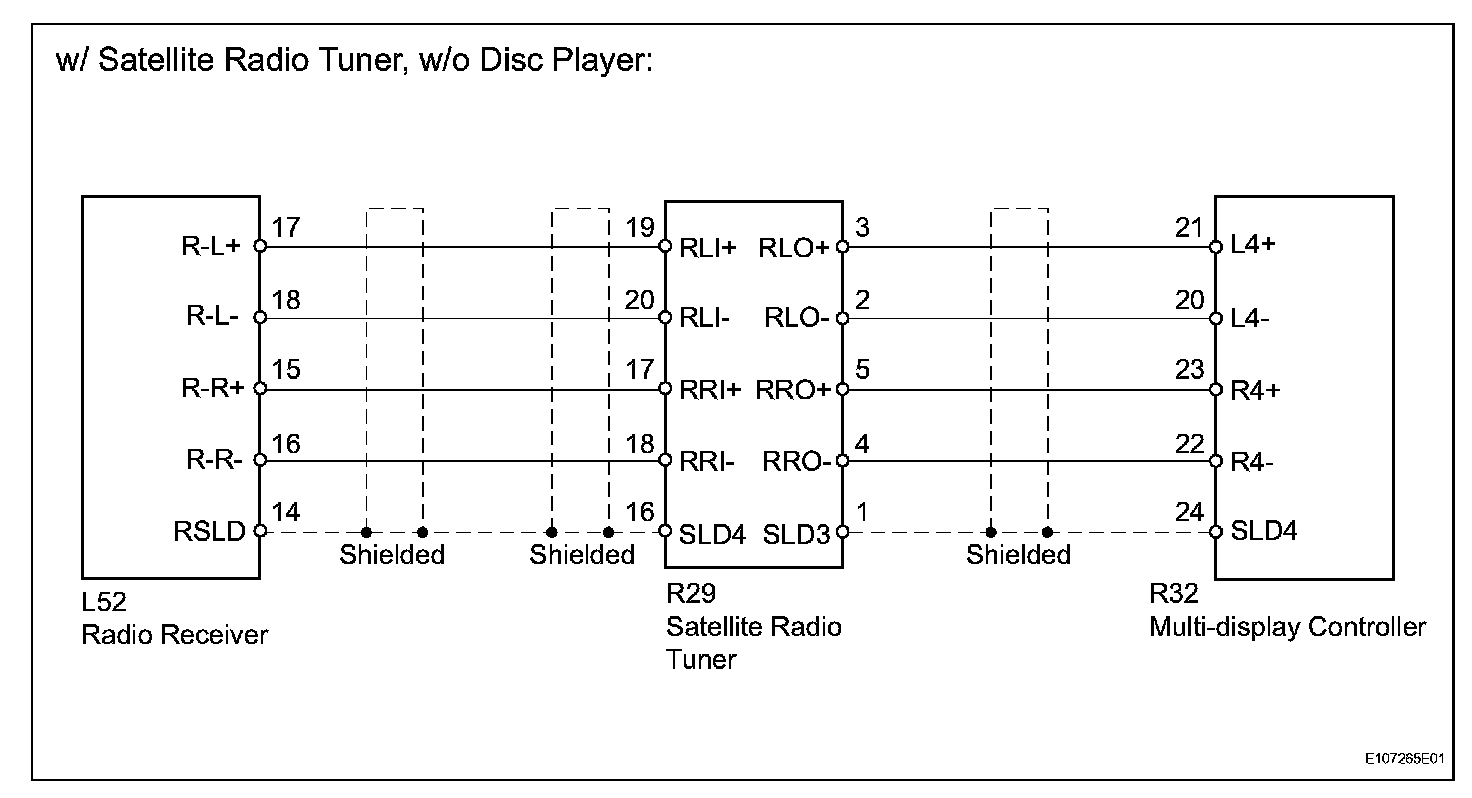

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

Wiring Diagram (Part 3):

Wiring Diagram (Part 4):

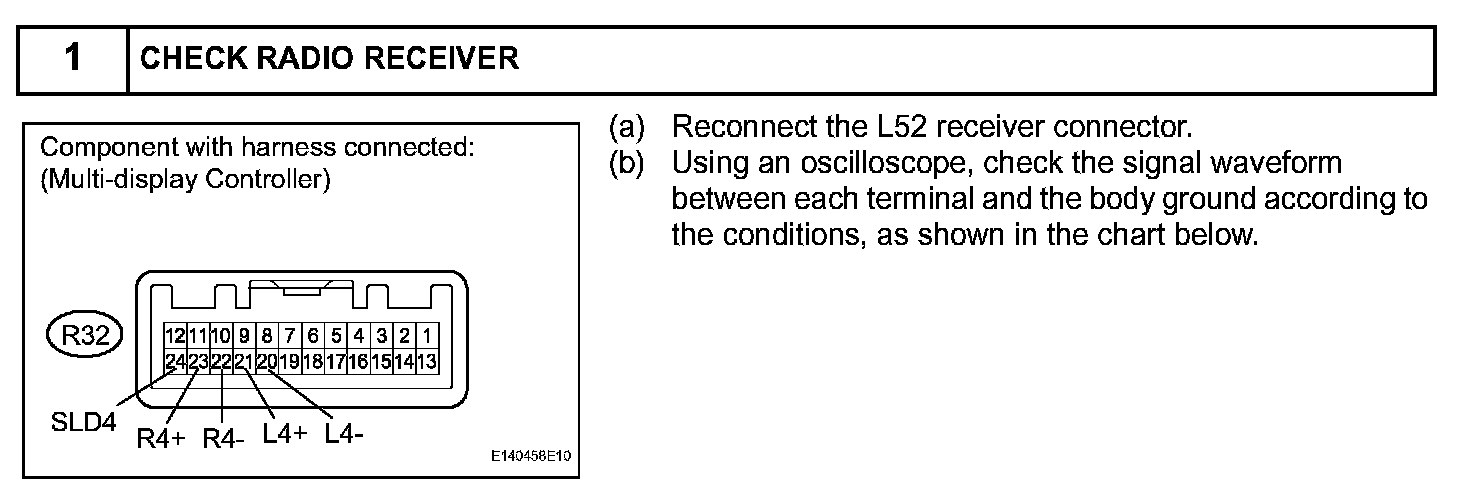

Step 1:

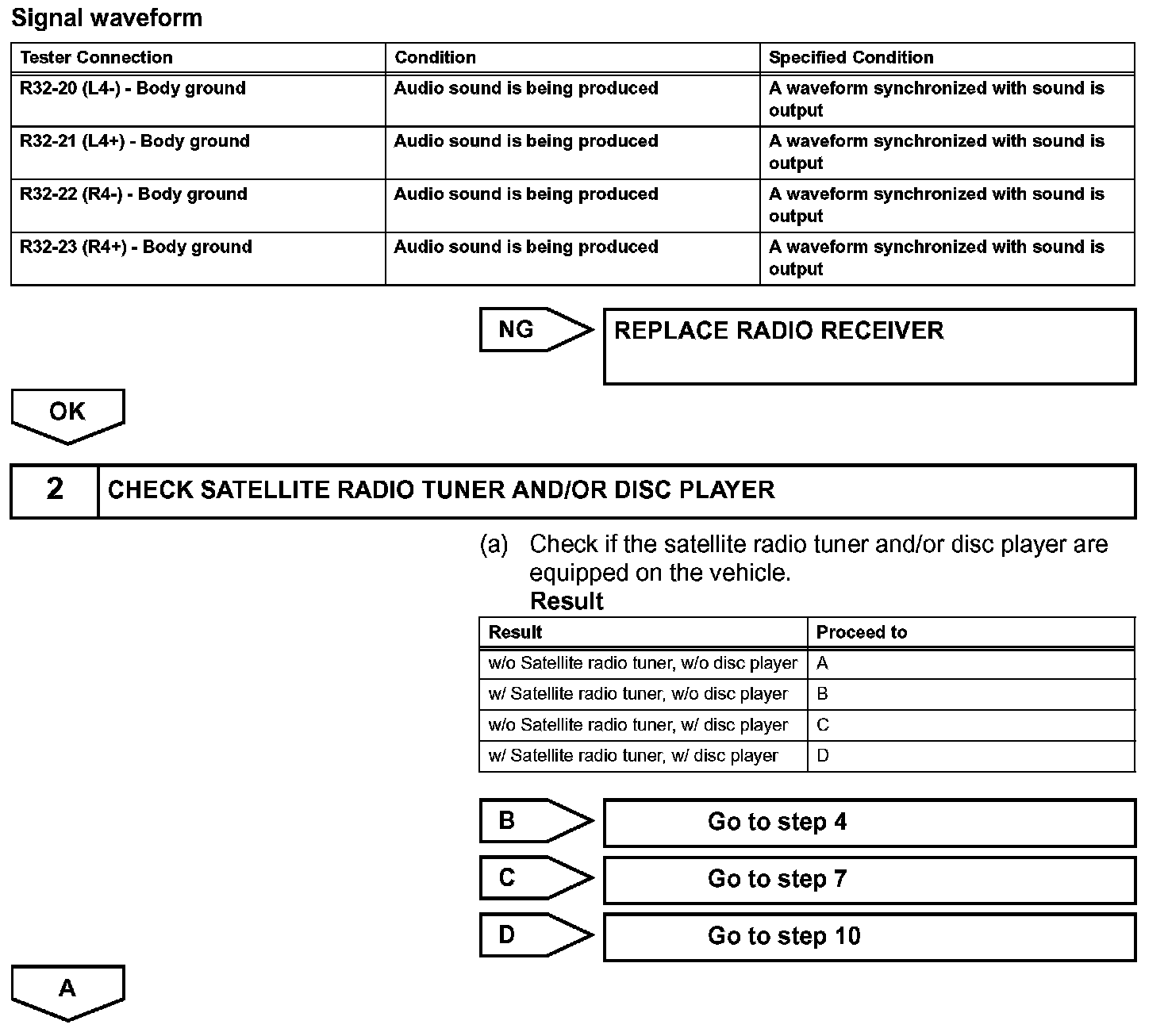

Step 1 (Continued)-2:

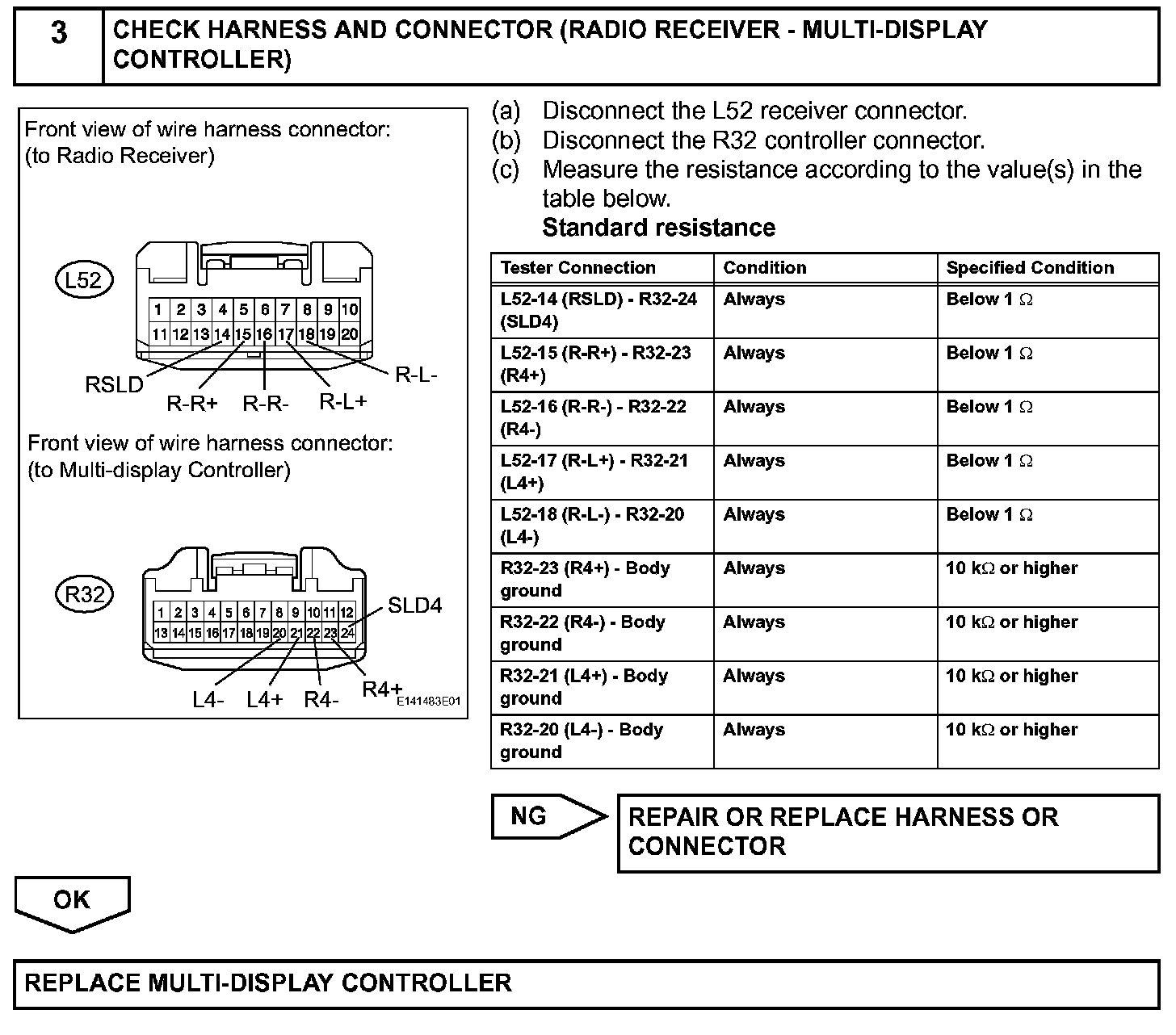

Step 3:

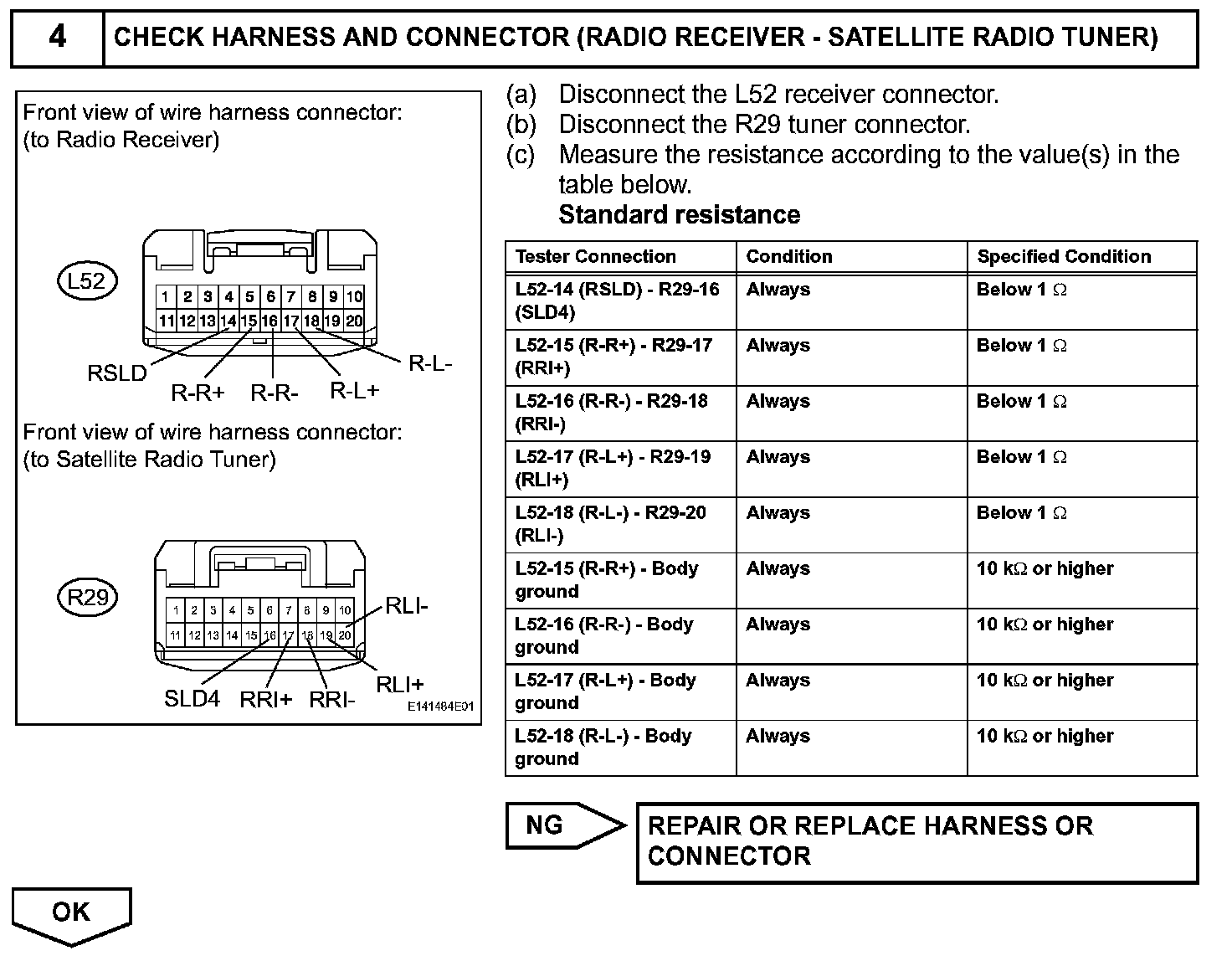

Step 4:

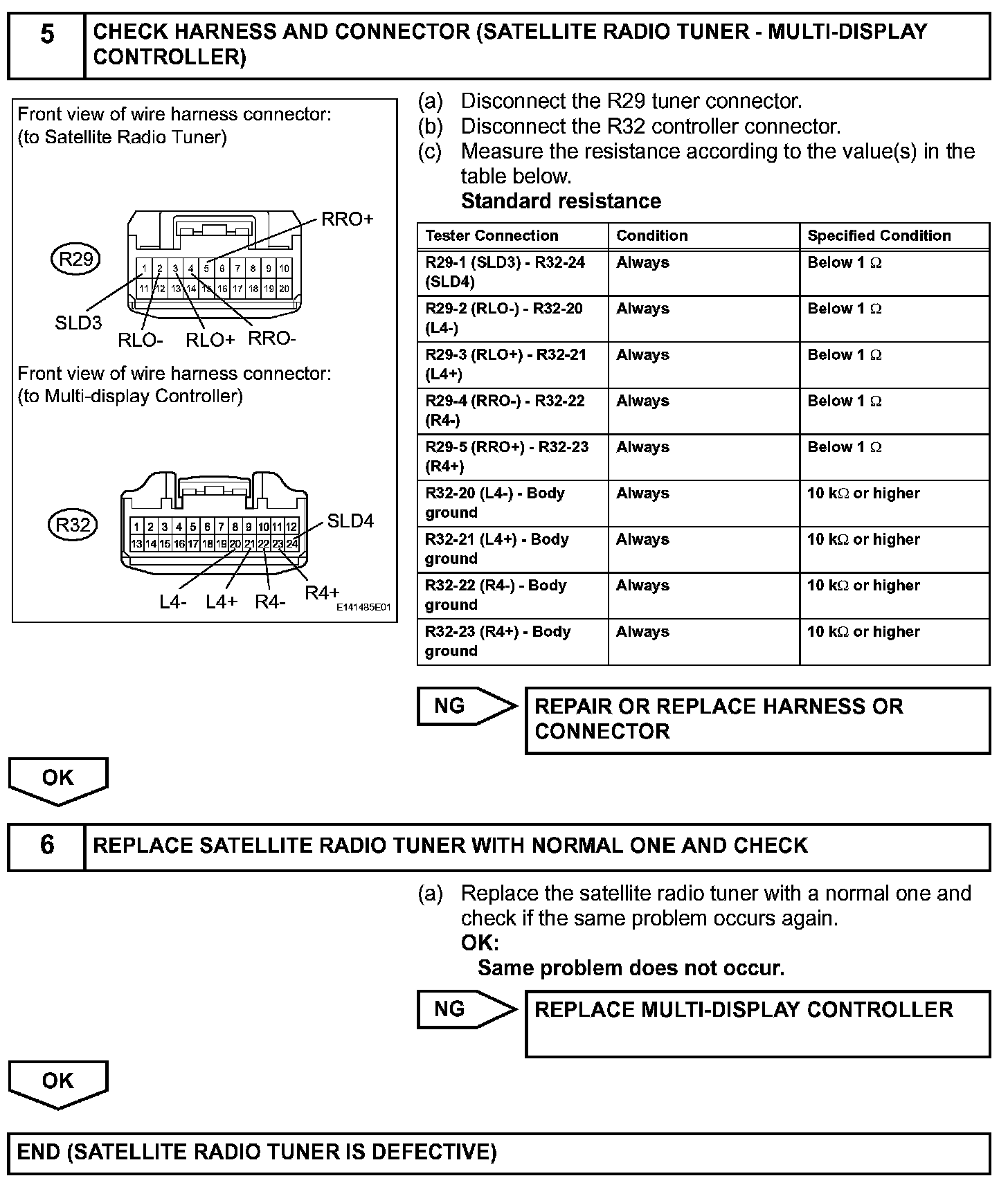

Step 5-6:

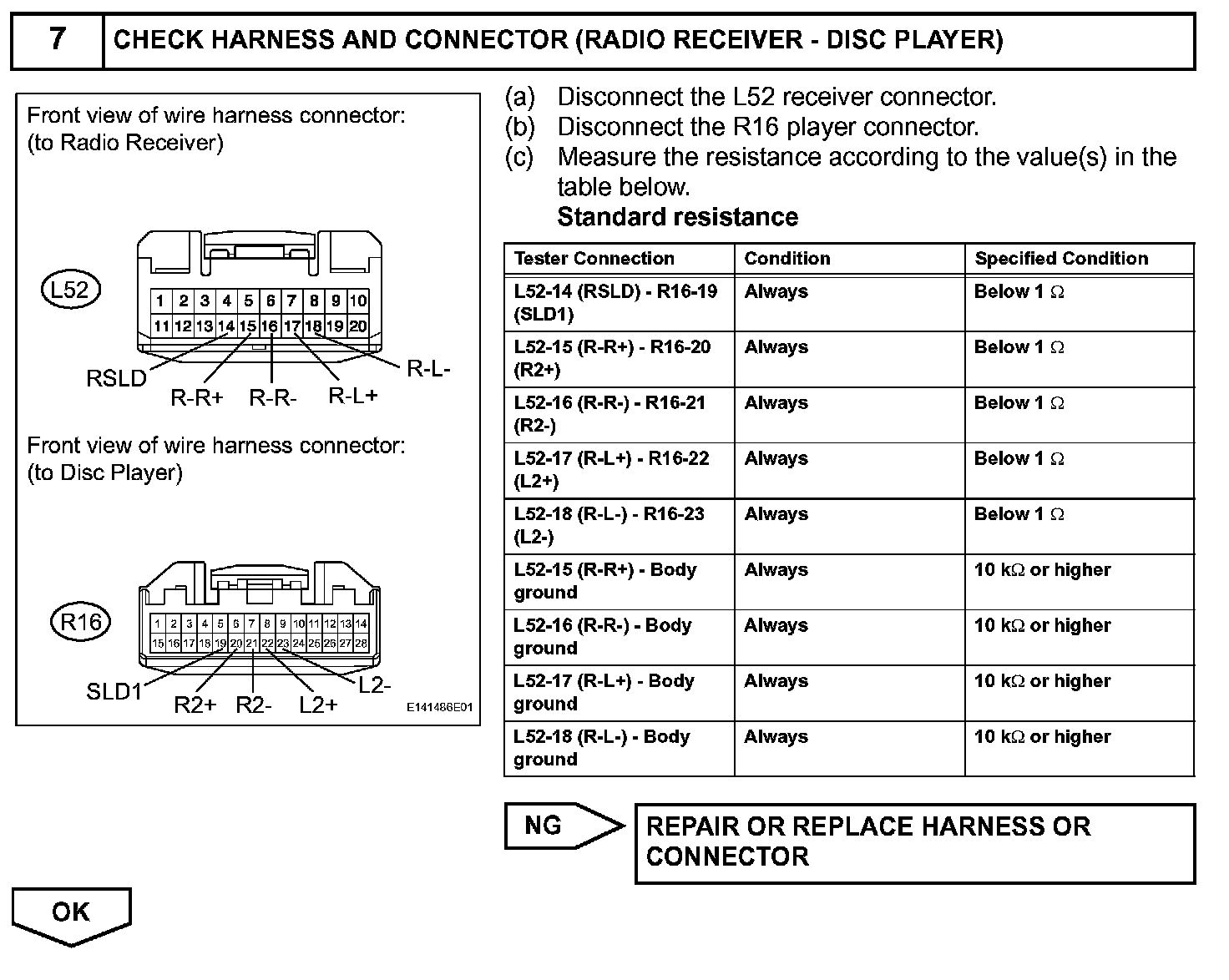

Step 7:

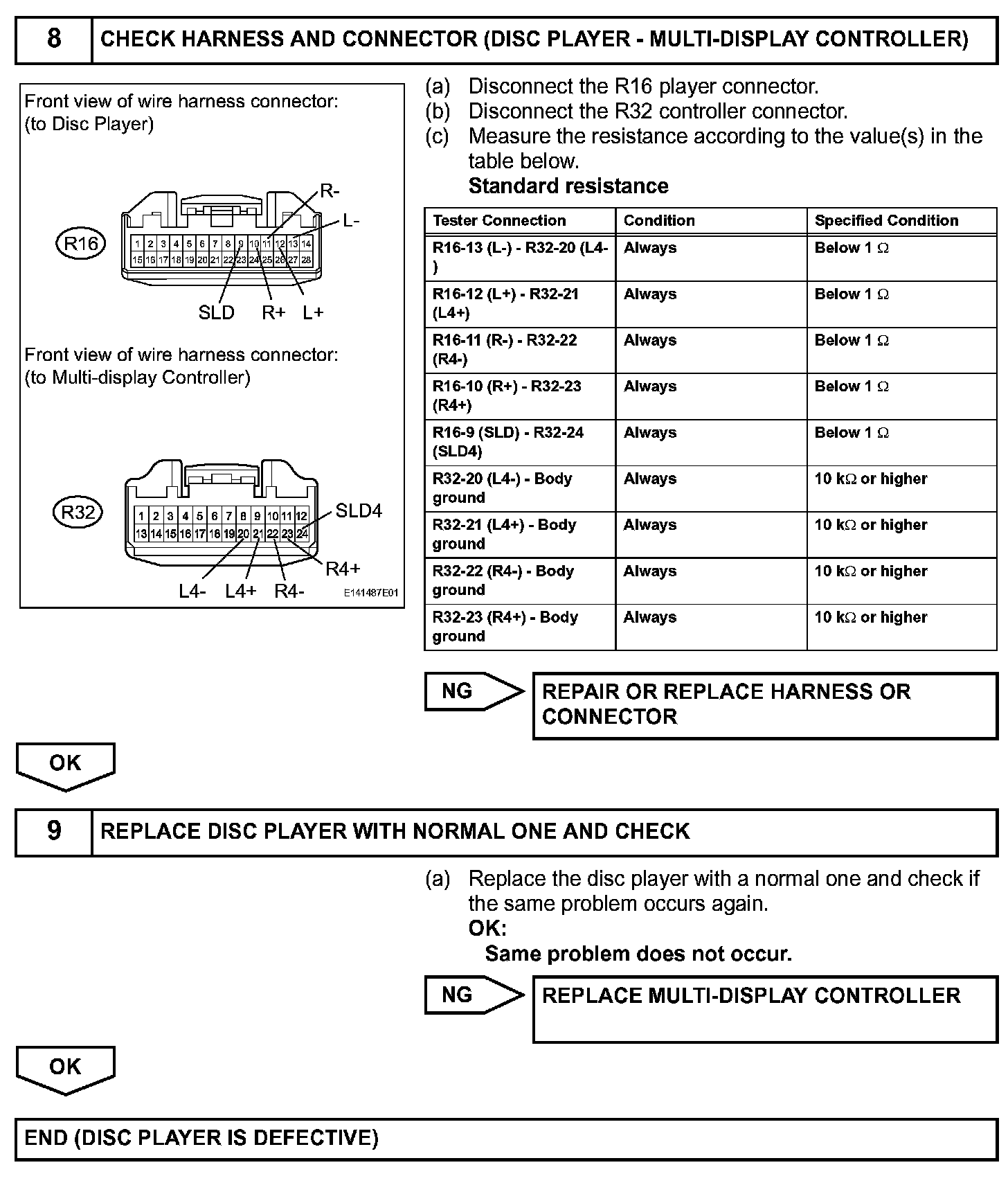

Step 8-9:

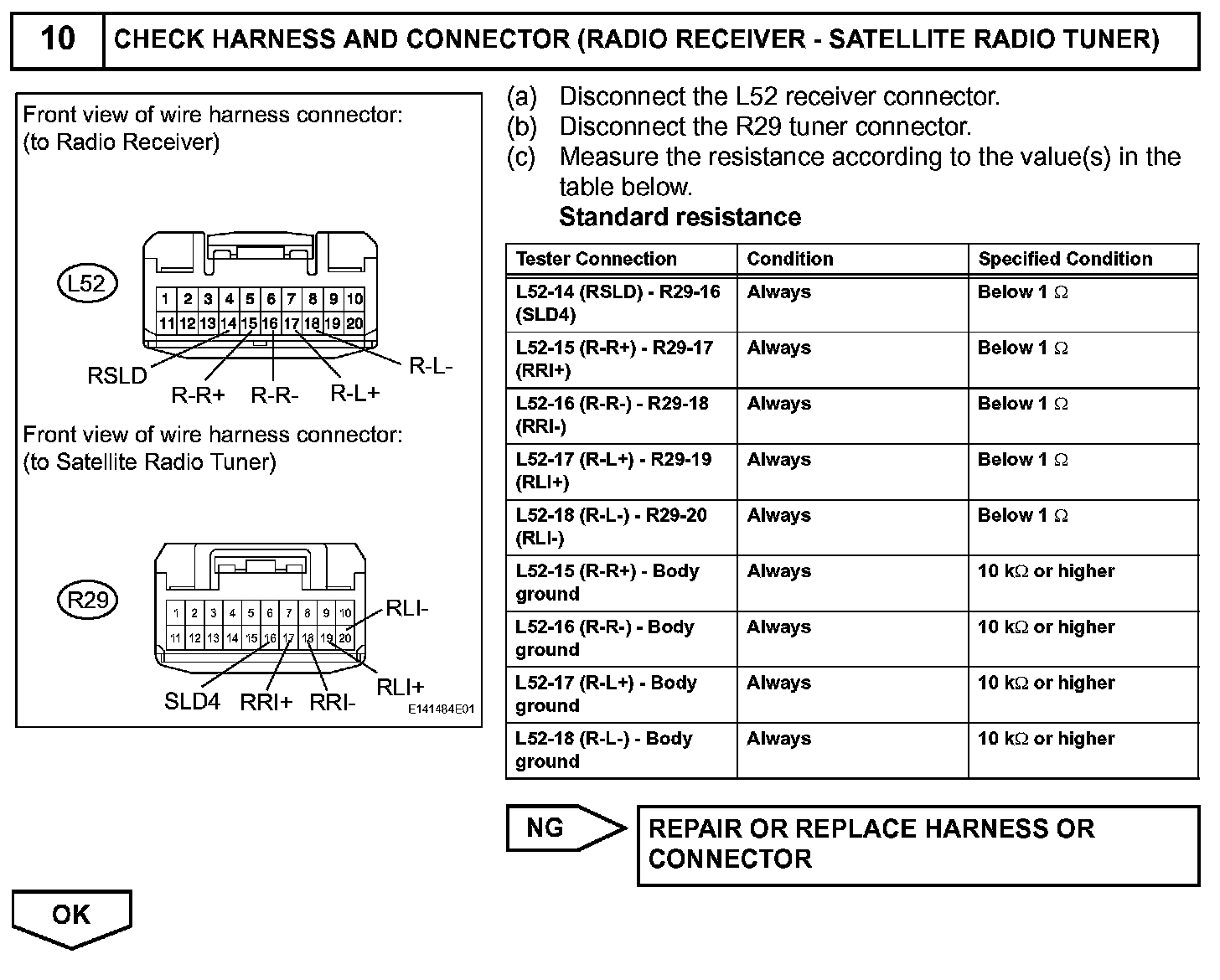

Step 10:

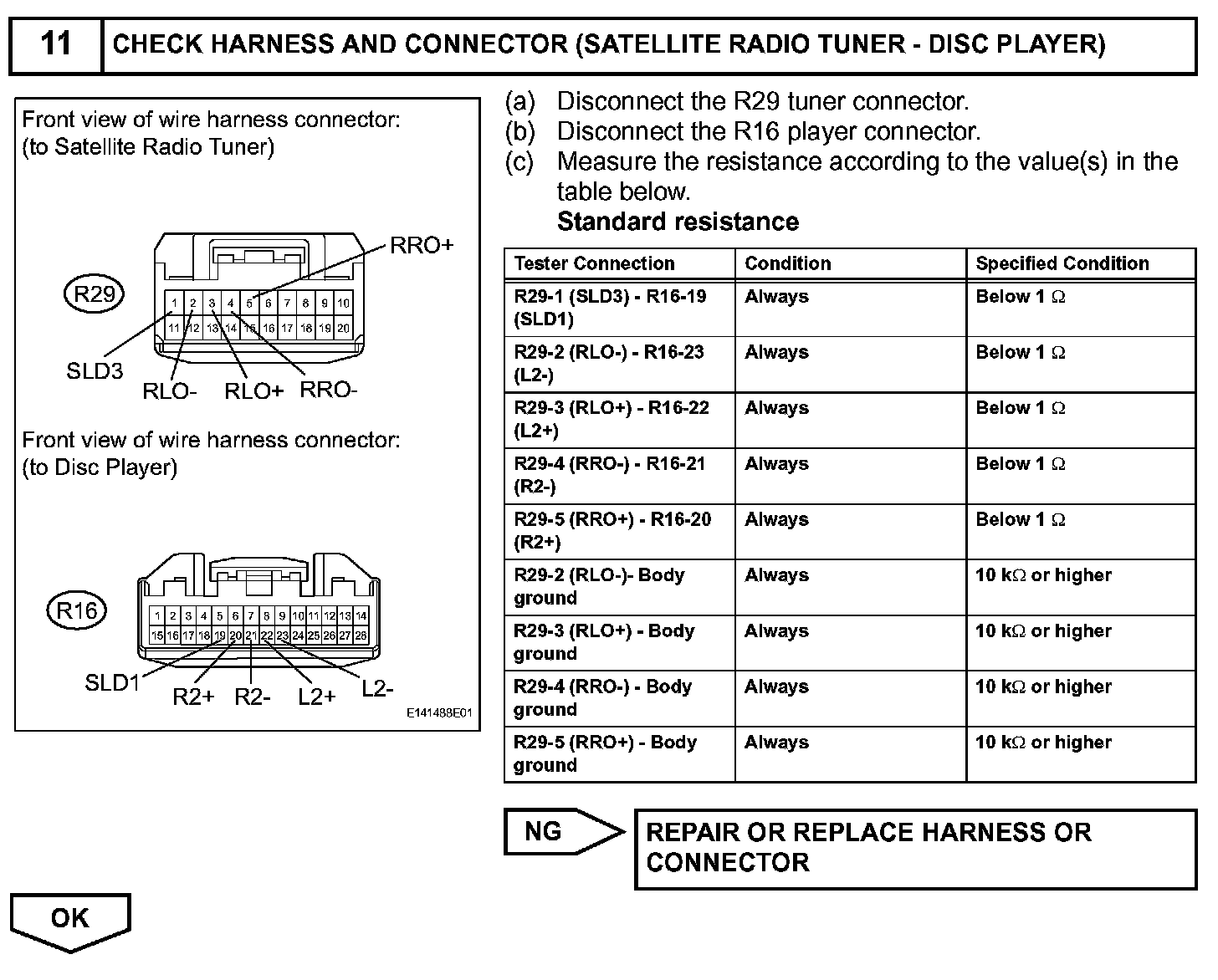

Step 11:

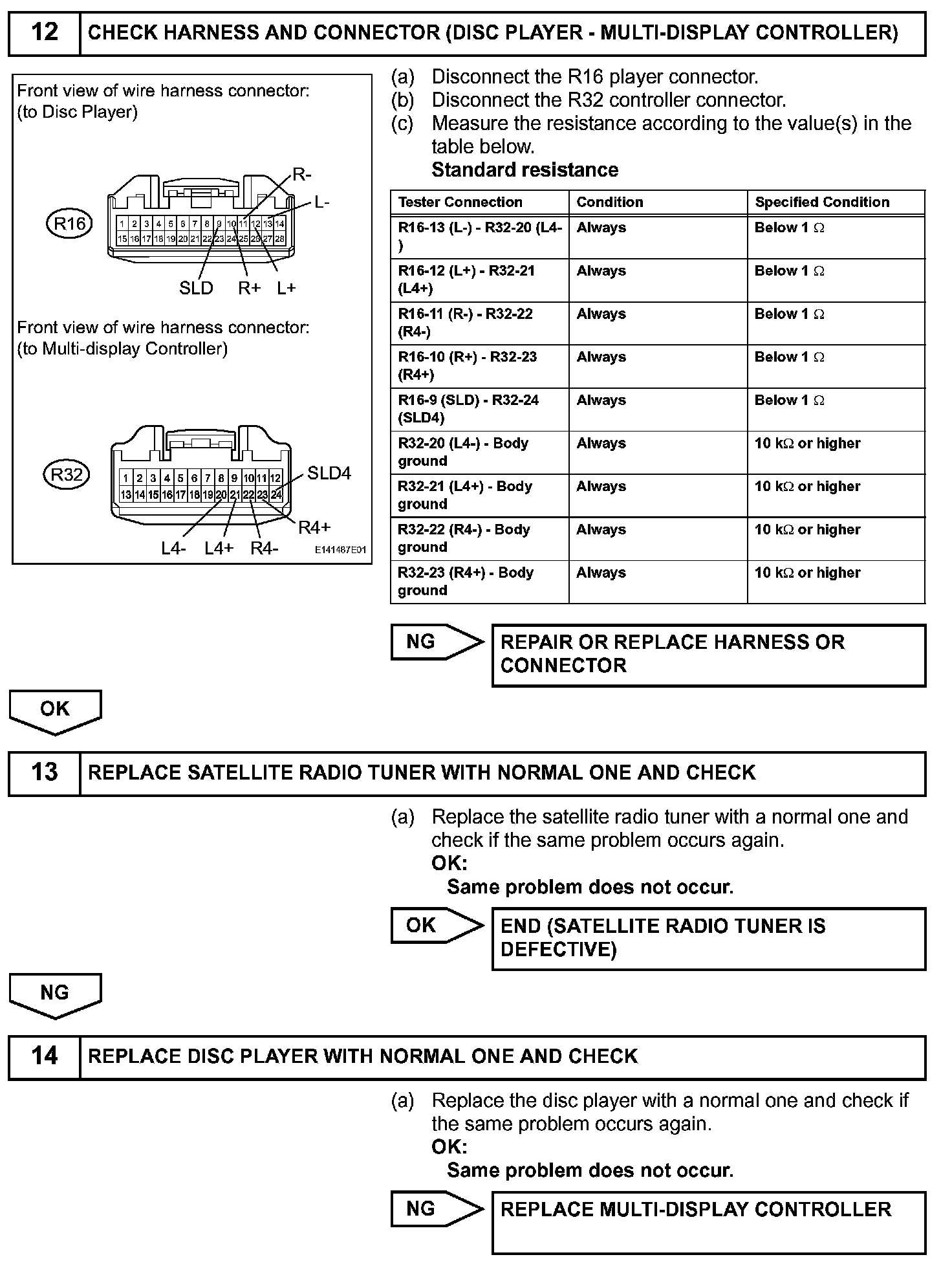

Step 12-14:

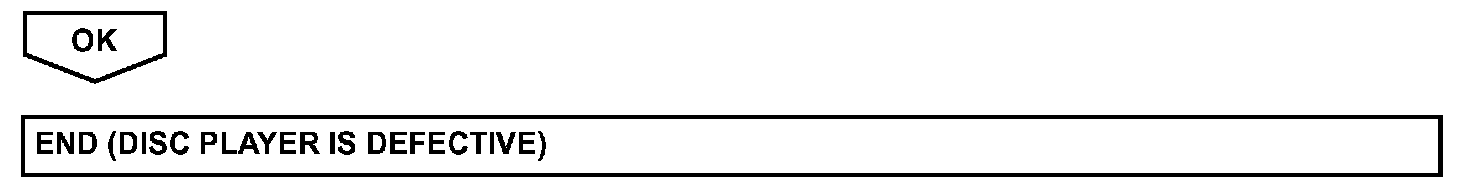

Step 14 (Continued):

INSPECTION PROCEDURE
