Sound Signal Circuit Between Multi-Display Controller and Television Display

Sound Signal Circuit between Multi-display Controller and Television Display

DESCRIPTION
This is the sound signal circuit from the multi-display controller to the television display.

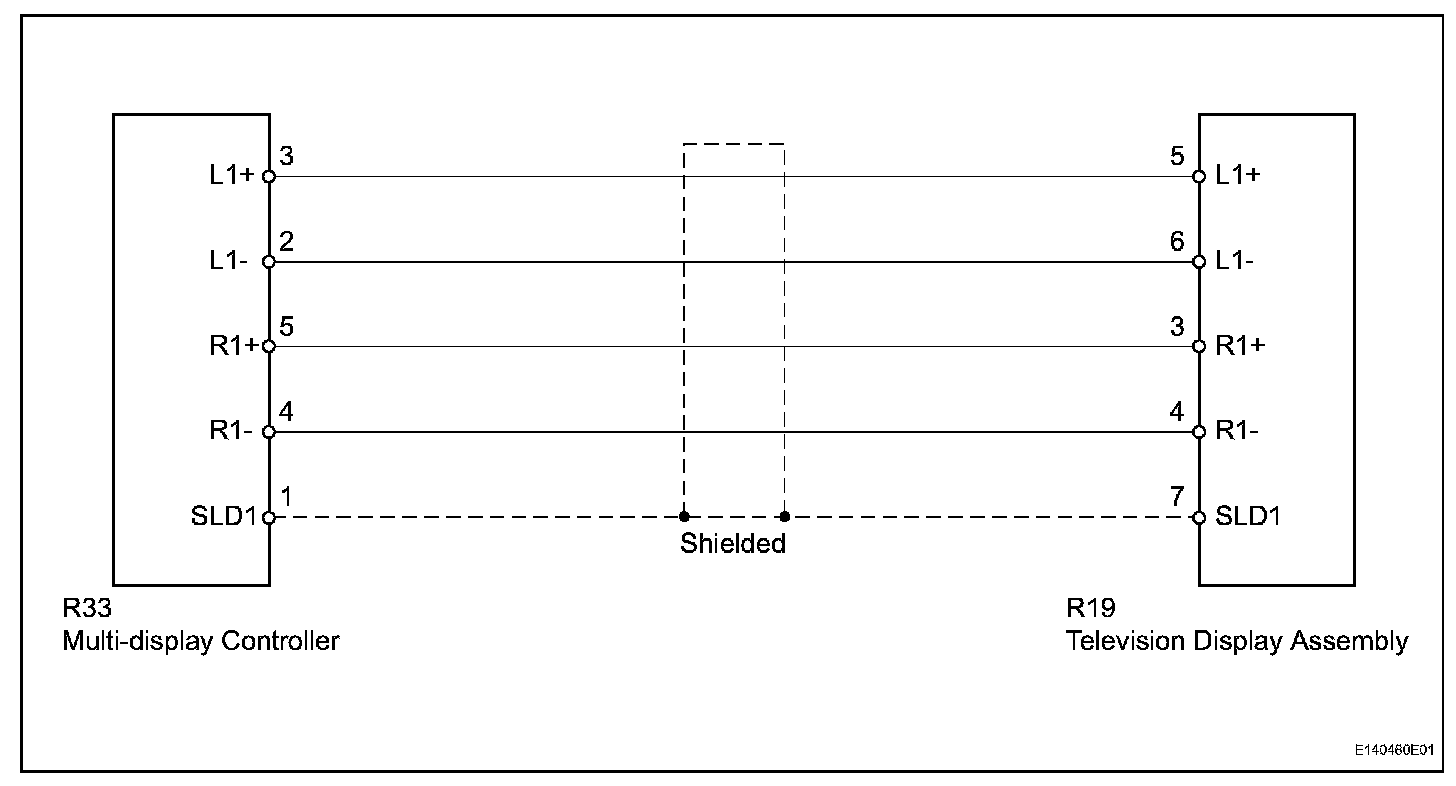

Wiring Diagram:

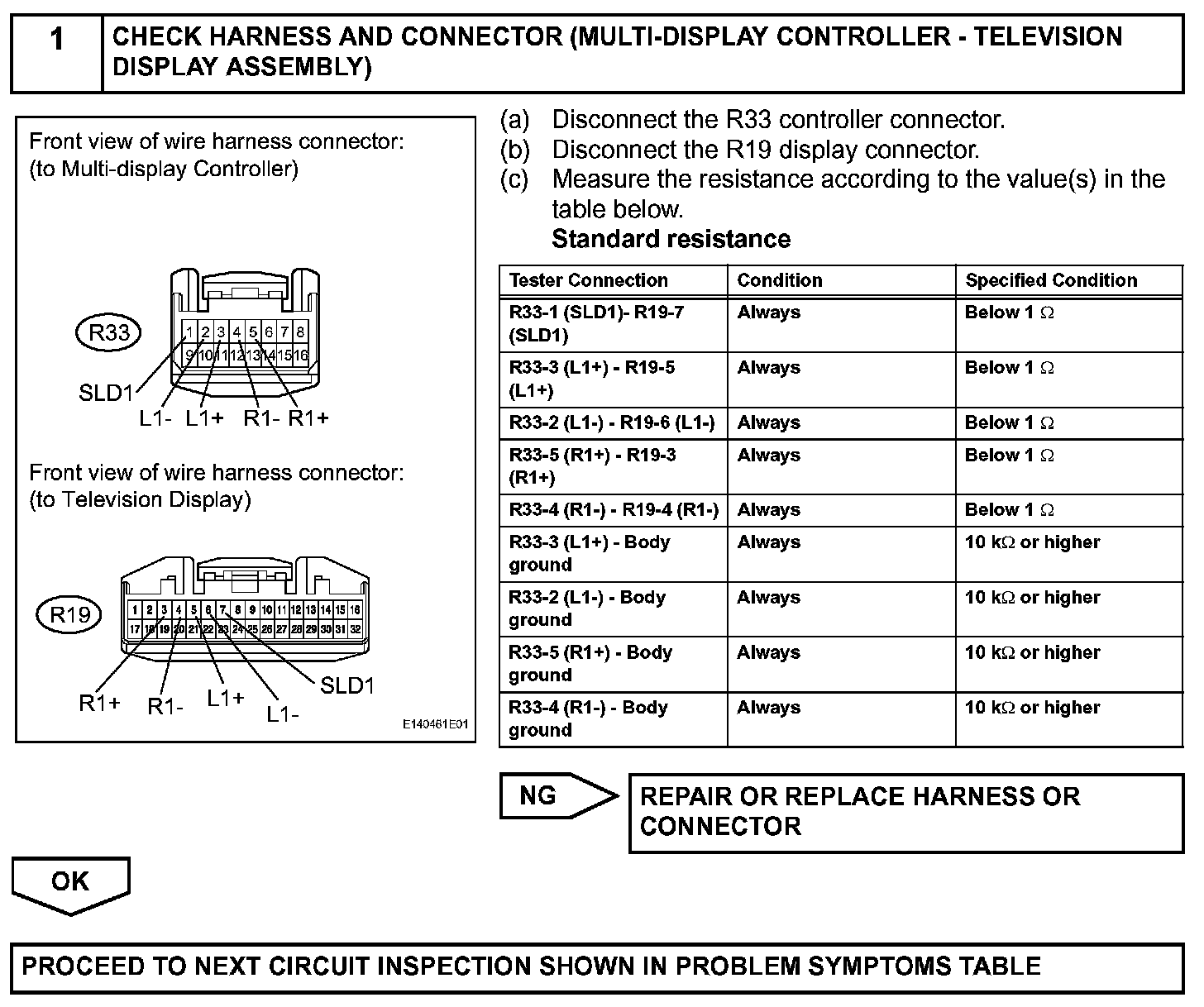

Step 1:




INSPECTION PROCEDURE
