Sound Signal Circuit Between Multi-Display Controller and Navigation Assembly

Sound Signal Circuit between Multi-display Controller and Navigation Assembly

DESCRIPTION
This is the sound signal circuit from the display and navigation assembly to the multi-display controller.

HINT: Only vehicles with a navigation system (for HDD) have this circuit.

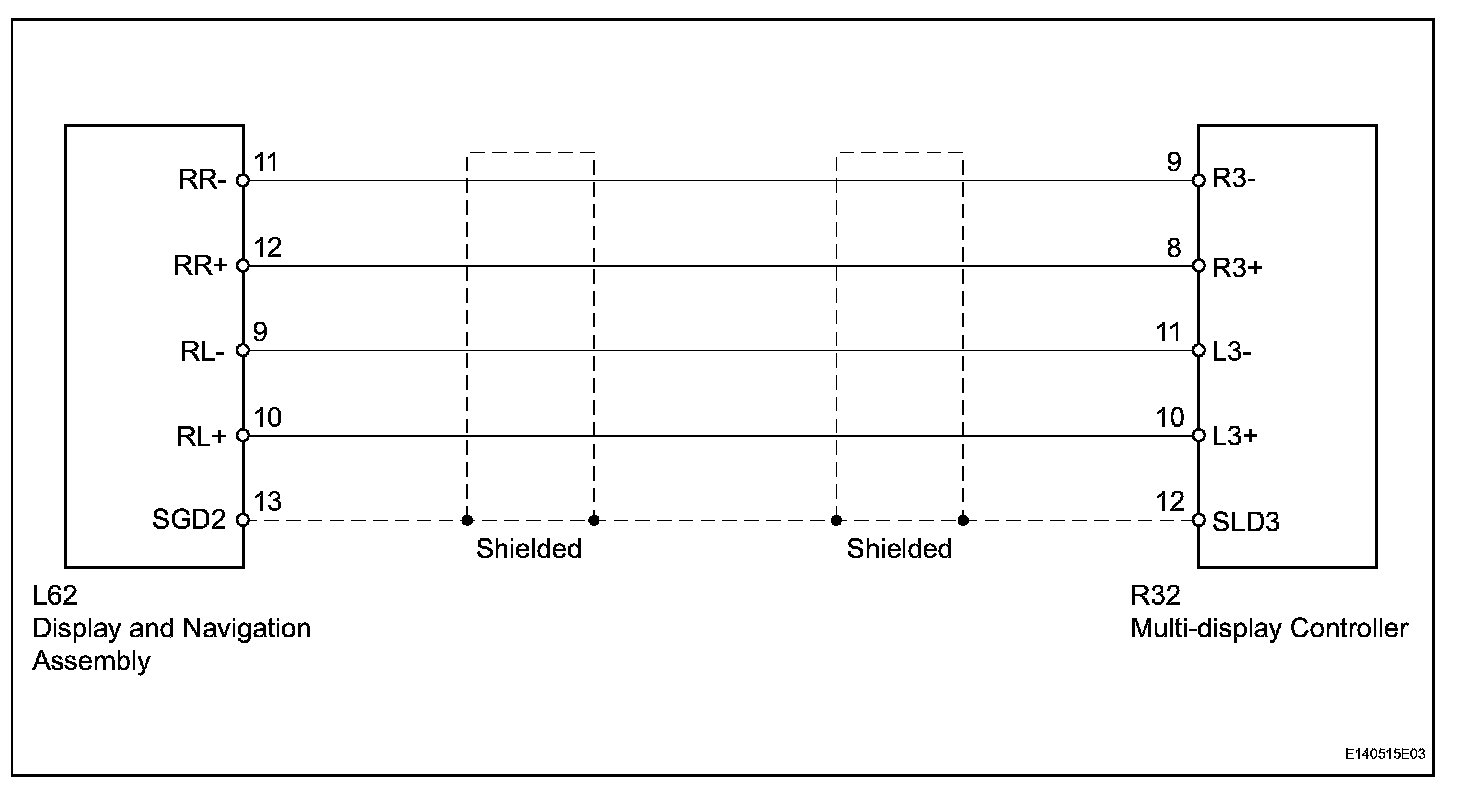

Wiring Diagram:

Step 1-2:

Step 2 (Continued):

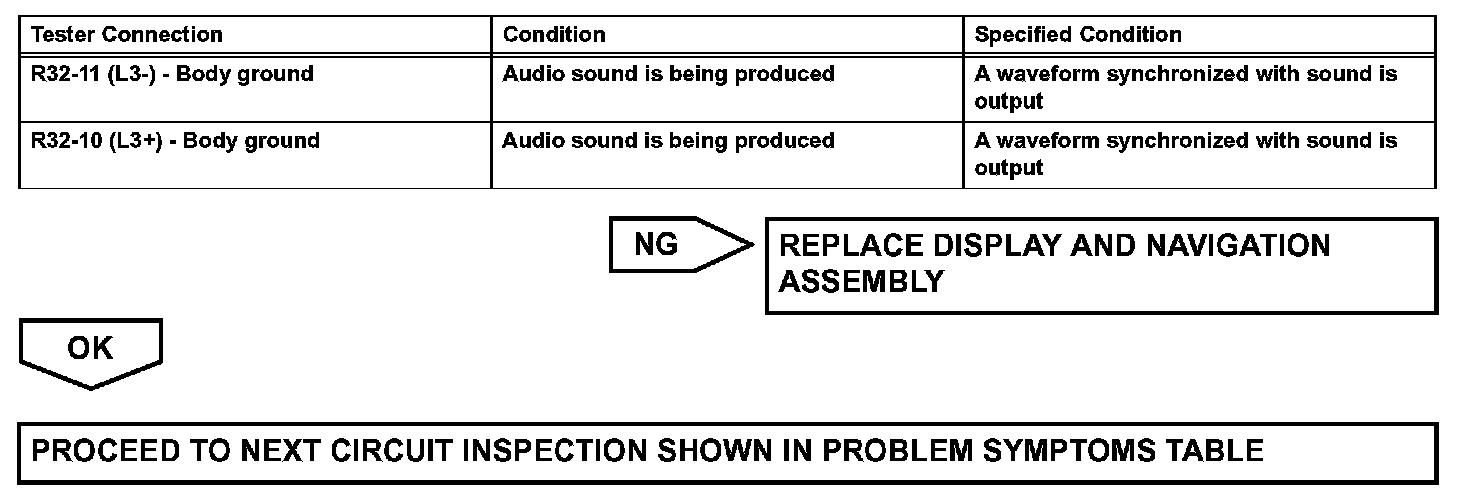

INSPECTION PROCEDURE
