Sound Signal Circuit Between Multi-Display Controller and Disc Player Controller
Sound Signal Circuit between Multi-display Controller and Disc Player ControllerDESCRIPTION
This is the sound signal circuit from the disc player to the multi-display controller.

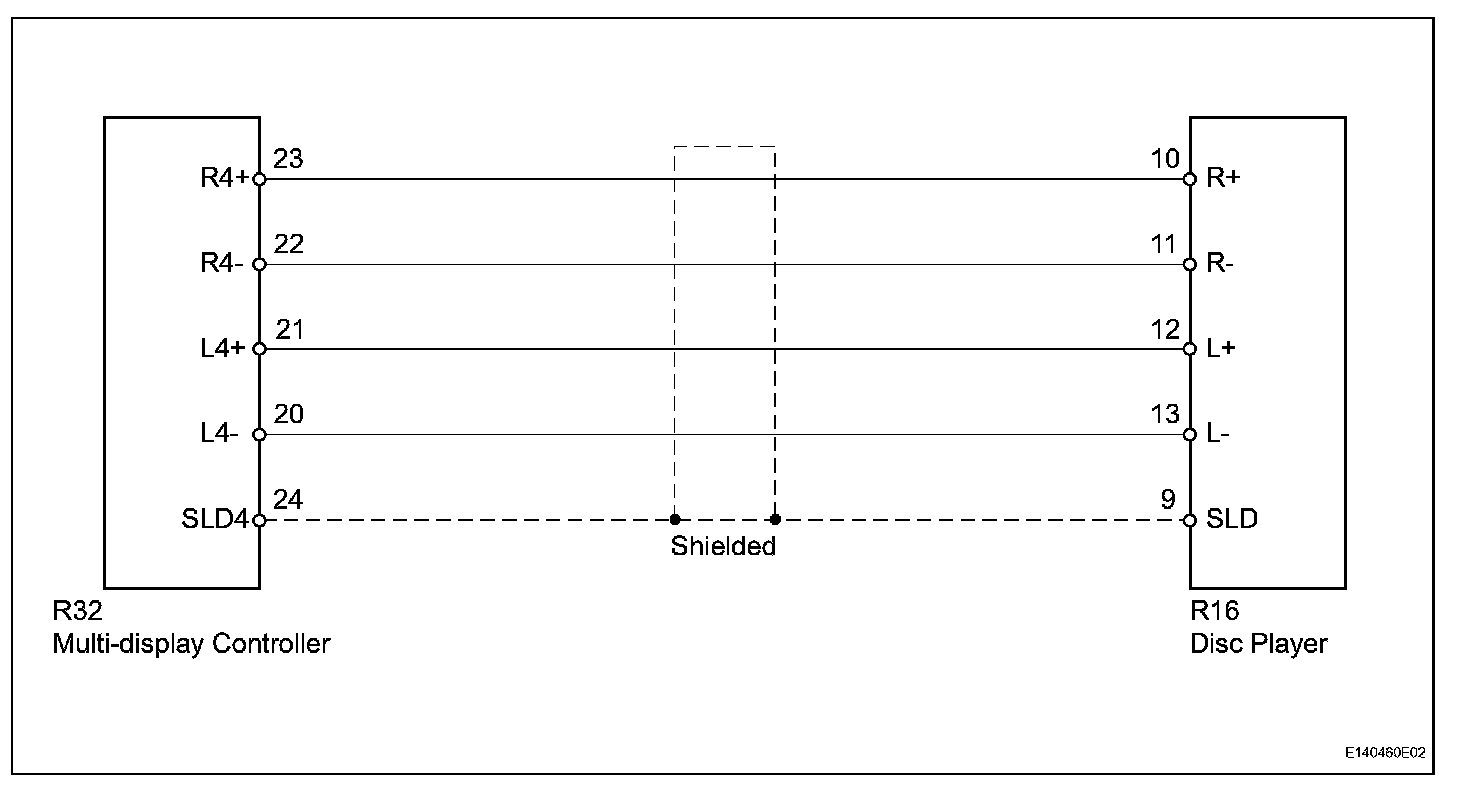

Wiring Diagram:

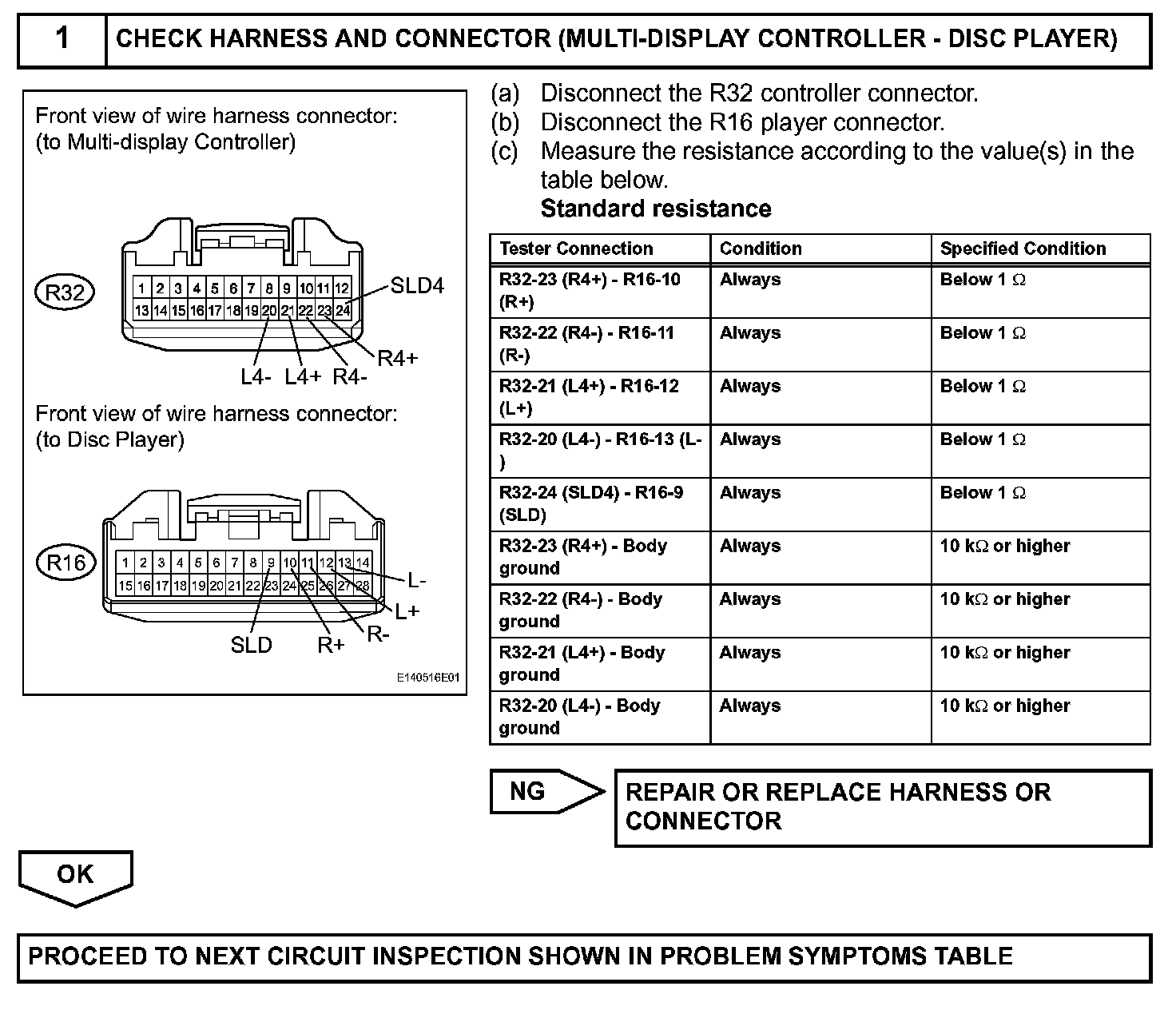

Step 1:
INSPECTION PROCEDURE
